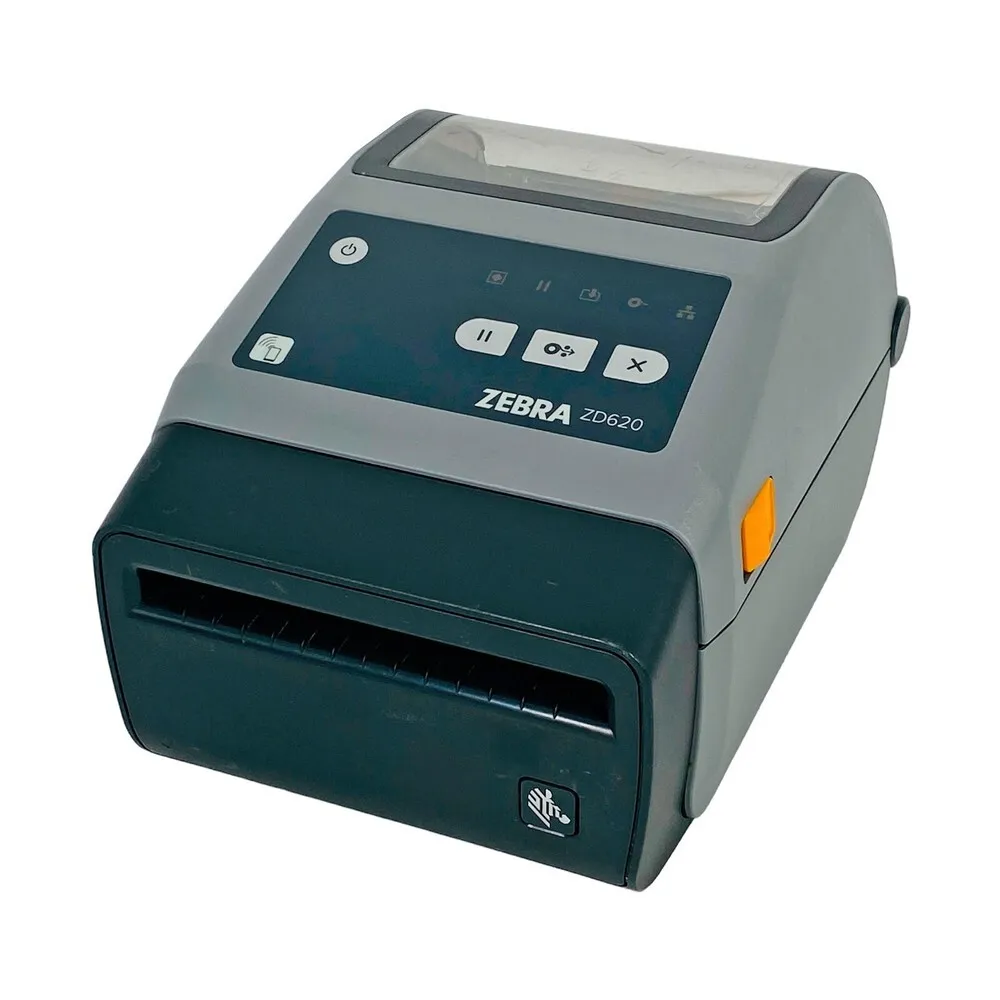

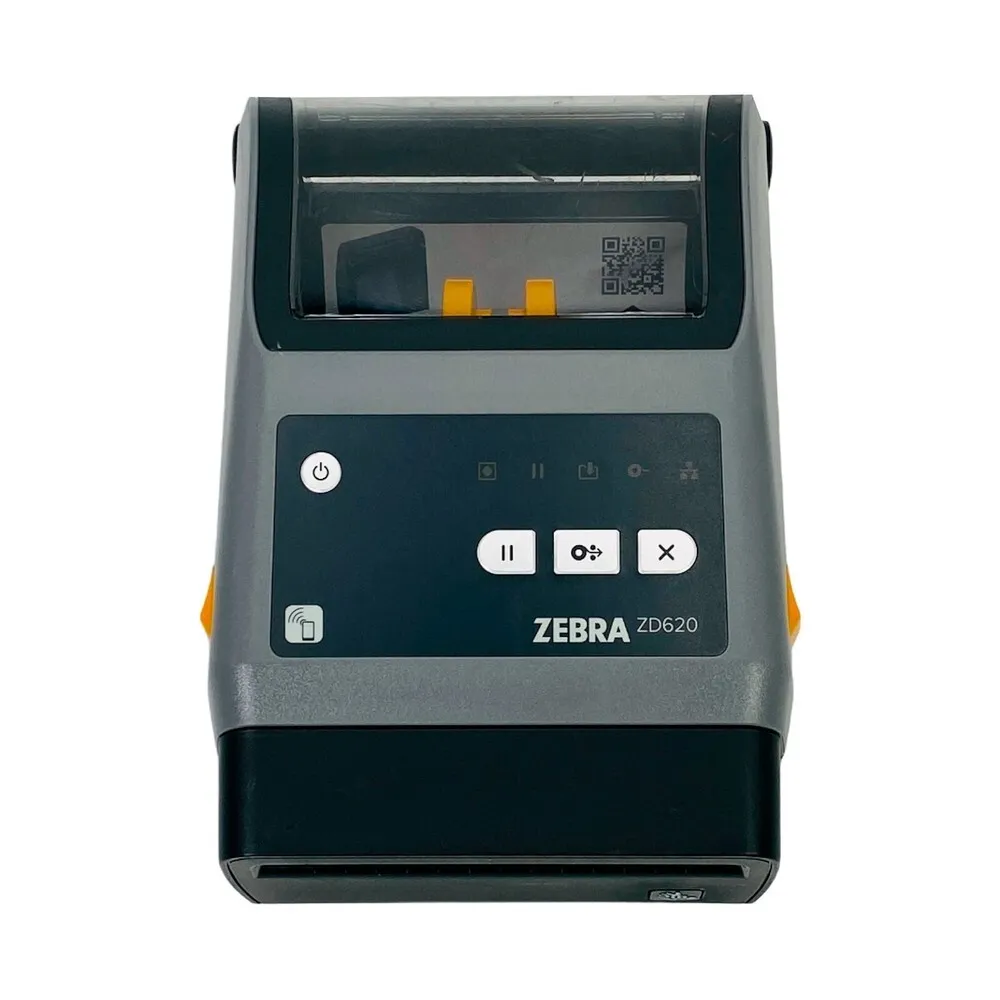

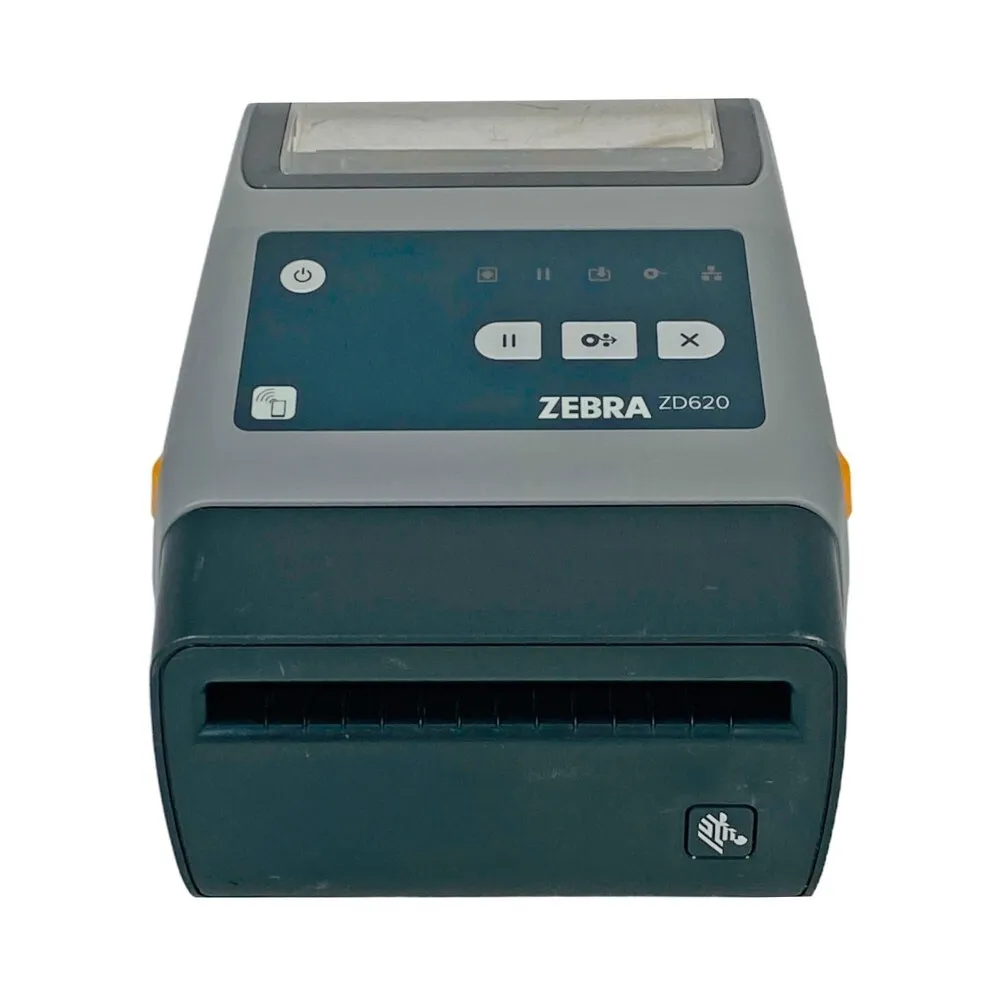

Zebra ZD620
Brand | Zebra 2017 |
Model | ZD62042-D21F00EZ, AC Adapter, ZD620d, Bluetooth |
Released Year | 2017 |
Type | Printers |
Series | Zd |
Status | Active |
Quick view
Overview
The Zebra ZD620 is a high-performance desktop label printer designed for office and industrial environments. It offers fast, reliable thermal printing with resolutions up to 300 dpi, enabling crisp, sharp barcode and text output. The printer supports both direct thermal and thermal transfer printing methods, providing versatility for different labeling needs. It integrates a powerful processor and ample memory for quick data processing and print job handling. Connectivity options include USB, Serial, Ethernet, Wi-Fi, and Bluetooth, allowing seamless integration with various systems. The ZD620 features a user-friendly interface with a full-color LCD for easy setup and monitoring.
The printer runs on Link-OS, Zebra’s intelligent printer operating system, which supports cloud connectivity and remote management. The compact design saves space without sacrificing performance or durability. The media handling system supports multiple media widths and types, enhancing flexibility for various applications.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 MB Flash, 256 MB SDRAM |
MPN | ZD62042-D21F00EZ, AC Adapter, ZD620d, Bluetooth |
Supported Paper Size | Max Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZD620 |
Connectivity | USB 2.0, Serial, Ethernet (optional), Wi-Fi (optional), Bluetooth (optional) |
Features | Networkable, Portable |
Black Print Speed | 8 ips |
Product Line | Zebra ZD |
Print Technology | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Print Width | Up to 4.09 inches (104 mm) |
Print Speed | Up to 8 inches per second (203 mm/sec) at 203 dpi |
Processor | Dual-core ARM A7 800 MHz |
Display | Color LCD with touch interface |
Power Supply | AC Adapter, auto-ranging 100-240 VAC |
Dimensions (WxDxH) | 8.3 x 7.6 x 6 inches (211 x 193 x 152 mm) |
Weight | About 4.6 lbs (2.1 kg) |
Operating Temperature | 41°F to 104°F (5°C to 40°C) |
Media Types Supported | Die-cut labels, continuous labels, tags, wristbands |
Operating System Support | Windows, Android, iOS, Mac OS X |
Printer Language | ZPL, EPL |
Link-OS Support | Yes |
Images
Key Advantages
The ZD620 provides outstanding print speed and high resolution for professional label quality. Its broad range of connectivity options, including Bluetooth and Wi-Fi, enables easy wireless printing. The Link-OS environment enhances device management, diagnostics, and updates, reducing downtime. The printer’s modular design supports field-installable connectivity options to adapt to changing business needs. It also has a user-friendly interface with intuitive controls and a bright color display. The rugged construction ensures reliability in demanding office and industrial environments.
Limitations
The ZD620 may be relatively expensive compared to entry-level desktop printers. Its full functionality and advanced features might require technical knowledge for setup and maintenance. The printer size and weight could be a constraint in very limited space environments. Some specialized media types may need specific accessories or supplies not included by default. Compatibility with non-Zebra software and applications occasionally requires additional driver installation or configuration. While the Link-OS platform offers extended capabilities, it depends on network reliability for some remote functions.
FAQ
What print technologies does the Zebra ZD620 support?
The Zebra ZD620 supports both direct thermal and thermal transfer printing methods.
What connectivity options are available with the ZD620?
Connectivity options include USB, Serial, Ethernet, Wi-Fi, and Bluetooth.
What is the maximum print resolution of the ZD620?
The printer offers a maximum resolution of 300 dpi for crisp label printing.
Is the Zebra ZD620 suitable for industrial environments?
Yes, it is designed to withstand demanding office and light industrial environments.
Does the ZD620 support remote device management?
Yes, it runs Link-OS, which supports cloud connectivity and remote management.
Can the ZD620 be upgraded with additional connectivity modules?
Yes, it has a modular design allowing field-installable connectivity upgrades.
What types of media can the ZD620 handle?
It supports various label widths and media types for versatile labeling needs.
