Zebra ZD620
Brand | Zebra 2017 |
Model | AC Adapter, ZD620d, ZD62042-D01F00EZ |
Released Year | 2017 |
Type | Printers |
Series | Zd |
Status | Active |
Quick view
Overview

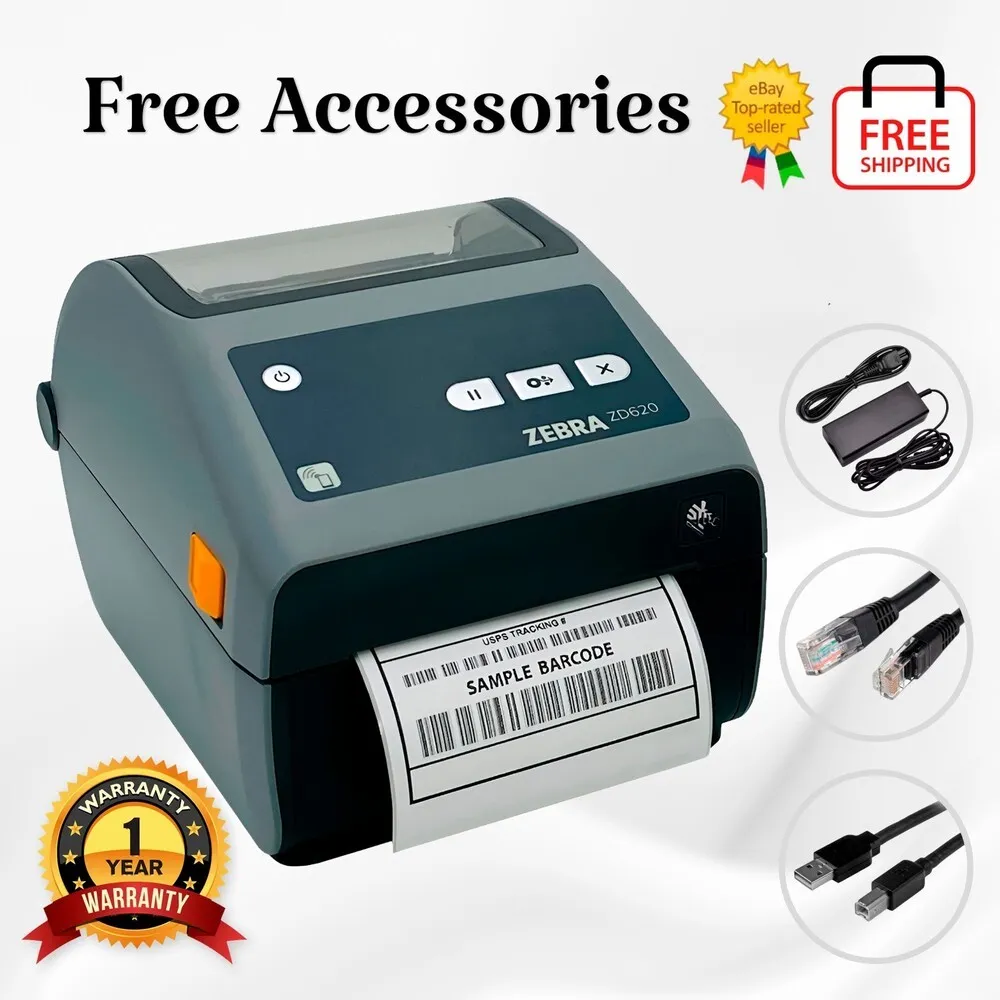

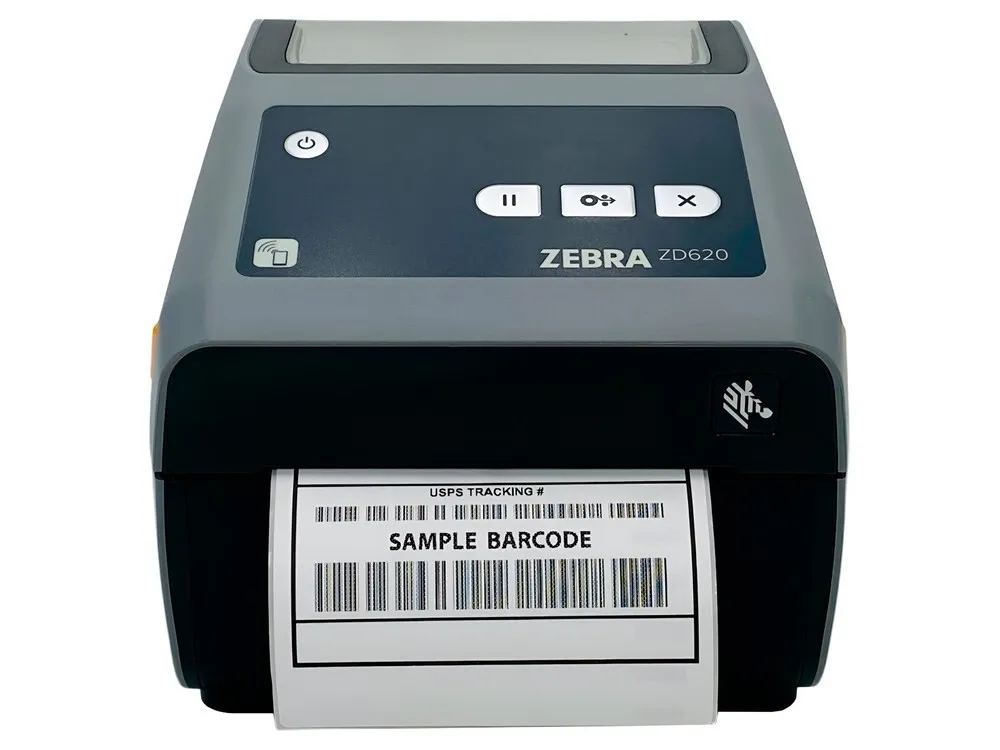

The Zebra ZD620 is a high-performance thermal printer designed for office and industrial applications, offering both direct thermal and thermal transfer printing technology.
It supports print resolutions up to 300 dpi, providing sharp label and barcode printing suitable for diverse labeling needs.
The printer incorporates a fast 2.0 GHz dual-core processor and 512 MB SDRAM memory to efficiently handle complex label formats and high-volume print jobs.
Connectivity options include USB, Ethernet, optional Wi-Fi and Bluetooth, allowing flexible integration into various IT environments.
The ZD620 includes a color LCD interface making device management intuitive while supporting Link-OS for cloud-based management and remote diagnostics.
The printer supports a label roll maximum outer diameter of 5 inches and various media types enhancing its versatility in office or warehousing settings.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 MB SDRAM and 512 MB Flash |
MPN | AC Adapter, ZD620d, ZD62042-D01F00EZ |
Supported Paper Size | Max Label Width: 4.65" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZD620 |
Connectivity | USB 2.0, Ethernet; optional Wi-Fi 802.11ac and Bluetooth 4.1 |
Features | Networkable, Portable |
Black Print Speed | 8 ips |
Product Line | Zebra ZD |
Printer Type | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) |
Print Speed | Up to 8 inches per second (203 dpi), up to 6 inches per second (300 dpi) |
Processor | 2.0 GHz dual-core |
Display | Color LCD touch screen |
Max Media Width | 4.09 inches (104 mm) |
Max Print Width | 4.09 inches (104 mm) |
Max Roll Diameter | 5 inches (127 mm) |
Label Sensor | Adjustable gap, black mark, and continuous |
Software Compatibility | Zebra Print DNA, Link-OS, ZebraDesigner, Zebra Setup Utilities |
Dimensions | 8.7 in (W) x 7.0 in (D) x 6.5 in (H) approx. |
Weight | Approx. 4.3 lbs (1.95 kg) |

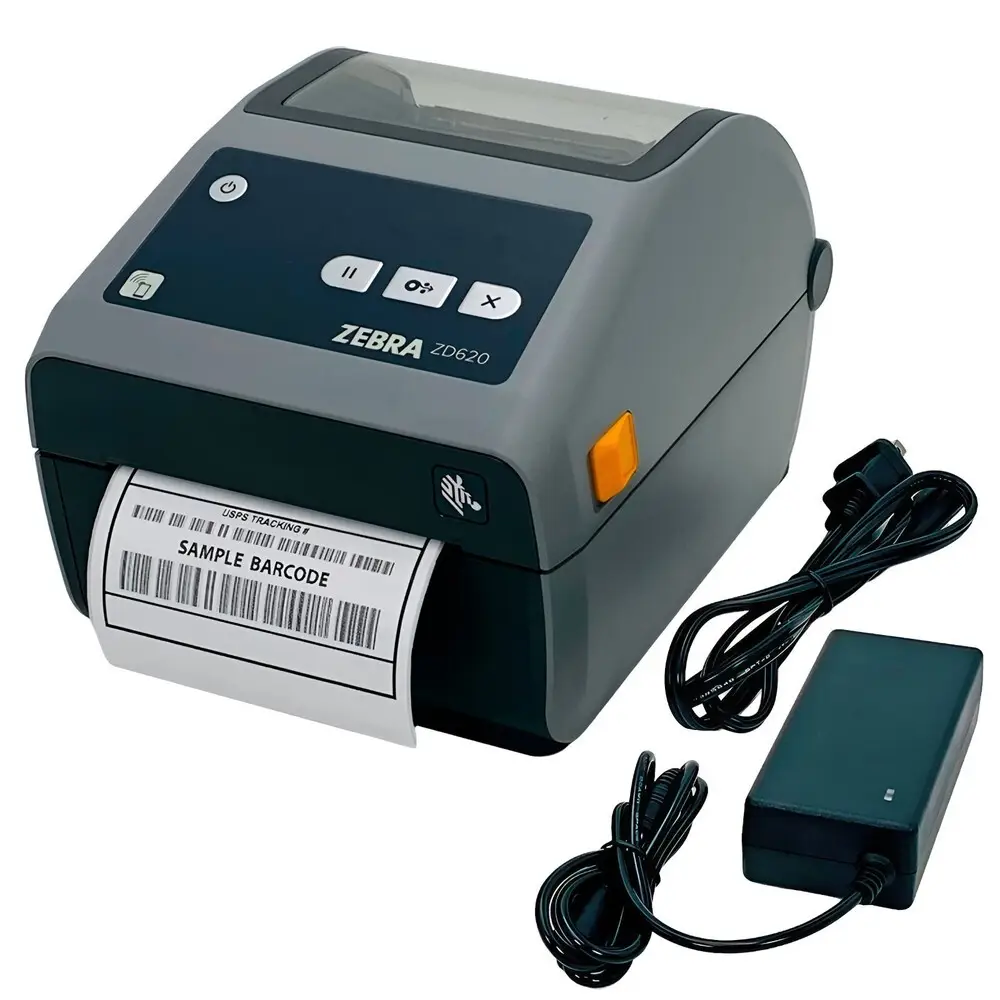

Power Supply | External AC adapter, 100-240V input |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Images
Key Advantages
The ZD620 provides high print speed up to 8 inches per second, increasing productivity for demanding printing tasks.
Its advanced media handling supports a wide range of substrates including continuous, die-cut, black mark, and tag stock media.
The device benefits from an easy-to-navigate touchscreen, helping reduce operational errors and training time.
Robust construction and a flexible design allow the printer to suit both desktop and light industrial environments.
Integration with Zebra’s Print DNA software suite streamlines printer management, updates, and security.
Its modular design supports multiple connectivity options, making it adaptable to evolving network requirements.
Limitations
The cost of the ZD620 printer is higher compared to some other desktop label printers, which might limit its appeal for very small-scale operations.
Replacement of certain components like printheads requires careful handling, potentially increasing maintenance complexity.
The printer’s footprint is relatively larger than some compact desktop models, which could be a limitation in highly space-constrained workspaces.
While it supports wireless options, these are typically optional add-ons rather than standard features, increasing total investment.
The device might not be ideal for extremely high-volume industrial environments requiring ruggedized or heavy-duty printers.
Its dependency on Zebra’s proprietary software for some advanced features can be considered restrictive for those seeking open-source or more customizable platforms.
FAQ
What print resolutions does the Zebra ZD620 support?
The Zebra ZD620 supports print resolutions of 203 dpi and 300 dpi, providing flexibility for detailed label printing.
Which connectivity options are available for the ZD620?
Connectivity options include USB, Ethernet, with optional Wi-Fi and Bluetooth modules to accommodate various networking setups.
What types of media can the ZD620 printer handle?
It can print on continuous, die-cut, black mark, and tag stock media in both direct thermal and thermal transfer modes.
Is the ZD620 suitable for industrial environments?
Yes, the ZD620 has a robust design suitable for light industrial applications, but it is not intended for very high-volume heavy-duty industrial use.
Does the ZD620 support remote printer management?
Yes, it supports Zebra’s Link-OS platform, enabling cloud-based device management and remote diagnostics.
Can the printhead of the ZD620 be replaced by users?
Yes, printhead replacement is possible but requires careful handling and expertise to maintain print quality.
What is the maximum label roll size supported?
The ZD620 supports label rolls with a maximum outer diameter of 5 inches (127 mm).
