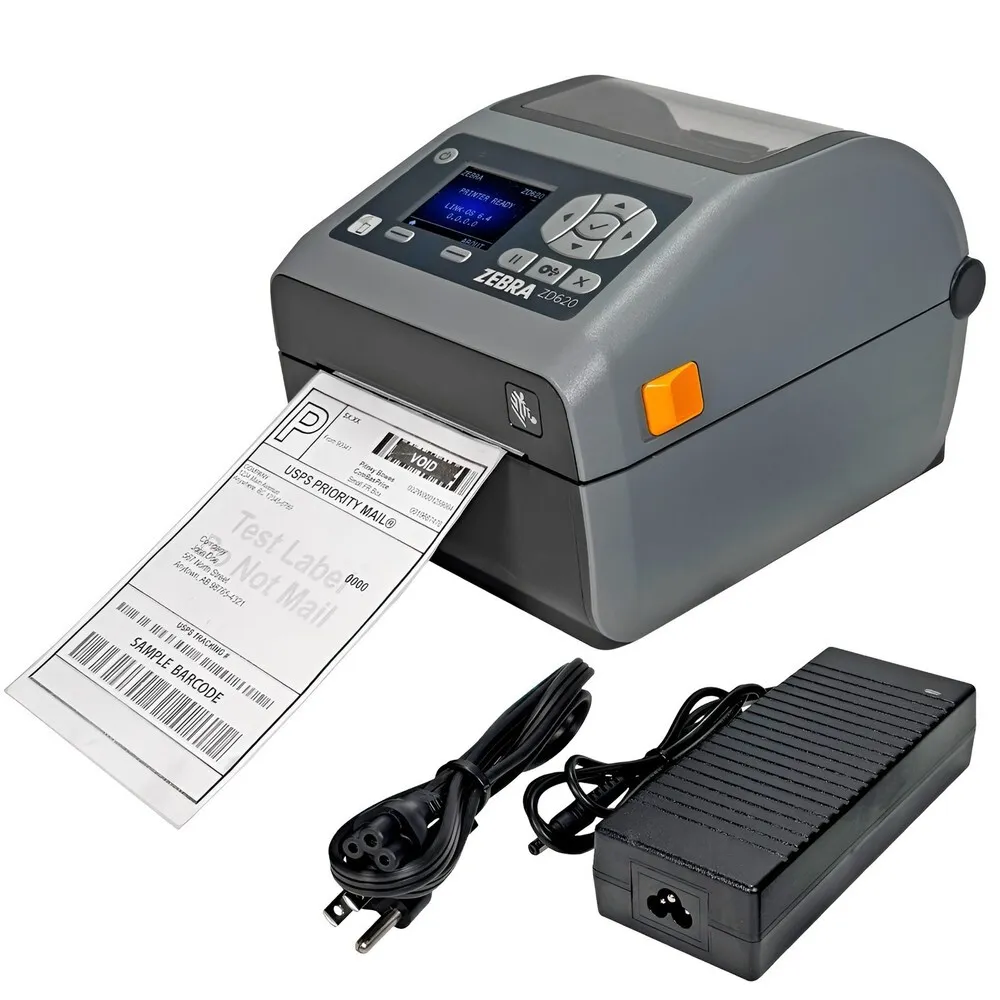

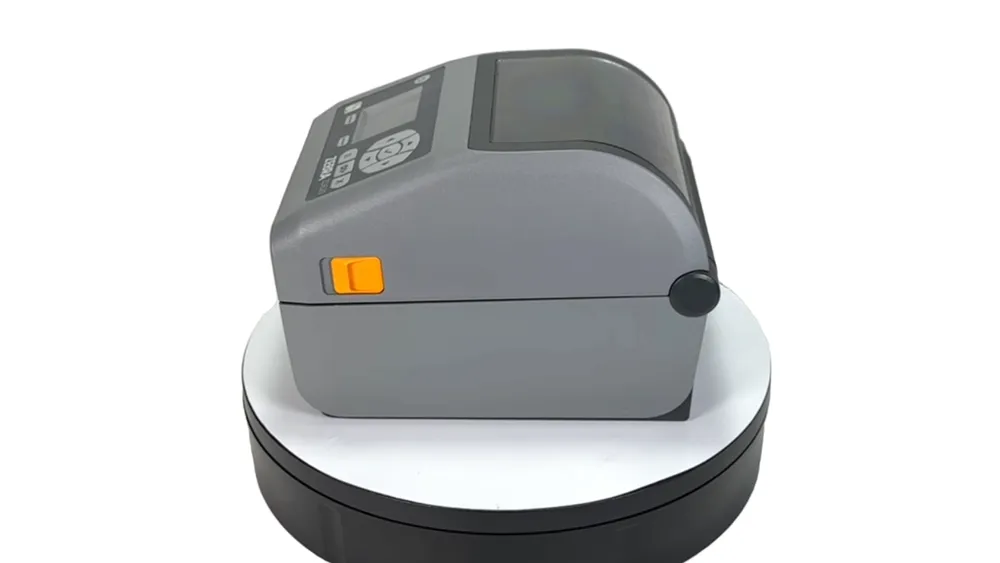

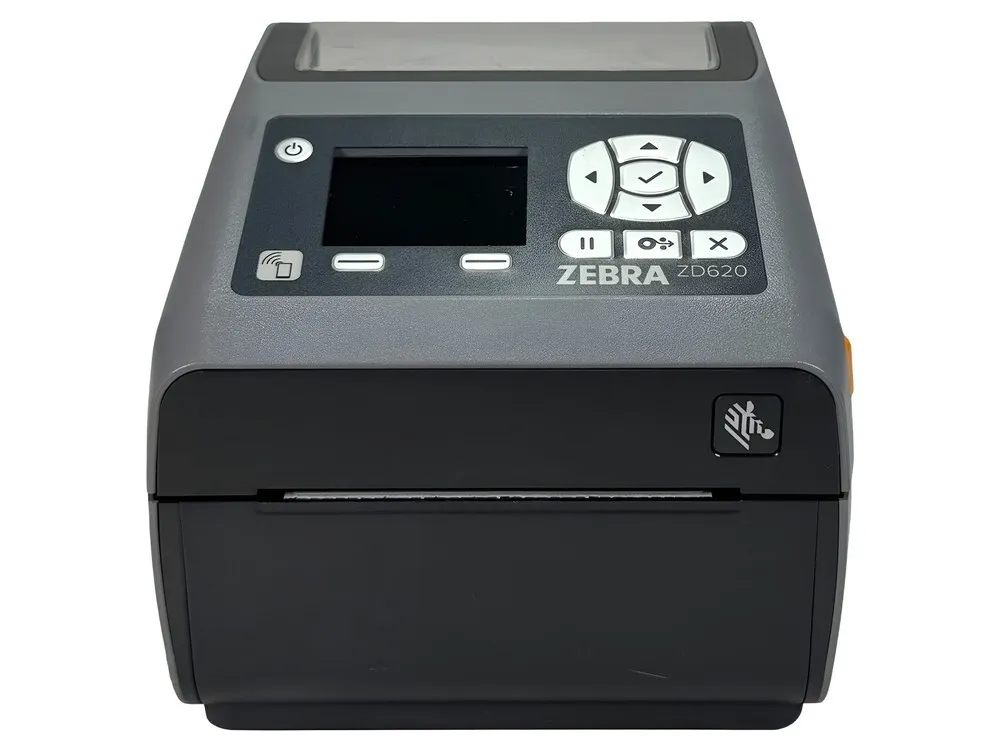

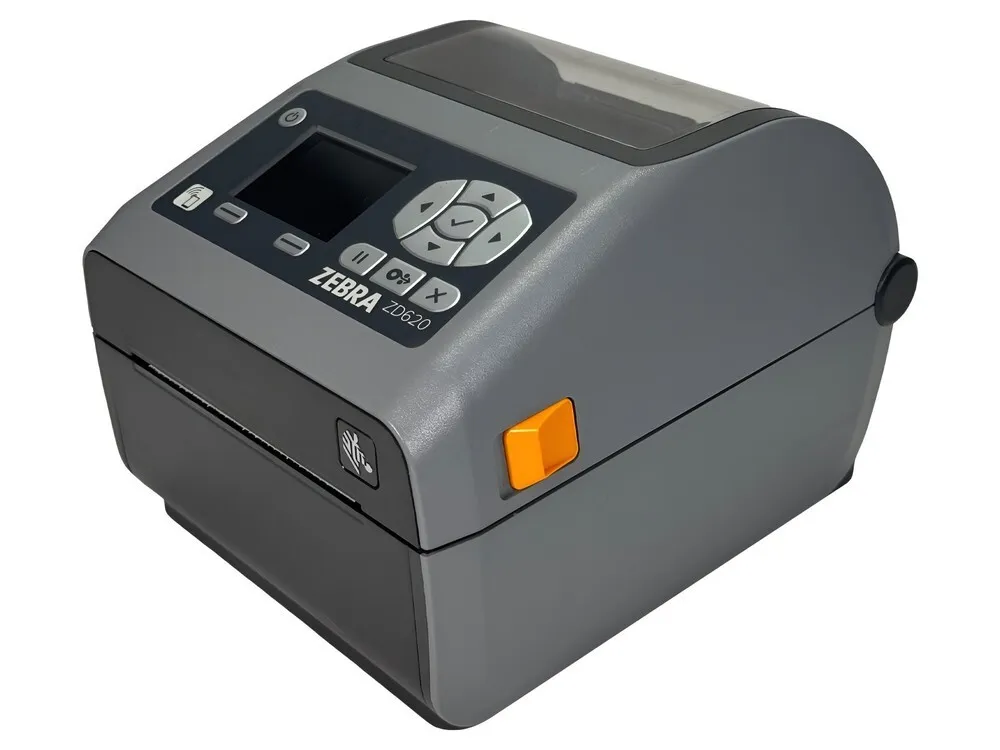

Zebra ZD620
| Brand | Zebra 2016 |
| Model | AC Adapter, Barcode, Ethernet, Wireless Network, Wi-Fi, ZD62142-D01L0640, ZD620d |
| Released Year | 2016 |
| Type | Printers |
| Series | Zd |
| Status | Active |
Quick view
Overview
The Zebra ZD620 series offers advanced thermal printing technology optimized for barcode, label, and receipt printing in office and industrial environments.
It features a fast 203 dpi or optional 300 dpi print resolution with speeds up to 8 inches per second (ips), delivering sharp and high-quality output.
The printer supports multiple connectivity options including USB, Ethernet, Wi-Fi, and wireless network to ensure flexible integration into existing systems.
Equipped with a 512 MB flash memory and 256 MB SDRAM, the ZD620 handles complex label formats and graphics with reliable performance.
Its Link-OS environment allows easy device management and remote configuration via Zebra's powerful software tools.
The printer is compatible with a wide range of media types, enhancing versatility for various printing applications.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 512 MB Flash, 256 MB SDRAM |
| MPN | AC Adapter, Barcode, Ethernet, Wireless Network, Wi-Fi, ZD62142-D01L0640, ZD620d |
| Supported Paper Size | Max Label Width: 4.65" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | ZD620 |
| Connectivity | USB 2.0, USB Host, Ethernet, optional Wi-Fi (802.11ac), Bluetooth 4.1 |
| Features | Networkable, Portable, LCD |
| Black Print Speed | 8 ips |
| Product Line | Zebra ZD |
| UPC | 880229004085 |
| Printer Type | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) standard, 300 dpi optional |
| Print Speed | Up to 8 ips (203 dpi), up to 6 ips (300 dpi) |
| Processor | 32-bit ARM Cortex-A9 |
| Operating System Compatibility | Windows, Mac, Linux |
| Media Width | 0.585 inches to 4.65 inches (15 mm to 118 mm) |
| Max Print Width | 4.09 inches (104 mm) |
| Max Print Length | 39 inches (991 mm) |

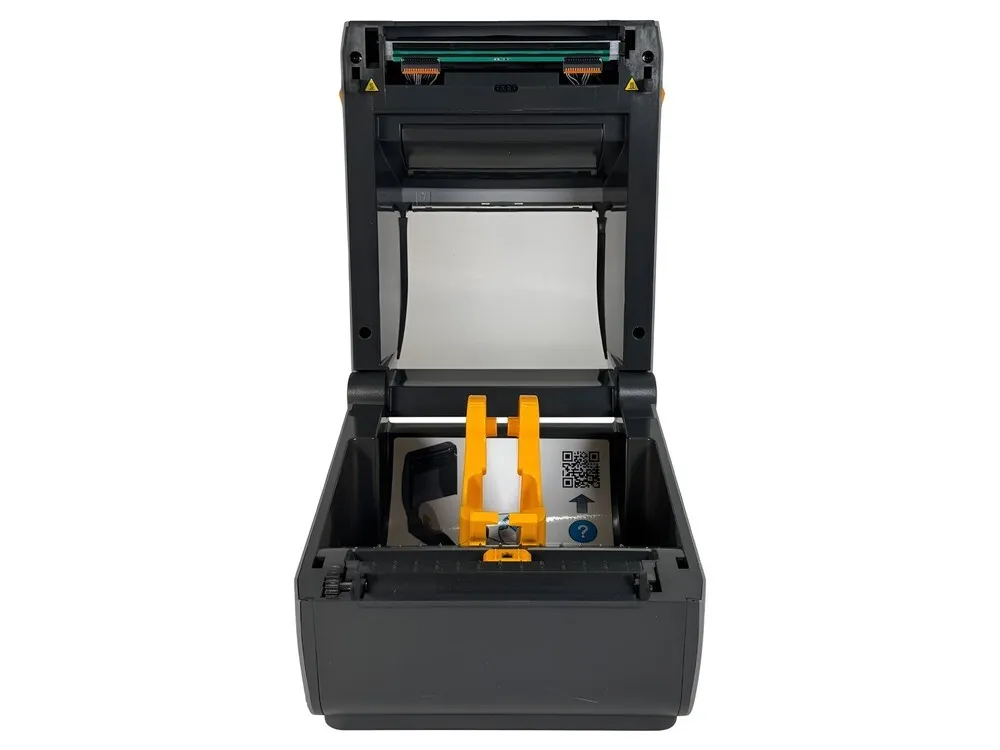

| Label Roll Size | Up to 5 inches OD (127 mm), 0.5 inch core |

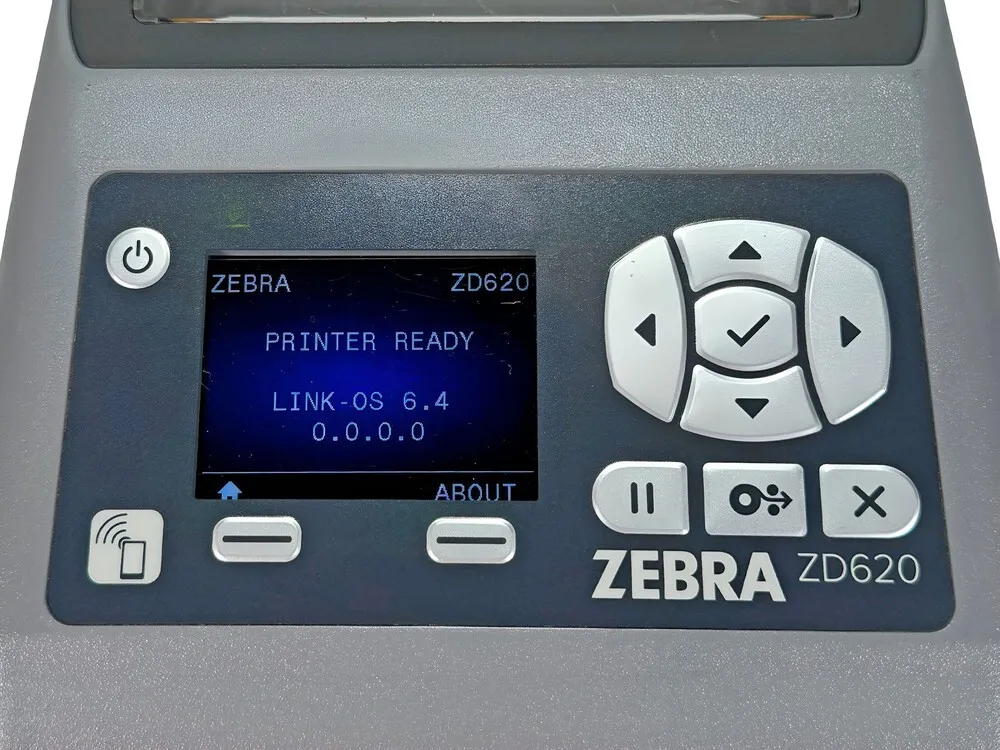

| Display | Full-color LCD with intuitive interface |
| Dimensions | 8.7 in H x 7.0 in W x 10.4 in D (220 mm x 178 mm x 264 mm) |
| Weight | Approx. 6.7 lbs (3.0 kg) |
| Power Supply | AC Adapter, 100-240V, 50-60 Hz |
| Supported Fonts | Bitmap and scalable fonts including Unicode |
| Environmental | Operating temperature: 40°F to 105°F (5°C to 40°C) |
Images
Key Advantages
The ZD620 offers exceptional print speed and precision, improving operational efficiency.
Its multiple connectivity options simplify network integration including wireless capabilities for mobile environments.
The Link-OS platform provides seamless device management and remote troubleshooting.
Robust memory capacity supports complex label designs and faster processing.
The compact design saves valuable workspace in office or industrial settings.
It supports a broad range of media formats to accommodate diverse application needs.
Limitations
The printer may require occasional firmware updates to maintain optimal compatibility and performance.
Wireless setup can be complex in environments with strict security protocols.
Higher print resolutions (300 dpi) are an optional feature and may increase device cost.
Its compatibility is best with Zebra proprietary media and supplies to ensure quality results.
Initial configuration and learning curve might be challenging for users unfamiliar with Link-OS software.
Not designed for very high-volume industrial printing compared to heavy-duty Zebra models.
FAQ
What print resolutions does the Zebra ZD620 support?
The Zebra ZD620 supports 203 dpi standard and optionally 300 dpi for higher quality prints.
What connectivity options are available with the ZD620?
Connectivity options include USB, Ethernet, Wi-Fi, and wireless network capabilities.
Is the Zebra ZD620 compatible with Zebra Link-OS software?
Yes, the ZD620 operates on Zebra's Link-OS platform for easy management and configuration.
What print speed can be expected from this printer?
The ZD620 can print at speeds up to 8 inches per second, depending on resolution and print mode.
Can the ZD620 print on various media types?
Yes, it supports a wide range of media formats including labels, tags, and receipts.
Is the ZD620 suitable for industrial high-volume printing?
While robust, the ZD620 is optimized for office and light industrial use, not heavy industrial volumes.
Does the printer come with Wi-Fi capabilities?
Yes, certain models of the ZD620 include optional Wi-Fi and wireless network modules.
