Zebra ZD500R
Brand | Zebra 2017 |
Model | Ethernet, ZD50042-T01200FZ, Network, Bluetooth, 4 x 6 |
Released Year | 2017 |
Type | Printers |
Series | Zd |
Status | Active |
Quick view
Overview

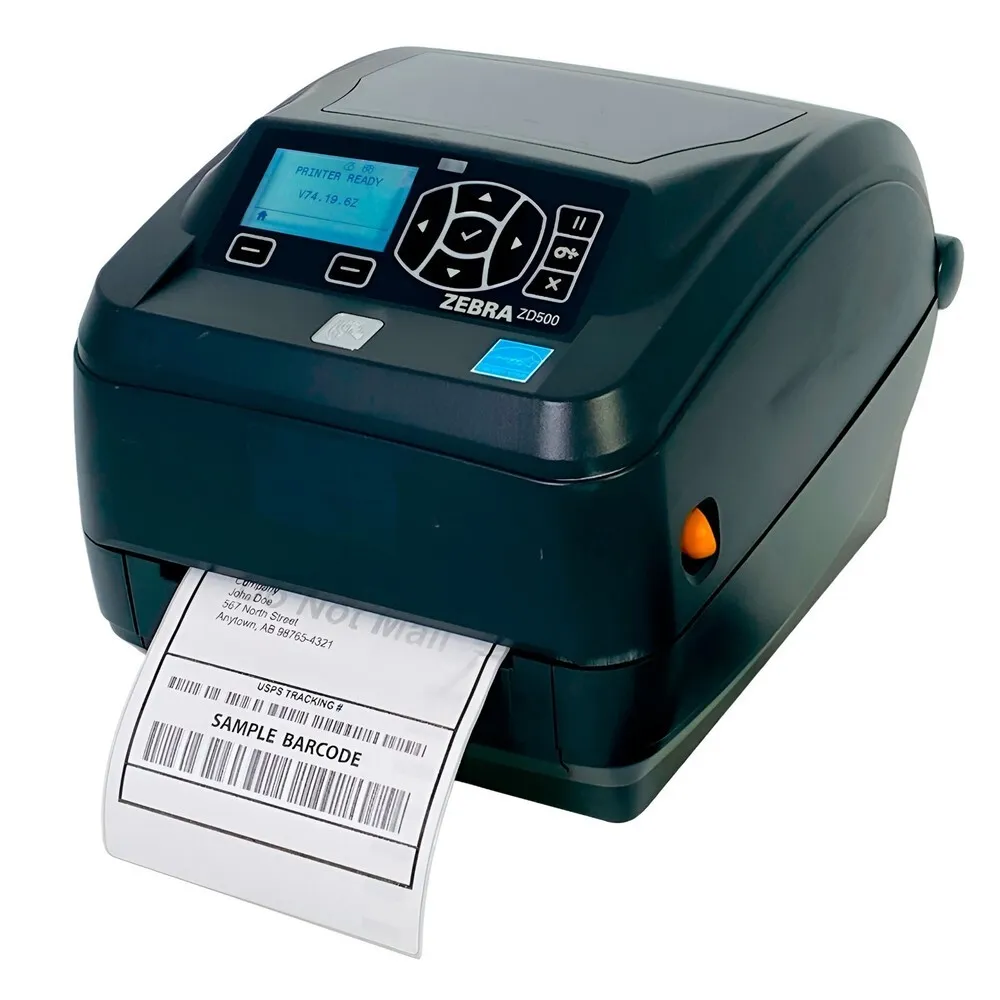

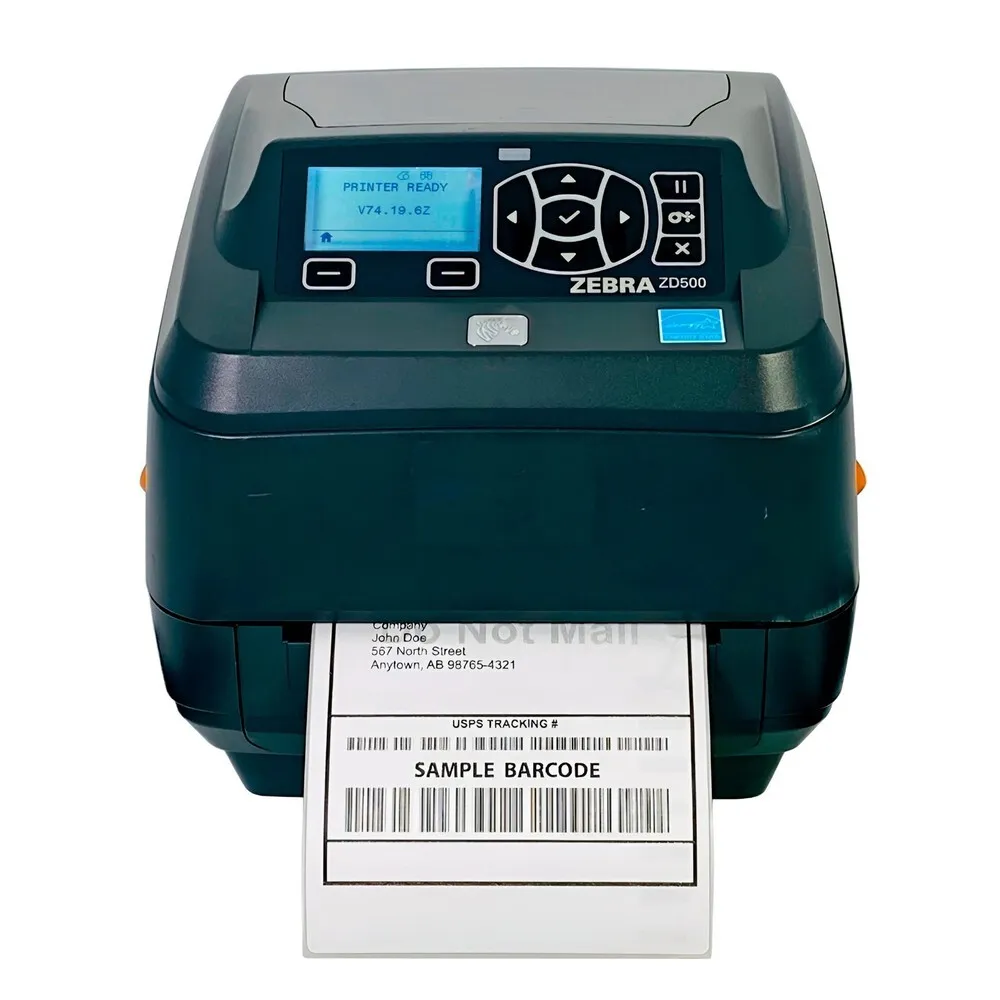

The Zebra ZD500R is a high-performance industrial label printer designed primarily for office and retail environments requiring advanced connectivity. It supports Ethernet, network, and Bluetooth interfaces, enabling flexible integration into various IT infrastructures. The printer features a 4 x 6 inch print size, suitable for a range of labeling applications including shipping labels, tags, and barcode labels. Utilizing direct thermal printing technology, the ZD500R ensures fast and reliable output without the need for ink or toner. Equipped with robust firmware and Zebra’s Link-OS platform, it provides enhanced device management and configuration options. Its compact design aids in efficient workspace utilization while maintaining durability for industrial usage.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 MB Flash, 256 MB SDRAM |
MPN | Ethernet, ZD50042-T01200FZ, Network, Bluetooth, 4 x 6 |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Supported Paper Size | Max Label Width: 4.25" |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | ZD500R |
Connectivity | Ethernet, Network (wired), Bluetooth 4.0 |
Features | Networkable, Portable, LCD |
Black Print Speed | 6 ips |
Product Line | Zebra ZD |
UPC | 783555016671 |
Printer Type | Direct Thermal Label Printer |
Print Width | 4 inches (up to 4 x 6 inches media) |
Print Resolution | 203 dpi |
Print Speed | Up to 6 inches per second |
Processor | 32-bit ARM Cortex |
Operating System | Zebra Link-OS |
Supported Languages | ZPL, EPL |
Media Types | Roll-fed labels, tags |
Media Width | 0.75 to 4.65 inches |
Media Length | 0.25 to 39 inches |
Media Sensors | Transmissive and reflective sensors |
Dimensions | 9.1 x 7.4 x 7.5 inches (LxWxH) |
Weight | 5.5 lbs |
Power Supply | External 100-240VAC, 50-60Hz |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Humidity | 10-90% non-condensing |
Regulatory | FCC, CE, UL certified |
Images
Key Advantages
The Zebra ZD500R offers multiple connectivity options including Ethernet, network, and Bluetooth, facilitating versatile integration. Its 4 x 6 inch print dimension supports standard and common label sizes for diverse applications. The printer operates on direct thermal technology which eliminates ink or toner expenses and maintenance. Zebra’s Link-OS environment enhances remote printer management and smooth deployment. The device features a robust build quality suitable for sustained industrial operations. Compact footprint allows it to fit easily into constrained office or factory spaces.
Limitations
The ZD500R printer uses direct thermal printing which may limit the lifespan of labels when exposed to heat or sunlight, unlike thermal transfer printers. Its print resolution, while sufficient for standard labels, may not support very fine or high-density barcode requirements. The Bluetooth connectivity range can be limited affecting wireless usability in larger environments. The device might require specific Zebra-compatible media for optimal performance, increasing consumable costs. Firmware updates require technical expertise to avoid disruptions in settings. Certain advanced features could be unavailable or restricted depending on firmware version and software integrations.
FAQ
What types of connectivity does the Zebra ZD500R support?
The Zebra ZD500R supports Ethernet, network (wired), and Bluetooth wireless connectivity options.
What is the maximum print size of the ZD500R printer?
The printer supports a maximum print size of 4 x 6 inches.
Does the ZD500R use ink or toner?
No, the ZD500R uses direct thermal printing technology which does not require ink or toner.
Is the Zebra ZD500R still in production?
As of the latest data, the ZD500R has not been officially discontinued.
Can the ZD500R be managed remotely?
Yes, the ZD500R is compatible with Zebra’s Link-OS platform which allows remote device management.
What types of labels are compatible with this printer?
The printer supports standard direct thermal labels including shipping tags and barcode labels within 4 x 6 inch format.
Are firmware updates for the ZD500R easy to apply?
Firmware updates are available but should be applied by users with technical knowledge to avoid potential configuration issues.
