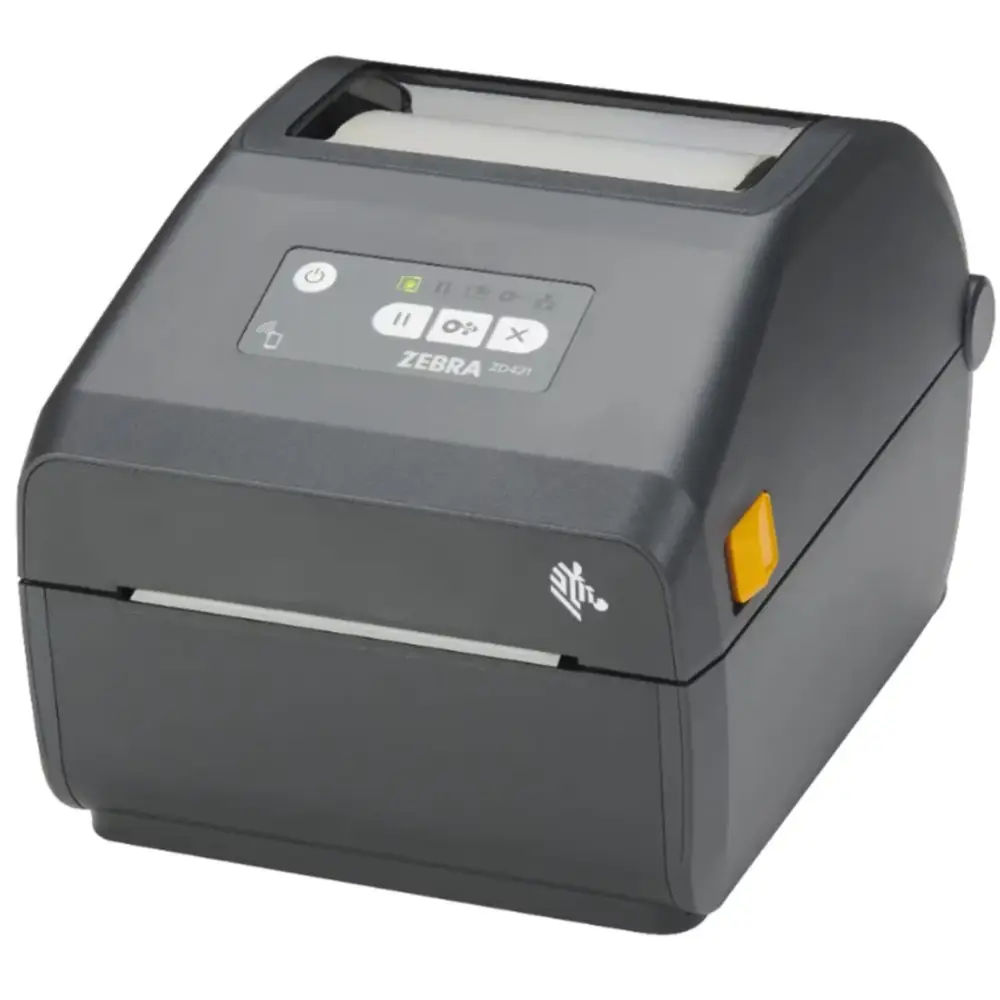

Zebra ZD421 image

Zebra ZD421

Quick information
Brand Zebra 2018
Model ZD4A043-30EM00EZ
Released Year 2018
Type Printers
Series Z
Status Active
Quick view
Full specs Images FAQ

Overview

The Zebra ZD421 is a direct thermal and thermal transfer desktop printer designed for medium-duty label printing needs in office, retail, and healthcare environments.

It supports print speeds up to 6 inches per second and a maximum print width of 4.09 inches (104mm), making it suitable for barcode labels, receipts, and tags.

The printer is equipped with a high-resolution 203 dpi or optional 300 dpi print head for sharp, clear output and supports multiple connectivity options including USB, USB Host, Serial, Bluetooth, and optional Ethernet and Wi-Fi.

The ZD421 utilizes an easy-to-load ribbon cartridge system and has a top-loading design for quick media replacement and minimal downtime.

It supports Zebra’s Link-OS operating system enabling cloud-based printer management and compatible software integration for streamlined workflows.

Its compact design, coupled with a color LCD interface on higher models, provides enhanced usability in tight office or industrial spaces.

Specifications

Supported Scanning Sizes N/A
Grayscale Depth 1 Bit
Color Depth 1 Bit
Output Type Black & White
Memory 256 MB Flash, 128 MB SDRAM
MPN ZD4A043-30EM00EZ
Item Length 7.44 in / 189 mm
Technology Thermal
Item Height 10.5 in / 267 mm
Features USB Only
Item Width 8.0 in / 202 mm
Input Type Monochrome
Supported Paper Size Max Media Width: 4.65" (118 mm), Max Print Width: 4.09" (104 mm)
Type Label Printer
Maximum Resolution 300 x 300 DPI
Image Sensor N/A
Model ZD421
Connectivity USB 2.0, USB Host, Serial (RS-232), Optional Ethernet, Optional Wi-Fi 802.11ac, Optional Bluetooth 4.1
Scanning Resolution N/A
Black Print Speed 4 inches per second
Country/Region of Manufacture China
Product Line Zebra Z
UPC 751492929866
Print Method Direct Thermal or Thermal Transfer
Print Resolution 203 dpi (standard), 300 dpi (optional)
Max Print Width 4.09 inches (104 mm)
Max Print Speed 6 inches per second
Processor 32-bit ARM Microprocessor
Media Types Roll-fed, die-cut, continuous labels; tag stock; receipt paper
Media Width 0.585 inches to 4.25 inches (15 mm to 108 mm)
Media Thickness 0.003 inches to 0.012 inches (0.08 mm to 0.305 mm)
Ribbon Types Wax, wax/resin, resin
Ribbon Width 1.57 inches to 4.33 inches (40 mm to 110 mm)
Display LCD with backlight (depending on model)
Dimensions 7.4 x 8.7 x 6.4 inches (188 x 221 x 163 mm)
Weight 3.6 lbs (1.63 kg)
Operating Temperature 40°F to 105°F (4.4°C to 40.5°C)
Power Supply External universal switching power supply (100–240 VAC, 50–60 Hz)

Key Advantages

The ZD421 offers a fast print speed of up to 6 ips, enhancing productivity for medium volume printing.

Its versatility in connectivity options including USB, Ethernet, Wi-Fi, and Bluetooth allows seamless integration in various environments.

Easy media loading with ribbon cartridge reduces downtime and simplifies maintenance.

Compatibility with Zebra’s Link-OS offers powerful remote management and device monitoring capabilities.

Compact and sleek design fits well in desktop or counter spaces without sacrificing performance.

High print resolution option (300 dpi) delivers crisp text and graphics for professional label printing.

Limitations

The ZD421 is designed primarily for medium-duty applications, so it may not meet extremely high-volume industrial printing needs.

Its maximum media width limits label sizes to 4.25 inches, restricting usage for wider label formats.

Some connectivity options, such as Wi-Fi and Ethernet, are available only as optional upgrades, which may increase overall cost.

It does not have the robustness or durability features required for harsh industrial environments.

The standard models come with a 203 dpi print head; upgrading to 300 dpi is optional and may add to cost.

No auto-cutter or peel-off options standardly included; may require additional accessories for such functions.
