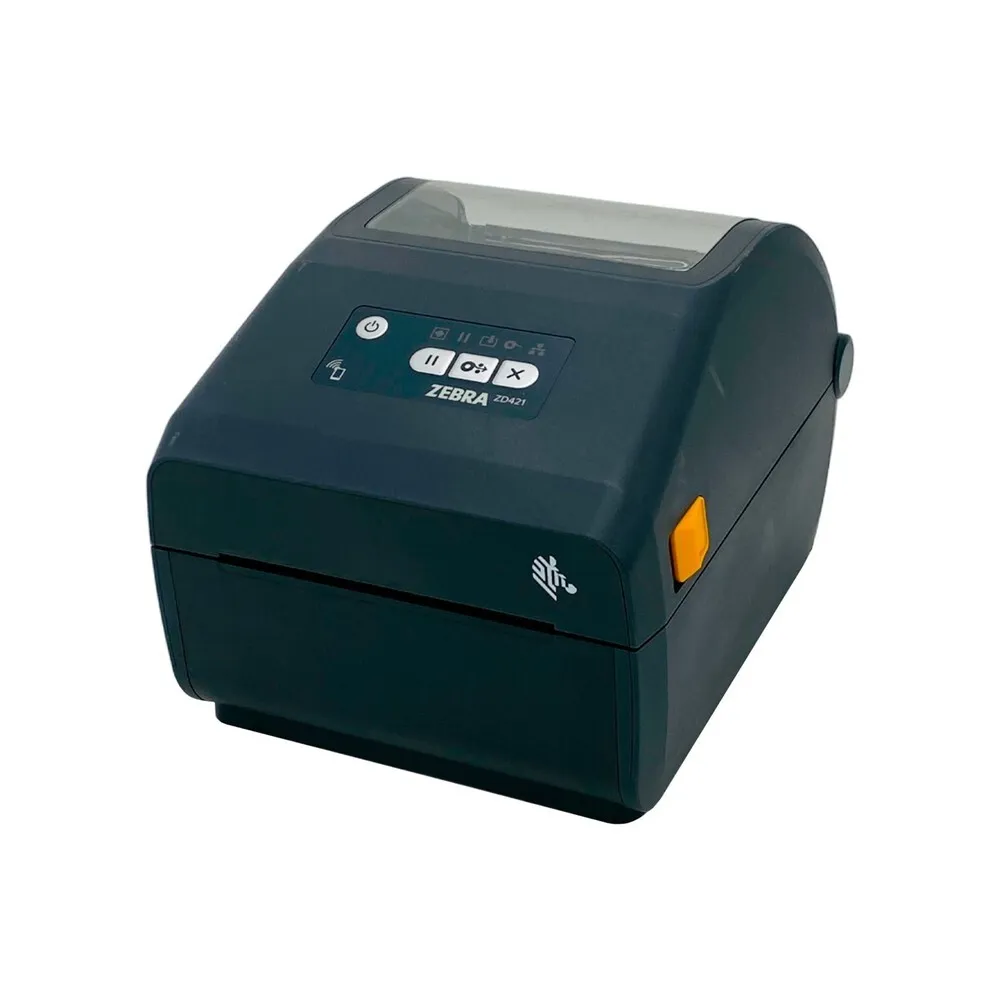

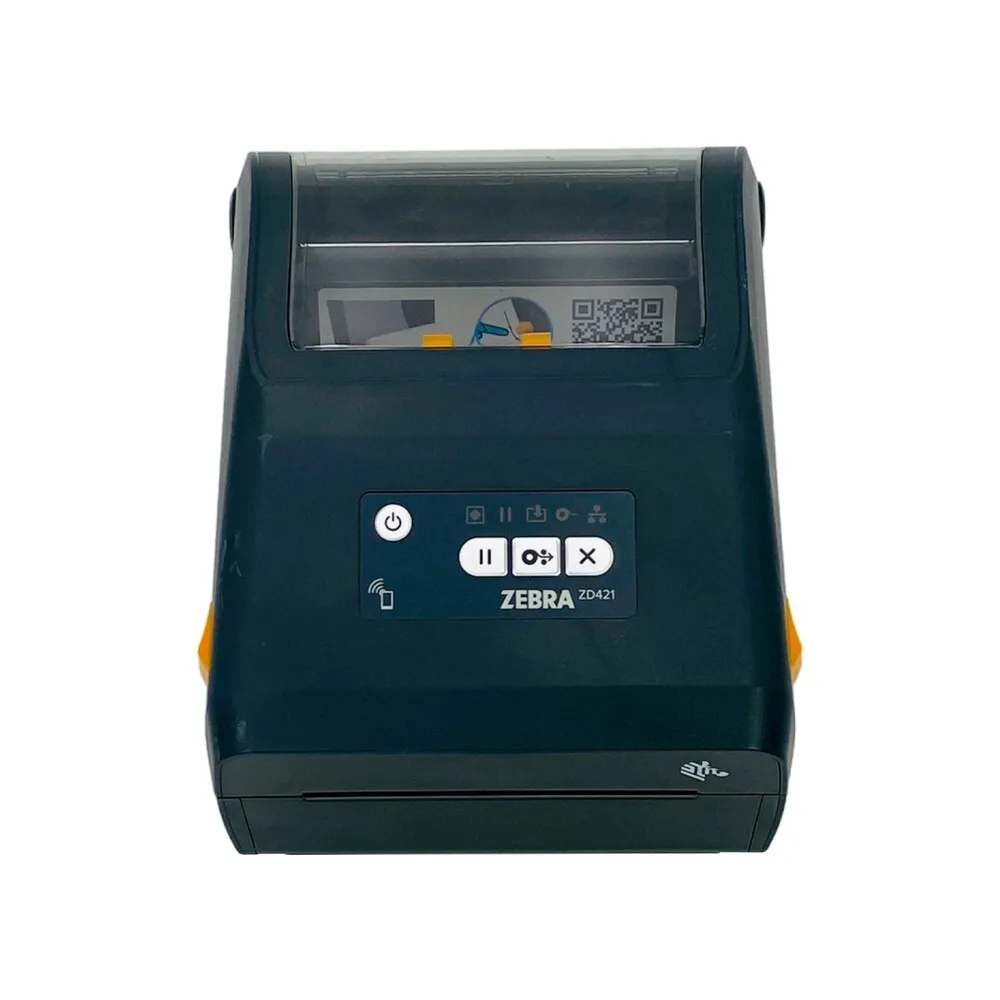

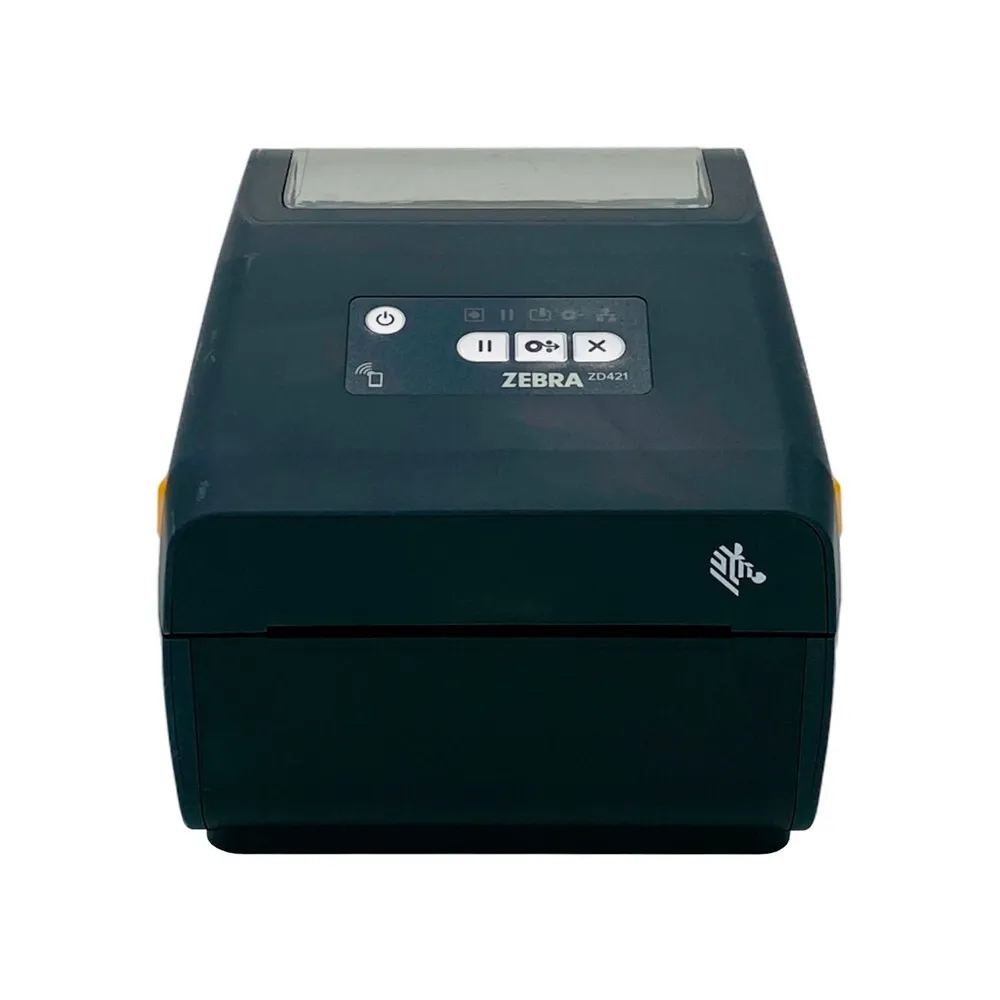

Zebra ZD421 image

Zebra ZD421

Quick information
Brand Zebra 2016

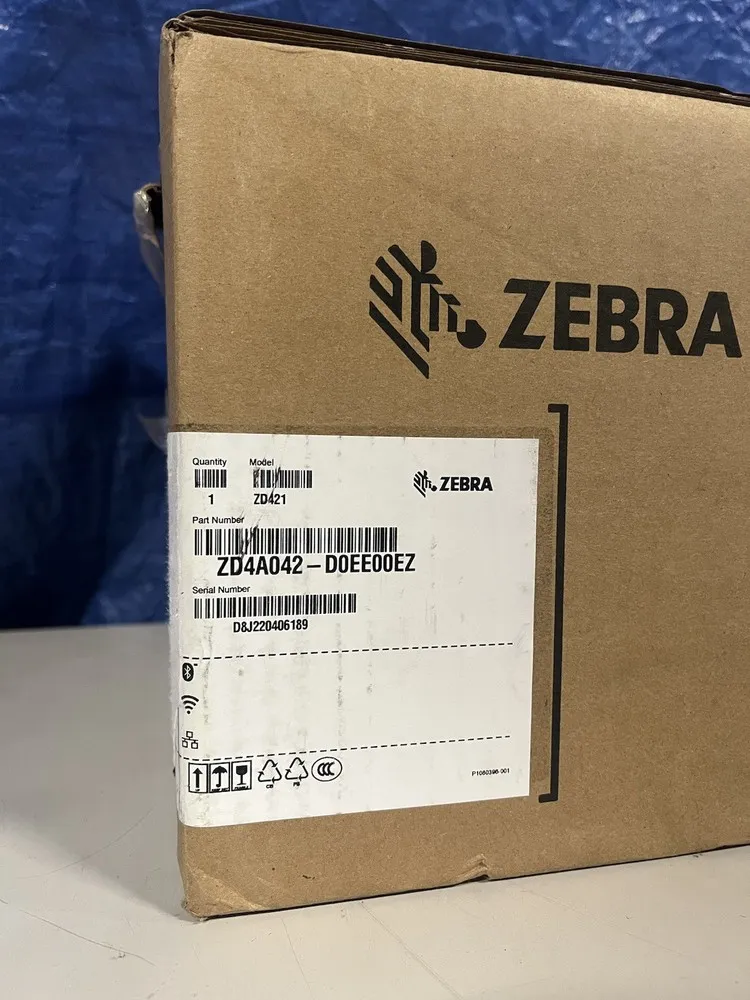

Model Network, AC Adapter, ZD4A042-D01E00EZ
Released Year 2016
Type Printers
Series Zd
Status Active
Quick view

Overview

The Zebra ZD421 is a thermal label printer designed for office and industrial environments. It operates on direct thermal and thermal transfer printing technology, supporting print widths up to 4.09 inches (104 mm). The device offers network connectivity, including Ethernet for seamless integration in wired environments. It features a fast print speed of up to 6 inches per second, powered by a 32-bit ARM processor ensuring high-efficiency throughput. The printer supports various media types including labels, tags, and receipts, accommodating roll and fan-fold stock. The compact design includes an optional AC adapter for flexible power use and easy deployment in diverse office setups.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 256 MB Flash, 128 MB SDRAM
MPN Network, AC Adapter, ZD4A042-D01E00EZ
Supported Paper Size Max Label Width: 4.65"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZD421

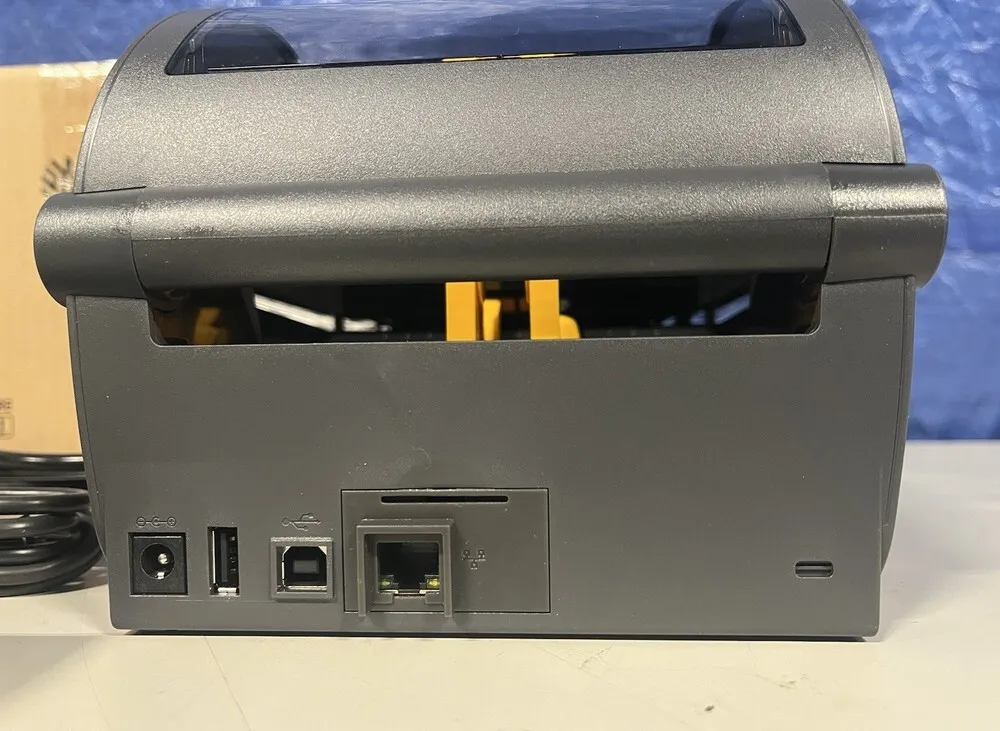

Connectivity Ethernet 10/100, USB 2.0, USB Host
Features Networkable, Portable
Black Print Speed 6 ips
Product Line Zebra ZD
Printer Type Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 4.09 inches (104 mm)
Maximum Print Speed 6 inches per second (152 mm/s)
Processor 32-bit ARM Cortex A8
Media Types Roll or fan-fold labels, tags, and receipts
Media Width 0.75 inches to 4.65 inches (19 mm to 118 mm)
Media Thickness 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm)
Power Supply External AC Adapter (100-240 VAC)
Dimensions 7.8 in (W) x 8.0 in (D) x 6.4 in (H) / 198 mm x 202 mm x 162 mm
Weight 3.2 lbs (1.46 kg)
Operating Temperature 40°F to 104°F (5°C to 40°C)
Supported Printer Languages ZPL, EPL

Key Advantages

The ZD421 stands out for its user-friendly design with quick media loading and an intuitive interface. Its compatibility with multiple printer languages, including ZPL and EPL, enhances integration across different systems. The printer delivers consistent high-quality prints with 203 dpi resolution, suitable for barcode and label printing. Network connectivity options including Ethernet allow for reliable and fast communication in office networks. Its rugged construction ensures durability for demanding office environments. Additionally, the device offers low power consumption with energy-efficient components, reducing operational costs.

Limitations

The ZD421 is limited by its print width, which may not accommodate wide-format printing needs. It relies primarily on thermal printing technology, which restricts use to heat-sensitive media or ribbon supplies. The device's wireless options are limited compared to some competitors, focusing mainly on wired network connections. The maximum print speed, while adequate for most office uses, may be insufficient for very high-volume printing environments. Replacement parts and accessories are sometimes more expensive due to the specialized nature of Zebra products. Firmware updates and software depend on Zebra's ecosystem, potentially limiting compatibility with third-party tools.
