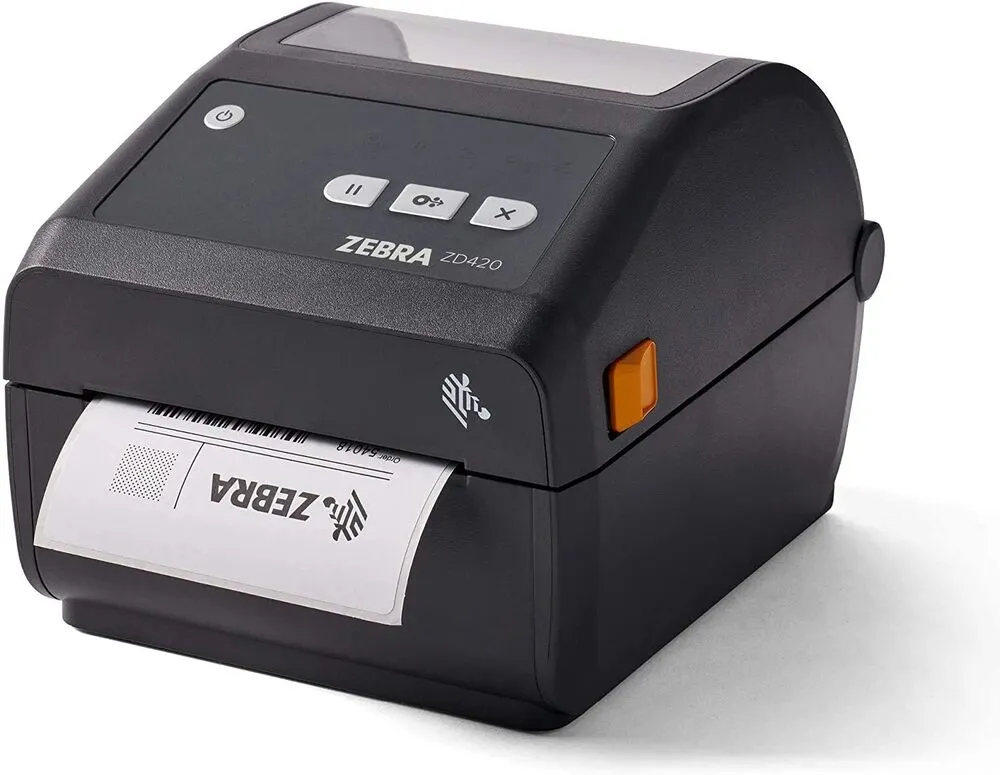

Zebra ZD42043-D01W01EZ image

Zebra ZD42043-D01W01EZ

Quick information
Brand Zebra 2018
Model ZD42043-D01W01EZ
Released Year 2018
Type Printers
Series ZD420
Item Weight 6.45 pounds
Product Dimensions 3.54 x 5.12 x 3.35 inches
Status Active
Quick view

Overview

The Zebra ZD42043-D01W01EZ is a direct thermal printer designed for efficient office labeling and barcode printing tasks. It features a compact design optimized for space-saving in busy office environments. The printer supports a print resolution of 203 dpi ensuring clear and accurate prints suitable for barcodes and labels. It offers print speeds up to 6 inches per second facilitating high productivity. Connectivity options include USB, Ethernet, and optional Wi-Fi or Bluetooth for versatile integration. The device supports a wide variety of media types including labels, tags, and receipt paper with varying sizes to accommodate diverse printing needs.

The thermal printing technology eliminates the need for ink or toner, reducing ongoing costs and maintenance. It has an easy-to-load media system and intuitive LCD interface for simple operation. The printer is compatible with various operating systems and supports Zebra’s Link-OS applications for enhanced management and configuration.

Specifications

Print media Labels
Compatible Devices PC
Sheet Size 8.5 inches
Maximum Black and White Print Resolution 300 dpi
Warranty Type limited warranty
Dual-sided printing No
Max copy resolution black-white 300 dpi
Duplex Simplex
Hardware Interface Bluetooth
Ink Color black
Resolution 300 x 300
Additional Printer functions Print Only
Control Method Remote
Total USB Ports 1
Product Dimensions 3.54 x 5.12 x 3.35 inches
Item Weight 6.45 pounds
Item model number ZD42043-D01W01EZ
Date First Available November 16, 2018
Manufacturer ZEBRA
Print Method Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Speed 6 inches per second (152 mm/s)
Print Width Up to 4.09 inches (104 mm)
Media Type Labels, tags, receipt paper
Connectivity USB 2.0, Ethernet; optional Wi-Fi and Bluetooth
Memory 512 MB Flash, 256 MB SDRAM
Display Full-color LCD user interface
Dimensions 7.9 in (W) x 6.7 in (D) x 6.7 in (H)
Weight Approx. 2.6 lbs (1.18 kg)
Operating Systems Windows, Mac OS, Linux
Power Supply Auto-ranging power supply 100-240 VAC, 50-60 Hz
Additional Features Zebra Link-OS, easy media loading, energy-efficient design

Key Advantages

The ZD42043-D01W01EZ provides fast printing speeds up to 6 ips, boosting office efficiency. Its direct thermal technology reduces consumable expenses by eliminating ink and toner requirements. The printer's compact footprint saves valuable desk space, suitable for small office environments. Multiple connectivity options including USB, Ethernet, and optional wireless allow flexible network integration. Easy media loading and intuitive user interface minimize downtime and ease operation. Robust build quality ensures reliable performance in everyday use.

Limitations

As a direct thermal printer, the ZD42043-D01W01EZ is best suited for short to medium lifespan labels since thermal prints may fade with exposure to heat or sunlight. Its maximum print resolution of 203 dpi limits ultra-fine graphic detail compared to higher resolution printers. The device may require additional modules or upgrades for wireless connectivity which could increase overall cost. It primarily supports monochrome printing, making color label printing impossible. Media roll capacity may be limited requiring frequent media replacement in high volume settings. The printer lacks advanced features like RFID encoding or peel-and-present options available in higher-end Zebra models.
