Zebra ZD42043
Brand | Zebra 2025 |
Model | ZD42043 |
Released Year | 2025 |
Type | Printers |
Series | ZD420 |
Printing Technology | Direct Thermal / Thermal Transfer (optional) |
Item Weight | 5.3 pounds |
Product Dimensions | 10.5 x 8 x 7.5 inches |
Status | Active |
Quick view
Overview

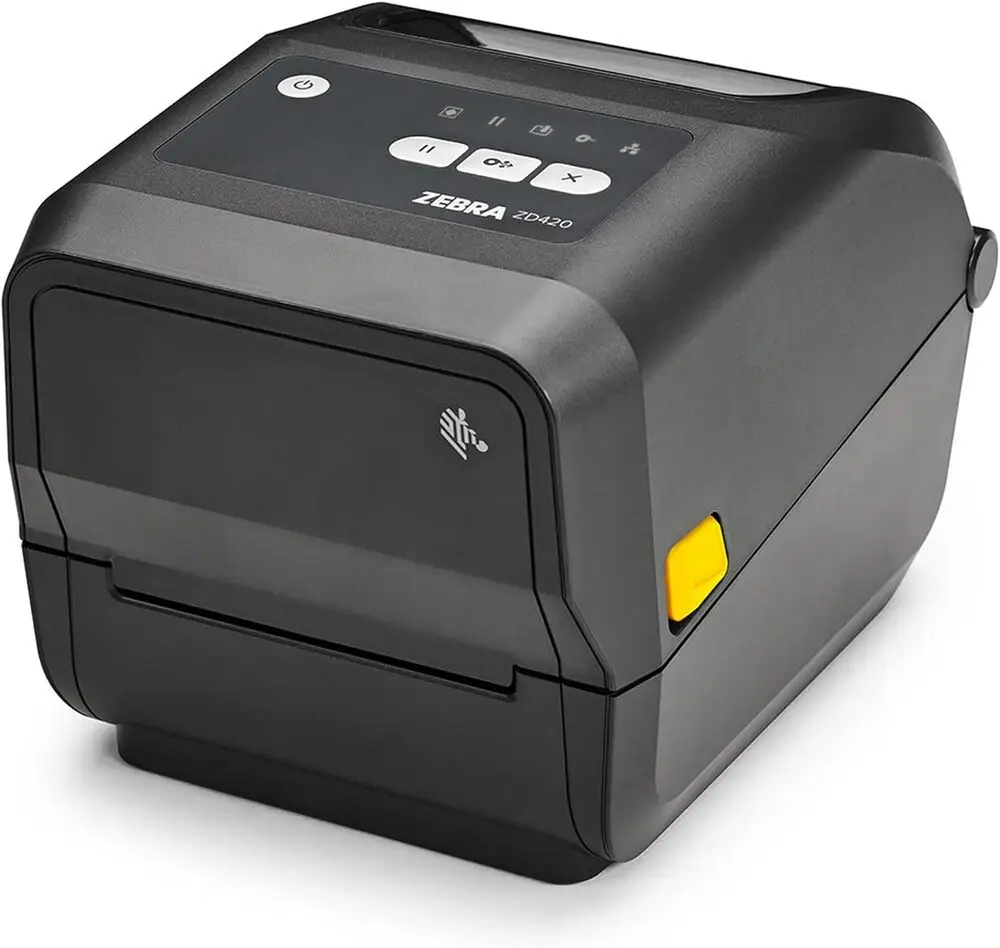

The Zebra ZD42043 is a thermal label printer within the ZD420 series designed specifically for office and light industrial environments. It utilizes direct thermal and optional thermal transfer printing technologies, enabling high-resolution outputs suitable for barcode labels, shipping tags, and other office labeling needs. The device features a compact design with easy front loading of media and ribbons to enhance usability and reduce downtime. Connectivity options include USB, Ethernet, and optional Wi-Fi or Bluetooth modules, allowing flexible integration into diverse network environments. It supports label widths up to 4.09 inches and offers printing speeds up to 6 inches per second, balancing quality and productivity. The printer's firmware allows for multiple programming languages, such as ZPL and EPL, ensuring compatibility with existing label formats and software systems.
Specifications
Printing Technology | Direct Thermal / Thermal Transfer (optional) |
Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Maximum Print Speed | Up to 6 inches per second (152 mm/s) |
Connectivity | USB 2.0, Ethernet, optional Wi-Fi 802.11ac, optional Bluetooth 4.1 |
Label Roll Capacity | Up to 5 inches (127 mm) outer diameter |
Memory | 512 MB Flash, 256 MB SDRAM |
Dimensions (WxDxH) | 7.9 x 8 x 6.75 inches (200 x 203 x 171 mm) |
Weight | Approximately 3 pounds (1.36 kg) |
Supported Media Types | Labels, tags, continuous media, receipt paper |
Compatibility | ZPL, EPL programming languages |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Power Supply | External 100-240VAC, 50-60Hz |
Print media | Thermal Paper |
Max Input Sheet Capacity | 100 |
Maximum Black and White Print Resolution | 300 dpi |
Warranty Type | 90 days limited warranty |
Dual-sided printing | No |
Max copy resolution black-white | 300 dpi |
Duplex | simplex |
Hardware Interface | USB |
Ink Color | Black |
Additional Printer functions | Print Only |
Total USB Ports | 1 |
Specific Uses For Product | Office |
UPC | 703670990571 |
Printer Ink Type | Inkless |
Product Dimensions | 10.5 x 8 x 7.5 inches |
Item Weight | 5.3 pounds |
Item model number | ZD42043 |
Date First Available | March 11, 2025 |
Manufacturer | ZEBRA |
Images
Key Advantages
The Zebra ZD42043 is recognized for its user-friendly design with a intuitive LCD interface and quick media loading adjustments. It offers excellent print quality at 203 or 300 dpi resolution, meeting diverse office labeling standards. Its versatile connectivity options provide seamless integration across various platforms and networks. With energy-efficient components, it reduces operational costs and environmental impact. The compact footprint allows it to fit comfortably on office desks, optimizing workspace use. Additionally, its robust build quality ensures reliable performance over long-term use under typical office conditions.
Limitations
While the Zebra ZD42043 is efficient for office tasks, it is limited in heavy-duty industrial environments due to its smaller media capacity. It does not support very high-speed printing required in large scale production settings. The initial configuration can be less straightforward for users unfamiliar with label printer settings. Some advanced features, such as enhanced wireless capabilities, are only available with optional modules, increasing total cost. The device's maximum label width limits its use with larger format labels. Additionally, it primarily supports thermal media, restricting versatility if other printing technologies are needed.
FAQ
What printing technologies does the Zebra ZD42043 support?
The Zebra ZD42043 supports direct thermal printing by default, with an optional thermal transfer capability for enhanced durability of printed labels.
What are the connectivity options available on the Zebra ZD42043?
This printer offers USB and Ethernet connectivity as standard, with optional Wi-Fi and Bluetooth modules to enable wireless printing.
What is the maximum print resolution of the Zebra ZD42043?
The printer supports print resolutions of either 203 dpi or 300 dpi, catering to different quality requirements.
Can the Zebra ZD42043 handle large label sizes?
The maximum label width supported is approximately 4.09 inches, which is sufficient for standard office labels but may not suit larger labeling needs.
Is the Zebra ZD42043 still actively supported by the manufacturer?
Yes, the Zebra ZD42043 is an active model and has not been discontinued.
What programming languages does the Zebra ZD42043 printer support?
It supports multiple printer languages including Zebra Programming Language (ZPL) and Eltron Programming Language (EPL), facilitating compatibility with various software systems.
How easy is it to load media in the Zebra ZD42043 printer?
The ZD420 includes a user-friendly clamshell design that allows for simple and quick media and ribbon loading to minimize downtime.
