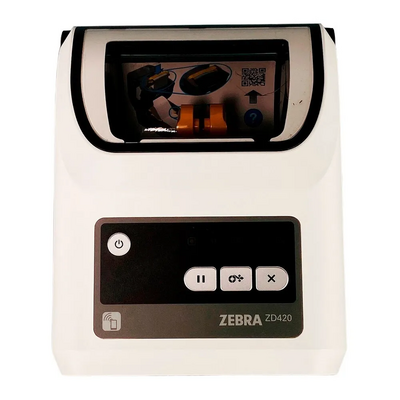

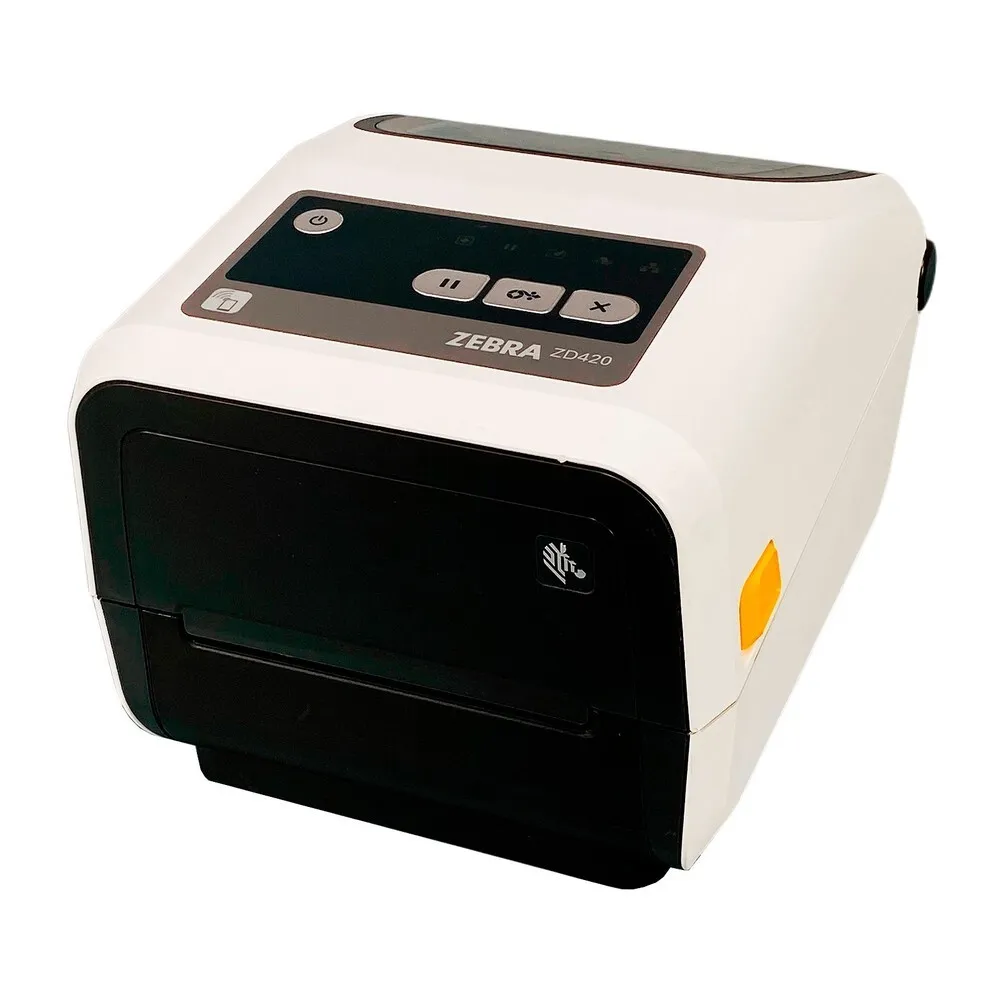

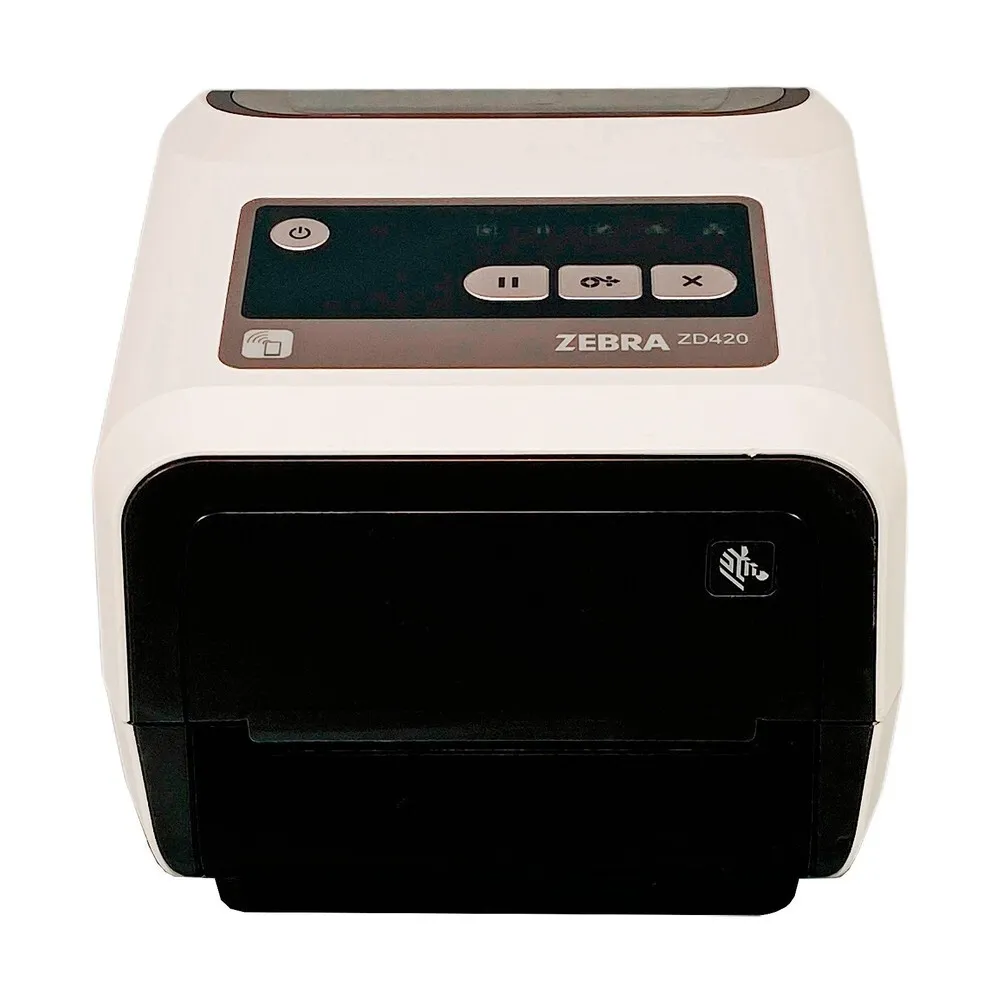

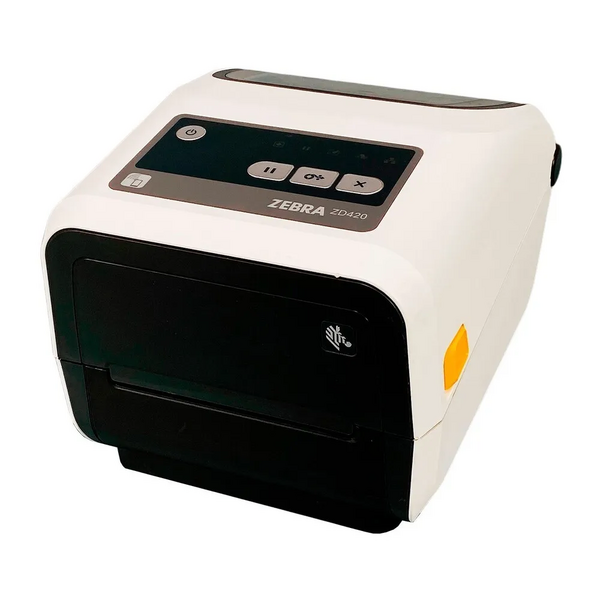

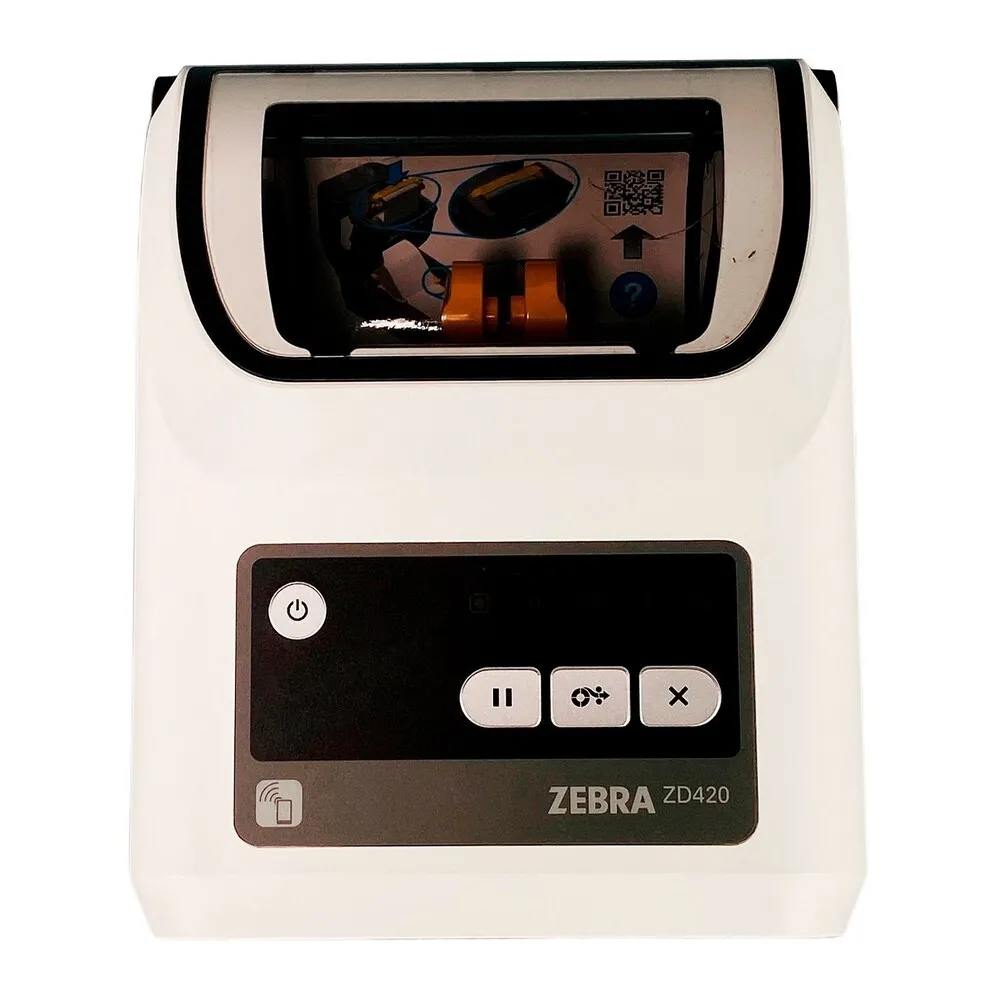

Zebra ZD420 image

Zebra ZD420

Quick information
Brand Zebra 2017
Model Wi-Fi, ZD42H42-C01W01EZ, Bluetooth, ZD420c, Cartridge, Barcode, Label, WiFi, Healthcare, Hospital, Pharmacy
Released Year 2017
Type Printers
Series Zd
Status Active
Quick view
Full specs Images

Overview

The Zebra ZD420 series is a line of thermal label printers designed for office and healthcare environments. It supports both direct thermal and thermal transfer printing technologies, offering flexibility in media options. Connectivity options include USB, optional Wi-Fi, and Bluetooth interfaces, enhancing integration into various network environments. The printer is engineered with a user-friendly clamshell design that simplifies media loading and maintenance procedures. It features a high-resolution print capability up to 203 dpi, suitable for quality barcode and label printing. The device supports a range of label widths from 1 inch to 4.25 inches, making it versatile for multiple labeling needs.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 512 MB Flash, 256 MB SDRAM
MPN Wi-Fi, ZD42H42-C01W01EZ, Bluetooth, ZD420c, Cartridge, Barcode, Label, WiFi, Healthcare, Hospital, Pharmacy
Supported Paper Size Max Label Width: 4.65"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model ZD420
Connectivity USB 2.0, Optional: Wi-Fi 802.11ac, Bluetooth 4.1
Features Portable
Black Print Speed 6 ips
Product Line Zebra ZD
Print Technology Direct Thermal and Thermal Transfer
Max Print Width 4.09 inches (104 mm)
Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 6 inches per second
Media Types Roll-fed, die-cut, continuous labels, tag stock, receipt paper
Media Width 1 inch to 4.25 inches (25.4 mm to 108 mm)
Media Thickness 0.003 inches to 0.012 inches (0.08 mm to 0.305 mm)
Ribbon Ink-side-in or Ink-side-out, max length 74m
Sensors Label gap, black mark, and continuous media sensing
Dimensions (W x H x D) 7.63 x 6.5 x 8.25 inches (194 x 165 x 210 mm)
Weight About 3.6 lbs (1.63 kg)
Operating Temperature 40°F to 105°F (4.4°C to 41°C)
Power Supply Universal 100-240V AC, 50-60 Hz
Certifications FCC, CE, UL, cUL, CB, ENERGY STAR qualification

Key Advantages

The Zebra ZD420 excels with its quick 6 inches-per-second print speed, boosting productivity. Its modular connectivity options such as Wi-Fi and Bluetooth allow seamless setup in different environments without additional hardware. The user-centric design reduces downtime with easy media changes and minimal maintenance. Robust compatibility with existing Zebra printer drivers and software facilitates smooth integration. Its compact footprint saves space in crowded workstations. Energy-efficient and reliable, the printer maintains consistent output suitable for healthcare, retail, and office sectors.

Limitations

The print resolution of 203 dpi may not suffice for applications requiring ultra-high definition graphics. Thermal transfer ribbon replacement can be a minor operational complexity for some users. While the Wi-Fi module is optional, it adds to the total cost and may require configuration efforts. The device is optimized mainly for labeling, limiting its use for multifunctional printing needs. The plastic casing, though lightweight, may be less durable under extreme industrial conditions. Firmware updates require manual download and installation, which may pose challenges for non-technical users.

FAQ

The Zebra ZD420 supports direct thermal and thermal transfer labels, accommodating various sizes typically between 1 to 4.25 inches in width.

Yes, it offers optional Wi-Fi and Bluetooth connectivity for flexible network integration.

The printer can achieve a maximum print speed of up to 6 inches per second.

Yes, its design includes specific models and features compliant with healthcare labeling requirements.

Yes, it is compatible with Zebra’s Link-OS environment and supports multiple SDKs and printer drivers.

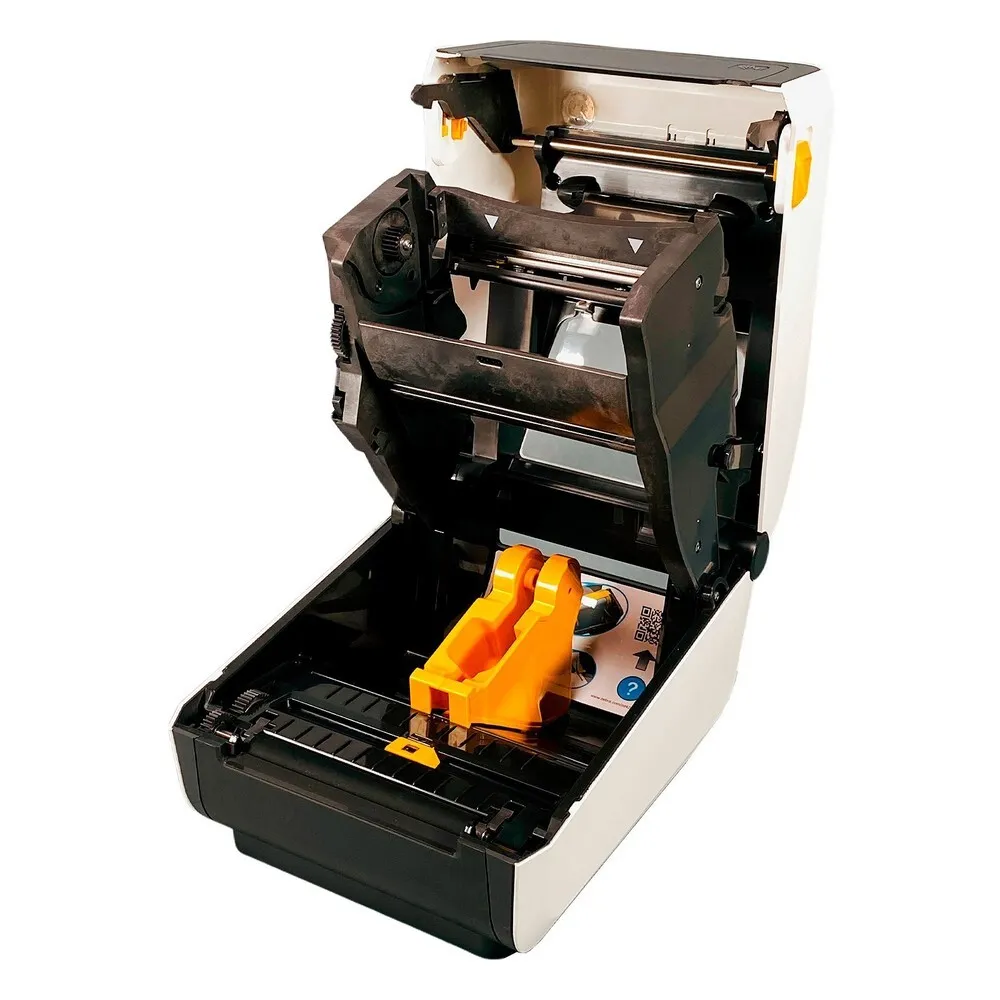

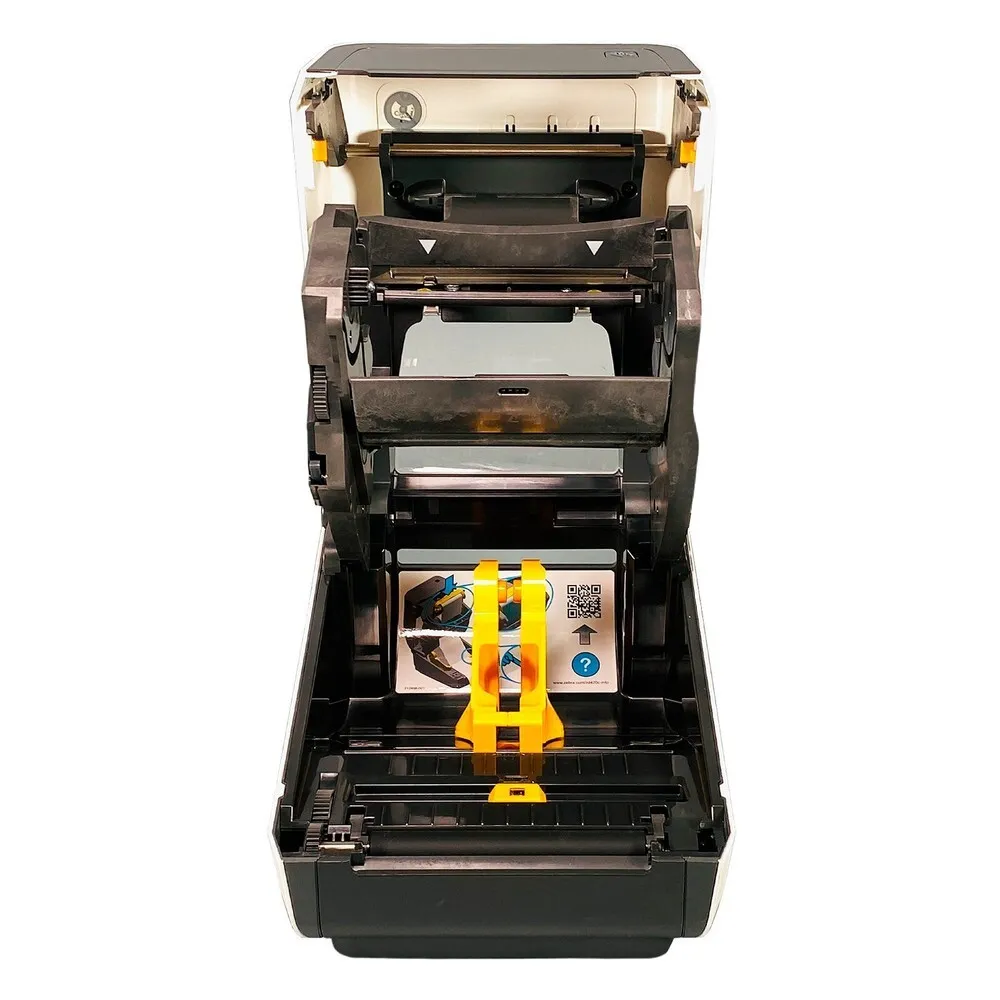

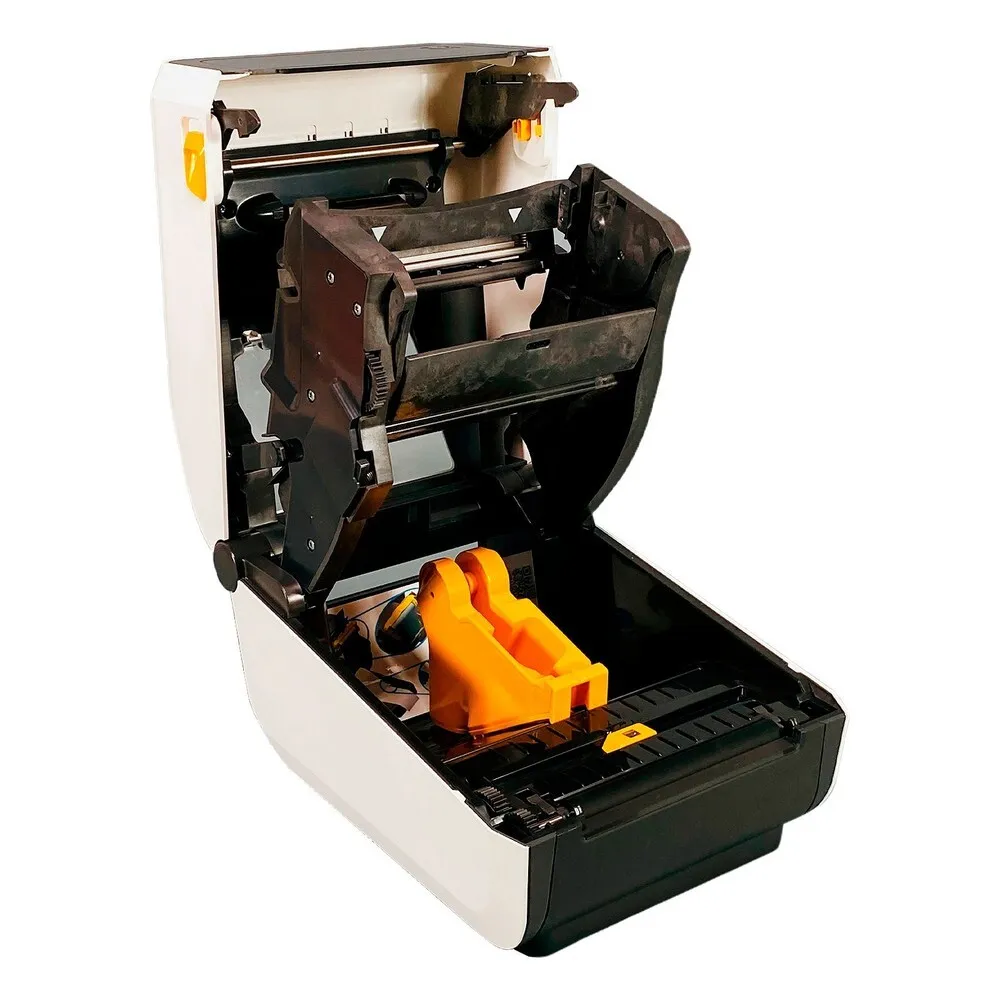

The printer’s clamshell design allows quick and easy media replacement, minimizing downtime.

No, the Zebra ZD420 series is currently available and supported.
