Zebra ZD410
Brand | Zebra 2016 |
Model | ZD41H22-D01E00EZ |
Released Year | 2016 |
Type | Printers |
Status | Active |
Quick view
Overview

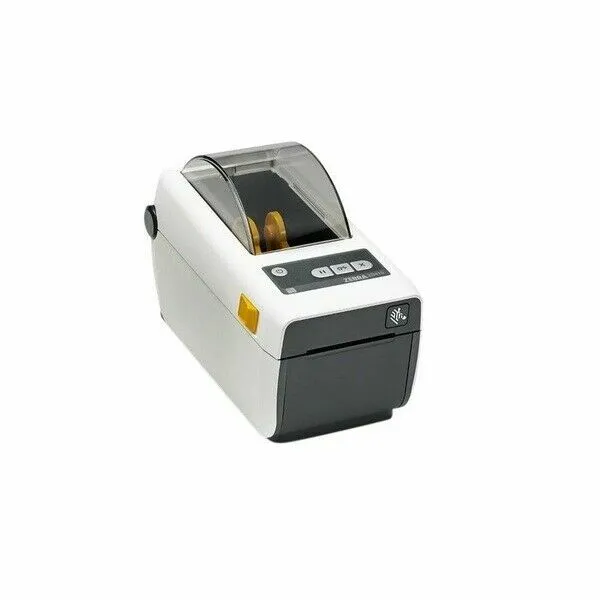

The Zebra ZD410 is a compact desktop label printer designed for office and light industrial printing tasks. It supports thermal transfer and direct thermal printing technologies, enabling versatile media usage. The printer offers a print resolution of up to 203 dpi, delivering crisp and clear labels suited for barcode and product identification.
The device incorporates USB, serial, and optional Bluetooth or Wi-Fi connectivity, making integration into existing networks straightforward. Its fast print speed, up to 4 inches per second, ensures efficient label output without sacrificing quality. The Zebra ZD410 uses an easy-to-load design for media, reducing downtime during roll or ribbon changes.
This printer supports multiple barcode symbologies and Windows drivers for easy setup. Its small footprint fits well in confined workspaces without compromising functionality. The device also features an LCD status indicator for simple operation monitoring.
Specifications
MPN | ZD41H22-D01E00EZ |
Model | ZD410 |
Memory | 256 MB Flash, 128 MB SDRAM |
Technology | Thermal |
Connectivity | USB 2.0, Serial RS-232; Optional: Wi-Fi 802.11ac, Bluetooth 4.1 |
Output Type | Black & White |
Type | Label Printer |
Maximum Resolution | 203DPI |
Black Print Speed | 359.1in/Min |
Product Line | Zebra |
Custom Bundle | No |
Printer Type | Desktop Thermal Transfer / Direct Thermal Printer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Width | 2.36 inches (60 mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Media Types Supported | Roll or fan-fold labels, tags, continuous paper |
Max Media Roll Diameter | 2.6 inches (67 mm) |
Media Width | 0.585 inches to 2.36 inches (15 mm to 60 mm) |
Media Thickness | 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm) |
Media Sensing | Gap, black mark, continuous |
Dimensions | 5.9 x 7 x 7 inches (150 x 178 x 178 mm) |
Weight | 2.3 lbs (1.04 kg) |
Power Supply | External 100-240VAC, 47-63Hz power supply |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Supported Barcode Symbologies | Code 39, Code 128, EAN-13, UPC-A, 2D barcodes (QR code, PDF417, Data Matrix) |
Printer Languages | ZPL, EPL |
Display | LED indicator for status |

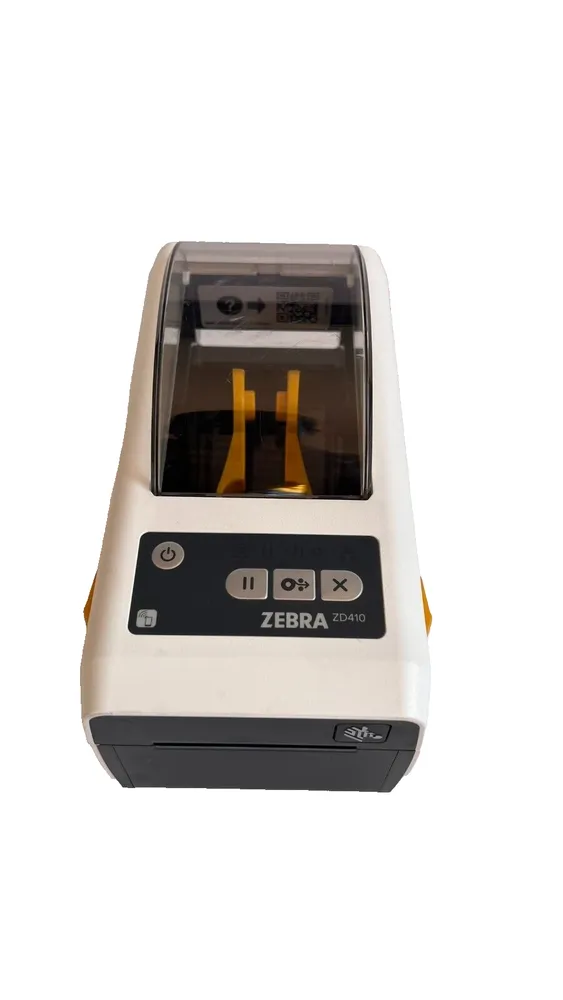

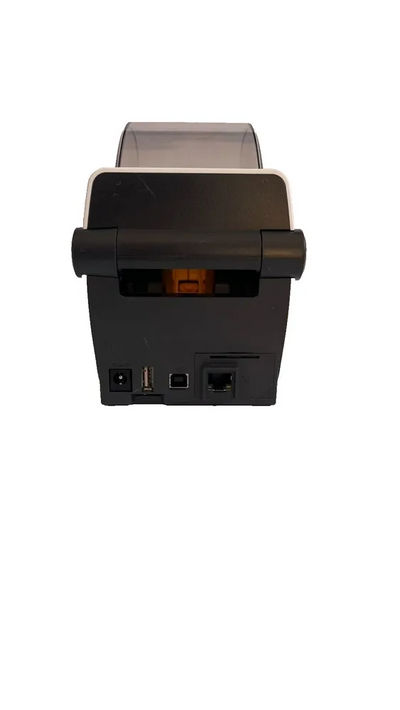

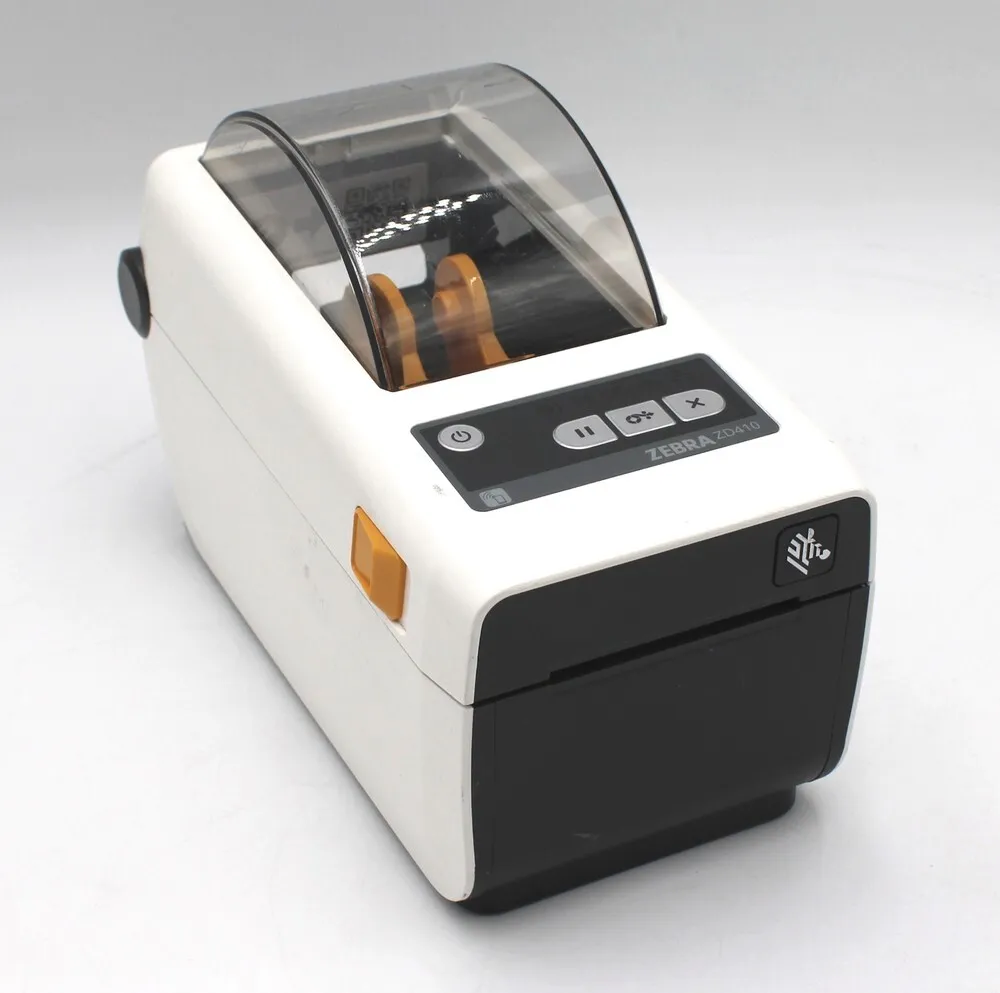

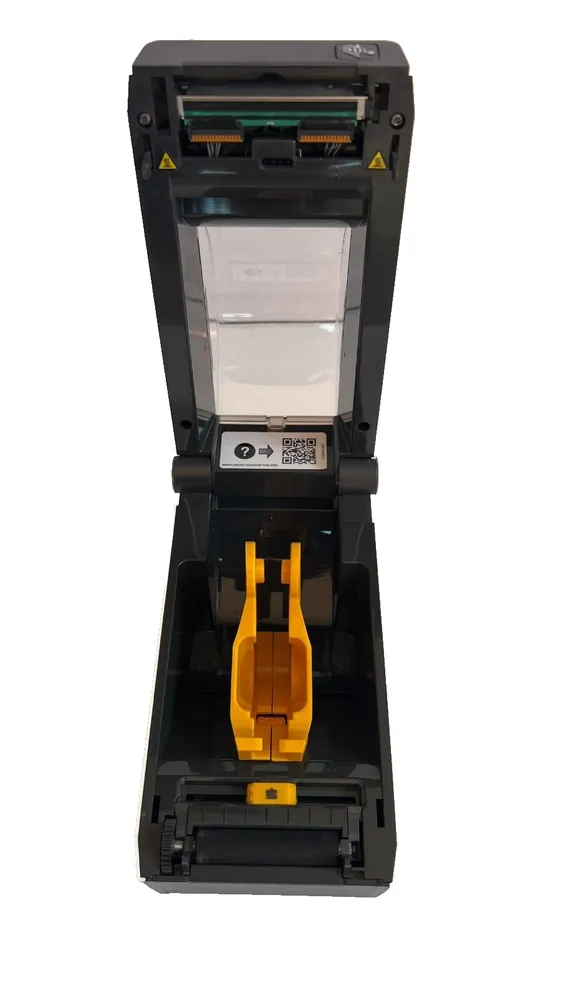

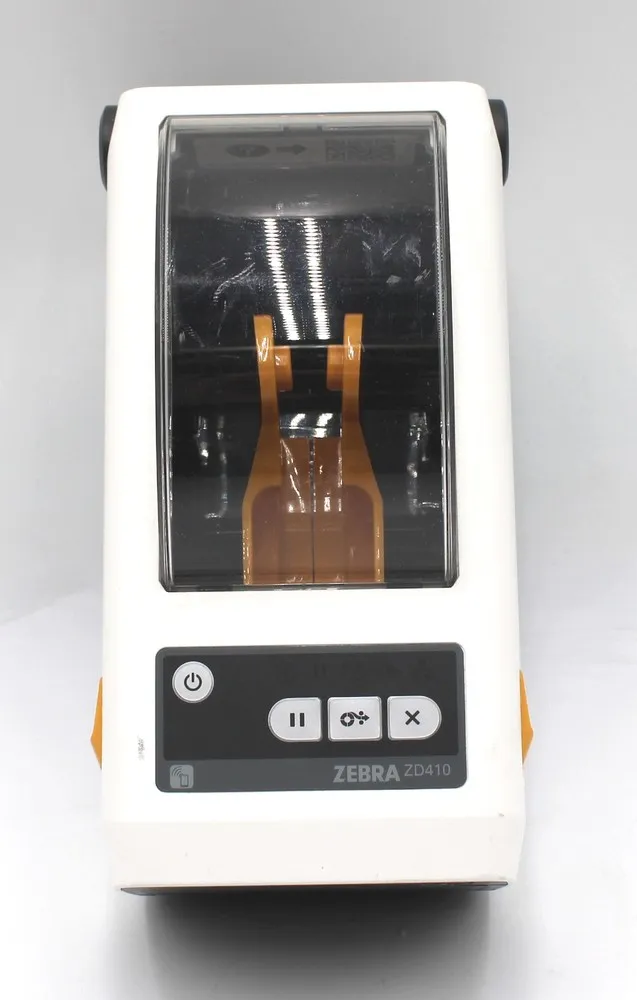

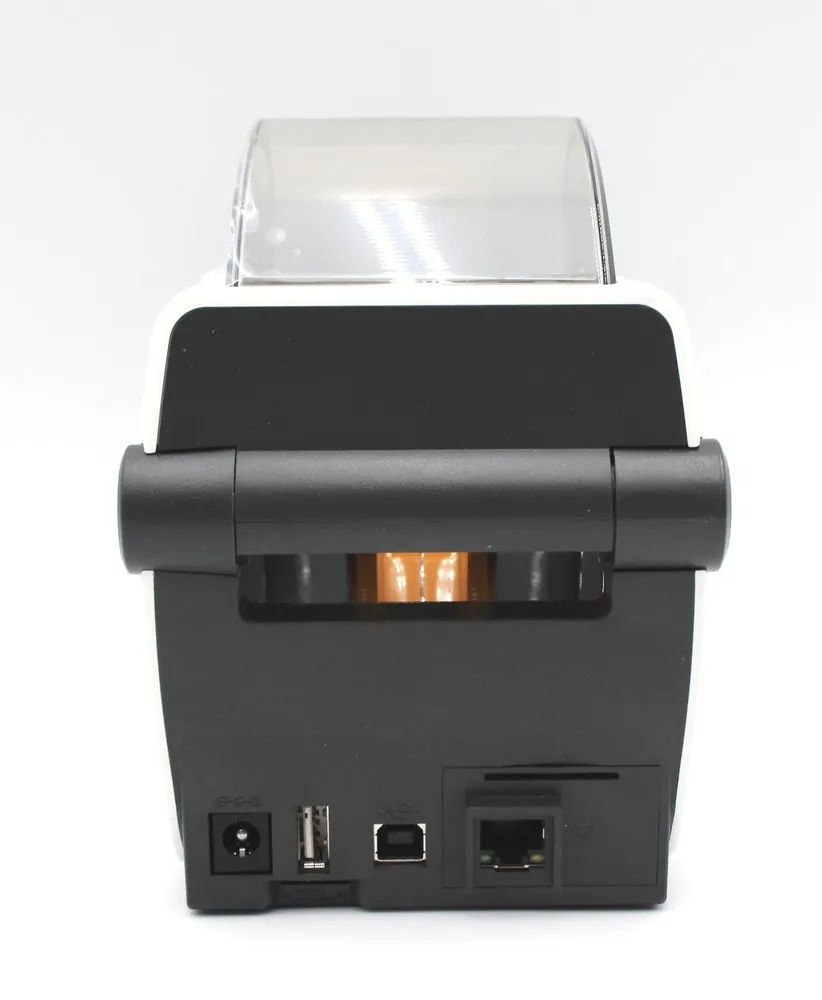

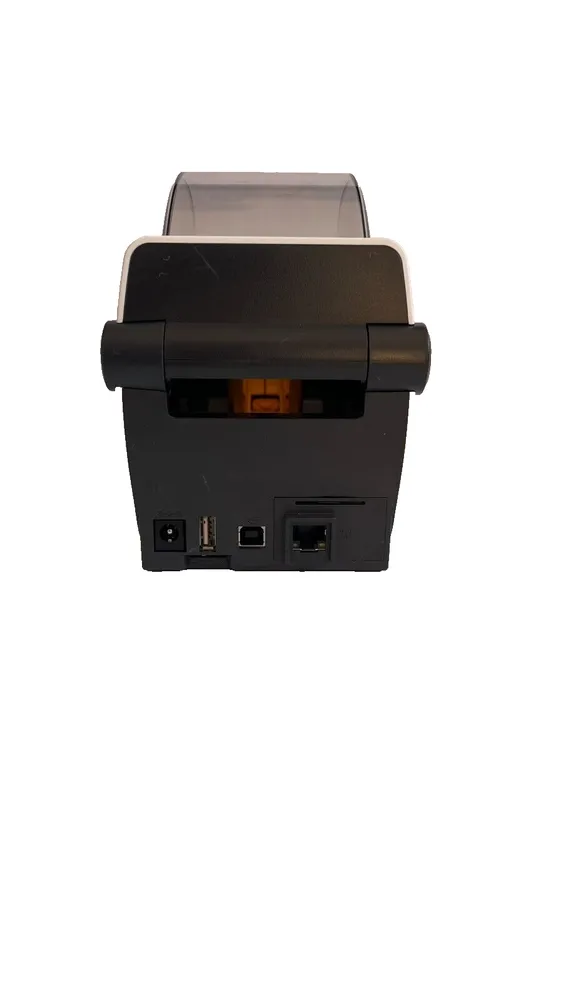

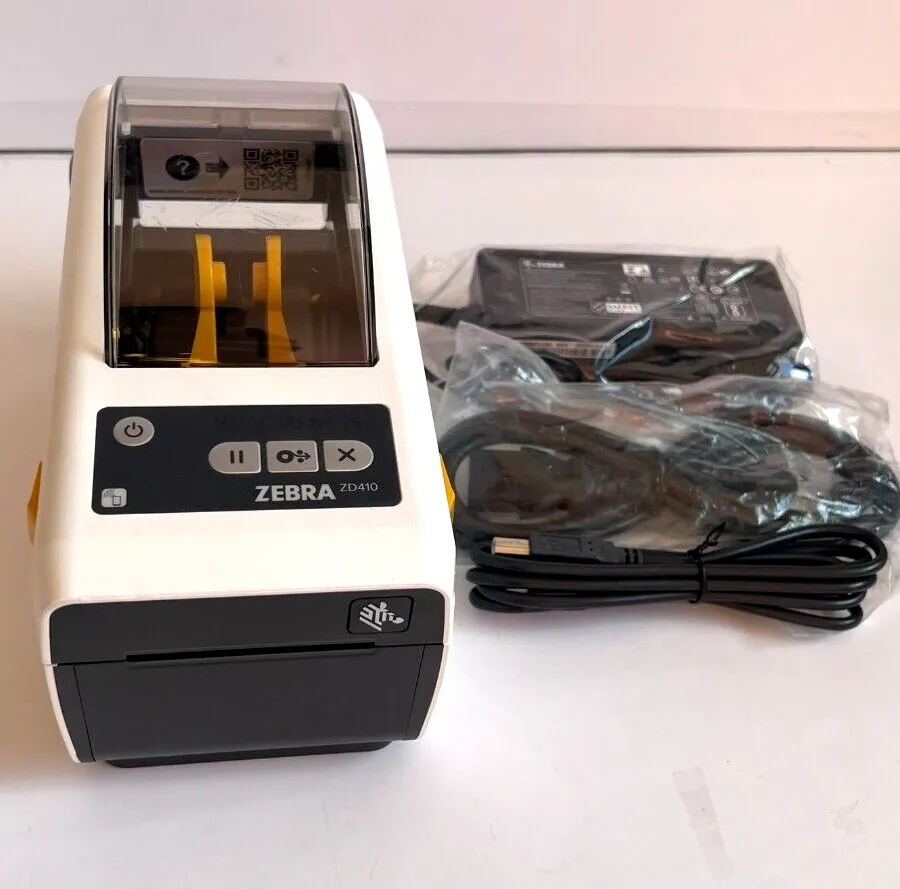

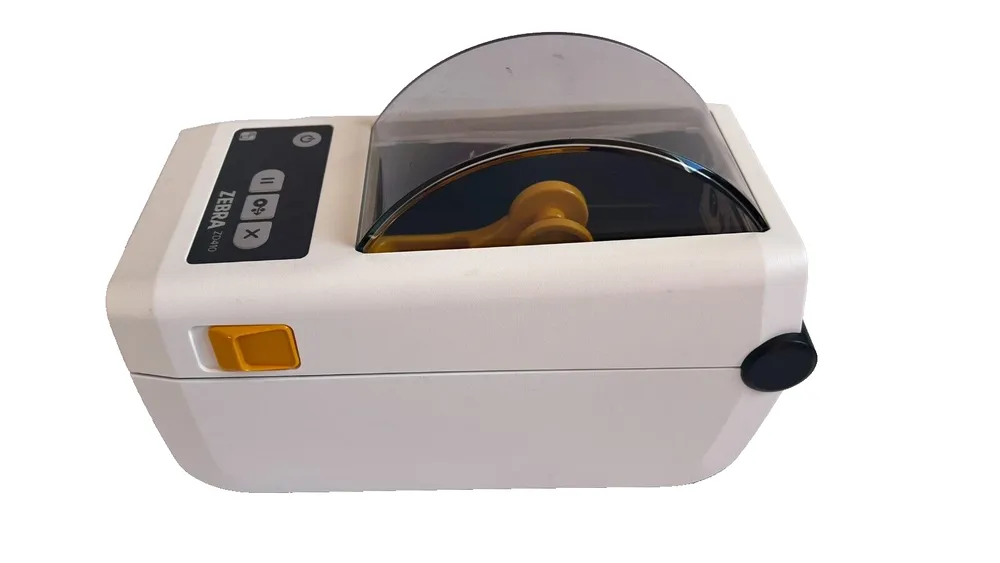

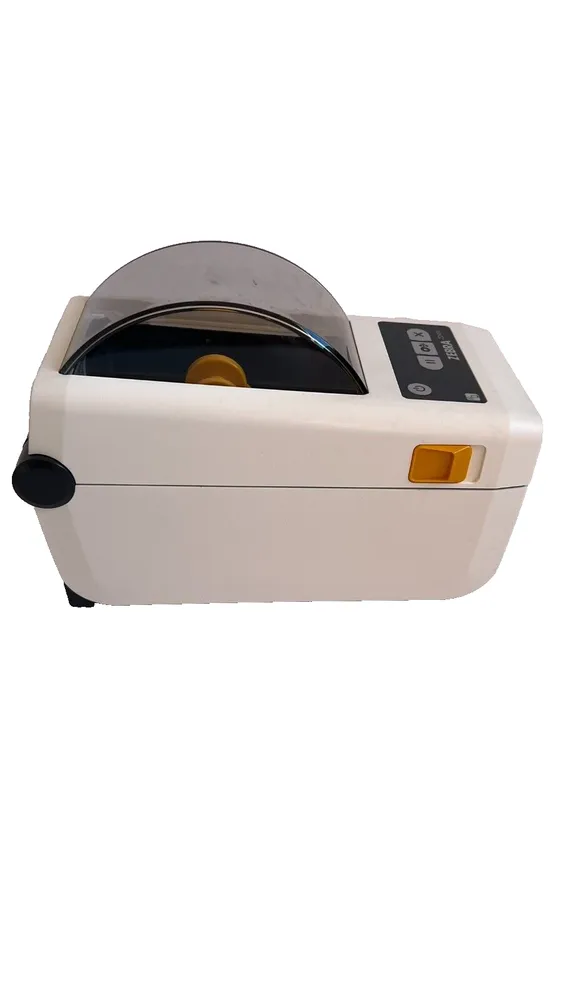

Images
Key Advantages
The Zebra ZD410 boasts a compact design ideal for small workspaces and office environments. It offers flexible connectivity options like USB, serial, Bluetooth, and Wi-Fi for seamless integration. The printer supports both direct thermal and thermal transfer printing for versatile label types. It delivers high-quality output at a resolution of 203 dpi, suitable for barcode and text labels. The printing speed of up to 4 inches per second improves operational efficiency. Additionally, user-friendly media loading and an intuitive interface minimize maintenance time.
Limitations
With a maximum print resolution of 203 dpi, the Zebra ZD410 may not meet requirements for ultra-fine print detail. The printer's media capacity is limited due to its compact size, necessitating frequent roll changes in high-volume environments. It lacks advanced ruggedness for harsh industrial conditions compared to larger Zebra models. The print width is restricted to 2.36 inches, limiting label size options. Some connectivity features like Wi-Fi may require additional accessories. Overall, it is better suited for low to medium volume printing tasks rather than heavy industrial use.
FAQ
What printing technologies does the Zebra ZD410 support?
The Zebra ZD410 supports both direct thermal and thermal transfer printing technologies.
What is the maximum print speed of the Zebra ZD410?
The maximum print speed is up to 4 inches per second.
Can the Zebra ZD410 connect via wireless networks?
Yes, it supports optional Wi-Fi and Bluetooth connectivity.
What is the maximum print resolution of the Zebra ZD410?
The printer offers a maximum print resolution of 203 dpi.
Is the Zebra ZD410 suitable for high-volume industrial printing?
No, it is primarily designed for low to medium volume office or light industrial use.
What label width can the Zebra ZD410 accommodate?
It supports a maximum print width of 2.36 inches (60 mm).
Does the Zebra ZD410 have an easy media loading system?
Yes, it features a simple, easy-to-load design for media and ribbons.
