Zebra ZD410
Brand | Zebra 2017 |
Model | ZD41022D01000EZ |
Released Year | 2017 |
Type | Printers |
Series | Z |
Status | Active |
Quick view
Overview
The Zebra ZD410 is a compact, high-speed direct thermal label printer designed for office and industrial applications. It supports print resolutions of 203 dpi and 300 dpi, offering sharp and clear labels suitable for barcode printing and small labels. The device integrates USB, serial, and Ethernet connectivity options to enhance compatibility and ease of integration into existing IT infrastructure. Featuring a print speed up to 6 inches per second, it is optimized for efficient label production in tight spaces. The ZD410 runs on Link-OS firmware, enabling cloud-based printer management and seamless integration with Zebra's Print DNA suite. Its modular design supports easy media loading and maintenance, reducing downtime and improving operational efficiency.
Specifications
MPN | ZD41022D01000EZ |
UPC | 0766394917262 |
Model | ZD410 |
Memory | 256 MB Flash, 128 MB SDRAM |
Technology | Thermal |

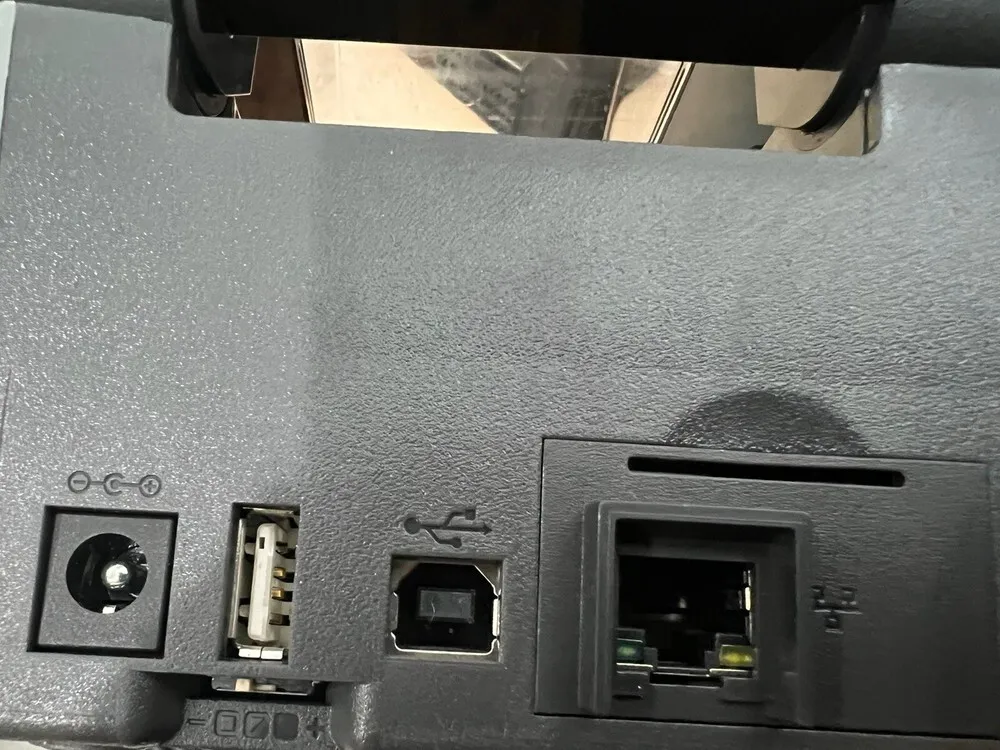

Connectivity | USB 2.0, Serial RS-232, Ethernet 10/100 Mbps |
Output Type | Black & White |
Features | Portable, Networkable |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 16 ppm |
Product Line | Zebra Z |
Item Length | 8.6in. |
Item Height | 6in. |
Item Width | 4.5in. |
Printer Type | Direct Thermal Desktop Printer |
Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
Max Print Width | 2.2 inches (56 mm) |
Max Print Speed | Up to 6 inches per second (152 mm/s) |
Media Types | Continuous, die-cut, black mark, tags, tickets, wristbands |
Media Width | 0.75 inches to 2.36 inches (19 mm to 60 mm) |
Media Roll Size | Up to 5.0 inches (127 mm) outer diameter |
Dimensions | 5.9 x 7.4 x 6.7 inches (150 x 188 x 170 mm) |
Weight | 2.1 kg (approximately 4.6 lbs) |
Operating System Compatibility | Windows, Mac OS, Linux |
Printer Language | ZPL, EPL, XML (via Link-OS) |
Firmware | Link-OS |
Power Supply | Universal 100-240V AC, 50-60 Hz |

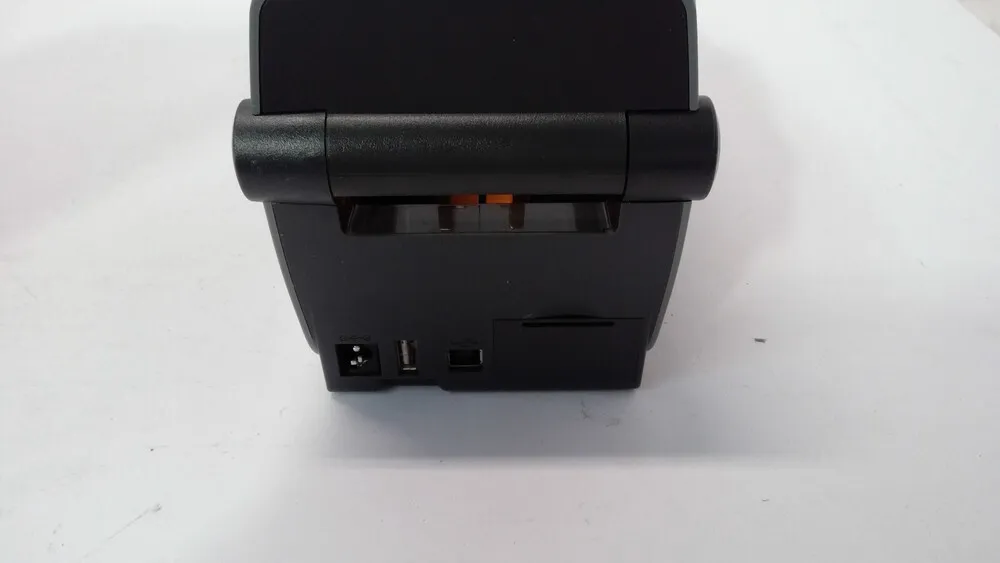

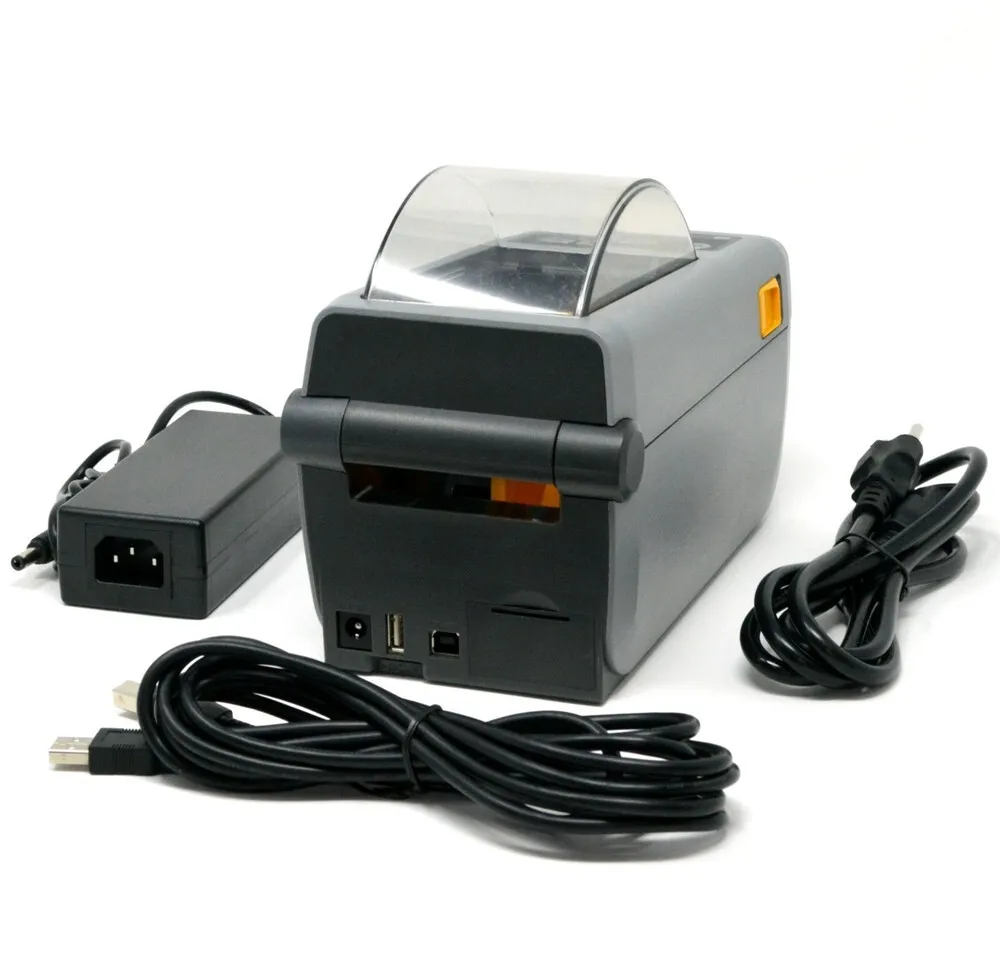

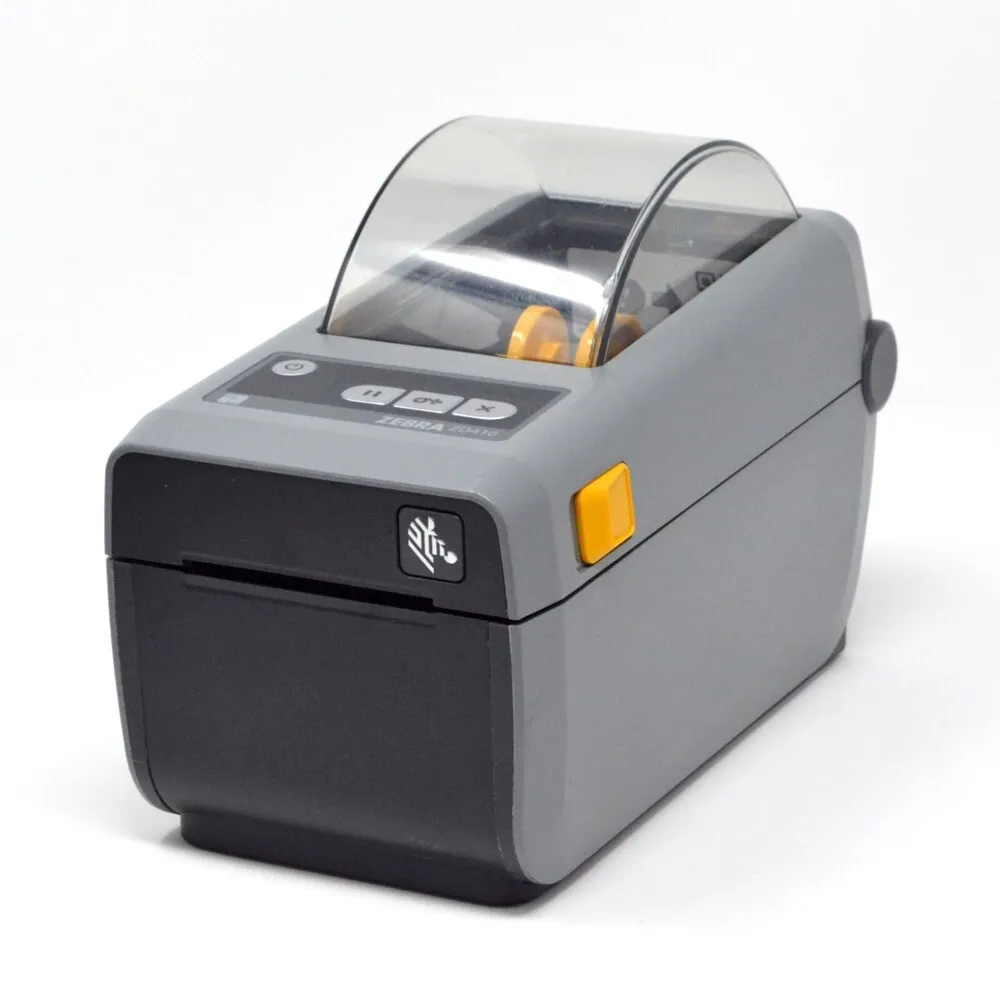

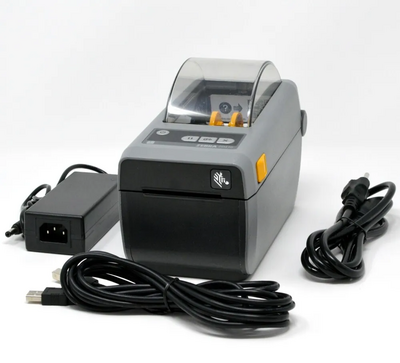

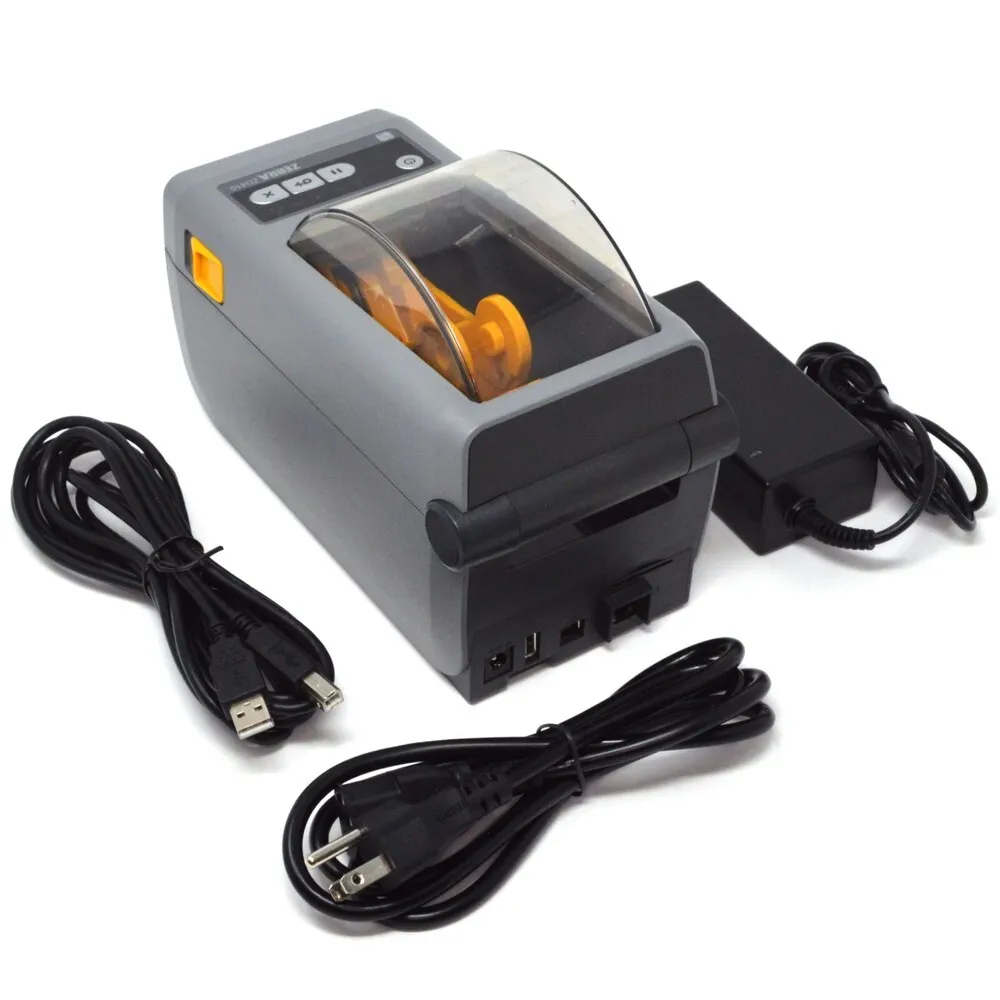

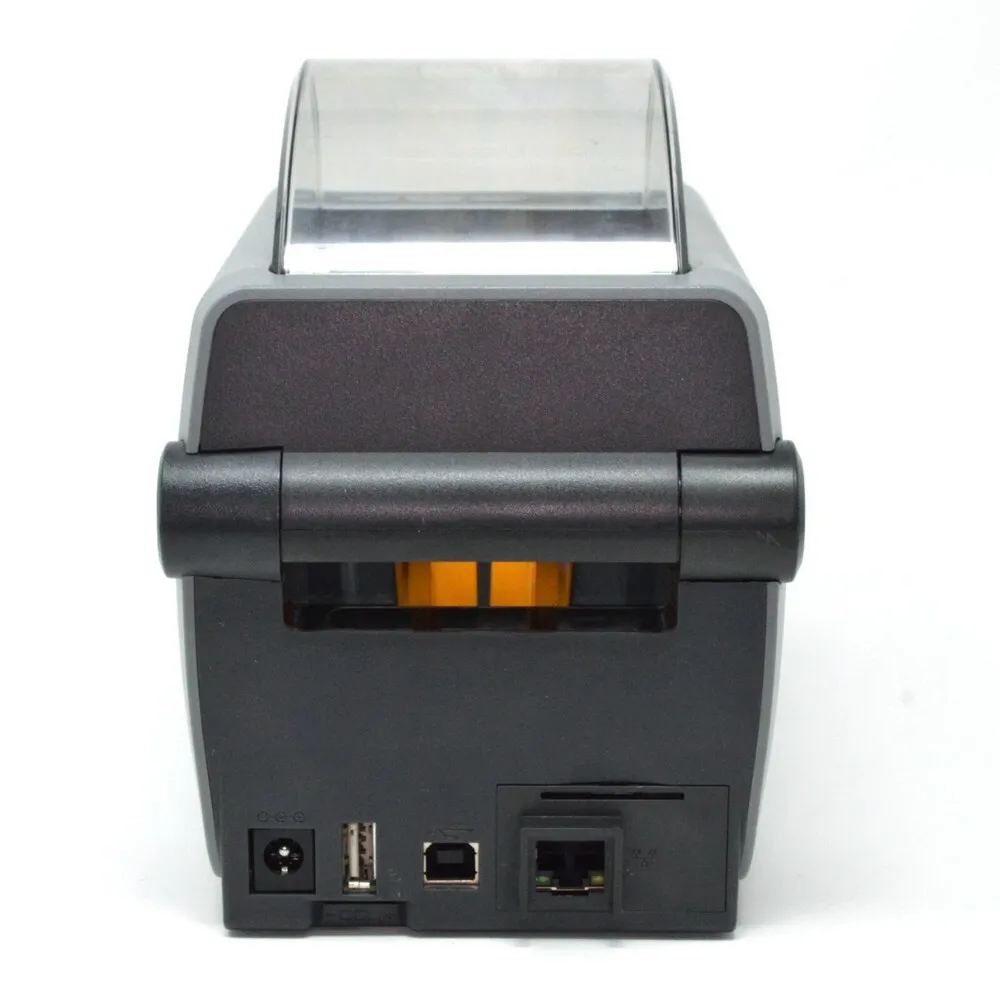

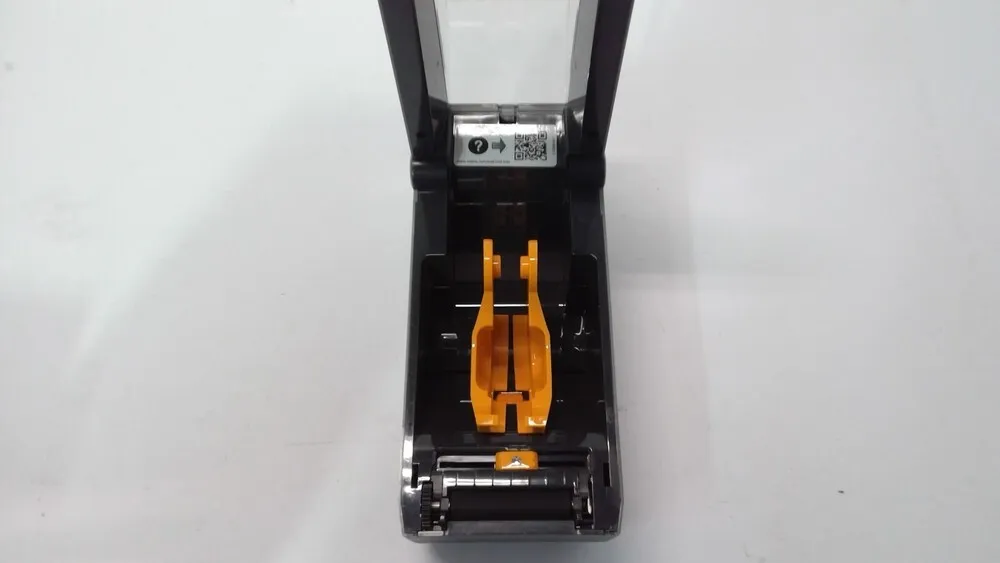

Images
Key Advantages
The ZD410's compact footprint allows for deployment in space-constrained environments without sacrificing performance. It offers robust connectivity options including USB, serial, and Ethernet, supporting versatile integration scenarios. Print speeds up to 6 ips enable fast label throughput for demanding office environments. The high print resolution options of 203 dpi and 300 dpi provide precise and professional quality labels. The Link-OS environment enhances management and monitoring capabilities remotely, increasing convenience and reducing IT support needs. Additionally, its simple media loading system minimizes user errors and operational disruptions.
Limitations
The ZD410 is primarily a direct thermal printer and does not support thermal transfer printing, limiting its media options. Its maximum print width of 2.2 inches restricts label size options compared to larger printers. The printer's memory capacity is modest, which could impact performance with complex label formats or large label databases. While the device offers Ethernet connectivity, it lacks native wireless networking, requiring additional accessories for Wi-Fi connectivity. It is not designed for heavy industrial environments due to its lightweight, compact design. Compatibility with some legacy label design software may require driver updates or customization.
FAQ
What type of printing technology does the Zebra ZD410 use?
The Zebra ZD410 uses direct thermal printing technology.
What connectivity interfaces are available on the ZD410?
The printer includes USB, serial, and Ethernet connectivity options.
What is the maximum print speed of the ZD410?
The ZD410 can print at speeds up to 6 inches per second.
What is the maximum print resolution the ZD410 supports?
It supports print resolutions of 203 dpi and 300 dpi.
Can the Zebra ZD410 print labels wider than 2.2 inches?
No, the maximum print width is 2.2 inches.
Is the Zebra ZD410 still supported and available for purchase?
As of now, the ZD410 is not discontinued and continues to be supported.
Does the ZD410 support wireless connectivity out of the box?
No, wireless connectivity requires optional accessories.
