Zebra Zd410
Brand | Zebra 2015 |
Model | ZD410 |
Released Year | 2015 |
Type | Printers |
Status | Active |
Quick view
Overview

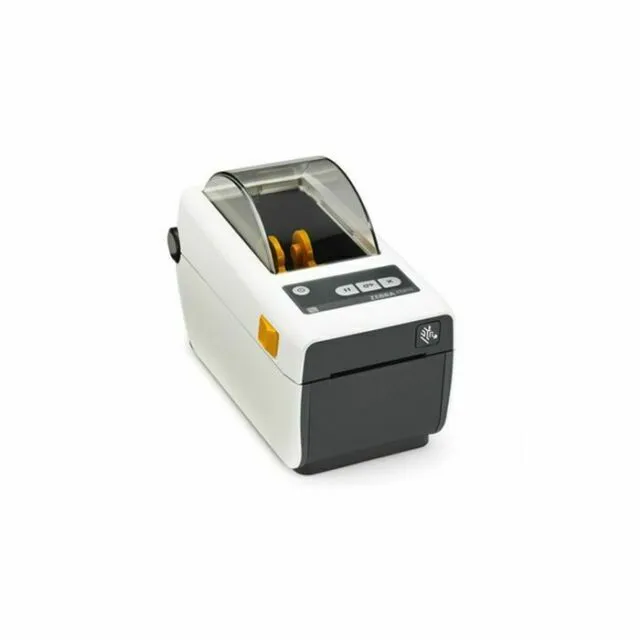

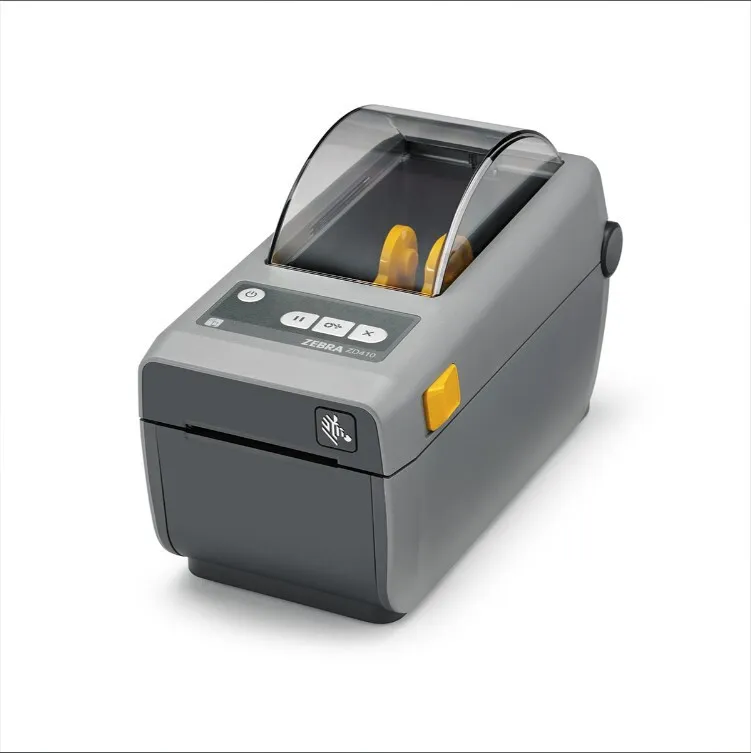

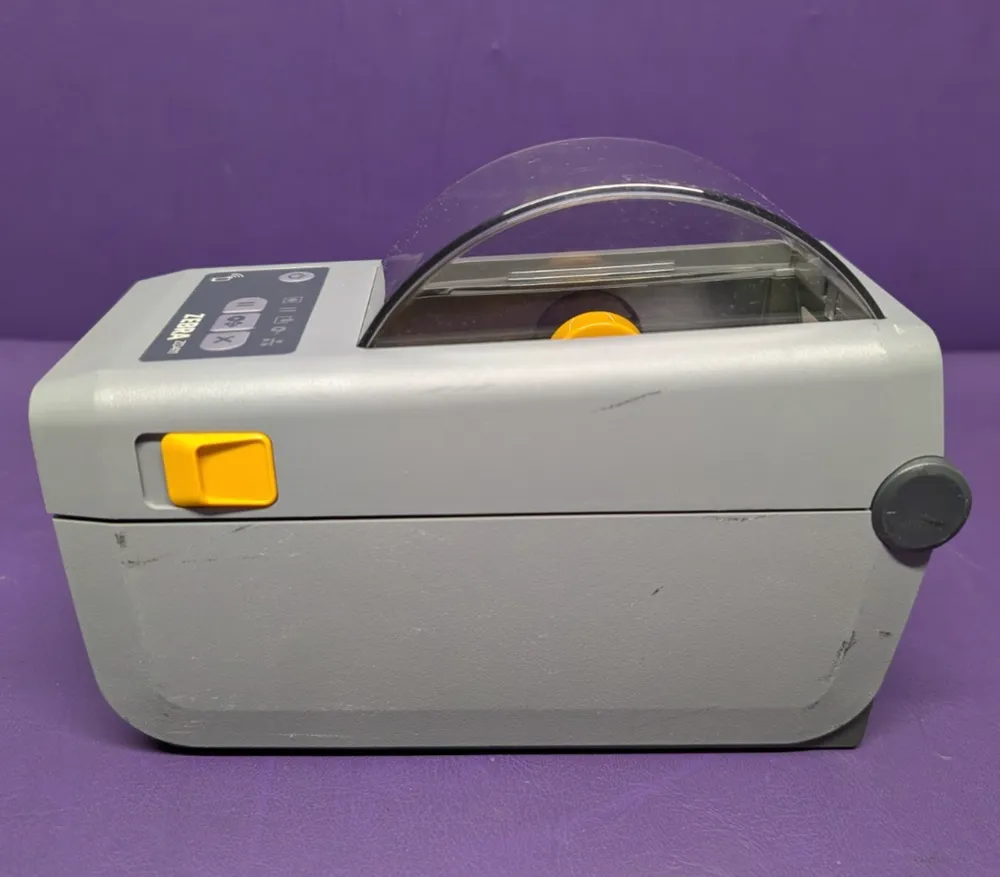

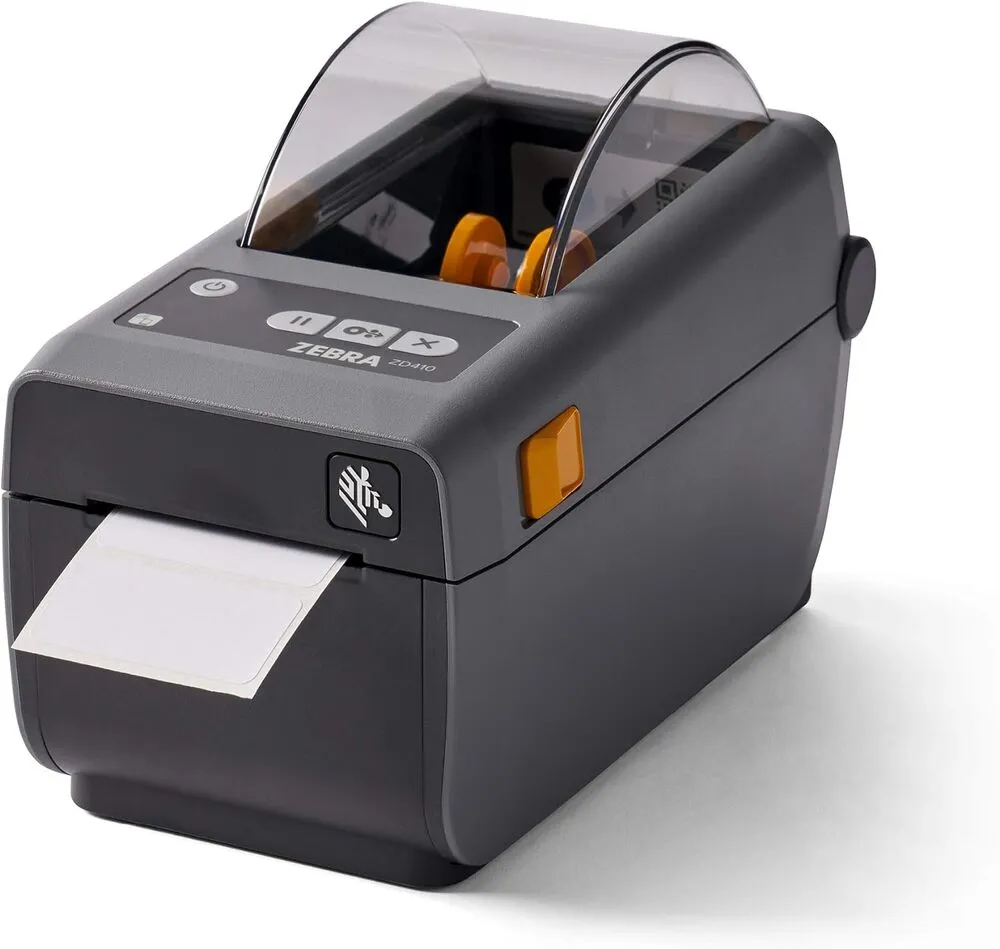

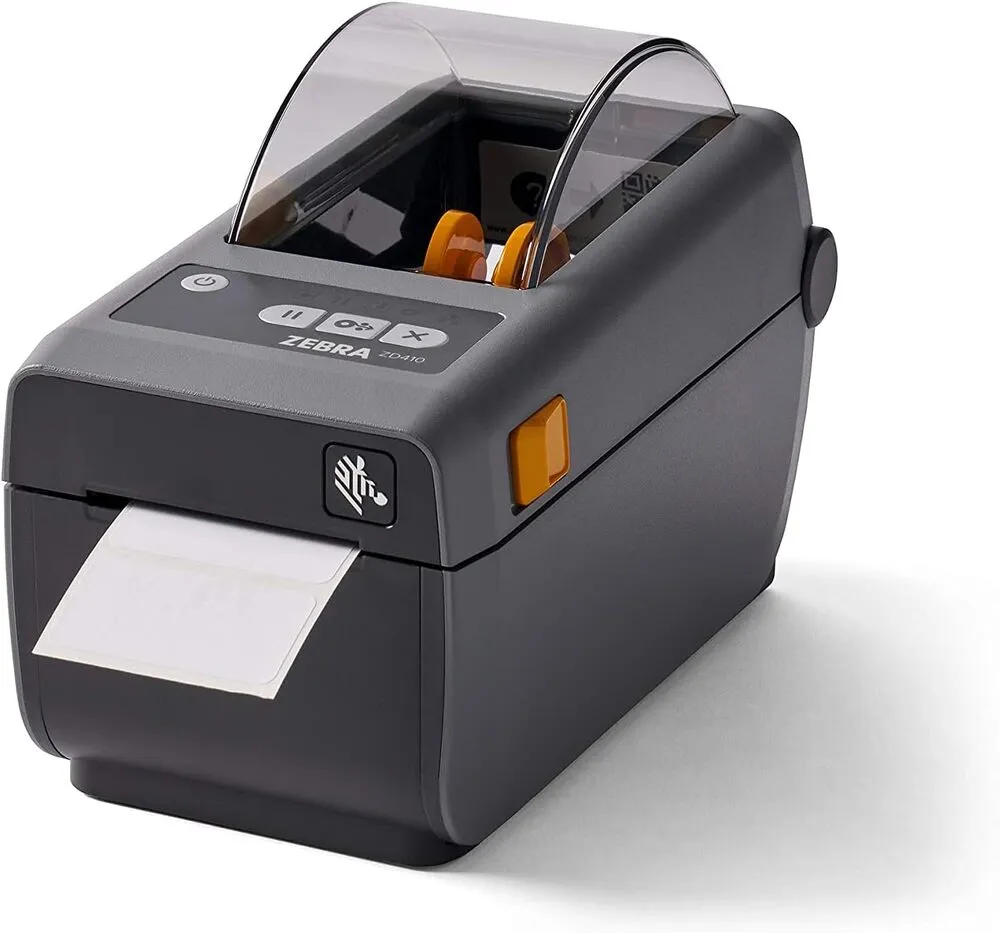

The Zebra ZD410 is a compact, direct thermal desktop printer designed for fast and high-quality label printing. With a print speed of up to 6 inches per second and a maximum print resolution of 203 dpi, it ensures clear and precise barcode and label outputs. The printer supports a variety of media types including labels, tags, and receipts up to 2.2 inches in width. Connectivity options include USB, Serial, Ethernet, and optional Bluetooth and Wi-Fi, facilitating flexible integration in various office and industrial environments. Its user-friendly design includes an intuitive LCD interface for easy operation and media loading. The device is built on Zebra's Link-OS platform, which enables remote management and firmware updates for improved productivity and maintenance.
Specifications
MPN | ZD410 |
Model | Zebra ZD410 |
Memory | 256 MB Flash, 128 MB SDRAM |
Technology | Thermal |

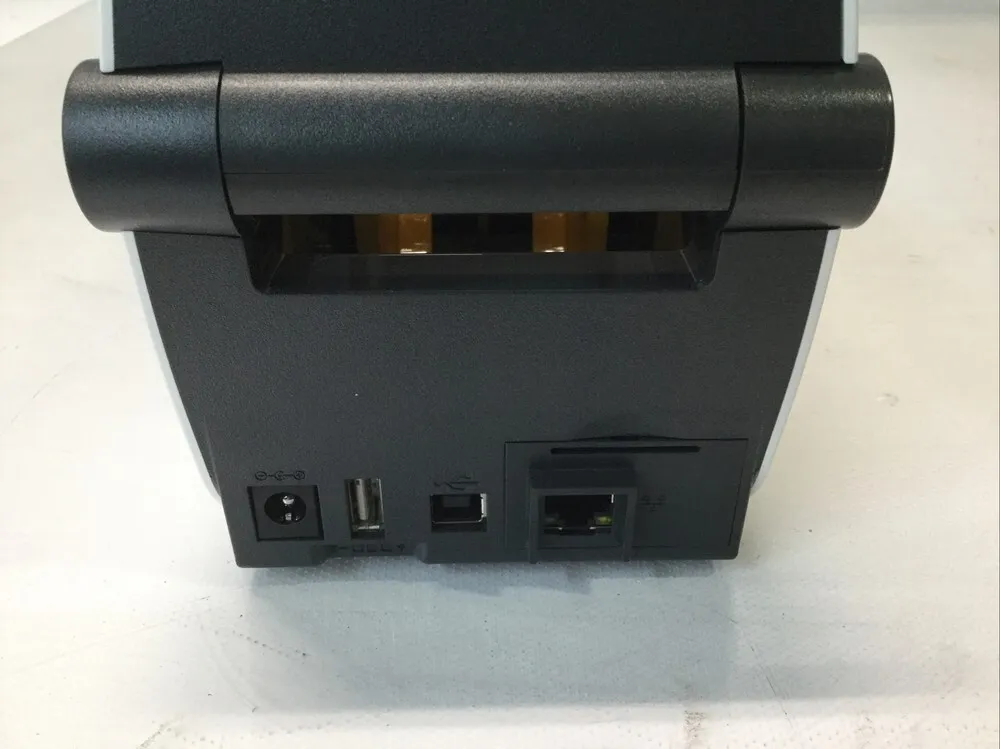

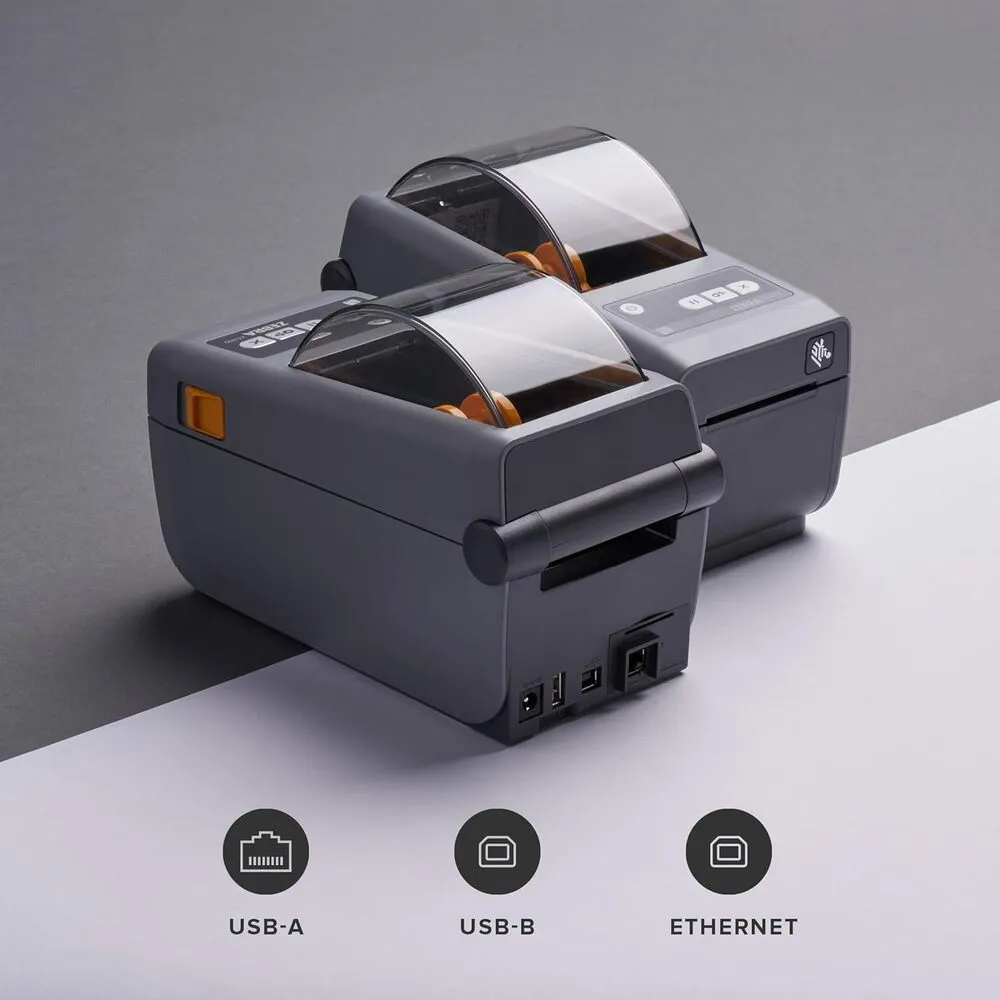

Connectivity | USB 2.0, Serial RS-232, Ethernet, optional Wi-Fi and Bluetooth |
Output Type | Black & White |
Features | Networkable |
Input Type | Monochrome |
Supported Paper Size | Max size 2.36 in./60 mm |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 6 in./152 mm per second (203 dpi) |
Printer Type | Direct Thermal Desktop Printer |
Print Speed | Up to 6 inches per second (152 mm/s) |
Print Resolution | 203 dpi (8 dots/mm) |
Max Print Width | 2.2 inches (56 mm) |
Media Types | Labels, tags, receipts (direct thermal) |
Media Width | 0.75 inches to 2.36 inches (19 mm to 60 mm) |
Processor | 32-bit ARM Cortex-A9 Processor |
Display | Intuitive LCD interface |
Operating System Support | Windows, Mac, Linux |

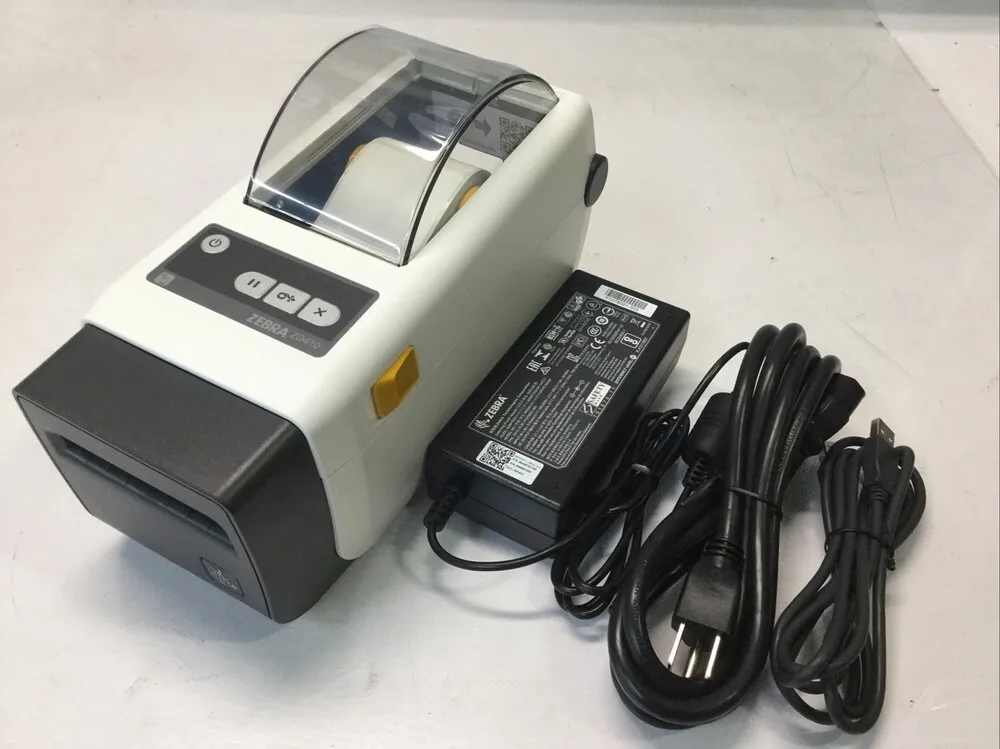

Power Supply | External 100-240 VAC, 50-60 Hz |
Dimensions | 5.9" W x 7.8" D x 5.9" H (150 mm x 198 mm x 150 mm) |
Weight | Approx. 3.6 lbs (1.63 kg) |
Link-OS | Yes, supports Zebra’s Link-OS for remote management |

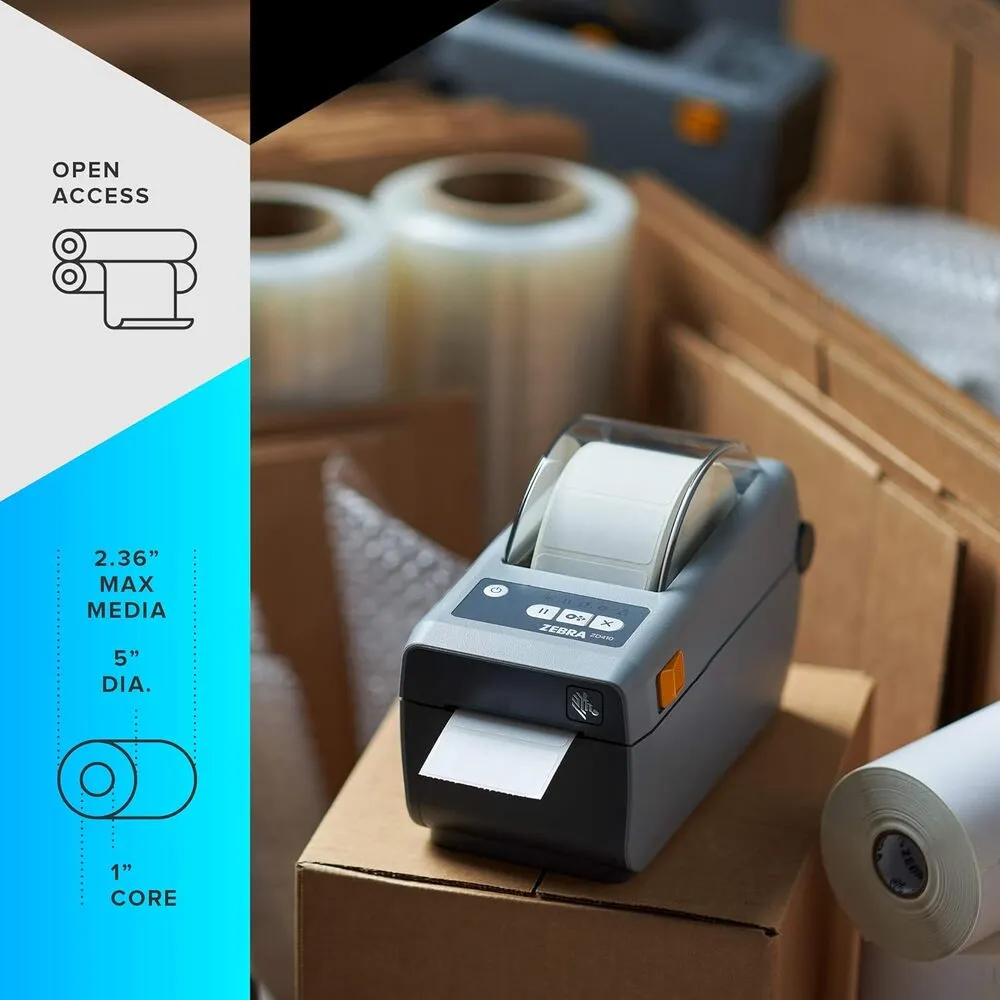

Label Roll Capacity | Up to 5 inch (127 mm) roll diameter |
Print Languages | ZPL, EPL emulations |
Compatibility | Compatible with Zebra Print DNA apps |
Images
Key Advantages
The ZD410 offers a remarkably compact footprint that fits easily in tight spaces, ideal for office and retail environments. It boasts fast print speeds that enhance operational efficiency and reduce waiting times. High print resolution ensures crisp text and barcode quality for improved scanning accuracy. Multiple connectivity options provide flexibility for diverse deployment scenarios. The printer’s Link-OS environment supports remote printer management for scalable IT operations. Additionally, the direct thermal printing technology eliminates the need for ink or toner, reducing maintenance and operational costs.
Limitations
The ZD410 uses direct thermal printing, which limits label longevity under heat, light, and abrasion compared to thermal transfer printers. The print width is restricted to 2.2 inches, which is insufficient for larger label requirements. It has a relatively small media capacity, requiring frequent media replenishment in high-volume scenarios. The print resolution maxes out at 203 dpi, which may not meet demands for extremely high-detail printing. Optional connectivity upgrades can add to the total cost. Its compact size might limit durability in harsh industrial environments compared to larger industrial models.
FAQ
What types of media are compatible with the Zebra ZD410?
The ZD410 supports direct thermal labels, tags, and receipts with a maximum width of 2.2 inches, including paper and synthetic materials.
Does the Zebra ZD410 support wireless connectivity?
Yes, wireless connectivity including Wi-Fi and Bluetooth is available as optional add-ons in certain configurations.
What is the maximum print speed of the ZD410?
The maximum print speed is 6 inches (152 mm) per second.
Is the ZD410 suitable for high-volume printing environments?
The printer is designed primarily for low to medium volume printing due to its compact size and media capacity.
Can the ZD410 be managed remotely?
Yes, it is compatible with Zebra's Link-OS platform which enables remote management and firmware updates.
What is the print resolution of the Zebra ZD410?
It offers a print resolution of 203 dots per inch (dpi).
Does the ZD410 require ink or toner?
No, it uses direct thermal printing technology, so it does not require ink or toner.
