Zebra ZC10L-00QT0US00 image

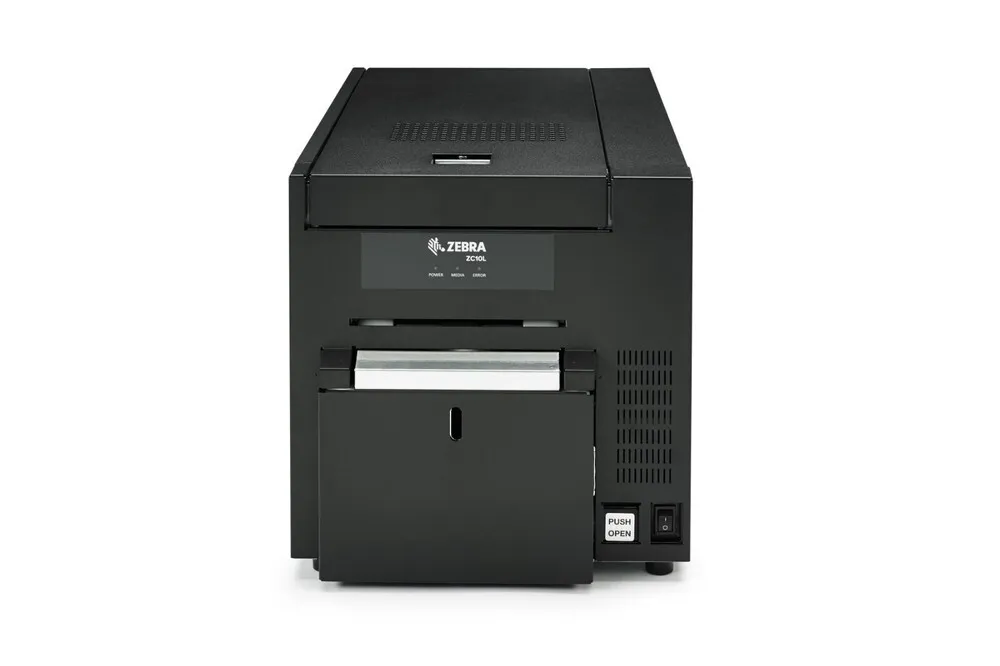

Zebra ZC10L-00QT0US00

Quick information
Brand Zebra 2018
Model ZC10L-00QT0US00
Released Year 2018
Type Printers
Series Z
Status Active
Quick view
Full specs Images

Overview

The Zebra ZC10L-00QT0US00 is a high-performance direct-to-card printer designed for office environments requiring customized card issuance. It utilizes dye-sublimation thermal transfer technology for high-resolution printing at up to 300 dpi. The printer supports single and dual-sided printing with an optional laminator to ensure card durability and security. Connectivity includes USB and Ethernet interfaces, allowing network integration and ease of use in multi-user environments. Designed with a user-friendly color touch screen, it simplifies operation and maintenance tasks such as cleaning and ribbon replacement. The device supports encoding options for magnetic stripes, contact, and contactless smart cards, aligning with security and identification needs.

Specifications

Type ID Card Printer
Technology Thermal
Maximum Resolution 300 x 300 DPI
Output Type Color
Memory 512 MB RAM, 512 MB Flash
Model ZC10L-00QT0US00
MPN ZC10L-00QT0US00
Country/Region of Manufacture China
Product Line Zebra Z
UPC Does Not Apply
Printer type Direct-to-card, dye-sublimation thermal transfer
Print resolution 300 dpi (11.8 dots/mm)
Print speed Up to 150 cards/hour (single-sided, YMCKO)
Card size supported CR-80 (3.375" x 2.125" / 85.6 mm x 54 mm)
Card thickness 0.25 mm to 0.76 mm (10 mil to 30 mil)
Connectivity USB 2.0, Ethernet 10/100
Display Full-color 3.5-inch touch screen
Encoding options Magnetic stripe, contact and contactless smart card encoding (optional)
Laminator Optional single- or dual-sided lamination
Operating systems supported Windows 7, 8, 10, 11; macOS support via middleware
Dimensions (W x D x H) 9.1 x 17 x 10 inches (231 mm x 432 mm x 254 mm)
Weight Approximately 13 lbs (5.9 kg)
Power supply External 100-240 VAC, 50-60 Hz
Software included Zebra CardStudio design software, Zebra Printer Setup Utilities

Key Advantages

The Zebra ZC10L printer offers fast card printing speeds, making it suitable for high-volume issuance. Its modular design allows easy upgrade with lamination and encoding capabilities. A compact footprint fits well in office spaces without sacrificing performance. The printer's robust build and reliable printing mechanism reduce downtime and maintenance. User interface with a color touch screen enhances operator experience and error recovery. Enhanced security features with optional encoding support improve card functionality for secure access control.

Limitations

The ZC10L model may have limitations in printing edge-to-edge cards compared to some competitors. Initial cost and consumable prices can be relatively high for small businesses. Color ribbon and laminator supply can affect ongoing operational costs. Print speed decreases when lamination or dual-sided printing is enabled. Some advanced encoding options may require additional modules increasing device complexity. The device primarily supports specific card sizes, which might restrict use with non-standard card formats.

FAQ

The Zebra ZC10L can print on PVC and composite plastic cards, including standard credit card-sized cards.

Yes, the ZC10L supports both single and dual-sided card printing, with an option for lamination.

The printer comes with USB and Ethernet interfaces for easy connection to computers and networks.

Yes, it supports encoding for magnetic stripe cards, contact smart cards, and contactless cards with optional modules.

Yes, it features a full-color touch screen display for intuitive operation and status updates.

The ZC10L prints at a resolution of 300 dots per inch (dpi) for high-quality images and text.

As of now, the ZC10L is not discontinued and remains supported with consumables and service options.
