Zebra Z4M image

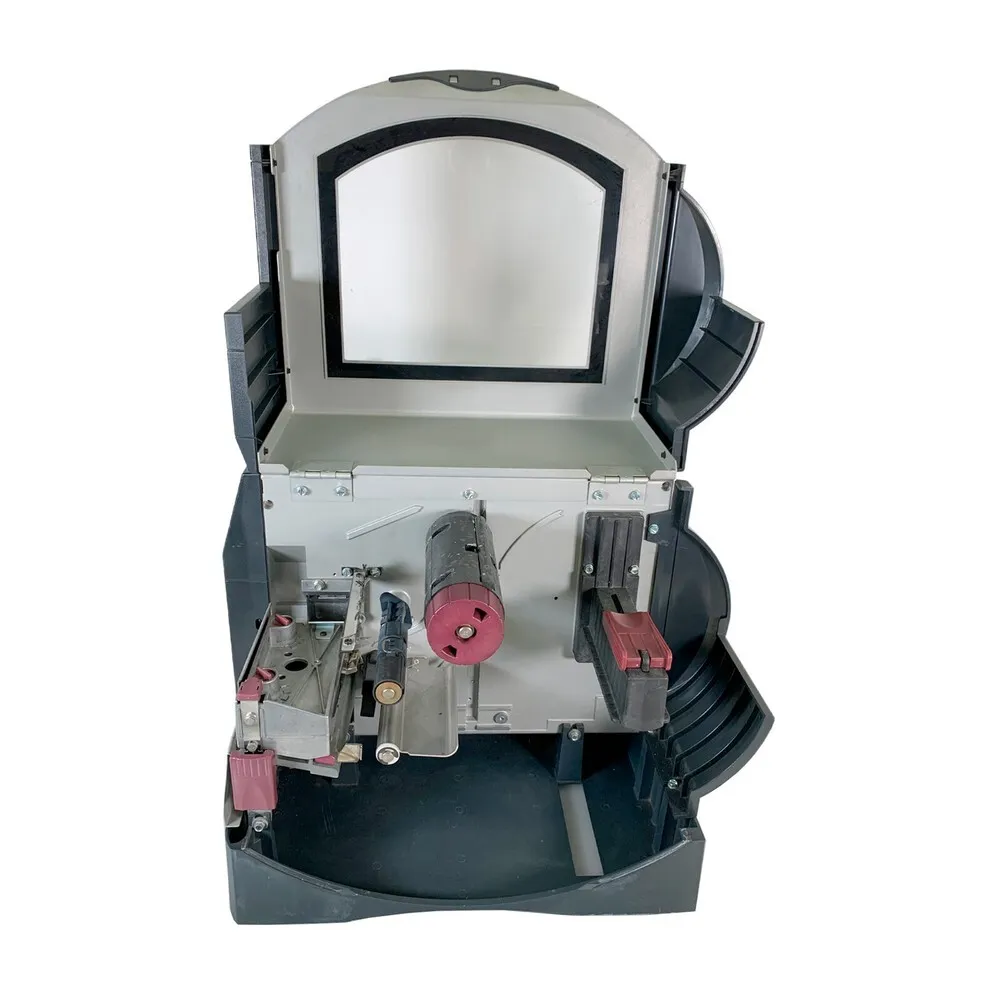

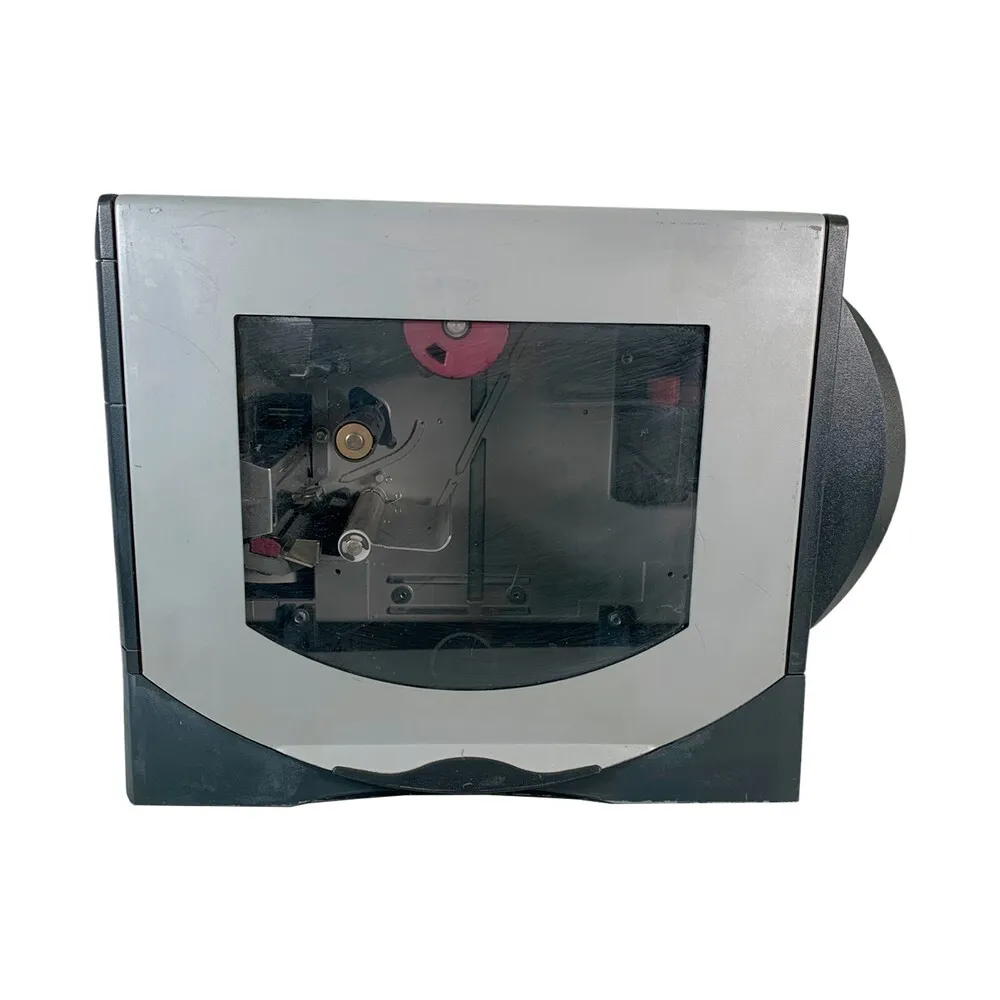

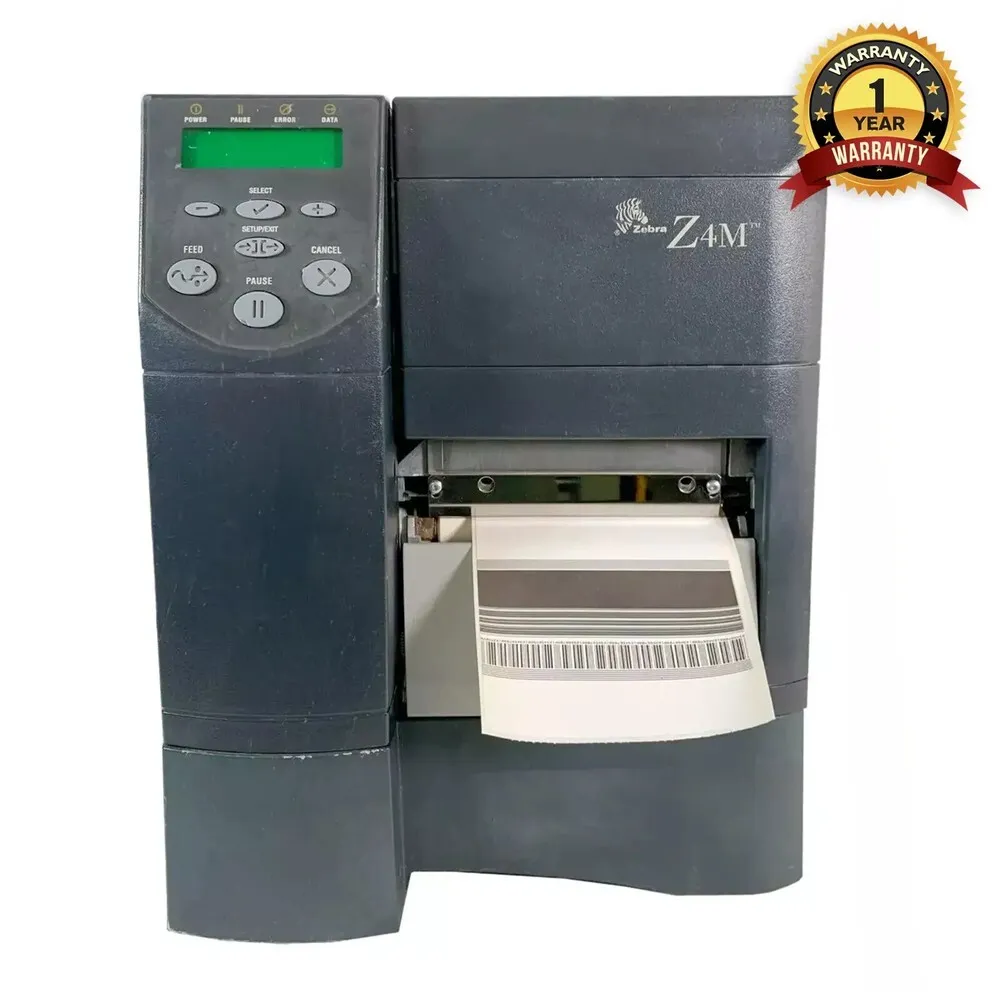

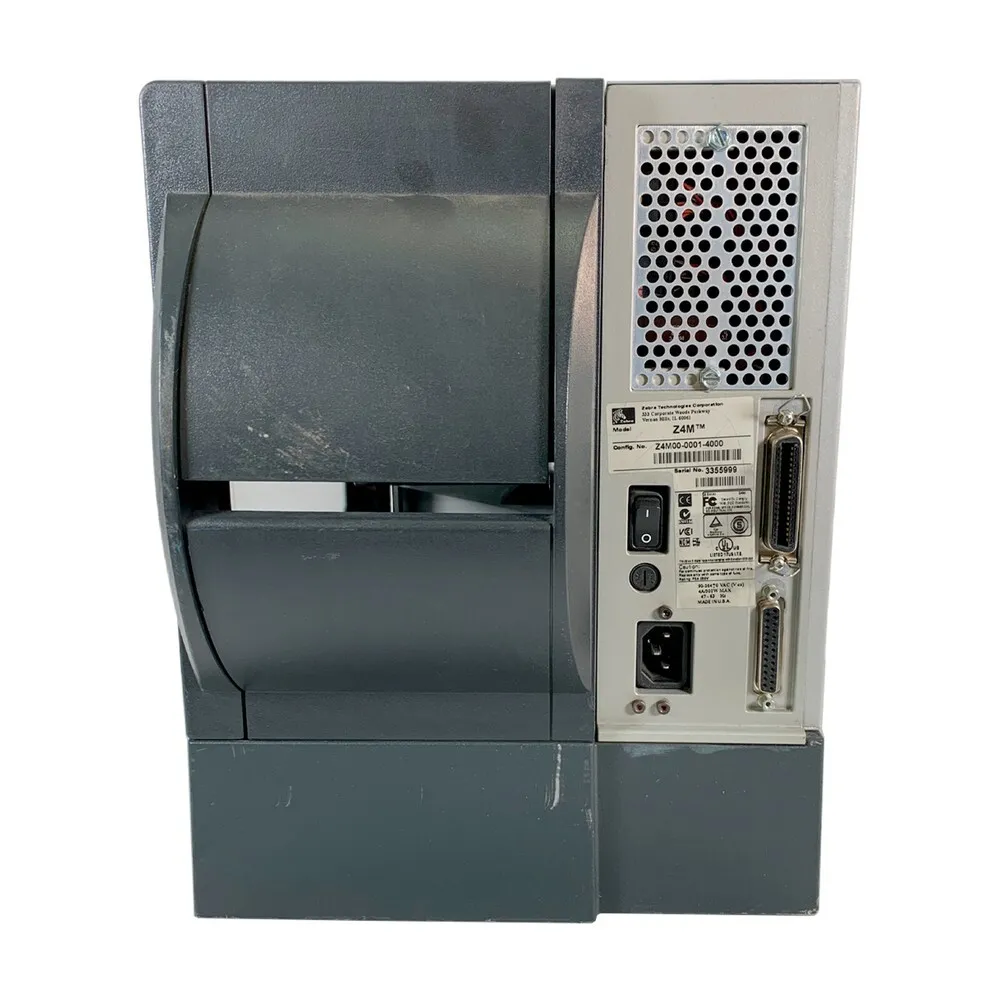

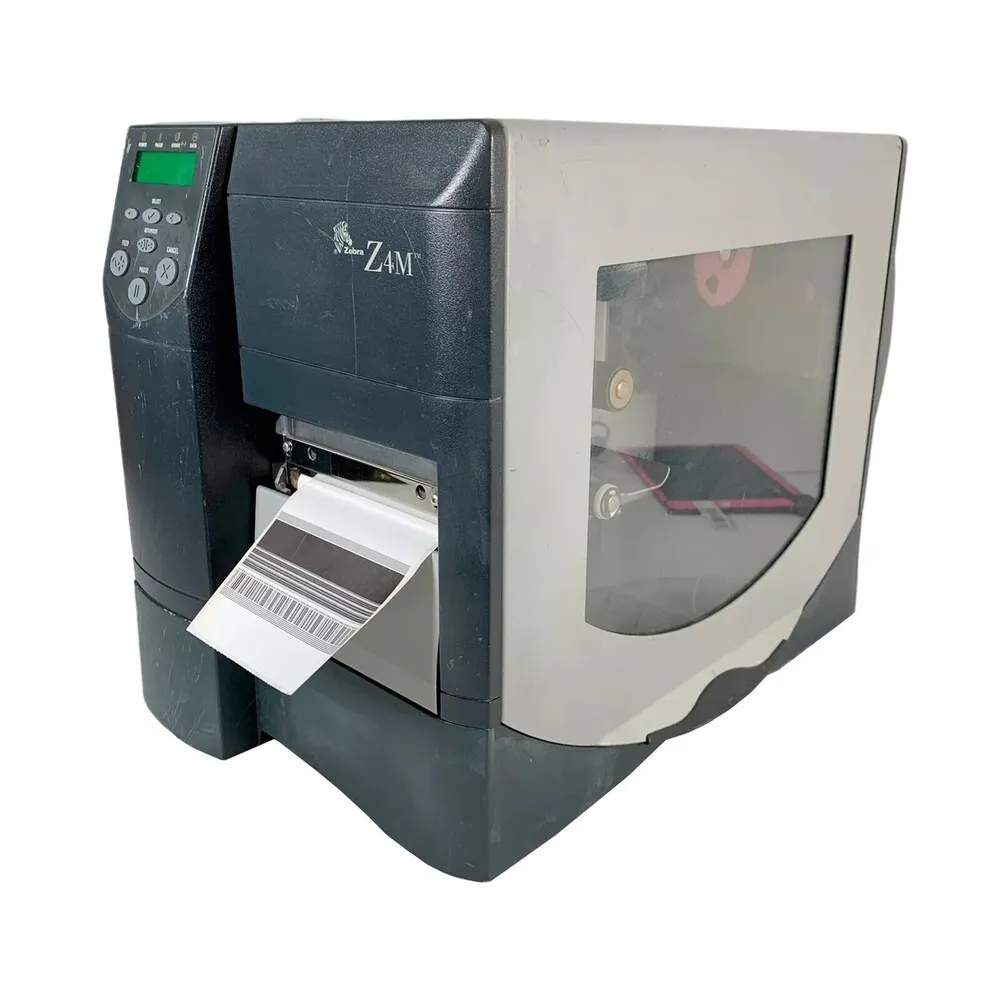

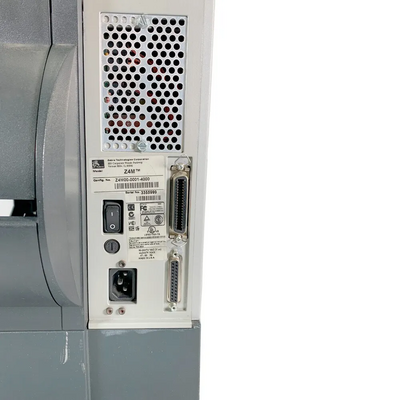

Zebra Z4M

Quick information
Brand Zebra 2007
Model Z4M00-0001-4000, Label
Released Year 2007
Type Printers
Series Z
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra Z4M is an industrial-grade label and barcode printer designed for medium to high volume printing environments. It features a 203 dpi (8 dots/mm) print resolution, allowing for sharp barcode and text printing. The printer uses direct thermal or thermal transfer printing methods suitable for durable label creation. Connectivity options include serial, parallel, and USB interfaces ensuring compatibility with a variety of host systems. The device supports various label media widths up to 4.09 inches, providing flexibility for different labeling needs. Its construction emphasizes durability with a metal frame and large media rolls for extended operation periods in industrial settings.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 4 MB Flash, 8 MB DRAM
Custom Bundle No
MPN Z4M00-0001-4000, Label
Max. Resolution 203 dpi
Modified Item No
Supported Paper Size Max. Width: 4.5"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Printer Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model Z4M
Connectivity Serial, Parallel, USB
Features UPS Firmware
Black Print Speed 10 ips
Product Line Zebra Z
UPC Does not apply
Print Method Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm)
Print Width 4.09 inches (104 mm)
Print Speed up to 6 inches per second
Processor 32-bit RISC
Media Width 1 inch to 4.5 inches
Media Type Roll-fed, die-cut, continuous, fan-fold labels, tags and tickets
Ribbon Ribbon width up to 110 mm, length approx. 300 m
Dimensions 11.7 in W x 19.7 in D x 15.6 in H
Weight Approximately 30 lbs (13.6 kg)
Operating Temperature 40°F to 104°F (5°C to 40°C)
Power Supply 120V AC, 60Hz
Status Indicators LED status indicators for label feed, pause, and error conditions
Case Material Metal frame with plastic covers

Key Advantages

Zebra Z4M offers reliable high-speed printing suitable for industrial environments. Its support for multiple communication ports increases its adaptability across systems. The printer is compatible with a range of media types, including various widths and materials. The metal frame design enhances durability, ensuring long-term operational stability. The Z4M also allows easy ribbon and label replacement, reducing downtime. Integrated software support enables seamless integration with existing printing workflows.

Limitations

The Zebra Z4M has a maximum print resolution of 203 dpi, which may not be sufficient for ultra-fine detailed images or very small fonts. It lacks some of the connectivity options seen on more modern printers, such as Ethernet or Wi-Fi, potentially limiting network integration. The printer's size and weight make it less suitable for mobile or space-constrained environments. Its older design means replacement parts and accessories may be harder to source compared to current models. Energy consumption is higher than newer, energy-efficient models. Additionally, it relies on Windows-based software that might not be updated for latest operating systems.

FAQ

The Zebra Z4M typically supports 203 dpi (8 dots/mm) print resolution.

Yes, it is specifically designed for printing high-quality barcodes and labels.

It supports direct thermal and thermal transfer media of various sizes and materials.

The Z4M offers serial, parallel, and USB interfaces but does not natively support Ethernet or wireless connections.

The Zebra Z4M has been discontinued and is no longer officially supported.

It mainly supports Windows-based drivers, but compatibility with the latest OS versions may be limited.

It is used for medium to high volume industrial label printing including shipping labels, product identification, and inventory management.
