Zebra Z4M Plus
Brand | Zebra 2007 |
Model | Z4M Plus |
Released Year | 2007 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview
The Zebra Z4M Plus is an industrial-grade thermal transfer and direct thermal printer designed for medium to high-volume printing environments. It supports a print width of up to 4 inches (104 mm) and a maximum print speed of 6 inches per second (152 mm/s), balancing quality and efficiency. The printer features a durable metal frame for enhanced longevity in demanding industrial settings. Connectivity options include parallel, serial, and USB interfaces, ensuring compatibility with diverse systems. It supports multiple RFID encoding capabilities and uses the advanced Zebra Programming Language (ZPL) for flexible label printing solutions. Additionally, it offers a user-friendly LCD interface for simplified operation and status monitoring.
Specifications
Input Type | Monochrome |
Memory | 8 MB SDRAM, 4 MB Flash |
Output Type | Black & White |
Supported Paper Size | Various, 4-inch-wide |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Item Height | 12 in (304.8 mm) |
Image Sensor | 2MB |
Model | Z4M Plus |
Connectivity | Parallel, Serial, USB |
Features | Portable, Networkable |
Black Print Speed | 10ppm |
Product Line | Zebra Z |
Print Method | Thermal Transfer and Direct Thermal |
Print Width | 4 inches (104 mm) |
Print Speed | Up to 6 inches per second (152 mm/s) |
Resolution | 203 dpi (8 dots/mm) |
Processor | 32-bit RISC processor |
Media Types | Labels, Tags, Continuous media |
Media Width | 0.79 inches to 4.5 inches (20 mm to 114 mm) |
Media Thickness | 2.5 mil to 10 mil |
User Interface | LCD display with buttons |
Dimensions | 10.8 in (W) x 19 in (D) x 12.2 in (H) |
Weight | 28 lbs (12.7 kg) |
Power Supply | Internal universal switching power supply |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Programming Languages | ZPL II |
Discontinued | Yes |

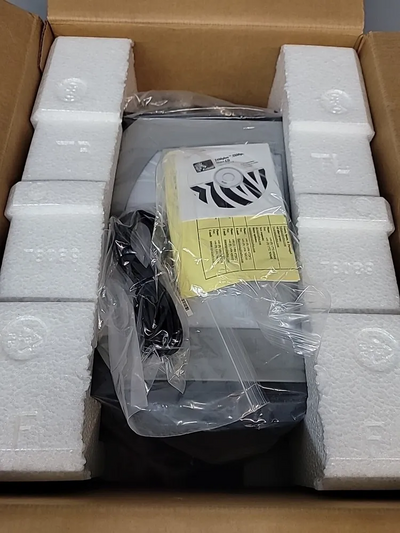

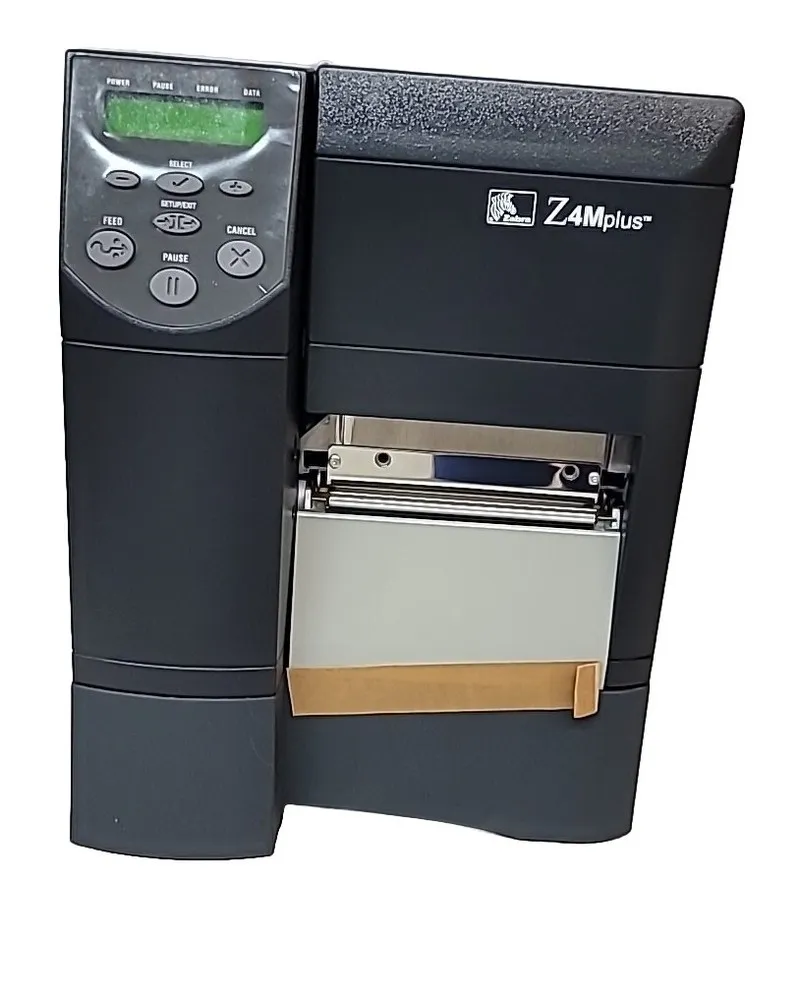

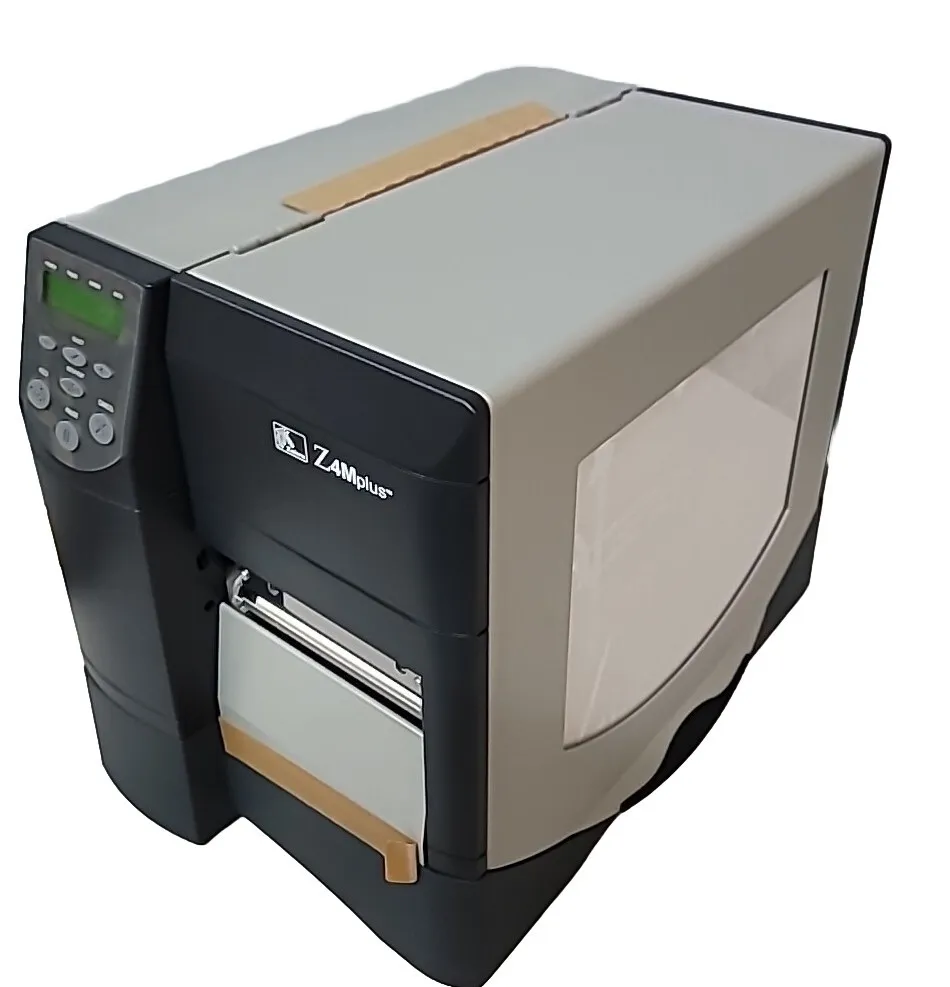

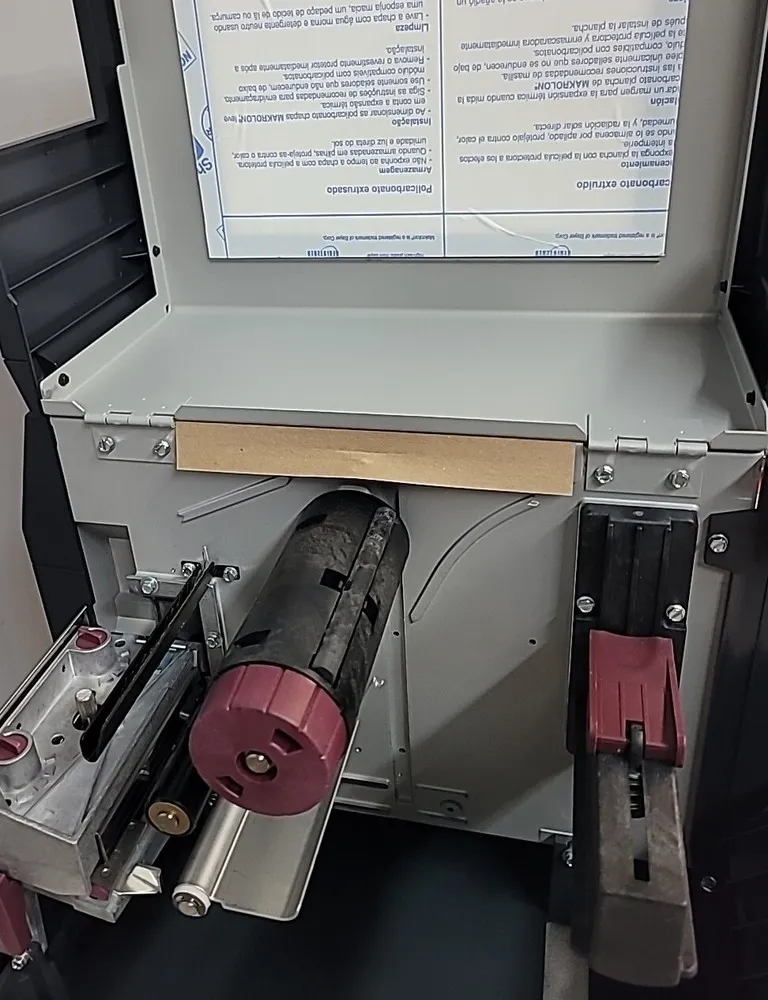

Images
Key Advantages
The Z4M Plus delivers robust print quality suitable for barcode and label accuracy critical in manufacturing and logistics. Its sturdy metal chassis provides high durability in harsh environments. The versatile connectivity options facilitate integration into existing IT infrastructures. The machine supports multiple media types and sizes, accommodating a broad range of printing applications. Efficient thermal transfer technology ensures cost-effective consumable usage and sharp image reproduction. The inclusion of RFID reading and encoding expands its functionality for tracking and inventory management systems.
Limitations
Despite its durability, the Z4M Plus is relatively heavy and bulky, which limits portability. It lacks some of the wireless connectivity options found in more modern printers. The interface and software, compared to newer models, may not offer comprehensive ease-of-use features or advanced networking. Replacement parts can be harder to find due to its discontinued status. The print speed, while sufficient for its class, may not meet extremely high throughput demands. Compatibility with newer operating systems can require additional drivers or software updates.
FAQ
What type of printing technology does the Zebra Z4M Plus use?
The Zebra Z4M Plus uses both thermal transfer and direct thermal printing technologies.
What is the maximum print width and speed of the Z4M Plus?
It supports a maximum print width of 4 inches (104 mm) and a print speed up to 6 inches per second (152 mm/s).
Is the Z4M Plus still supported by Zebra?
No, the Zebra Z4M Plus has been discontinued and is no longer supported with new parts or software updates from Zebra.
What connectivity options are available on the Z4M Plus?
It includes parallel, serial, and USB connectivity interfaces for integration with various systems.
Can the Z4M Plus encode RFID tags?
Yes, selected models of the Z4M Plus support RFID encoding capabilities.
What kind of media can the Z4M Plus handle?
The printer can handle various media types including labels, tags, and continuous media in multiple sizes.
What programming language does the printer support?
It supports the Zebra Programming Language (ZPL) for designing labels and barcodes.
