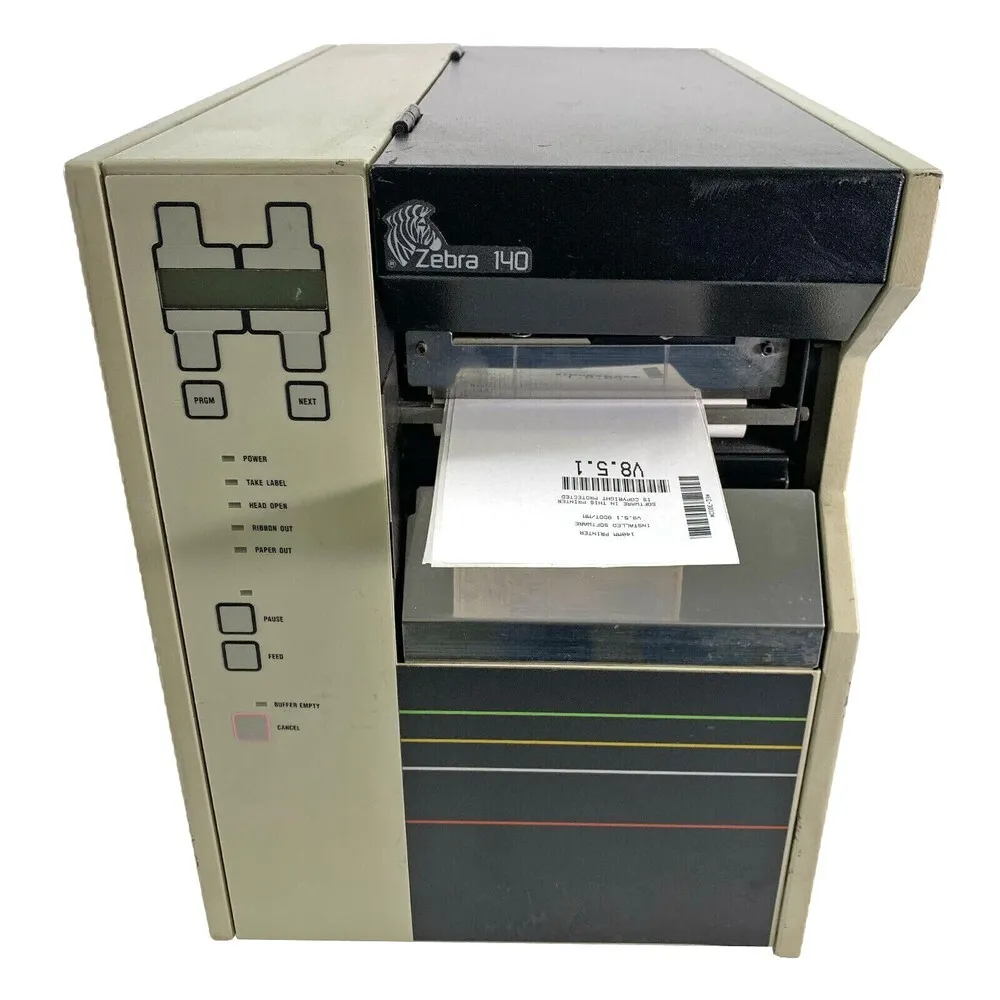

Zebra Z140 image

Zebra Z140

Quick information
Brand Zebra 2004
Model Z140
Released Year 2004
Type Printers
Series Z
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra Z140 printer is designed primarily for standard office and low-volume barcode label printing applications. It operates using direct thermal printing technology, which eliminates the need for ink, toner, or ribbon. It supports label widths up to 4.09 inches and delivers a print resolution of 203 dpi, suitable for general industrial and logistics labeling. The printer incorporates a 32-bit RISC processor to manage print jobs efficiently. Connectivity options include serial and parallel ports, allowing integration with legacy office equipment. Its compact and robust build enables reliable operation in various office environments.

Specifications

Supported Paper Size NA
Model Z140
Maximum Resolution 203 dpi
Custom Bundle No
Black Print Speed 12 ppm
Product Line Zebra Z
Input Type Monochrome
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.

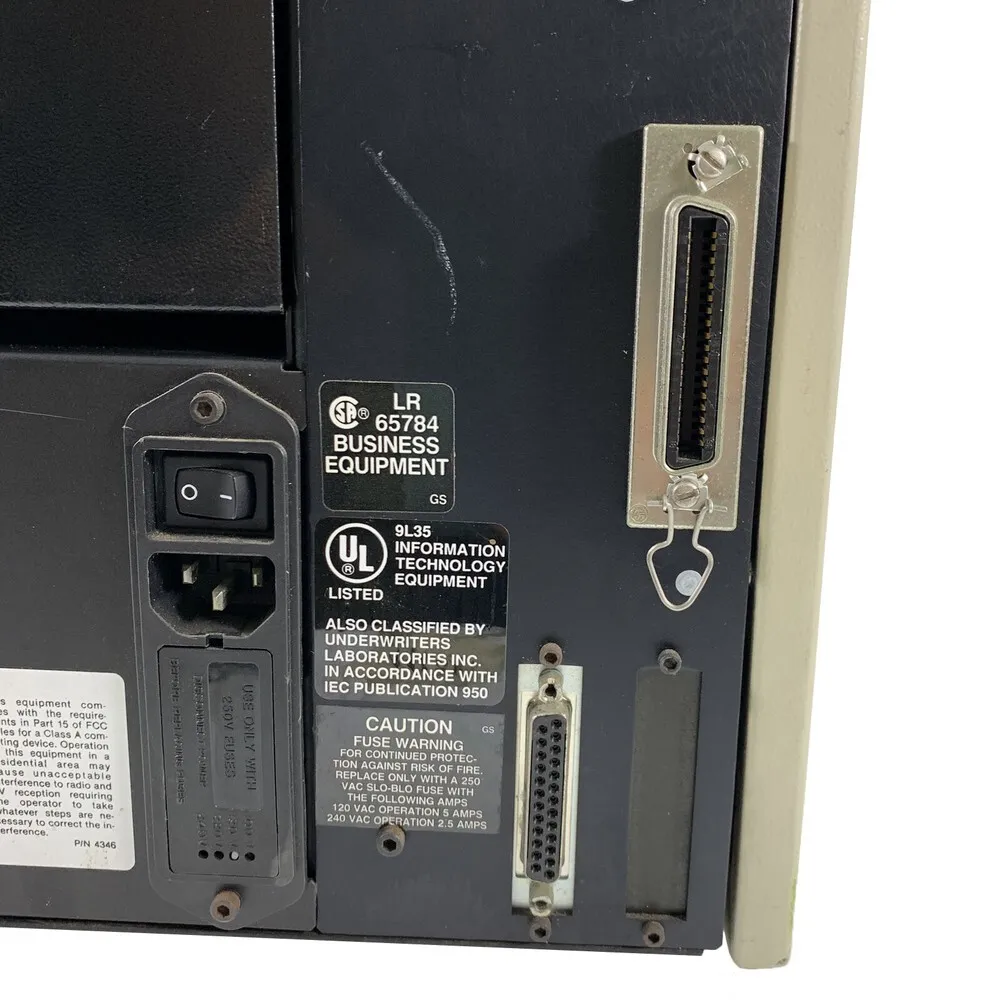

Connectivity Serial (RS-232), Parallel (IEEE 1284)
Type Label Printer
Output Type Black & White
Features Zebra Firmware
Memory 2 MB DRAM, 4 MB Flash
Technology Thermal
MPN Z140
Modified Item No
UPC Does not apply
Printing method Direct Thermal
Maximum print width 4.09 inches (104 mm)
Print resolution 203 dpi (8 dots/mm)
Print speed Up to 4 inches per second
Processor 32-bit RISC CPU
Media type Labels, Tags
Label sensor Reflective and transmissive sensors
Supply roll diameter Up to 5 inches
Operating voltage 100 - 240 VAC
Dimensions 10.5 in (L) x 8 in (W) x 6.75 in (H)
Weight Approx. 6.5 lbs
Operating temperature 40°F to 105°F (5°C to 40°C)
Storage temperature -40°F to 140°F (-40°C to 60°C)
Warranty Limited standard warranty

Key Advantages

The Zebra Z140 printer offers a straightforward and affordable entry point into barcode label printing. Its direct thermal method reduces maintenance costs by eliminating ribbons. The device supports multiple media types and sizes, providing versatility. Its compact size allows for easy placement in limited office spaces. The printer's user-friendly interface facilitates quick setup and operation. Additionally, the Zebra brand is recognized for durable and reliable printing technology.

Limitations

The Z140's 203 dpi resolution limits the printing of very small or highly detailed barcode labels. It lacks advanced connectivity options such as USB or network interfaces common in newer models. The print speed is moderate, making it less suitable for high-volume printing environments. It operates solely with direct thermal printing and does not support thermal transfer, limiting media choices. The technology is somewhat dated, meaning it may not fully support newer label formats or software. Replacement parts may be harder to source as the model is older and less common.

FAQ

The Zebra Z140 uses direct thermal printing technology, which prints images by heating specially coated thermal paper.

The maximum print resolution of the Zebra Z140 is 203 dots per inch (dpi).

No, the Zebra Z140 supports only direct thermal printing and does not support thermal transfer.

The Zebra Z140 includes serial and parallel ports for connectivity but lacks USB or network interfaces.

The Z140 is designed for low to moderate volume printing and may not be ideal for high volume industrial needs.

Yes, it can print labels up to 4.09 inches in width, suitable for many standard label applications.

No, the Zebra Z140 model is discontinued and generally only available through resellers or as used equipment.
