Zebra UX1133
| Brand | Zebra 2016 |
| Model | ZT41043-T010000Z |
| Released Year | 2016 |
| Type | Printers |
| Series | Z |
| Status | Active |
Quick view
Overview

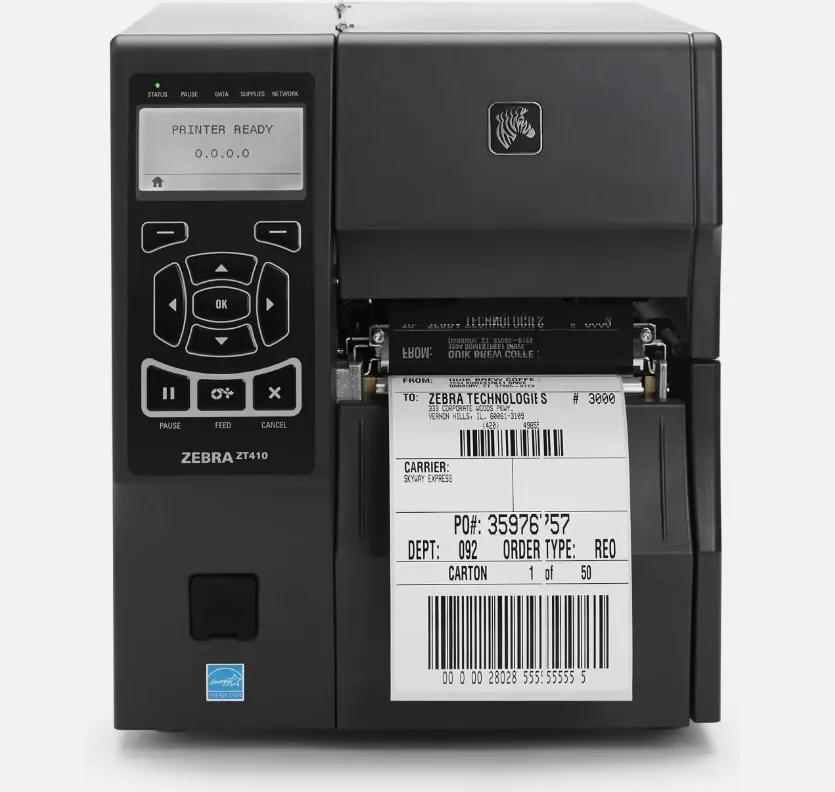

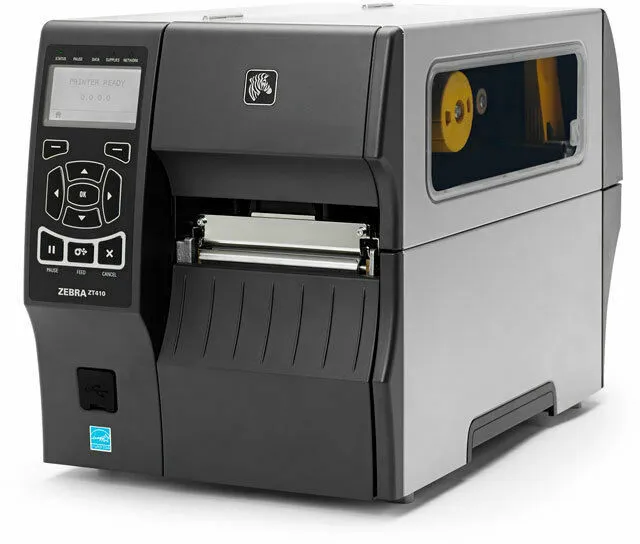

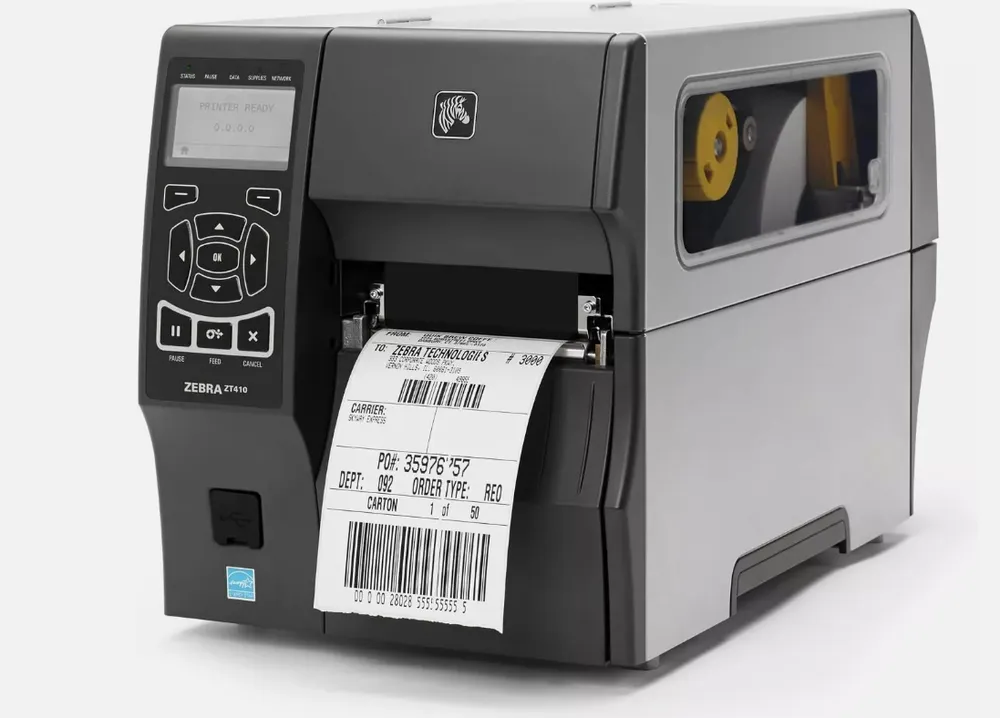

The Zebra ZT410 UX1133 is an industrial label printer designed for high-volume applications in office and industrial environments.
Equipped with precision printheads, it supports thermal transfer and direct thermal printing technology for durable labels.
The device features a robust metal frame ensuring reliability and stability in continuous operation.
Connectivity options include USB, Ethernet, Bluetooth, and serial ports, supporting versatile integration with various systems.
The printer supports resolution settings up to 600 dpi for sharp barcode, text, and graphics output.
It includes an intuitive LCD user interface for ease of configuration and troubleshooting.
Specifications
| MPN | ZT41043-T010000Z |
| UPC | 0640213049139 |
| Model | UX1133 |
| Memory | 512 MB Flash, 256 MB SDRAM |
| Technology | Thermal |
| Connectivity | USB 2.0, Gigabit Ethernet, Bluetooth 4.0, Serial RS-232 |
| Output Type | Black & White |
| Features | Printer |
| Input Type | Monochrome |
| Type | Label Printer |
| Maximum Resolution | 300 x 300 DPI |
| Product Line | Zebra Z |
| Weight | 28 lbs (12.7 kg) |
| Print Method | Thermal transfer and direct thermal |
| Print Resolution | 203 dpi (8 dots/mm), optional 300 dpi and 600 dpi |
| Max Print Speed | 14 inches per second (356 mm/s) |
| Max Print Width | 4.09 inches (104 mm) |
| Media Types | Continuous, die-cut, black mark, tag stock, continuous fan-fold |
| Media Width | 0.75 inches to 4.5 inches (19 mm to 114 mm) |
| Media Thickness | 0.0023 in to 0.010 in (0.058 mm to 0.25 mm) |
| Media Length | 0.25 in to 39 in (6.35 mm to 991 mm) |
| Roll Size | Up to 8.0 inches (203 mm) outer diameter |
| Ribbon Type | Wax, wax/resin, resin |
| Ribbon Length | Up to 1476 feet (450 m) |
| Display | 4.3-inch color LCD touch screen |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | AC 100-240V, 50-60 Hz |
| Dimensions (WxHxD) | 10.5 x 13 x 20 inches (267 x 330 x 508 mm) |
Images
Key Advantages
The ZT410 UX1133 offers high print speed of up to 14 inches per second, minimizing job turnaround time.
Its modular design enables easy printhead and platen replacement, reducing downtime.
Supports a wide media width range, accommodating various label sizes and types.
Robust connectivity options allow seamless integration into existing network environments.
Durable metal construction enhances longevity in demanding industrial settings.
The user-friendly interface simplifies operation, even for non-technical users.
Limitations
Relatively high initial cost compared to entry-level desktop printers.
The printer is relatively large and heavy, requiring dedicated space in the office.
Limited color printing capability, primarily designed for monochrome labels.
Printhead replacement can be costly as original components are recommended.
Advanced features may require specialized training for optimal use.
Firmware updates are dependent on Zebra's release schedule and may require manual installation.
FAQ
What printing technologies does the Zebra ZT410 UX1133 support?
It supports thermal transfer and direct thermal printing technologies for producing durable labels.
What connectivity options are available on this printer?
The printer features USB, Ethernet, Bluetooth, and serial port connectivity for versatile integration.
What is the maximum print resolution of the ZT410 UX1133?
The device supports printing resolutions up to 600 dpi.
Is the Zebra ZT410 UX1133 still in production?
As of now, the ZT410 series is still actively supported by Zebra and is not discontinued.
Can this printer handle various label sizes?
Yes, it supports a wide range of media widths to accommodate different label types.
What software compatibility is available for this printer?
The printer works with Zebra's Link-OS software and supports common printer command languages like ZPL and EPL.
How user-friendly is the interface on the Zebra ZT410 UX1133?
It includes an easy-to-use LCD with intuitive menus for straightforward configuration and maintenance.
