Zebra UPS LP2844
| Brand | Zebra 2006 |
| Model | 284Z-20300-0001 |
| Released Year | 2006 |
| Type | Printers |
| Series | Lp |
| Status | Discontinued |
Quick view
Overview
The Zebra UPS LP2844 is a compact direct thermal label printer designed primarily for office and light industrial applications. It supports a maximum print width of 4.09 inches with a print resolution of 203 dpi, which balances print quality and speed. The printer operates with an internal transceiver for wireless communication, alongside options for serial and USB interfaces, facilitating versatile connectivity. It is equipped with a fast ARM 32-bit RISC processor that enhances print performance and responsiveness. The printer supports all major barcode symbologies and label formats, making it suitable for shipping, inventory, and retail labeling. It features a reliable peel-and-present mechanism and a media roll capacity that supports extended printing without frequent media changes.
Specifications
| Supported Scanning Sizes | NA |
| Color Depth | 16 Bit |
| Output Type | Black & White |
| Memory | 8 MB SDRAM, 4 MB Flash |
| Custom Bundle | No |
| MPN | 284Z-20300-0001 |
| Item Length | NA |
| Technology | Thermal |
| Manufacturer Warranty | NONE |
| Item Height | NA |
| Features | Portable |
| Item Width | NA |
| Input Type | Monochrome |
| Supported Paper Size | 4 Inch wide roll |
| California Prop 65 Warning | NA |
| Type | Label Printer |
| Maximum Resolution | 203 x 203 DPI |
| Image Sensor | NA |
| Model | UPS LP2844 |
| Connectivity | Serial RS-232, USB 1.1, Optional Parallel |
| Scanning Resolution | 200x200 DPI |
| Black Print Speed | 4 ppm |
| Country/Region of Manufacture | United States |
| Product Line | Zebra LP |
| Print Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Max Print Width | 4.09 inches (104 mm) |
| Max Print Speed | 4 inches per second (102 mm/s) |
| Processor | 32-bit ARM RISC |
| Media Types | Roll-fed or fanfold labels, tags or receipts |
| Media Width Range | 1.00 to 4.25 inches (25.4 to 108 mm) |
| Media Thickness | 0.003 to 0.007 inches (0.08 to 0.18 mm) |
| Label Sensor | Transmissive and reflective sensors |
| Dimensions | 7.38 x 5.75 x 7 inches (187.5 x 146 x 178 mm) |
| Weight | 3.6 lbs (1.63 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |

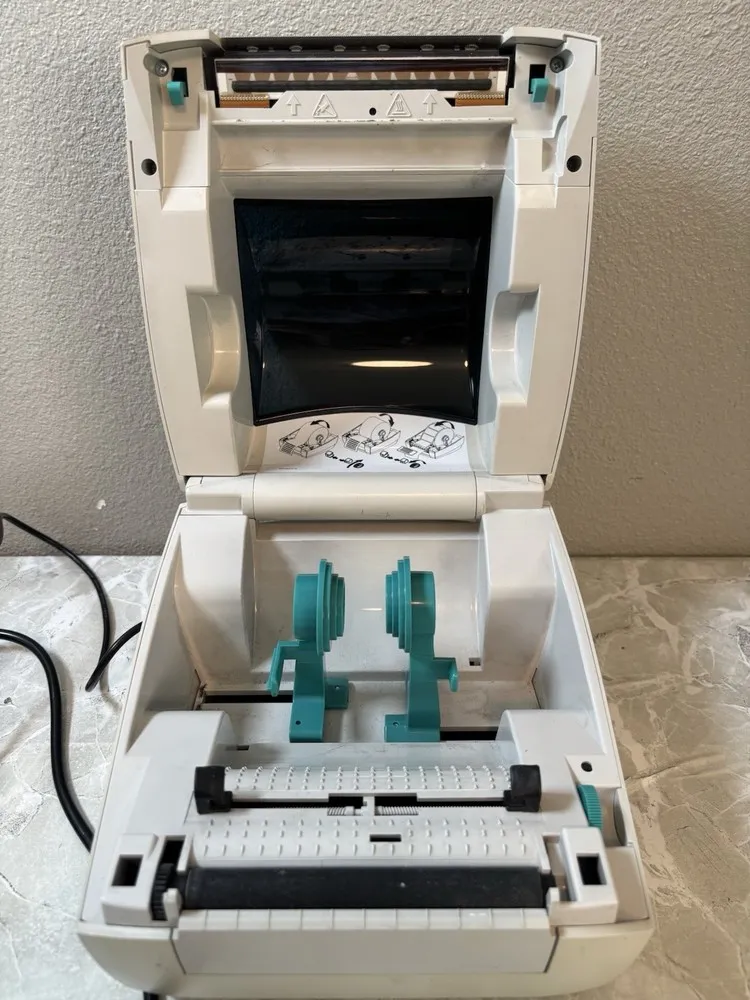

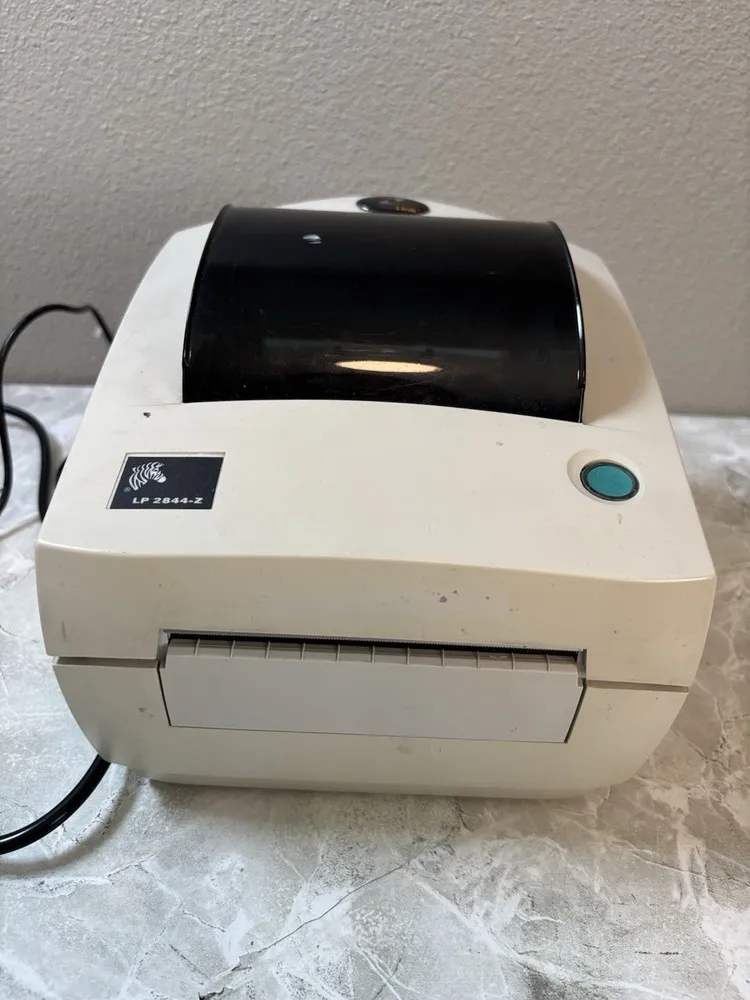

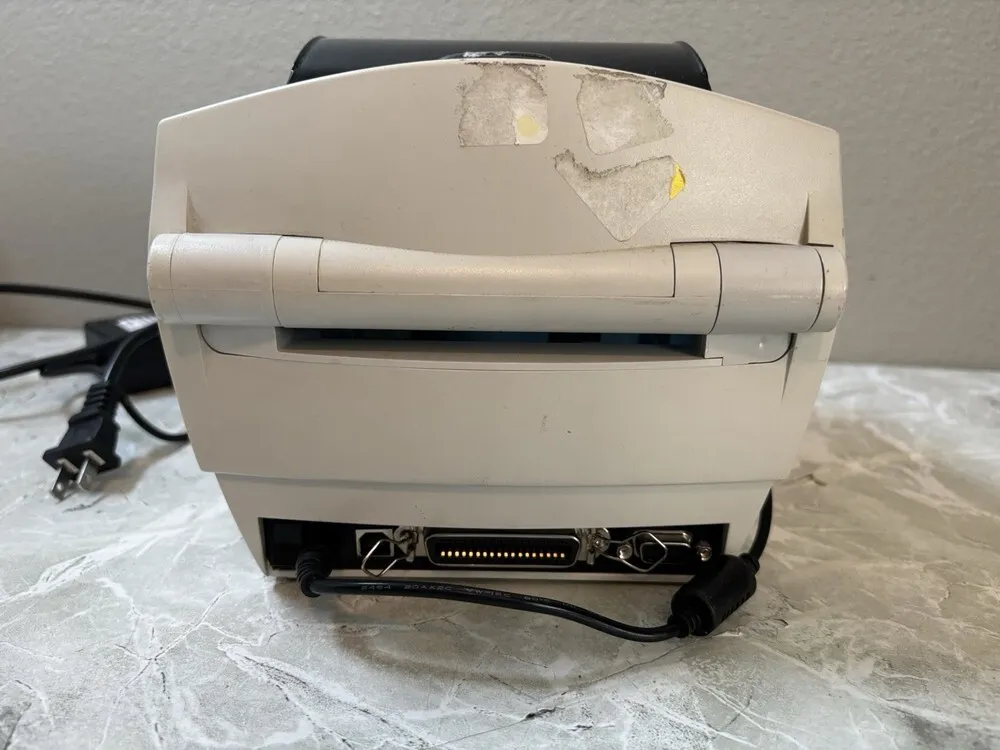

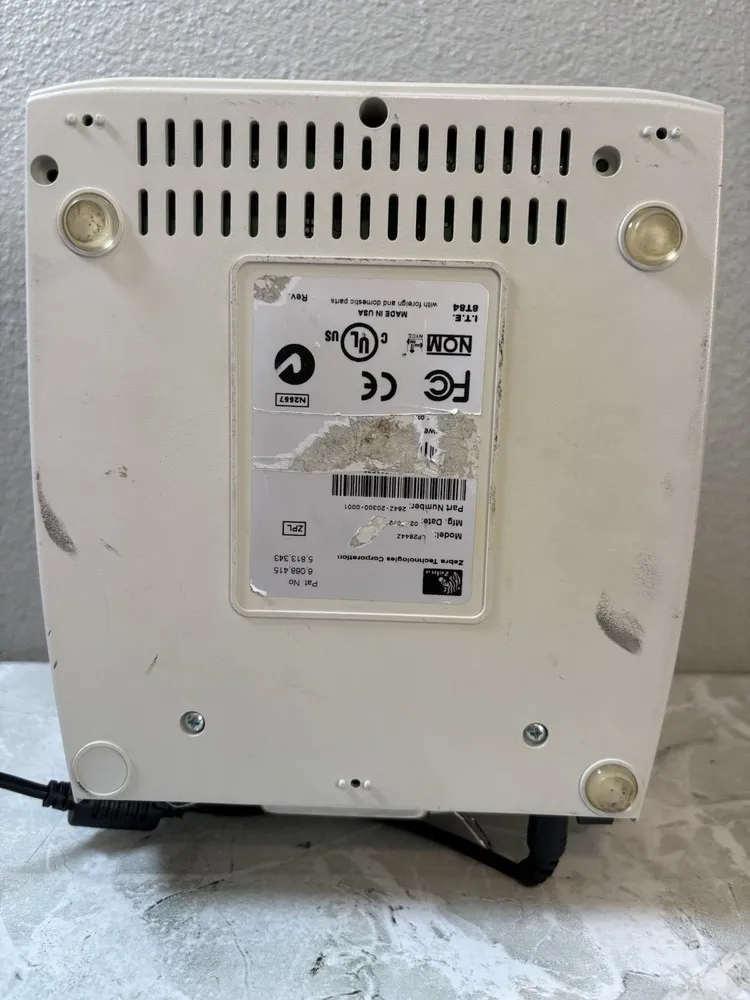

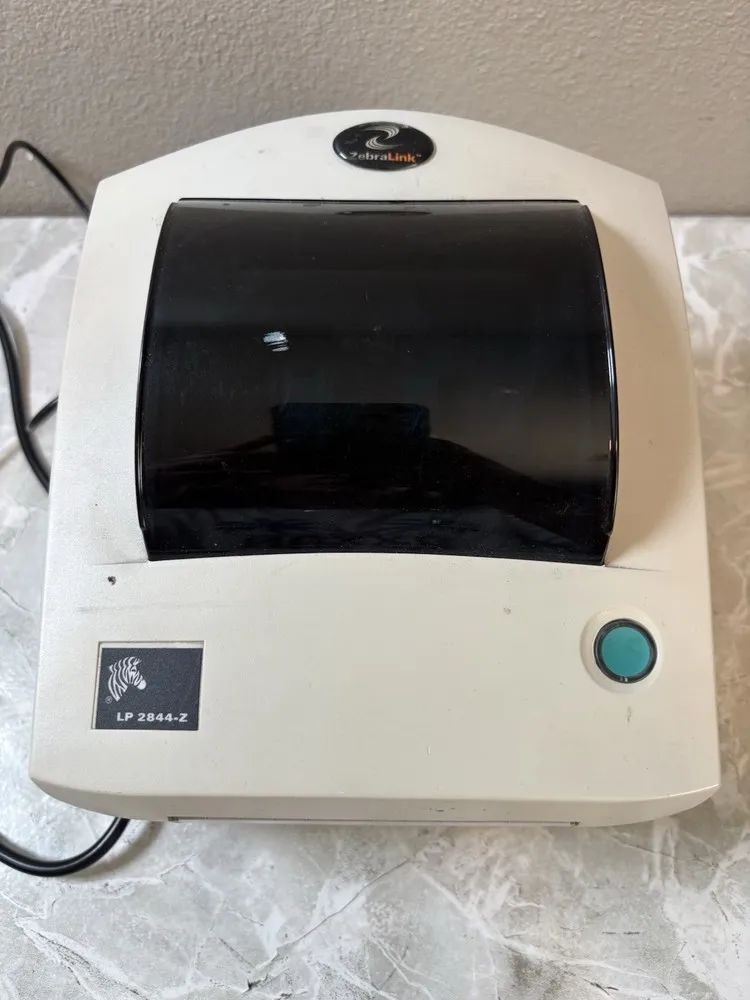

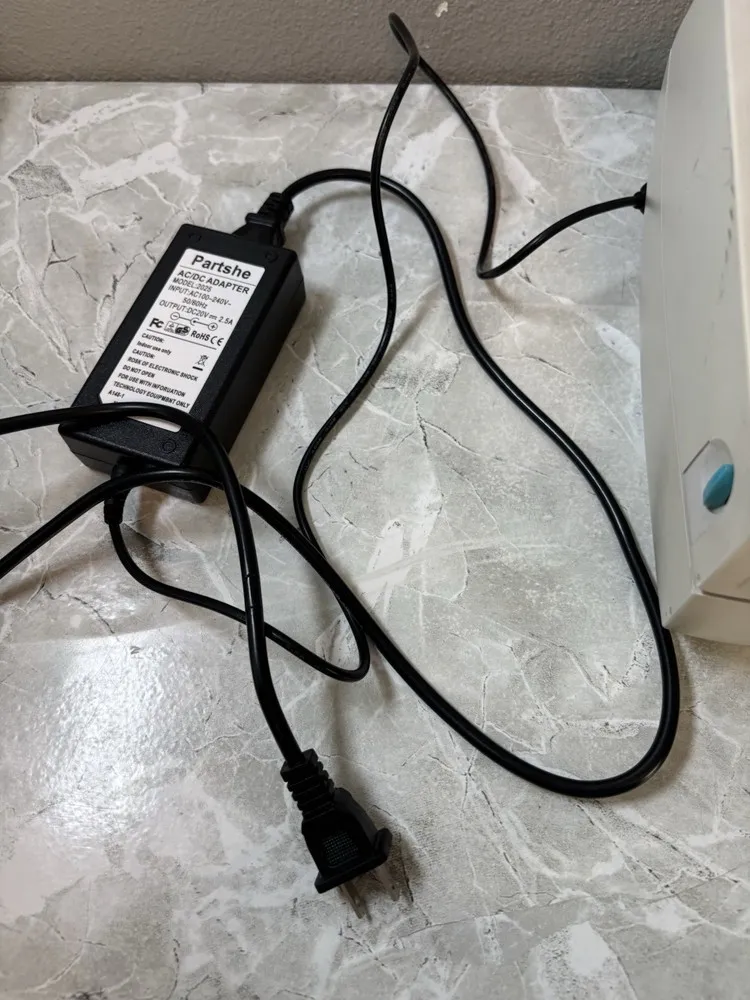

Images
Key Advantages
The LP2844's compact size allows easy integration into tight workspace environments. Its direct thermal technology removes the need for ink or toner, reducing maintenance and operating costs. High print speed of up to 4 inches per second supports efficient label production in high-demand settings. The printer supports a variety of media types and sizes providing flexibility for multiple applications. Its plug-and-play connectivity options simplify installation and compatibility with existing systems. The built-in peel-and-present feature enhances operational efficiency by convenient label dispensing.
Limitations
The 203 dpi resolution, while sufficient for most barcodes and label text, may not support high-detail graphics required in specialized labeling. The LP2844 does not include real-time clock functionality, limiting timestamping capabilities. It uses direct thermal printing, which is not suitable for long-term label durability under heat or light exposure. Media loading can be less user-friendly compared to newer models featuring drop-in media loading. The printer lacks advanced networking capabilities present in newer generation printers. Firmware updates and technical support may be limited as it is an older model.
FAQ
What type of printing technology does the Zebra LP2844 use?
The Zebra LP2844 uses direct thermal printing technology, which prints by selectively heating coated thermal paper.
What is the maximum print width of the LP2844 printer?
The maximum print width supported by the LP2844 is 4.09 inches (104 mm).
Does the LP2844 support wireless connectivity?
The standard LP2844 model primarily supports serial and USB connectivity; wireless options may require additional accessories.
Is the Zebra LP2844 still supported by the manufacturer?
The Zebra LP2844 has been discontinued, and support may be limited to parts and technical documents.
Can the LP2844 print various barcode types?
Yes, it supports all major barcode symbologies commonly used in logistics and retail.
What types of media can be used with the LP2844 printer?
It supports direct thermal labels, tags, and receipts typically on rolls, fanfold, or single-sheet media.
Are replacement parts and accessories available for the Zebra LP2844?
Yes, parts like printheads, sensors, and accessories can still be found through specialized distributors despite the model being discontinued.
