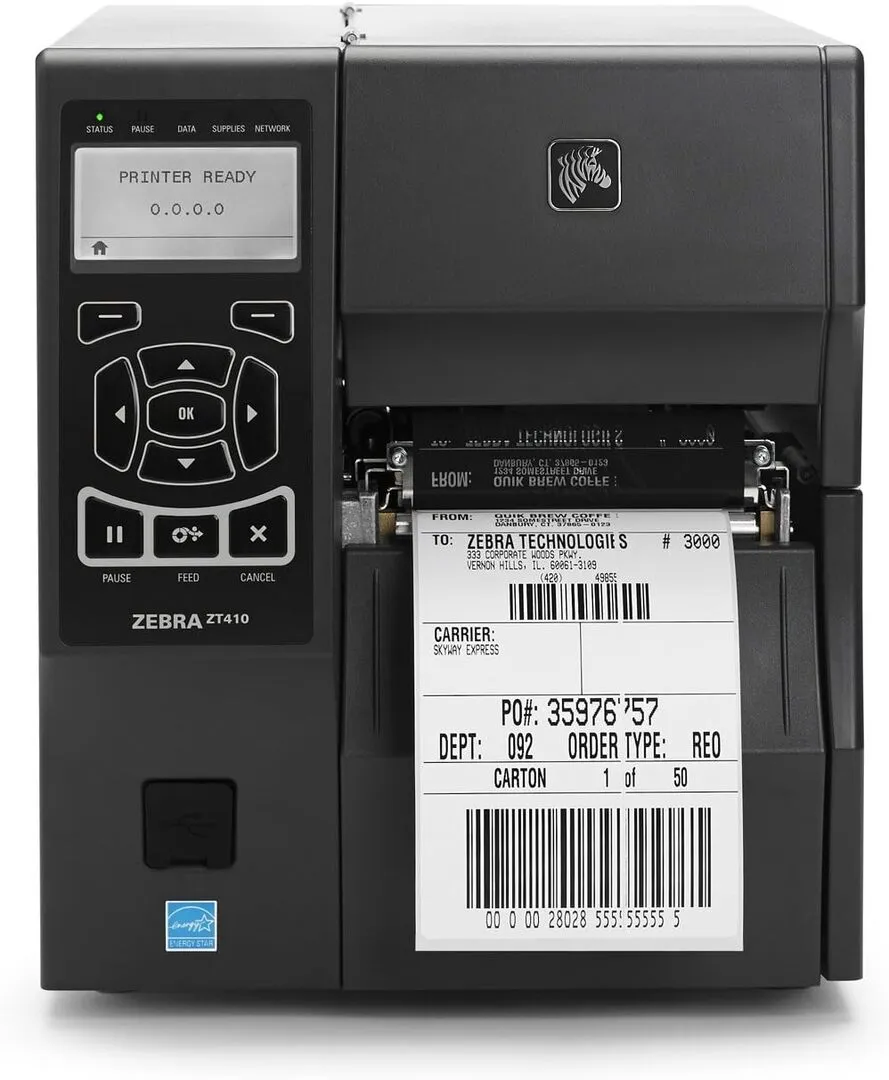

Zebra Technologies ZT410 image

Zebra Technologies ZT410

Quick information
Brand Zebra Technologies 2014
Model ZT410
Released Year 2014
Type Printers
Series 410
Item Weight 42 pounds
Maximum Media Size 4.25 inches
Product Dimensions 17.8 x 23.2 x 14.9 inches
Status Active
Quick view
Full specs Images

Overview

The Zebra ZT410 is an industrial-grade thermal transfer label printer designed for high-volume printing in demanding environments.

It features a 4-inch print width capability, supporting resolutions of 203, 300, and 600 dpi for varied print quality requirements.

The printer supports multiple connectivity options including USB, Serial, Ethernet, and optional wireless interfaces to facilitate versatile deployment.

It utilizes Zebra's Link-OS operating system, enhancing integration and cloud-based management capabilities.

The device supports a wide range of media types and sizes, from labels to tags, accommodating diverse industrial applications.

Built with robust metal housing, the ZT410 ensures durable performance in harsh industrial conditions while maintaining ease of use through an intuitive LCD interface.

Specifications

Maximum Media Size 4.25 inches
Included Components Labels, Bluetooth Barcode Label Printer
Print media Labels
Max Copy Speed (Black & White) 45 ppm
Display Type LCD
Compatible Devices PC
Sheet Size 4.09 inches
Maximum Black and White Print Resolution 300 dpi
Warranty Type Limited Warranty
Color Depth 1 bpp
Dual-sided printing No
Maximum copies per run 2700
Max copy resolution black-white 300 dpi
Hardware Interface Bluetooth
Ink Color Black
Resolution 203, 300, 600 dpi (8, 12, 24 dots/mm)
Additional Printer functions All In One
Control Method Remote
Compatible Cartridge [Monochrome Cartridges for Zebra ZT410]
Number of Drivers 2
Number of Trays 1
Processor Count 1
Series Number 410
Total Ethernet Ports 1
Number of USB 2 Ports 1
Total USB Ports 1
Specific Uses For Product Office labeling and identification applications, advanced networking, remote management
UPC 647417715952
Memory Storage Capacity 256 MB
Manufacturer Zebra Technologies Corporation
Item Weight 42 pounds
Product Dimensions 17.8 x 23.2 x 14.9 inches
Item model number ZT410
Is Discontinued By Manufacturer No
Manufacturer Part Number ZT41043-T010000Z
Date First Available May 16, 2014
Print Method Thermal Transfer and Direct Thermal
Print Width 4.09 inches (104 mm)
Print Speed Up to 14 ips (356 mm/s)
Processor 32-bit RISC CPU
Memory 256 MB Flash; 128 MB SDRAM
Media Types Roll-fed, die-cut, continuous, black mark, fan-fold, tags, wristbands
Media Width 0.79 inch to 4.65 inches (20 mm to 118 mm)
Media Roll Size Up to 8.0 inches (203 mm) OD on 3-inch core
Media Thickness 0.0023 to 0.01 inches (0.058 to 0.25 mm)
Ribbon Type Wax, wax/resin, resin
Ribbon Length Up to 450 meters
Connectivity USB 2.0, Serial RS-232, Ethernet 10/100, optional Wi-Fi and Bluetooth
Display 4.3 inch full-color touch LCD
Dimensions (W x H x D) 11.8 x 13.9 x 20.5 inches (300 x 352 x 521 mm)
Weight Approximately 24 lbs (10.9 kg)
Operating Temperature 5°C to 40°C (41°F to 104°F)
Operating Humidity 20% to 85% non-condensing

Key Advantages

The ZT410 provides high-resolution print options up to 600 dpi, ensuring crisp and precise label printing.

It offers fast print speeds, up to 14 inches per second, optimizing productivity for large print jobs.

Its modular design allows easy field upgrades, including additional connectivity and media handling options.

The printer's durable metal frame makes it reliable in tough environments, increasing longevity.

Advanced connectivity options, including Ethernet and optional Wi-Fi, enable seamless integration into networked systems.

Link-OS support allows for remote management and simplifies device maintenance within enterprise environments.

Limitations

The ZT410's relatively larger size and weight may limit portability compared to desktop printers.

High initial cost may be a barrier for small businesses or low-volume users.

Its complexity and advanced features may require trained personnel for optimal operation and maintenance.

Power consumption is higher than lighter-duty printers due to its industrial build and faster printing capabilities.

Some users may find the printhead replacement process slightly more involved than simpler models.

Limited native support for certain media types may require additional accessories for full compatibility.

FAQ

The ZT410 can print on various media including paper labels, synthetic labels, tags, and wristbands suited for industrial labeling applications.

Yes, the ZT410 supports optional wireless connectivity including Wi-Fi for flexible network integration.

This printer supports three print resolutions: 203 dpi, 300 dpi, and 600 dpi.

Yes, with print speeds up to 14 inches per second, the ZT410 is designed for high-volume industrial label printing.

Yes, the ZT410 has a modular design allowing field upgrades for connectivity such as adding Ethernet or Wi-Fi modules.

The ZT410 runs on Zebra's Link-OS, enabling enhanced device management and integration capabilities.

As of now, the ZT410 is an active model and continues to be supported by Zebra Technologies.
