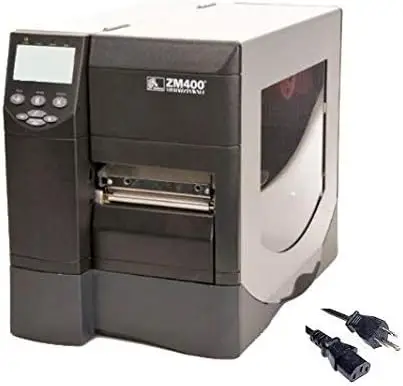

Zebra Technologies ZM400 image

Zebra Technologies ZM400

Quick information
Brand Zebra Technologies 2020
Model ZM400
Released Year 2020
Type Printers
Series ZM
Status Discontinued
Quick view

Overview

The Zebra ZM400 is an industrial label printer designed primarily for high-volume printing environments. Utilizing thermal transfer and direct thermal print technology, it delivers high-resolution labels with a print width up to 4 inches. It features a robust metal frame for durability in demanding office and manufacturing settings. The printer supports multiple connectivity interfaces including serial, parallel, USB, and Ethernet options. The control panel is equipped with an LCD display for easy operation and access to settings. Its advanced media handling capabilities allow it to accommodate various types of media rolls, minimizing downtime.

Specifications

Printer Type Industrial thermal transfer and direct thermal printer
Print Width Up to 4 inches (104 mm)
Print Speed Up to 10 inches per second (254 mm/s)
Resolution 203 dpi (8 dots/mm)
Processor 32-bit RISC microprocessor
Memory 8 MB SDRAM, 4 MB Flash
Connectivity Serial RS-232, Parallel, USB 1.1, Ethernet 10/100 Mbps
Media Types Continuous, die-cut, notch, black mark, tags
Media Width 1 inch to 4.5 inches (25.4 mm to 114 mm)
Media Thickness 0.003" to 0.01" (0.08 mm to 0.25 mm)
Roll Diameter Up to 8 inches (203 mm)
Dimensions 13" W x 17" H x 21" D (330 mm x 432 mm x 533 mm)
Weight 42 lbs (19 kg)
Display 16-character LCD
Operating Systems Supported Windows, Linux, Mac OS (via drivers)
Power 90-132 VAC or 180-264 VAC, 48-62 Hz
MTBF Up to 25,400 hours
Certifications FCC Class A, UL, CE
Compatible Devices Laptops, PC
Sheet Size 4 inches
Maximum Black and White Print Resolution 203 dpi
Warranty Type 90 days limited warranty
Dual-sided printing No
Max copy resolution black-white 203 x 203 DPI
Duplex simplex
Hardware Interface USB
Additional Printer functions Print Only
Control Method App
Processor Count 1
Series Number 400
Total Ethernet Ports 2
Number of USB 2 Ports 1
Total USB Ports 1
Specific Uses For Product Label Printing, Barcode Printing, Specialized Printing Tasks
Item model number ZM400
Date First Available May 20, 2020
Manufacturer Zebra-Technologies

Key Advantages

The Zebra ZM400 offers excellent print quality and high printing speeds that increase productivity in business operations. Its rugged industrial design makes it suitable for harsh environments, ensuring reliability over extended use. Versatile connectivity options allow seamless integration into existing systems, enhancing workflow efficiency. The LCD control panel simplifies printer management and status monitoring. It supports a wide range of media types and sizes, providing flexible label printing solutions. Additionally, its modular design enables easy maintenance and upgrades to extend the printer's lifecycle.

Limitations

The ZM400, being an older model, lacks some modern connectivity features such as native Wi-Fi support which newer printers now offer. Limited onboard memory compared to newer models restricts complex label storage. The user interface, while functional, is less intuitive than contemporary touchscreen controls. It can be relatively bulky and heavy, which reduces portability in constrained spaces. Some replacement parts and consumables may become difficult to source as the model ages. Its power consumption is higher when compared to more recent energy-efficient industrial printers.
