Zebra Technologies ZD500t
| Brand | Zebra Technologies 2024 |
| Model | ZD500t |
| Released Year | 2024 |
| Type | Printers |
| Series | ZD500 |
| Item Weight | 9.7 pounds |
| Product Dimensions | 16.5 x 12.5 x 12.5 inches |
| Status | Discontinued |
Quick view
Overview

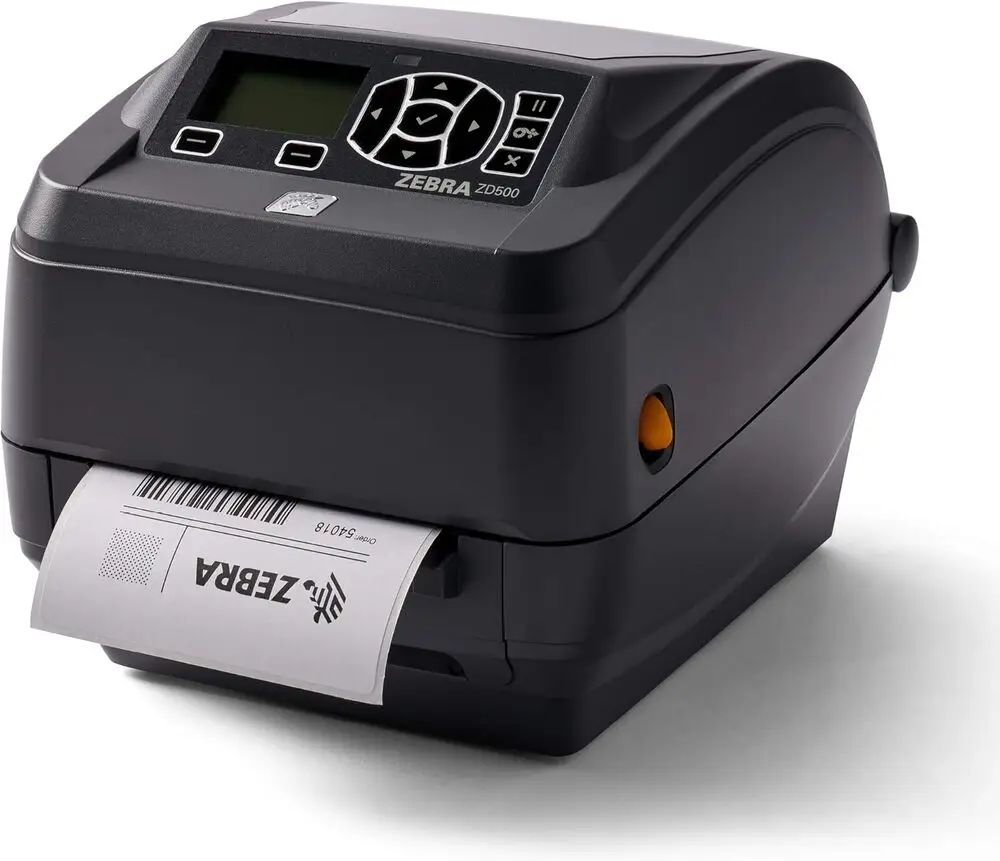

The Zebra ZD500t is a compact thermal transfer printer designed for high-quality label printing in various office and retail applications. It supports direct thermal and thermal transfer printing technologies, allowing for flexibility in media types. Featuring a print resolution of 203 dpi, the ZD500t delivers clear and precise text and barcodes. Connectivity options include USB, serial, and Ethernet interfaces, enabling easy integration into existing systems. The printer's user-friendly interface and easy media loading reduce operational downtime. Additionally, its compact footprint and rugged design offer reliability even in demanding environments.
Specifications
| Printing Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 6 inches per second (152 mm/s) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Media Type | Labels, tags, continuous roll, fan-fold, receipt paper |
| Media Width | 0.75 inches to 4.65 inches (19 mm to 118 mm) |
| Media Length | 0.25 inches to 39 inches (6 mm to 991 mm) |
| Media Roll Diameter | Up to 5.0 inches (127 mm) |
| Ribbon Type | Wax, wax/resin, resin ribbons |
| Ribbon Length | Up to 244 m (800 ft) |

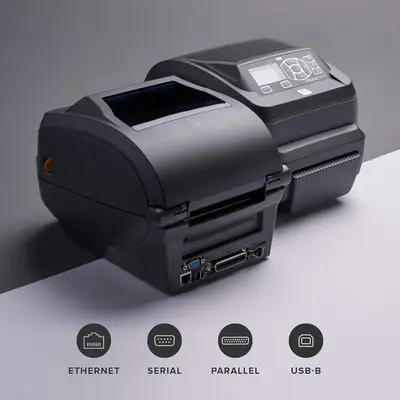

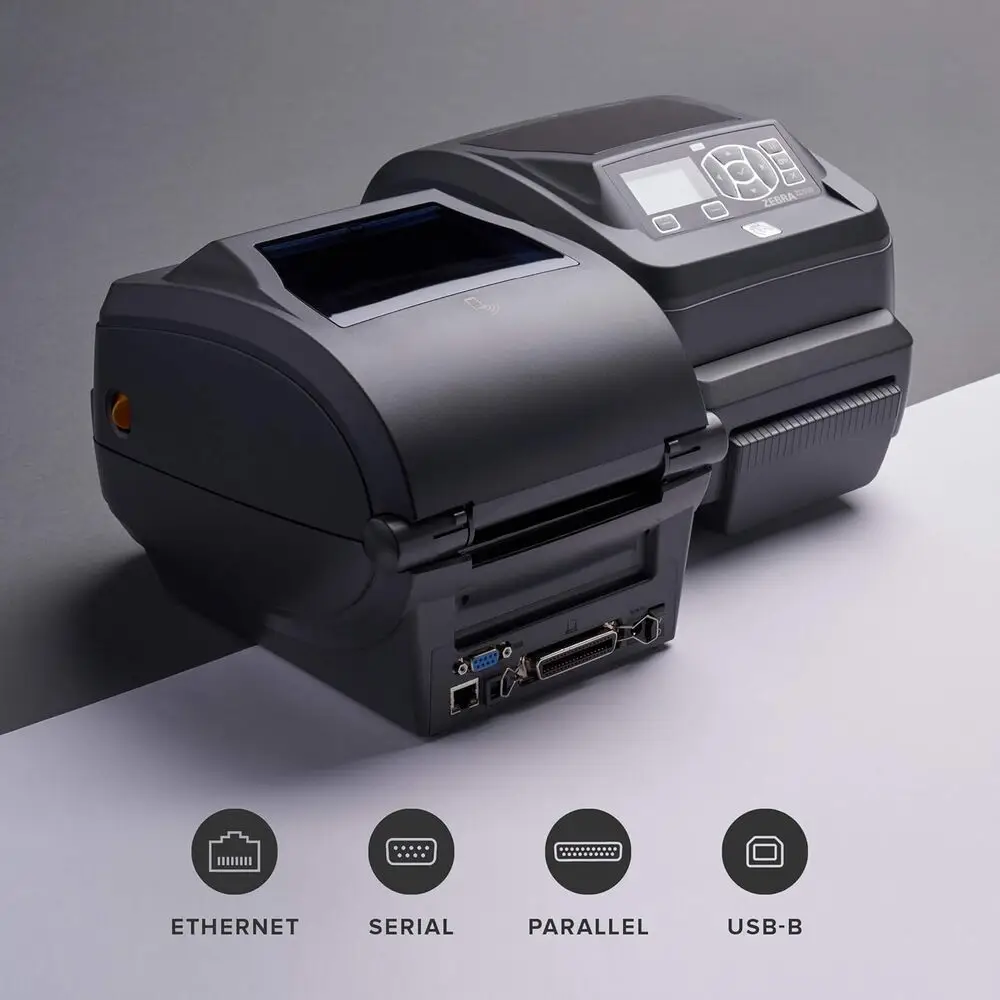

| Interfaces | USB 2.0, Serial RS-232, Ethernet 10/100 Mbps |
| Dimensions | 8.5 in (W) x 7.6 in (H) x 10.7 in (D) (216 mm x 193 mm x 272 mm) |
| Weight | 6.7 lbs (3.04 kg) |
| Power Supply | External 100-240V switching power supply |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Firmware | Supports EPL and ZPL programming languages |
| Print media | Labels |
| Max Input Sheet Capacity | 5 |
| Compatible Devices | PC |
| Sheet Size | 4.25 inches |
| Maximum Black and White Print Resolution | 203 dpi |
| Warranty Type | 90 days limited warranty |
| Dual-sided printing | No |
| Max copy resolution black-white | 203 dpi |
| Duplex | Simplex |
| Hardware Interface | USB |
| Ink Color | Black |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Processor Count | 1 |
| Series Number | 500 |
| Total Ethernet Ports | 1 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| UPC | 703670591242 |
| Printer Ink Type | Thermal/Direct Thermal |
| Product Dimensions | 16.5 x 12.5 x 12.5 inches |
| Item Weight | 9.7 pounds |
| Item model number | ZD500t |
| Is Discontinued By Manufacturer | No |
| Date First Available | August 19, 2024 |
| Manufacturer | Zebra Technologies |
Images
Key Advantages
The Zebra ZD500t offers versatile printing options with support for both thermal transfer and direct thermal methods. It provides reliable and fast printing speeds suitable for moderate to high volume label production. Its multiple connectivity ports, including Ethernet, USB, and serial interfaces, allow flexible network integration. The device supports a wide range of media types and sizes, enhancing its applicability across industries. Quick and simple ribbon replacement minimizes downtime, improving productivity. Moreover, the compact design ensures the printer fits into limited office spaces without compromising performance.
Limitations
The ZD500t printer has a fixed print resolution of 203 dpi, which might limit printing extremely fine details compared to higher resolution models. It requires ribbon media for thermal transfer printing, which could add to operational costs. The device may not support the latest advanced printing languages or cloud printing features found in newer models. Print speed, while adequate, may not match high-speed industrial printers for very large volume needs. Firmware updates and support have become limited as the model ages. Some advanced connectivity options like Wi-Fi are unavailable, potentially restricting wireless deployment.
FAQ
What type of printing technology does the Zebra ZD500t use?
The Zebra ZD500t uses thermal transfer and direct thermal printing technologies.
What connectivity options are available on the ZD500t?
The printer includes USB, serial, and Ethernet connectivity interfaces.
Is the Zebra ZD500t still in production?
No, the Zebra ZD500t has been discontinued.
What is the print resolution of the Zebra ZD500t?
The ZD500t offers a print resolution of 203 dots per inch (dpi).
Can the ZD500t print on different sizes and types of media?
Yes, it supports a wide range of media types and sizes suitable for various labeling applications.
Does the ZD500t support wireless printing?
No, the ZD500t does not have built-in wireless (Wi-Fi) printing capabilities.
Are replacement parts and accessories available for the ZD500t?
Although discontinued, parts and accessories may still be available through third-party suppliers and Zebra's support channels.
