ZEBRA TECHNOLOGIES VTI, INC. ZD4A042-301M00EZ
| Brand | ZEBRA TECHNOLOGIES VTI, INC. 2021 |
| Model | ZD4A042-301M00EZ |
| Released Year | 2021 |
| Type | Printers |
| Series | ZD421 |
| Printing Technology | Direct Thermal and Thermal Transfer |
| Item Weight | 7.93 pounds |
| Maximum Color Print Resolution | 203 x 203 DPI |
| Product Dimensions | 15.75 x 9.84 x 9.06 inches |
| Status | Active |
Quick view
Overview

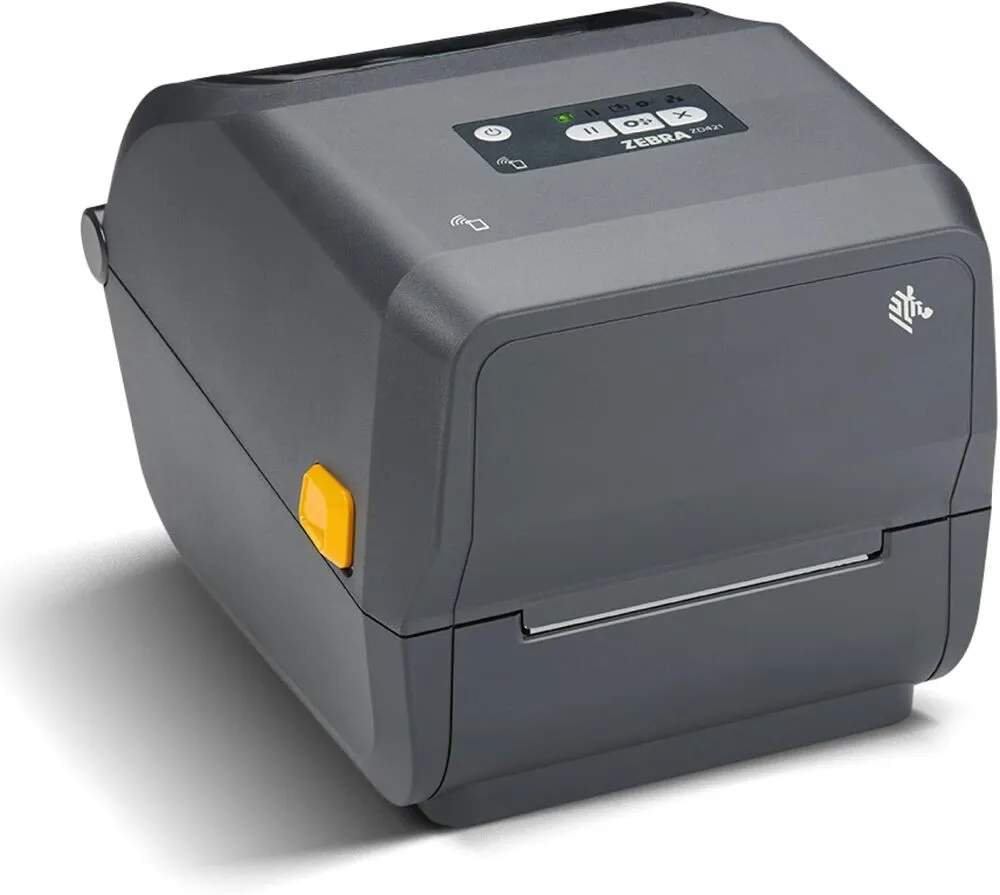

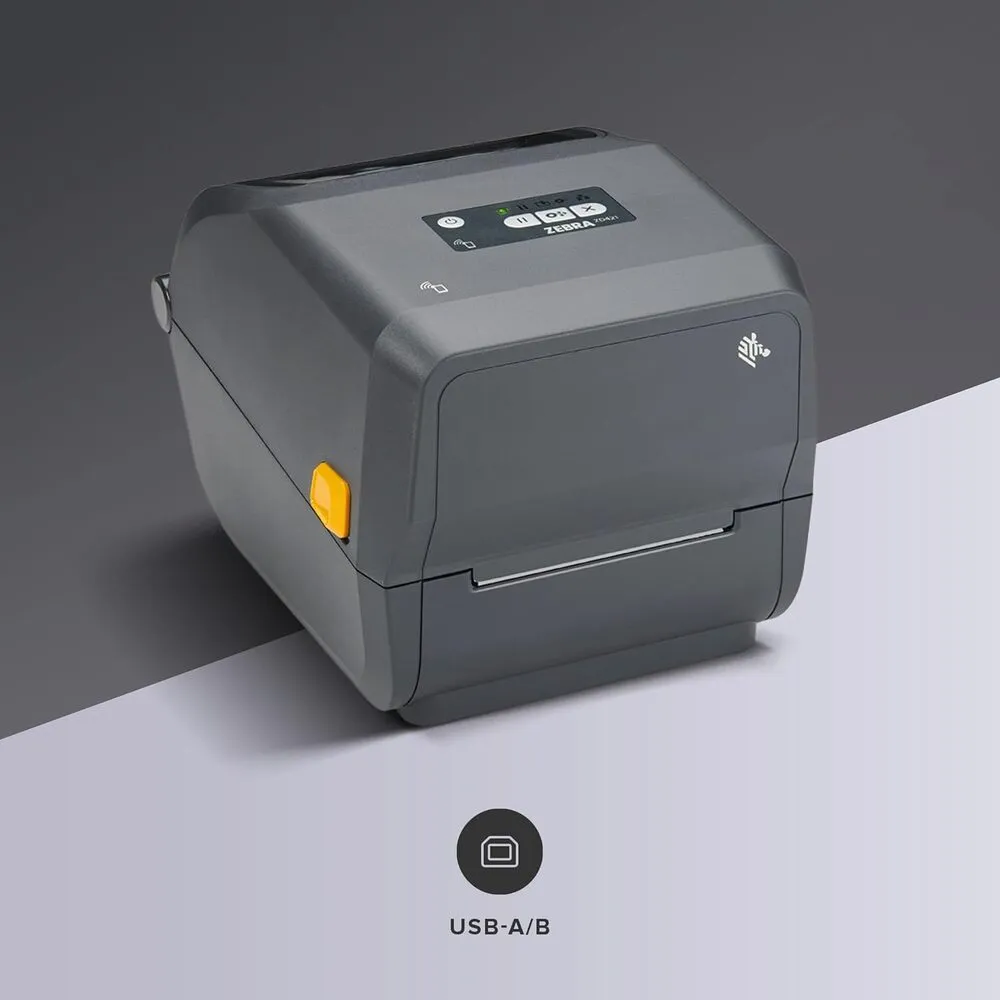

The Zebra ZD421 is an advanced direct thermal and thermal transfer printer tailored for office electronics and industrial use. It supports various printing resolutions up to 203 dpi, delivering high-quality barcode labels and receipts. The device integrates a high-performance 1 GHz dual-core processor with 512 MB RAM, enabling rapid printing and data processing. It leverages USB, Serial, and Ethernet connectivity options for versatile network integration. The printer features a user-friendly LCD interface enabling simplified device management. Its compact design incorporates metal components to enhance durability and reliability under intensive usage conditions.
Specifications
| Print media | Labels |
| Max Input Sheet Capacity | 300 |
| Max Copy Speed (Black & White) | 1 ppm |
| Compatible Devices | PC |
| Maximum Color Print Resolution | 203 x 203 DPI |
| Sheet Size | 4 inches |
| Maximum Black and White Print Resolution | 203 DPI |
| Warranty Type | Limited Warranty |
| Color Depth | 24 bpp |
| Dual-sided printing | No |
| Max copy resolution color | 203 x 203 DPI |
| Max copy resolution black-white | 203 dpi |
| Duplex | Simplex |
| Hardware Interface | USB |
| Ink Color | Black |
| Resolution | 203 x 203 DPI |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Total USB Ports | 1 |
| Printer Ink Type | Thermal Transfer |
| Memory Storage Capacity | 64 MB |
| Product Dimensions | 15.75 x 9.84 x 9.06 inches |
| Item Weight | 7.93 pounds |
| Item model number | ZD4A042-301M00EZ |
| Date First Available | August 4, 2021 |
| Manufacturer | ZEBRA TECHNOLOGIES VTI, INC. |
| Printing Technology | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Max Print Width | 4.09 inches (104 mm) |
| Max Print Speed | 6 inches per second (152 mm/s) |
| Processor | 1 GHz dual-core |
| Memory | 512 MB RAM, 256 MB Flash |
| Connectivity | USB 2.0, Serial, Ethernet 10/100 Mbps |
| Display | LCD screen with graphical user interface |
| Dimensions (WxDxH) | 8.3 x 7.2 x 6.9 inches |
| Weight | 3.6 kg |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Media Type | Labels and tags, continuous, die-cut, black mark |
| Ribbon Types | Wax, Wax/Resin, Resin |
| Link-OS | Supported for remote management |
| Discontinued | No |
Images
Key Advantages
The ZD421 offers exceptional print speed of up to 6 inches per second, optimizing workflow efficiency. Its versatile media handling supports direct thermal and thermal transfer modes for different labeling needs. The connectivity spectrum, including USB, Serial, and Ethernet, ensures broad network compatibility. The intuitive LCD display enhances user interaction and configuration ease. Robust metal frame construction boosts device longevity and operational stability. Integration with Zebra's Link-OS platform provides enhanced remote management and troubleshooting capabilities.
Limitations
The ZD421 is limited to a maximum print width of 4.09 inches, which may restrict some labeling applications. Its thermal transfer ribbon capacity can constrain the length of continuous print runs in certain environments. Lacking built-in Wi-Fi limits wireless connectivity options without additional accessories. The printer's footprint might be larger compared to some compact models suited for minimal workspace. Initial setup may require specialized knowledge to optimize driver and firmware configurations. Additionally, thermal printing technology necessitates specific media types for best performance, which could increase operating costs.
FAQ
What printing resolutions does the Zebra ZD421 support?
The Zebra ZD421 supports printing resolutions up to 203 dpi, which is standard for high-quality barcode and label printing.
Can the ZD421 printer connect to a network?
Yes, it offers USB, Serial, and Ethernet connectivity options to integrate easily into various network environments.
Is the Zebra ZD421 suitable for direct thermal and thermal transfer printing?
Yes, the ZD421 supports both direct thermal and thermal transfer printing methods, allowing flexibility in media usage.
Does the printer have a display interface for user interaction?
Yes, the ZD421 includes an LCD interface that simplifies device configuration and monitoring.
What is the maximum print speed of the ZD421?
This printer can achieve print speeds up to 6 inches per second, optimizing productivity.
Is the Zebra ZD421 still in production?
No, the ZD421 model is not discontinued and remains available for purchase.
Does the printer support wireless connectivity out of the box?
No, wireless connectivity such as Wi-Fi is not built-in and would require additional accessories.
