Zebra S4M
Brand | Zebra 2007 |
Model | S4M00-2001-0200T, LAN, Serial |
Released Year | 2007 |
Type | Printers |
Series | S |
Status | Discontinued |
Quick view
Overview

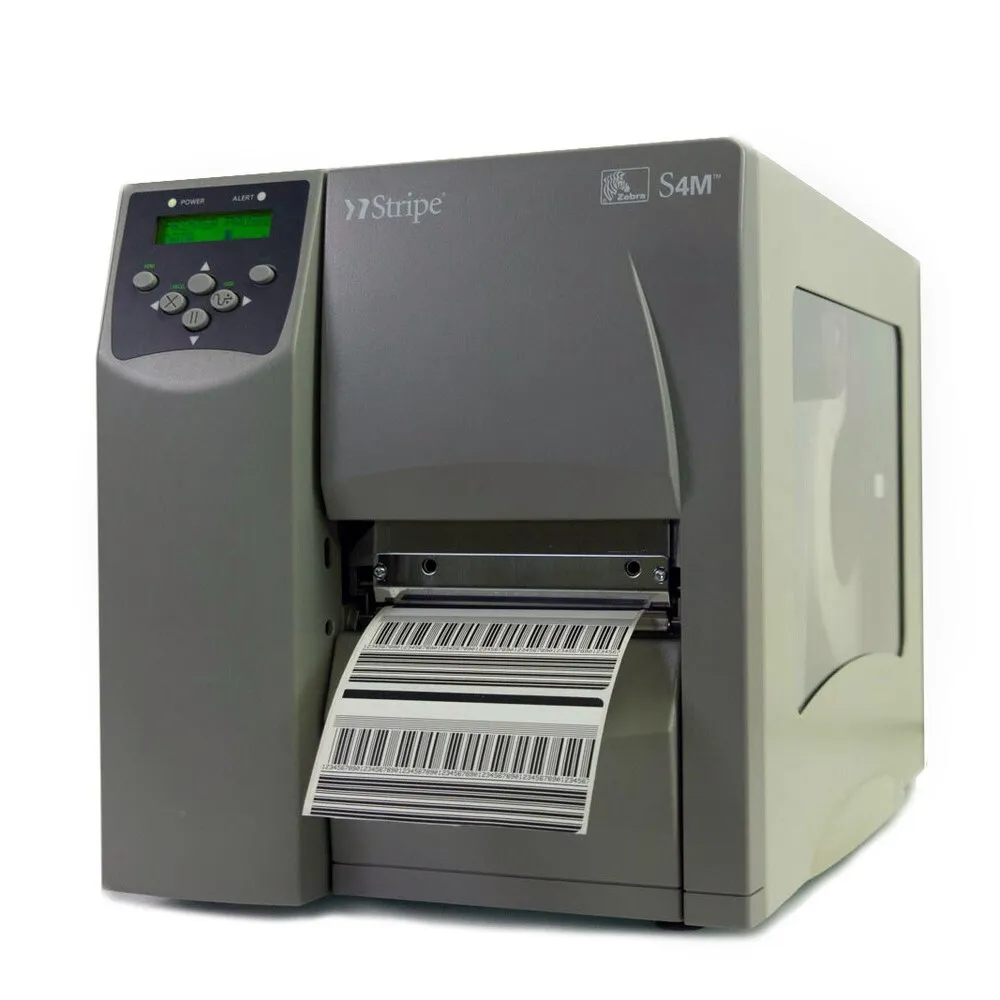

The Zebra S4M is an industrial thermal printer designed for medium to high volume printing applications in office and commercial environments. It supports both direct thermal and thermal transfer printing technologies, enabling durable and high-quality label printing. The printer features a print width of up to 4.09 inches and a print speed of up to 5 inches per second, suitable for efficient labeling and tagging tasks. Built with a robust metal frame, the S4M model offers enhanced durability and reliability for continuous operation. Connectivity options include serial, parallel, USB, and optional LAN interface, facilitating seamless integration into various system environments. The printer supports a wide range of media types including continuous, die-cut, black mark, and fan-fold stock.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 4 MB Flash, 8 MB SDRAM |
MPN | S4M00-2001-0200T, LAN, Serial |
Supported Paper Size | Max. Width: 4.5" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | S4M |

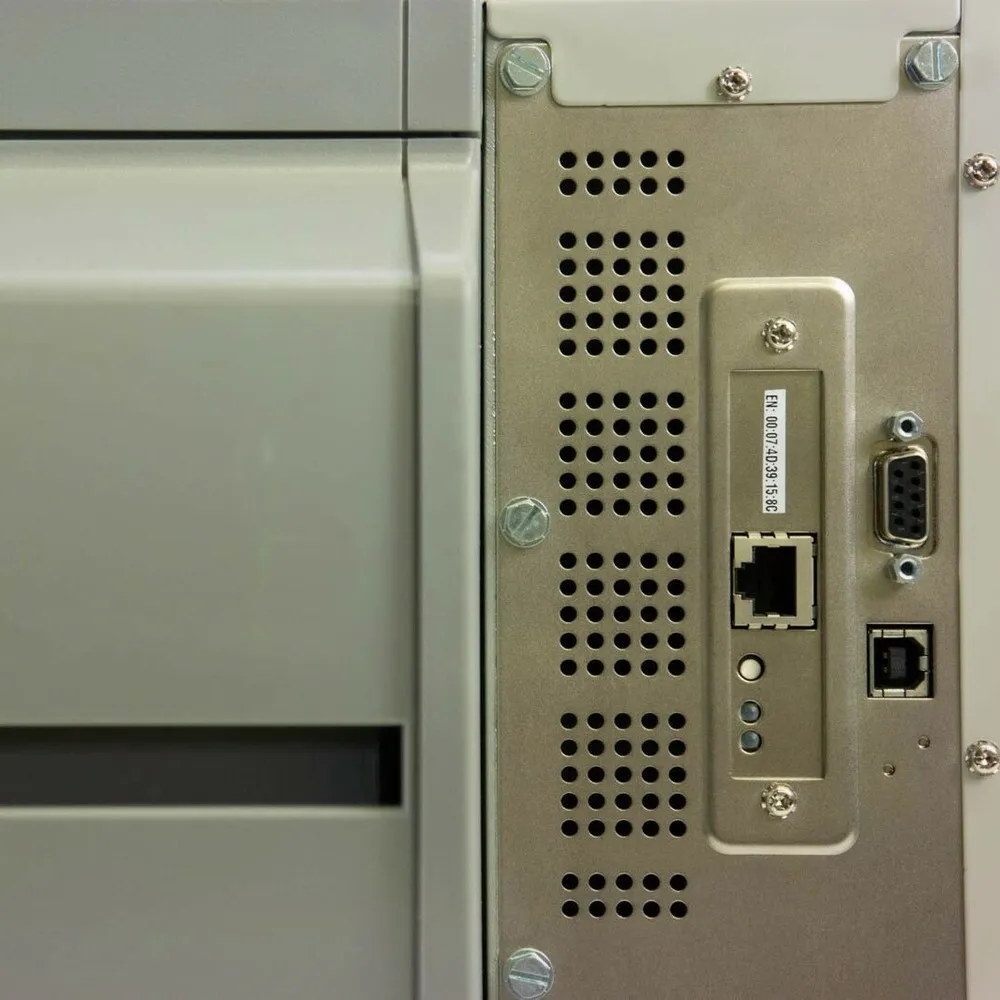

Connectivity | Serial RS-232, Parallel, USB 1.1, Optional LAN (Ethernet) |
Features | UPS Firmware, Networkable |
Black Print Speed | 8 ppm |
Product Line | Zebra S |
UPC | 818240303887 |
Print Technology | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm), optional 300 dpi available |
Maximum Print Width | 4.09 inches (104 mm) |
Maximum Print Speed | 5 inches per second (127 mm/s) |
Media Types | Continuous, Die-cut, Black mark, Fan-fold |
Media Width | 0.79 inches to 4.65 inches (20 mm to 118 mm) |
Media Thickness | 0.0025 to 0.010 inches (0.0635 mm to 0.254 mm) |
Ribbon Type | Wax, Wax/Resin, Resin |
Ribbon Length | Up to 450 meters |
Dimensions (WxHxD) | 280 mm x 283 mm x 464 mm (11 in x 11.1 in x 18.3 in) |
Weight | Approx. 9.1 kg (20 lbs) |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Operating Humidity | 20% to 85% non-condensing |
Supported Programming Languages | Zebra Programming Language (ZPL), Eltron Programming Language (EPL) |
Construction | Metal frame and plastic covers |
Power Supply | External power supply, 100-240V AC |
Images
Key Advantages
The Zebra S4M provides high-resolution print quality at 203 dpi or optionally 300 dpi, ensuring clear and precise labels. Its modular design makes maintenance and part replacement straightforward, minimizing downtime. The inclusion of multiple connectivity options, including optional LAN, serial, and USB, enhances versatility for networked and standalone operations. The printer supports advanced label formatting and programming with Zebra's EPL and ZPL languages. The rugged metal construction extends printer life under heavy usage, making it ideal for industrial settings. Additionally, it supports various barcode symbologies, making it compatible with diverse tracking and inventory systems.
Limitations
While the S4M offers strong functionality, it is relatively heavy and bulky compared to desktop printers, limiting portability. The print speed, maxing at 5 ips, may be slower when compared to newer models designed for high-speed production environments. The printer's firmware and interface may have limited compatibility with modern network protocols without additional upgrades. The device lacks a color printing option, restricting output to monochrome labels only. Some users report that the early models had limited memory, constraining label complexity without expansion. The configuration and setup require technical knowledge, which might be a barrier for general office use without proper training.
FAQ
What types of printing technologies does the Zebra S4M support?
The Zebra S4M supports both direct thermal and thermal transfer printing technologies to accommodate different labeling needs.
What interfaces are available on the Zebra S4M printer?
Standard interfaces include serial, parallel, USB, with an optional LAN interface for network connectivity.
Is the Zebra S4M printer still in production?
No, the Zebra S4M has been discontinued but service support and parts may still be available.
What print resolutions are offered by the Zebra S4M?
The printer typically supports 203 dpi resolution standard, with an optional 300 dpi for higher quality prints.
Can the Zebra S4M print color labels?
No, the Zebra S4M only supports monochrome thermal printing.
Which label formats and barcode types are compatible?
The printer supports various label formats and most common barcode symbologies through EPL and ZPL programming languages.
What is the maximum print width and speed of the S4M?
The maximum print width is 4.09 inches and it can print up to 5 inches per second.
