Zebra S4M
Brand | Zebra 2007 |
Model | S4M00-2001-0100T |
Released Year | 2007 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra S4M is an industrial thermal printer designed specifically for barcode labeling, shipping, and asset tracking applications. It utilizes direct thermal and thermal transfer printing technologies to deliver durable and high-resolution prints up to 203 dpi. Equipped with a 32-bit RISC processor, the printer supports print speeds up to 5 inches per second, optimizing productivity in demanding environments. It supports multiple connectivity options including serial, parallel, and USB ports for flexible integration. The printer's durable all-metal frame ensures reliable operation in industrial settings, while its user-friendly interface simplifies operation and maintenance. Firmware is compatible with Zebra's EPL and ZPL programming languages, enabling seamless print job management and customization.
Specifications
MPN | S4M00-2001-0100T |
UPC | 0807027541734 |
Model | S4M |
Memory | Storage: 8 MB Flash; RAM: 8 MB |
Technology | Thermal |
Image Sensor | Contact Image Sensor (CIS) |
Connectivity | RS-232 Serial, Parallel, USB 1.1, Optional Ethernet |
Output Type | Black & White |
Features | Networkable |
Input Type | Monochrome |
Supported Paper Size | A6 (105 x 148 mm) |
Type | Label Printer |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 6 ppm |
Item Length | 18.8" |
Item Height | 11.6" |
Item Width | 10.7" |
Printer Type | Industrial Thermal Printer (Direct Thermal and Thermal Transfer) |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Maximum Print Speed | 5 inches per second (127 mm/s) |
Processor | 32-bit RISC Processor |
Supported Print Languages | Zebra Programming Language (ZPL and EPL) |
Media Types | Continuous, die-cut labels, tags, black mark, fanfold and more |
Media Width Range | 0.79 inches to 4.65 inches (20 mm to 118 mm) |
Media Roll Size | Up to 8.0 inches OD (203 mm) |
Ribbon Types | Wax, Wax/Resin, and Resin |
Ribbon Width | 1.57 inches to 4.33 inches (40 mm to 110 mm) |
Dimensions (W x D x H) | 10.6 in x 15.5 in x 13.5 in (269 mm x 394 mm x 343 mm) |
Weight | Approximately 22 lbs (10 kg) |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |

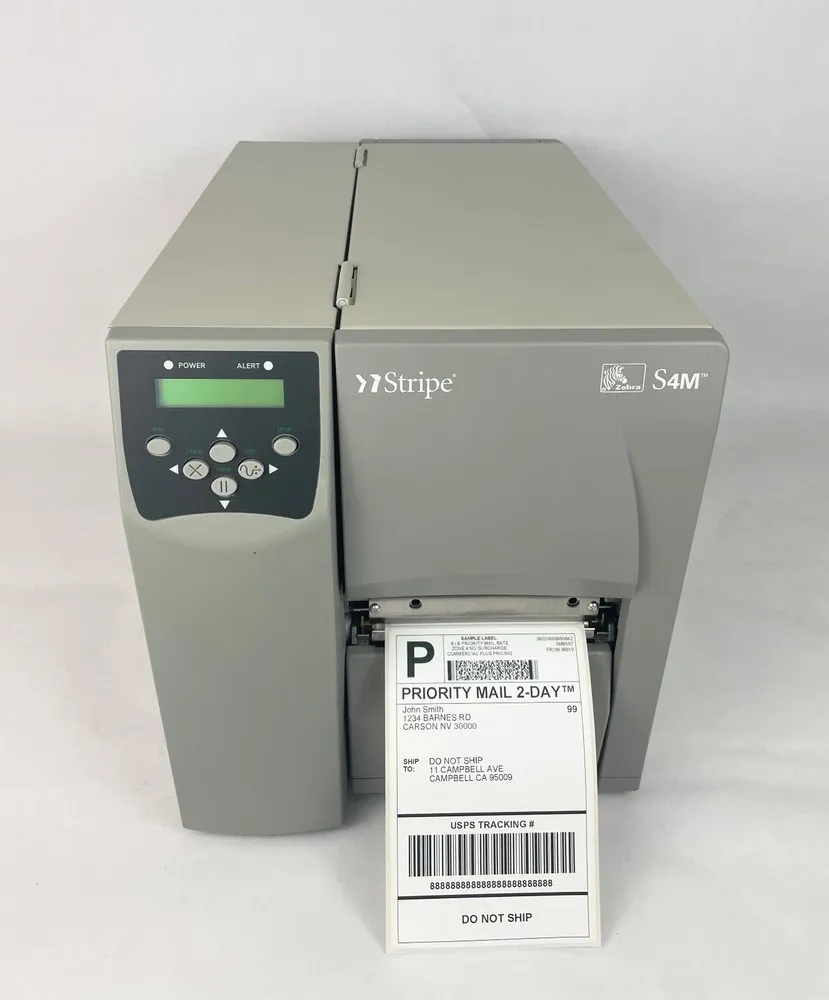

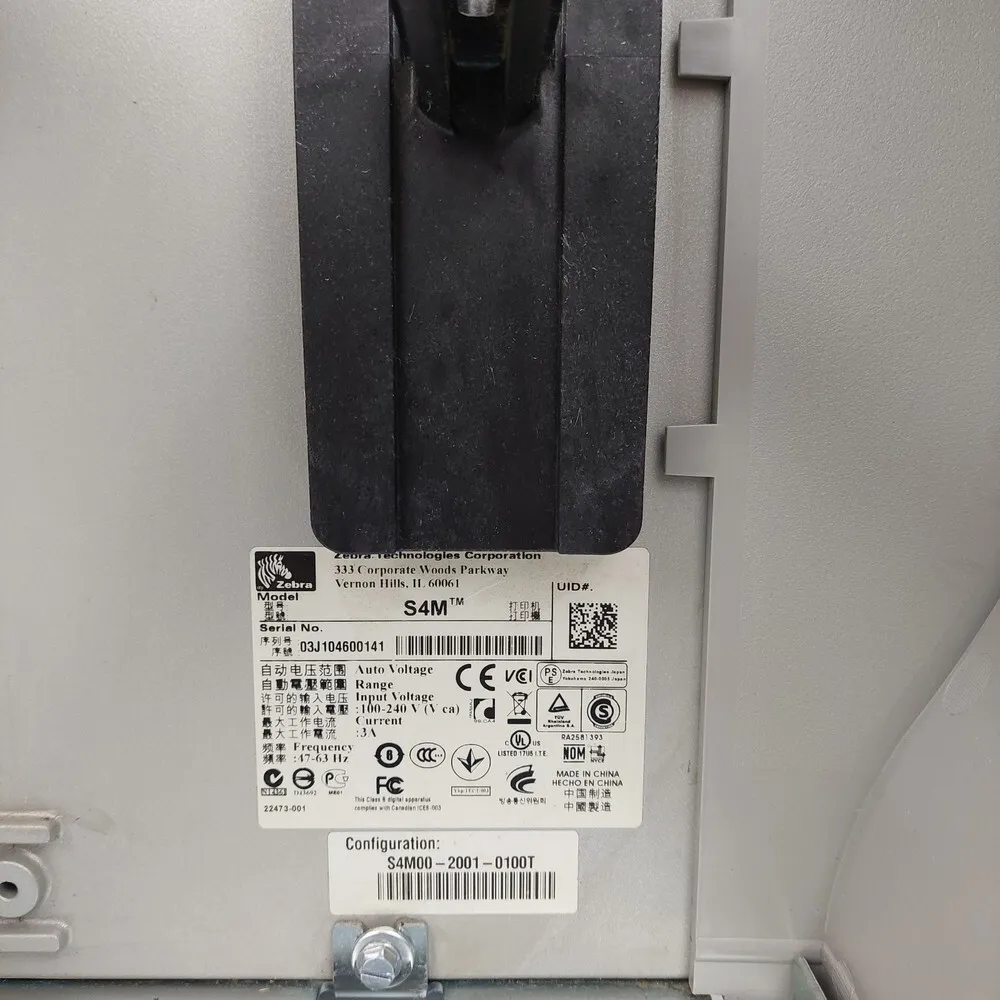

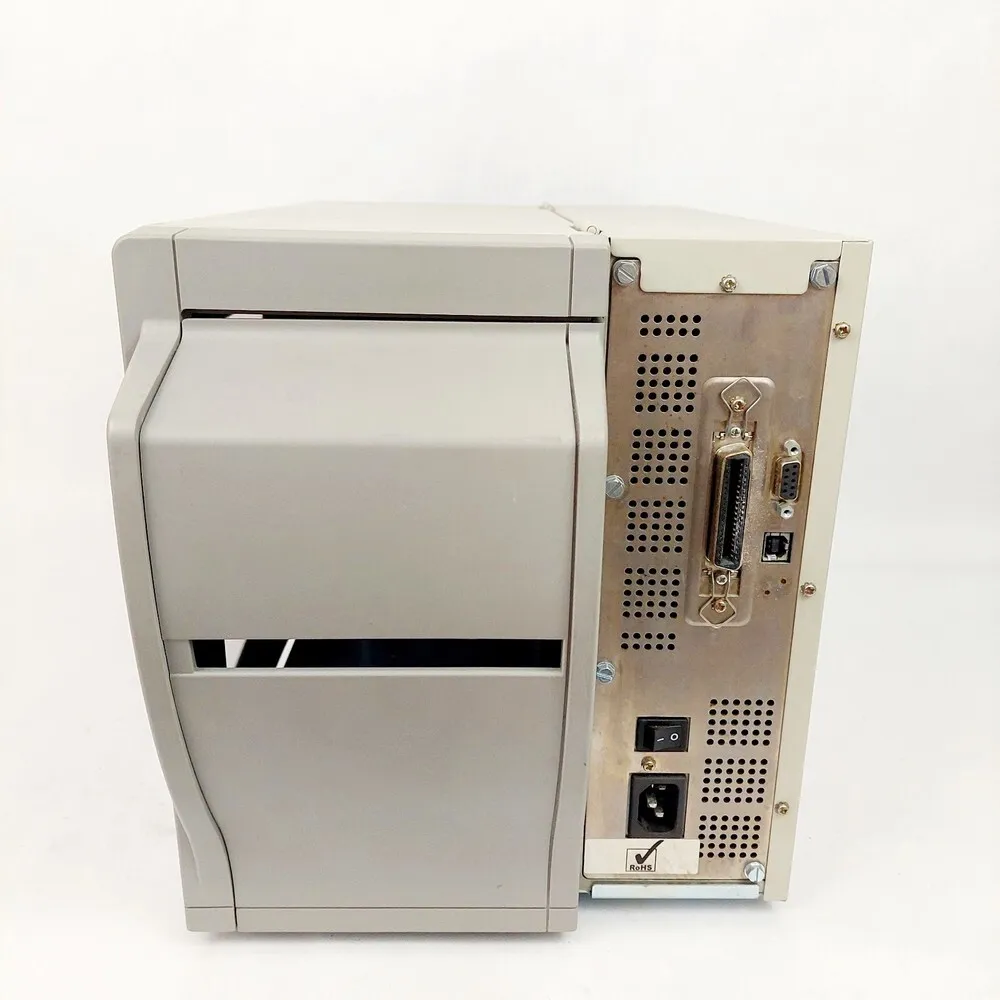

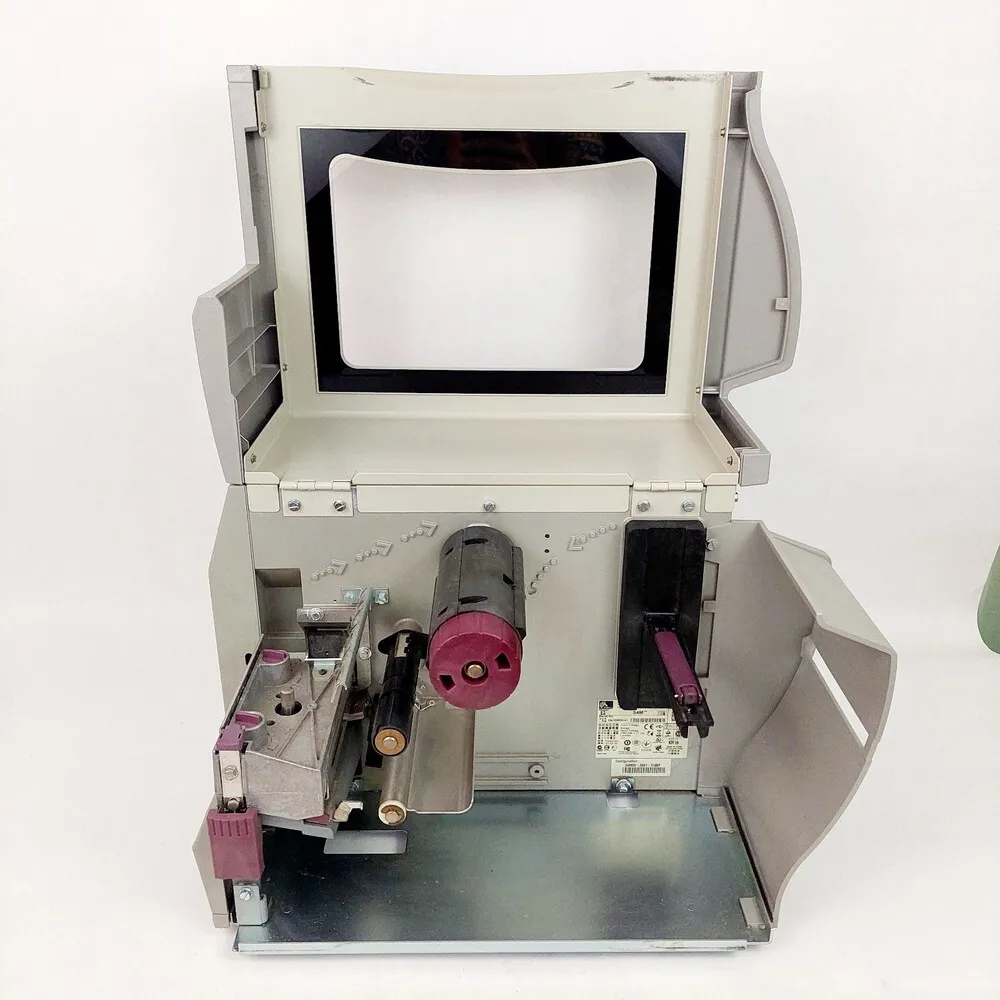

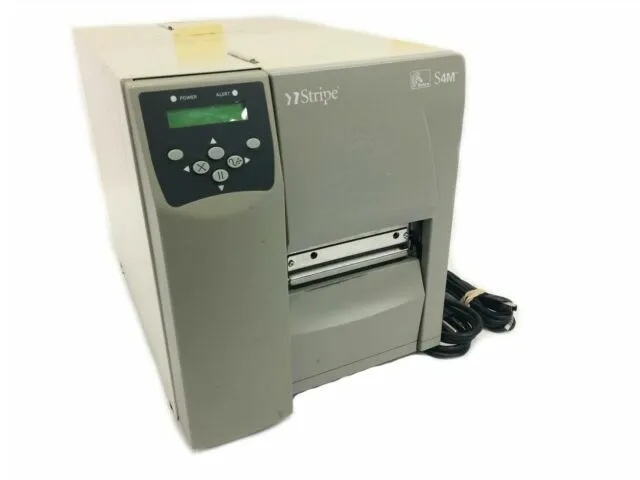

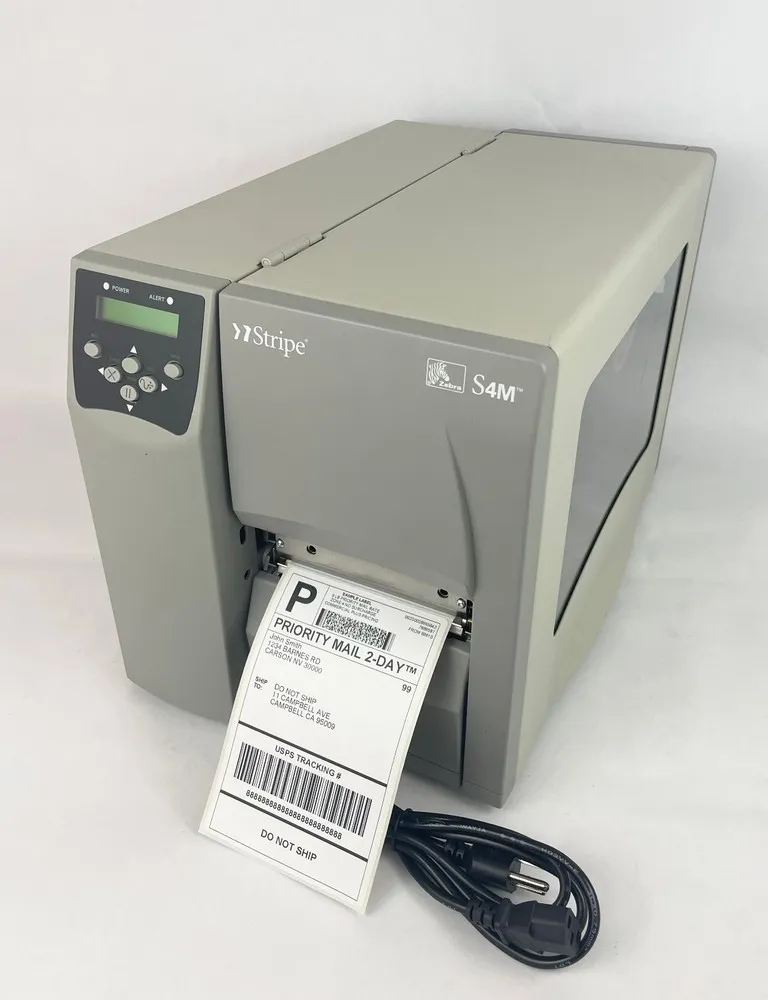

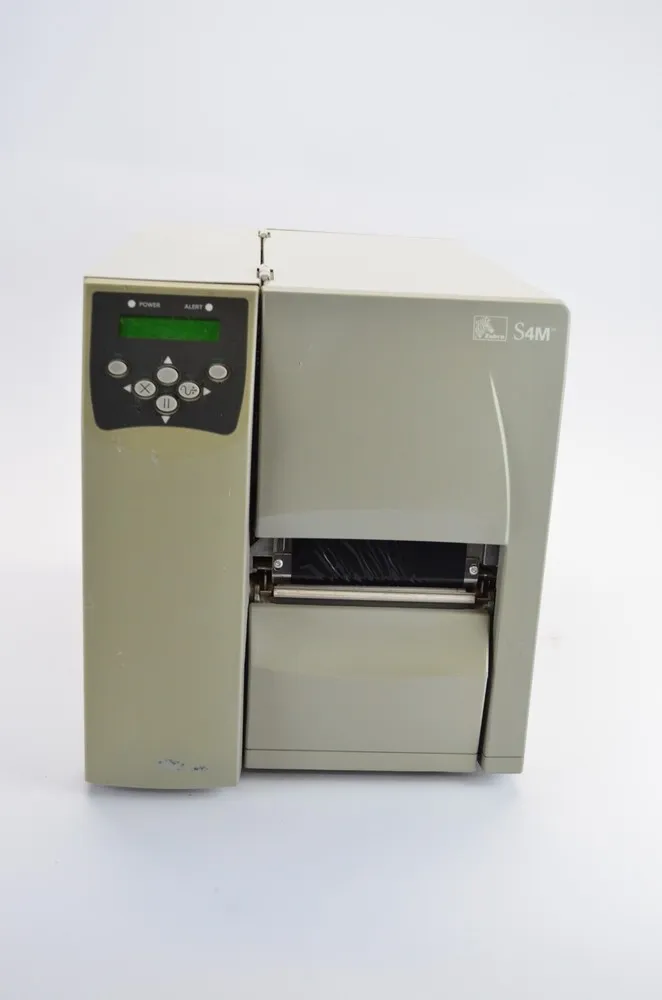

Images
Key Advantages
The Zebra S4M provides a robust metal casing that enhances durability and longevity in industrial environments. Its versatile connectivity options allow easy integration with existing systems. It supports both direct thermal and thermal transfer printing, increasing material flexibility. The printer operates at a high print speed of up to 5 inches per second, boosting operational efficiency. User-friendly controls and easy media loading reduce downtime. Compatibility with EPL and ZPL languages supports diverse application needs.
Limitations
The Zebra S4M is limited to a maximum print resolution of 203 dpi, which may not suit applications requiring higher print clarity. It lacks wireless connectivity options, which limits its network integration flexibility in modern office environments. The printer is heavier and less compact compared to newer models, reducing portability. Media capacity and roll size options are somewhat limited, affecting longer unattended print runs. The control panel interface may seem outdated compared to more modern touch-screen models. Software updates and support for the model have slowed due to its age.
FAQ
What printing technologies does the Zebra S4M support?
The Zebra S4M supports both direct thermal and thermal transfer printing technologies.
What is the maximum print resolution of the Zebra S4M?
The S4M provides a maximum print resolution of 203 dpi.
Does the Zebra S4M support wireless connectivity?
No, the Zebra S4M does not support wireless connectivity; it uses serial, parallel, and USB interfaces.
Is the Zebra S4M still in production?
No, the Zebra S4M has been discontinued.
Which programming languages are compatible with the Zebra S4M?
The printer supports Zebra's EPL and ZPL programming languages.
What is the max print speed of the Zebra S4M?
The S4M can print at speeds up to 5 inches per second.
Can I use Zebra S4M for high-volume industrial labeling?
Yes, the Zebra S4M is designed for industrial environments and supports high-volume labeling tasks efficiently.
