Zebra S4M (S4M00-2001-0100D)
Brand | Zebra 2005 |
Model | S4M00-2001-0100D |
Released Year | 2005 |
Type | Printers |
Series | Z |
Status | Discontinued |
Quick view
Overview
The Zebra S4M (model S4M00-2001-0100D) is a rugged industrial printer designed for medium-volume label printing tasks in office and industrial settings. It utilizes both direct thermal and thermal transfer printing technologies, supporting print resolutions up to 203 dpi for clear, legible output. The printer features a durable metal frame with an easy-loading mechanism for labels and ribbons, ensuring efficient media changes. Connectivity options include serial, parallel, and USB ports, allowing integration into various network environments. It supports a wide range of label materials and sizes, with a maximum print width of 4 inches and adjustable print speeds up to 4 inches per second. The S4M series is compatible with Zebra’s EPL and ZPL programming languages, offering flexibility across different applications.
Additional functionalities include an LCD display for printer status, programmable keypad, and internal memory options for font and barcode storage. This combination of hardware and software capabilities makes the S4M ideal for applications such as shipping labels, asset tracking, and inventory management.
Specifications
MPN | S4M00-2001-0100D |
UPC | 0807027541802 |
Model | S4M (S4M00-2001-0100D) |
Technology | Thermal |
Connectivity | Serial, Parallel, USB, Optional Ethernet |
Output Type | Black & White |
Type | Label Printer |
Product Line | Zebra Z |
Duplex Printout | Standard Printer |
Data Link Protocol | Ethernet, Parallel |
Color | Black |
Form Factor | Desktop |
Networking Type | Wireless Network Adapter, Network Adapter |
Media Type | Labels, Die-Cut |
Max Resolution (Bw) | 203DPI |
Black Print Speed | 6in/Sec |
Print Technology | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Speed | 4 inches per second (102 mm/s) |
Maximum Print Width | 4.09 inches (104 mm) |
Media Types | Continuous, Die-cut, Black Mark, Fan-Fold |
Media Width | 0.75 to 4.5 inches (19 to 114 mm) |
Media Thickness | 0.003 to 0.01 inches (0.08 to 0.25 mm) |
Ribbon | Wax, Wax/Resin, Resin ribbons; Ribbon width 1 to 4.33 inches (25 to 110 mm) |
Memory | 8 MB DRAM, 4 MB Flash standard |
Dimensions | 12.8 x 9.75 x 12.8 inches (325 x 248 x 325 mm) |
Weight | Approximately 15 lbs (6.8 kg) |
Programming Languages | ZPL II and EPL |
Display | LCD with 2-line text |
Power Supply | 100-240 VAC, 50-60 Hz |

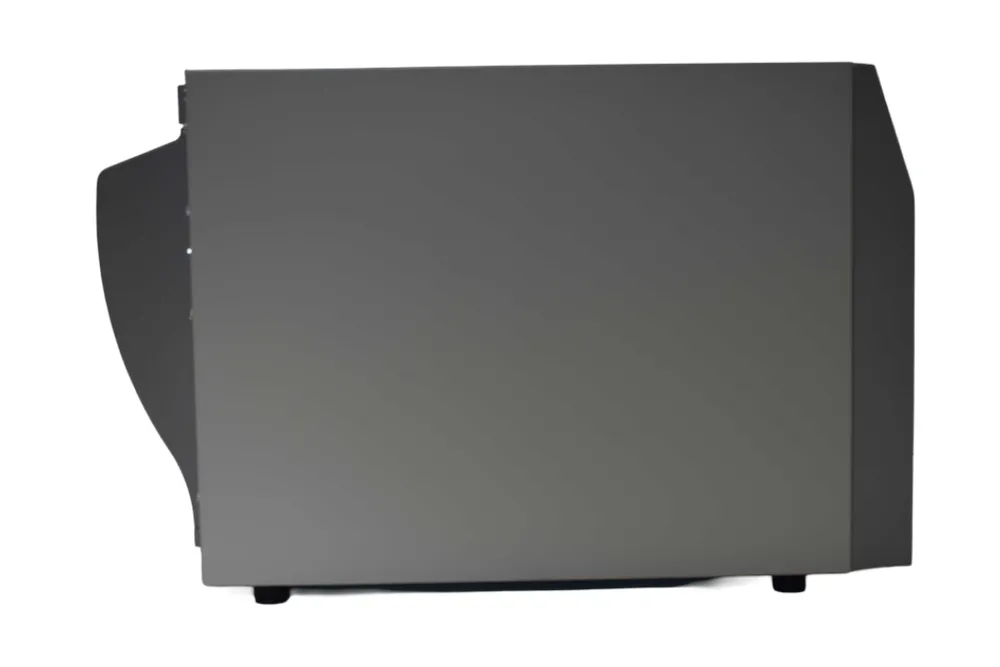

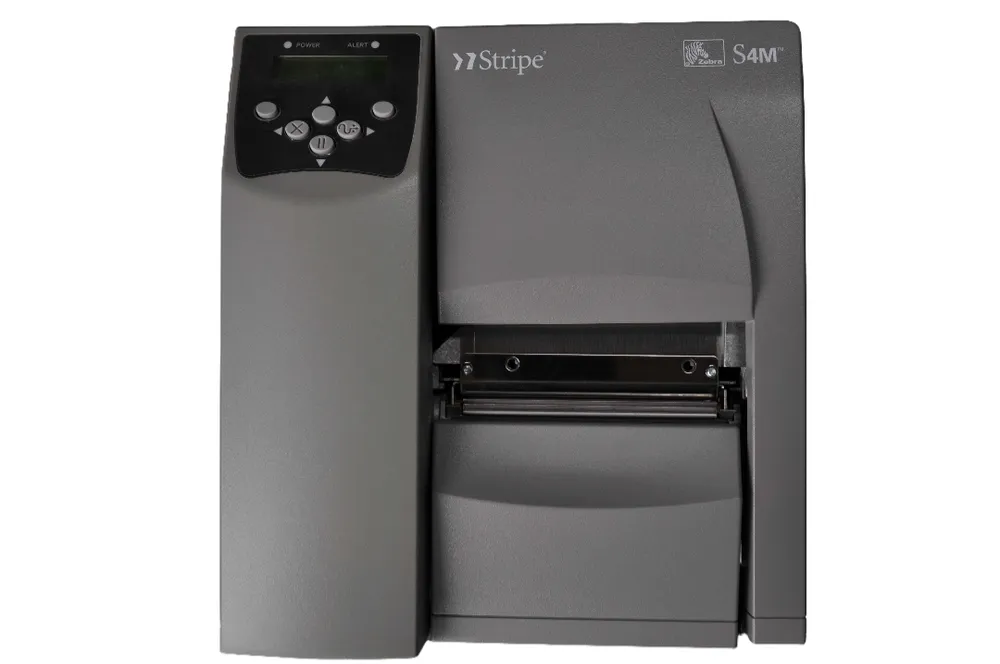

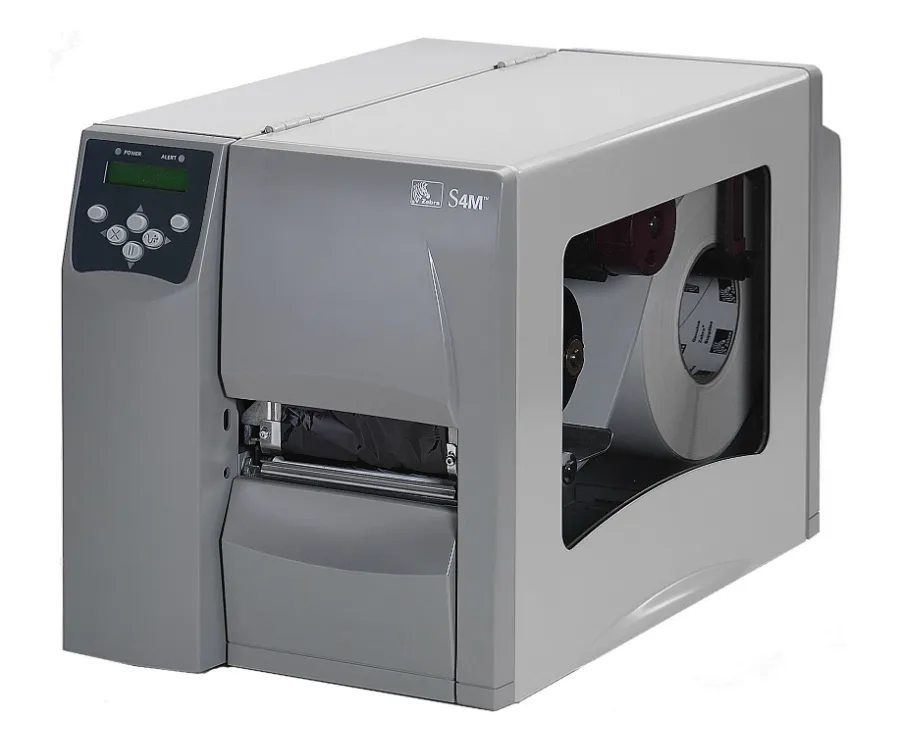

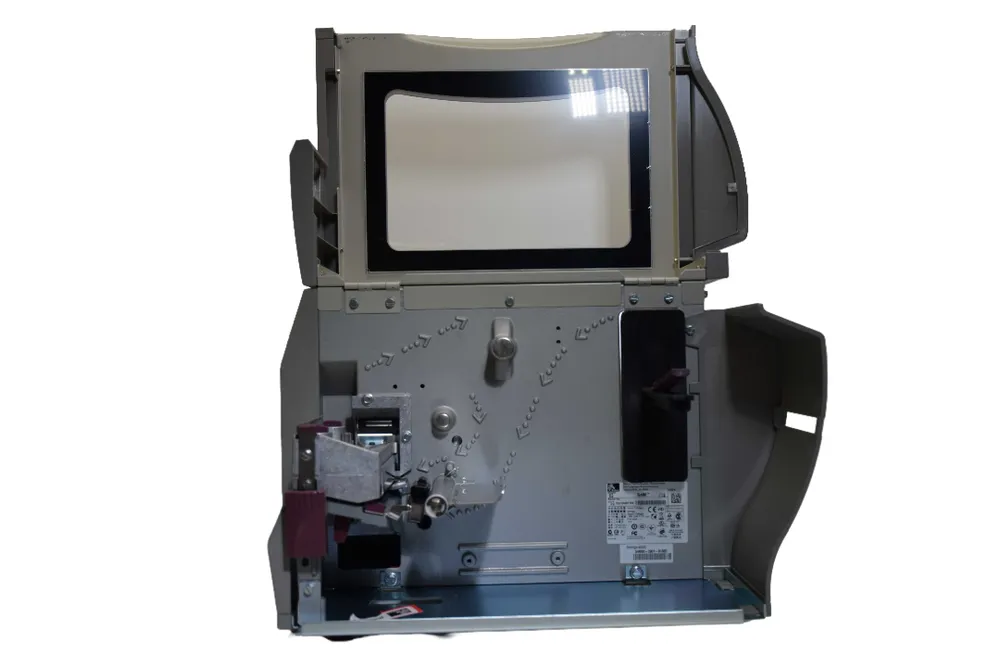

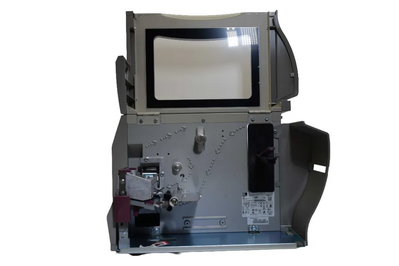

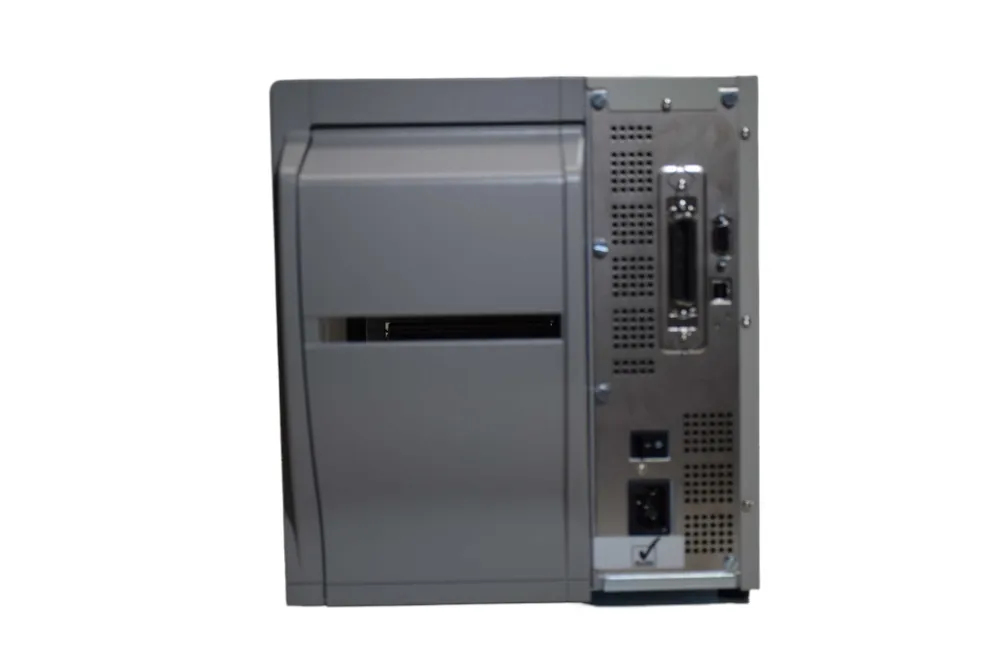

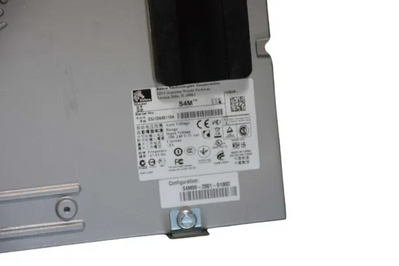

Images
Key Advantages
The Zebra S4M offers robust build quality suitable for industrial environments, ensuring long-term reliability. Its dual-printing technology allows versatility with different label types, enhancing operational flexibility. Easy media loading and a user-friendly interface reduce downtime and simplify maintenance. Multiple connectivity options provide seamless integration with existing IT infrastructure. Support for common printer languages (EPL and ZPL) guarantees compatibility with a wide array of software solutions. Finally, the printer’s high speed and resolution balance productivity with print quality efficiently.
Limitations
The S4M printer lacks wireless connectivity options such as WiFi or Bluetooth, which may limit modern network integration. Its maximum print speed and resolution are surpassed by newer models in the market, potentially impacting efficiency for very high-volume needs. The display interface is relatively basic, lacking advanced touchscreen controls. Firmware updates are less frequent compared to current-generation devices, possibly reducing compatibility with newer software. Additionally, the printer is relatively bulky and heavy, requiring dedicated space. Lastly, user access to internal components may be more restricted compared with some competitors' models.
FAQ
What printing technologies does the Zebra S4M support?
The Zebra S4M supports both direct thermal and thermal transfer printing technologies.
What is the maximum print resolution of the S4M printer?
The maximum print resolution of the Zebra S4M is 203 dpi (dots per inch).
Can the S4M printer connect via USB?
Yes, the Zebra S4M includes USB connectivity alongside serial and parallel ports.
Is the Zebra S4M still in production?
No, the Zebra S4M has been discontinued and is no longer manufactured.
Which programming languages does the S4M support?
The S4M printer supports Zebra Programming Language (ZPL) and Eltron Programming Language (EPL).
What types of media can the S4M printer handle?
The printer can handle various label materials and sizes, including continuous, die-cut, black mark, and fan-fold labels, with a maximum print width of 4 inches.
Does the S4M printer have an LCD display?
Yes, it features a basic LCD display for printer status and configuration.
