Zebra QLn420
Brand | Zebra 2014 |
Model | AC Adapter, 4x6", ZPL, WiFi, bluetooth |
Released Year | 2014 |
Type | Printers |
Series | Qln |
Printing Technology | Direct Thermal |
Status | Active |
Quick view
Overview
The Zebra QLn420 is a compact mobile printer specifically designed for on-the-go printing applications in office and retail environments. It features a 4-inch wide thermal printing mechanism capable of producing 4x6 inch labels with high resolution at 203 dpi, delivering sharp text and graphics. The device supports ZPL (Zebra Programming Language), allowing for substantial label design and printing customization. Connectivity options include integrated WiFi and Bluetooth, enabling wireless printing from a variety of mobile and desktop devices. The printer is powered via an AC adapter and incorporates a rechargeable lithium-ion battery for extended mobile usage. The QLn series architecture optimizes power consumption and durability for demanding environments.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 128 MB Flash, 64 MB SDRAM |
MPN | AC Adapter, 4x6", ZPL, WiFi, bluetooth |
Supported Paper Size | Max Label Width: 4.41" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Mobile Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | QLn420 |
Connectivity | 802.11a/b/g/n WiFi, Bluetooth 2.1 + EDR |
Features | Portable |
Black Print Speed | 4 ips |
Product Line | Zebra QLn |
Printer Type | Mobile Thermal Printer |
Printing Technology | Direct Thermal |
Max Printing Width | 4.1 inches (104 mm) |
Max Print Length | Up to 90 inches (2.28 m) |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Supported Barcodes | 1D and 2D (QR Code, PDF417, Data Matrix, etc.) |
Programming Languages | ZPL, CPCL |
Display | Monochrome LCD with backlight |
Power Supply | Rechargeable Li-Ion battery, AC adapter included |
Battery Life | Up to 12 hours depending on usage |
Dimensions | 6.9 x 3.6 x 2.6 inches (175 x 91 x 66 mm) |
Weight | 1.43 lbs (0.65 kg) |
Durability | Drop tested to 5 ft, IP54 rated for dust and water resistance |
Operating Temperature | 14°F to 122°F (-10°C to 50°C) |

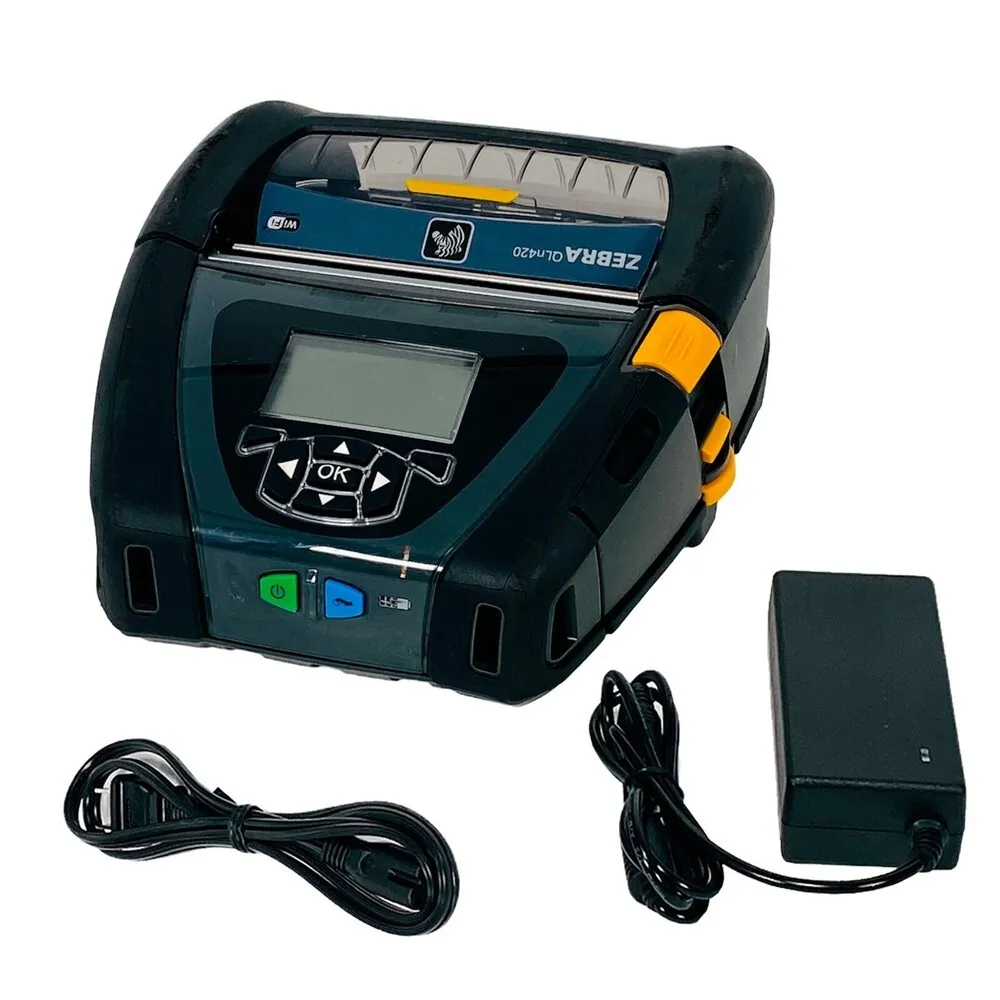

Accessory | AC Adapter, charging cradle, shoulder strap (optional) |
Images
Key Advantages
The QLn420 offers robust wireless connectivity through both WiFi and Bluetooth, ensuring flexible printing solutions without the need for cables. Its 4x6" printing capability is ideal for standard label sizes used in shipping and inventory management. The support for ZPL allows seamless integration with existing Zebra systems and compatibility with multiple label formats. The device is highly portable with a durable design that withstands drops and harsh conditions typical in industrial settings. Battery life is optimized to support long shifts, while quick charging via the AC adapter minimizes downtime. Easy-to-use features such as a bright display and intuitive controls improve user experience during daily operations.
Limitations
The QLn420's maximum print speed, while adequate for many applications, may be slower than some newer mobile printers targeting high-volume environments. The 203 dpi print resolution might be insufficient for very detailed graphics or small fonts required in certain niche applications. Its firmware and software support, although comprehensive for the time, could be less adaptable to some modern connectivity protocols beyond WiFi and Bluetooth. The printer's physical size and weight may limit comfort during extended handheld use compared to lighter models. Replacement accessories and parts specific to the QLn series might be harder to source as the model ages. Additionally, it does not inherently support newer advanced security features found in recent network printers.
FAQ
What printing languages does the Zebra QLn420 support?
The Zebra QLn420 supports Zebra Programming Language (ZPL) to ensure compatibility with a wide range of label design and printing applications.
Can the QLn420 connect wirelessly to smartphones and tablets?
Yes, the printer includes both WiFi and Bluetooth connectivity to enable wireless printing from smartphones, tablets, and other mobile devices.
What label sizes does the QLn420 support?
The QLn420 is designed primarily for 4x6 inch labels, which are common in shipping, inventory, and retail applications.
Is the QLn420 suitable for outdoor or rugged environments?
Yes, the QLn series printers are built with durability in mind, featuring rugged construction to withstand drops, dust, and light moisture typical in field use.
What kind of power supply does the QLn420 use?
It is powered by a rechargeable lithium-ion battery and can be charged using the included AC adapter for continuous operation.
Does the printer support other languages besides ZPL?
Besides ZPL, the QLn420 can also support CPCL (Comtec Printer Control Language) depending on the firmware version, increasing compatibility.
Is the printer still supported by Zebra with software updates?
While the QLn420 is not the latest model, it is still supported to some extent; however, newer models have superseded it with more advanced features and updates.
