Zebra QL420 Plus
Brand | Zebra 2015 |
Model | Q4DLUGA000000 |
Released Year | 2015 |
Type | Printers |
Series | G |
Status | Discontinued |
Quick view
Overview
The Zebra QL420 Plus is a mobile thermal printer designed for efficient mobile office printing tasks. It utilizes direct thermal printing technology to produce sharp labels and receipts without the need for ink or toner. The printer supports a maximum print width of 4.09 inches (104 mm) with a print speed of up to 4 inches per second, ensuring timely printouts. It offers versatile connectivity options including Bluetooth, USB, and optional Wi-Fi modules for seamless integration with mobile devices and computers. Powered by a high-capacity lithium-ion rechargeable battery, the QL420 Plus supports extended mobile use. Its robust design, including a ruggedized casing, enhances durability for field operations and frequent transport.
The device comes equipped with a user-friendly LCD for status monitoring and easy configuration. Supporting various media types such as labels, receipt paper, and tags, the printer is adaptable to multiple applications including shipping, retail, and inventory management. Advanced features include adjustable print darkness and optional peel and present sensors. The integration of Zebra's printer drivers and software solutions allows for simplified deployment in business environments.
Specifications
Printer Type | Mobile Direct Thermal Printer |
Print Width | Maximum 4.09 inches (104 mm) |
Print Speed | Up to 4 inches/second (102 mm/s) |
Resolution | 203 dpi (8 dots/mm) |
Connectivity | Wireless, USB 2.0, Bluetooth |

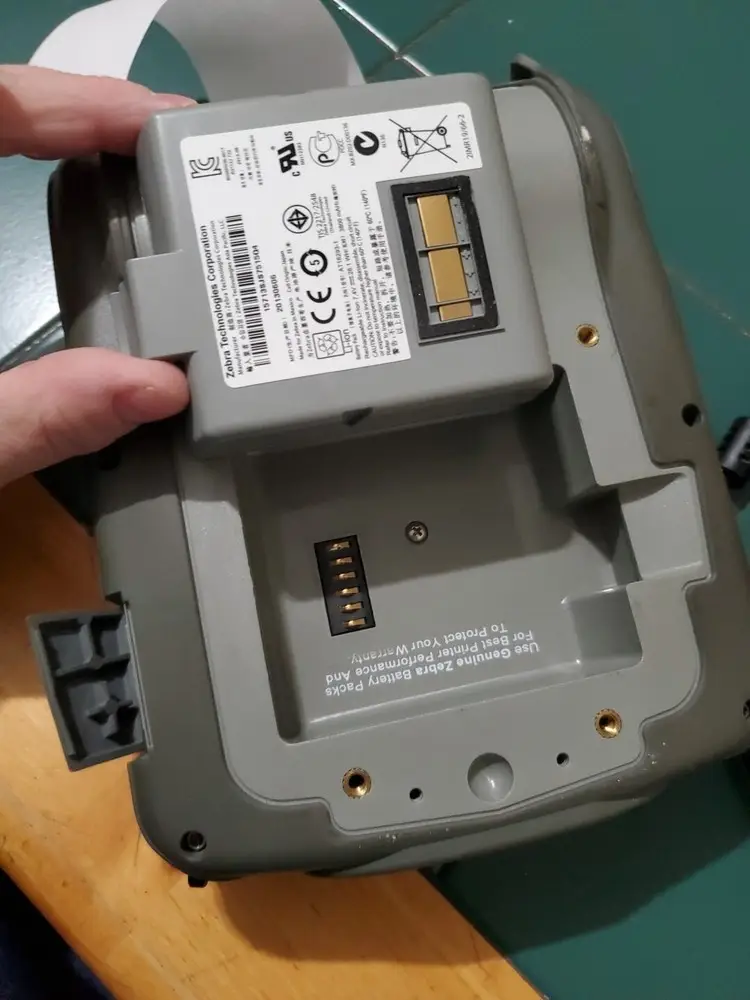

Battery | Rechargeable Lithium-Ion |

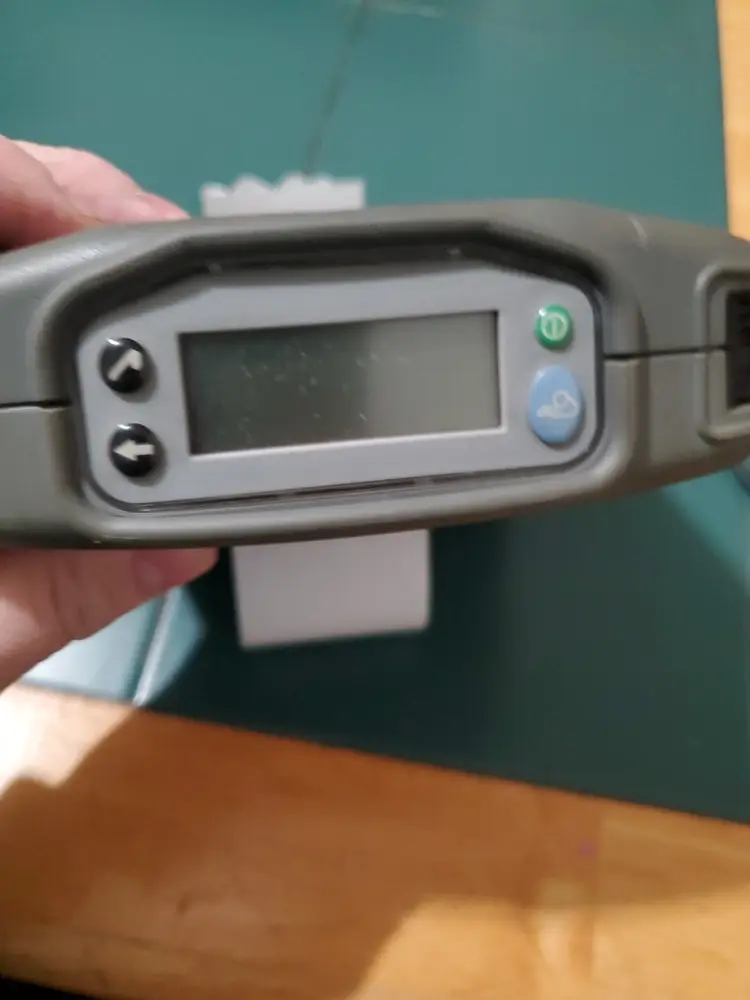

Display | LCD for status and configuration |
Supported Media | Labels, tags, receipts, continuous and die-cut media |
Media Width | 1.0 inch to 4.38 inches (25.4 mm to 112 mm) |
Media Roll Diameter | Up to 2.0 inches (50.8 mm) |
Print Method | Direct Thermal |
Dimensions | 6.5 x 3.5 x 2.25 inches (165 x 89 x 57 mm) |
Weight | Approx. 1.5 lbs (0.68 kg) |
Environmental | Operating Temp: 32°F to 122°F (0°C to 50°C) |
Durability | Rugged design with resistance to shock and vibration |
Input Type | Monochrome |
Memory | 8 MB |
Output Type | Black & White |
MPN | Q4DLUGA000000 |
Item Length | 8 in |
Supported Paper Size | 4 x 6 |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Item Height | 2.5 in |
Model | QL420 Plus |
Features | Portable |
Black Print Speed | 4 ppm |
Country/Region of Manufacture | China |
Item Width | 6.5 in |
Product Line | Zebra G |

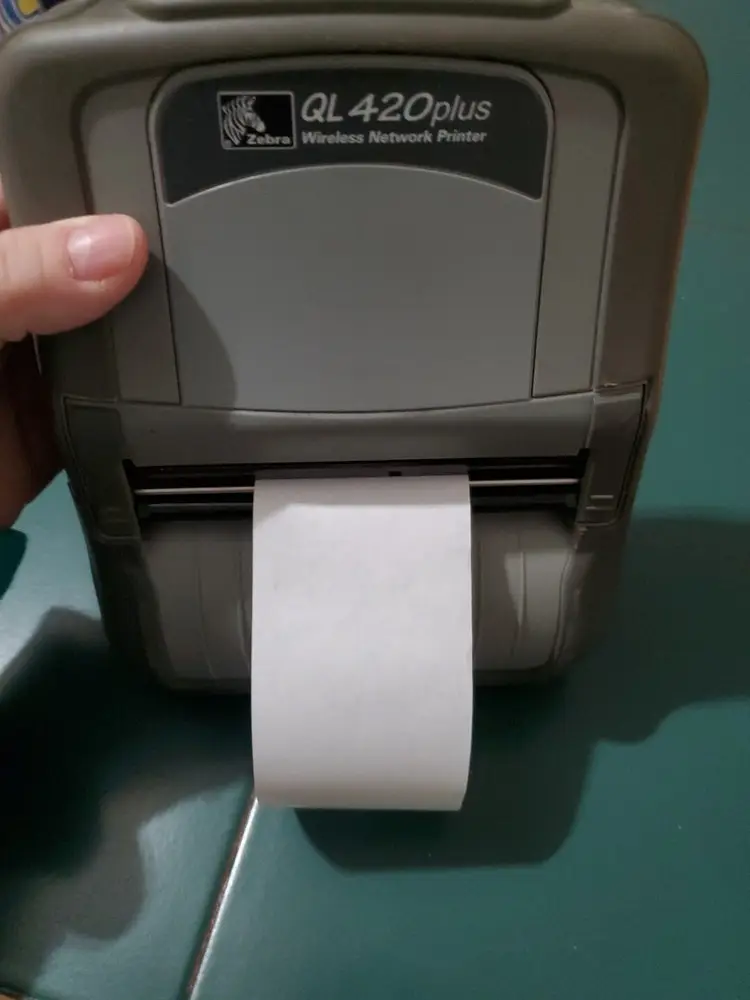

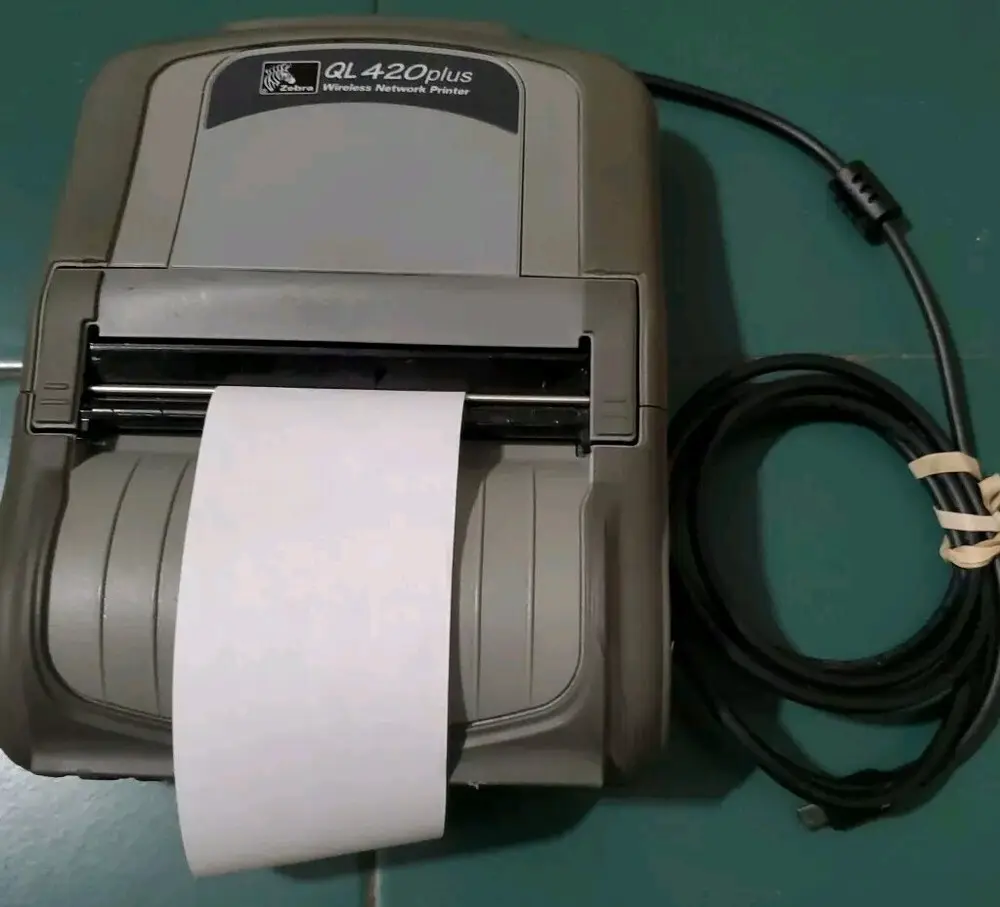

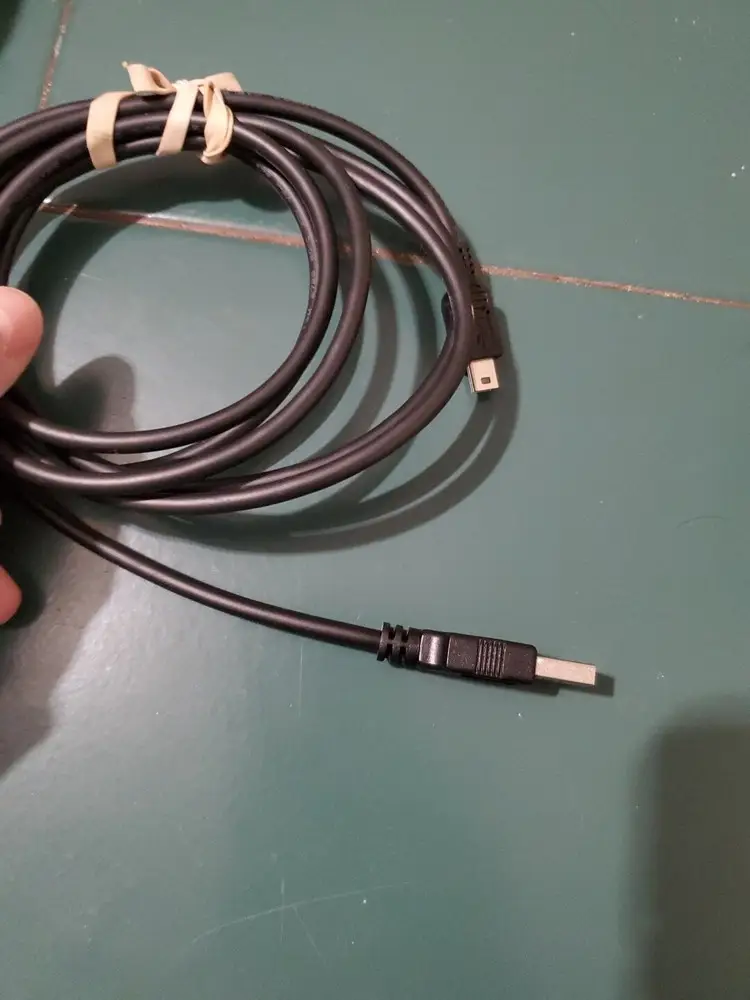

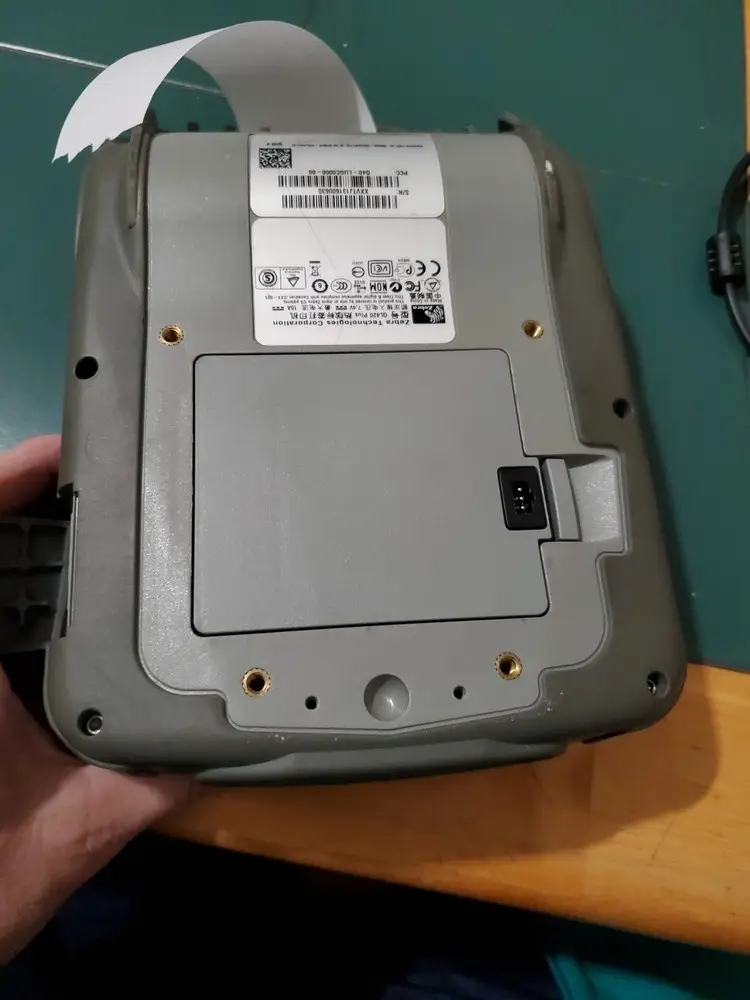

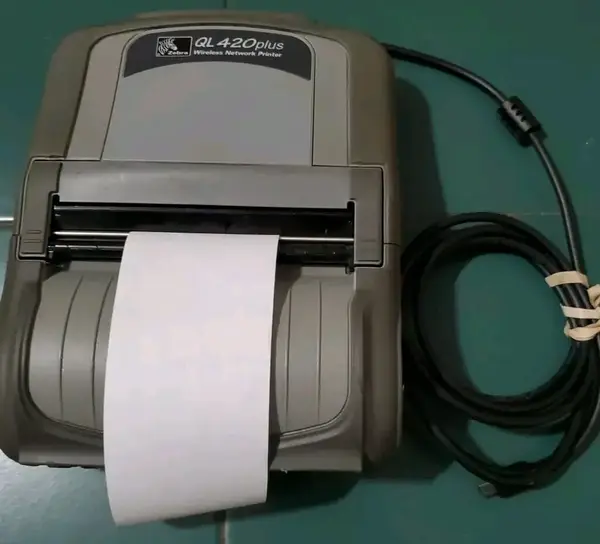

Images
Key Advantages
The QL420 Plus offers fast and high-quality thermal printing ideal for mobile environments. Its versatile connectivity options facilitate easy pairing with various devices and networks. The battery life supports daily intensive printing without frequent recharging. Its rugged design resists shocks and environmental factors typical in fieldwork. The printer supports a wide range of media, accommodating diverse labeling needs. Additionally, Zebra's reputation and support ecosystem ensure reliability and long-term service availability.
Limitations
The QL420 Plus relies on direct thermal printing, which is less durable and sensitive to heat and light compared to thermal transfer, limiting label longevity in some applications. It may have a relatively moderate print speed compared to newer models optimized for high-volume usage. The device’s size and weight could be cumbersome for some mobile printing scenarios. Its wireless capabilities may require additional modules, increasing total cost. The LCD interface is basic and may not offer advanced user interaction. Firmware updates and compatibility with newer operating systems could be limited as the model develops age.
FAQ
What type of printing technology does the Zebra QL420 Plus use?
The Zebra QL420 Plus uses direct thermal printing technology, which prints images by heating coated thermal paper.
What connectivity options are available with the QL420 Plus?
The printer supports USB and Bluetooth connectivity as standard, with optional Wi-Fi modules available for wireless networking.
Is the QL420 Plus suitable for outdoor use?
Yes, the QL420 Plus features a rugged design to withstand shocks and challenging environmental conditions, making it suitable for outdoor and mobile use.
Can the QL420 Plus print different types of media?
Yes, it supports printing on labels, receipts, and tags, offering flexibility for various applications.
What is the maximum print width and speed of the QL420 Plus?
The maximum print width is 4.09 inches (104 mm), with a printing speed of up to 4 inches per second.
Is the Zebra QL420 Plus still supported by Zebra?
The QL420 Plus is considered a discontinued model; however, Zebra may provide limited support or resources for legacy devices.
What kind of battery does the QL420 Plus use and how long does it last?
It uses a rechargeable lithium-ion battery designed to provide sufficient power for a full day of typical mobile printing activities.
