Zebra Ql
| Brand | Zebra 2013 |
| Model | GC420-100540-000, Q2D-LUGA0000-00 |
| Released Year | 2013 |
| Type | Printers |
| Series | Ql220 |
| Status | Discontinued |
Quick view
Overview
The Zebra QL220 is a compact, mobile thermal printer designed primarily for printing labels and receipts in various office and field environments.
It utilizes direct thermal printing technology, eliminating the need for ink or toner cartridges.
The device supports a print width up to 2.2 inches (56 mm) and features a print speed of up to 4 inches per second.
Connectivity options typically include serial and USB interfaces, with some models offering Bluetooth capabilities for wireless operation.
The printer is powered by rechargeable lithium-ion batteries ensuring portable and continuous use.
Its rugged design enables reliable performance in demanding conditions, suitable for on-site labeling, shipping, and logistics applications.
Specifications
| Input Type | Rolls |
| Memory | 4 MB Flash, 2 MB SDRAM |
| Output Type | Black & White |
| MPN | GC420-100540-000, Q2D-LUGA0000-00 |
| Item Length | 181.60mm |
| Supported Paper Size | Max Width 110mm, Maxiumum Print Width 1.89"/48.0 mm |
| Type | Mobile Printer |
| Technology | Thermal Direct |
| Maximum Resolution | 203 dpi/8 dots per mm |
| Item Height | 75.2mm |
| Model | Zebra QL |
| Connectivity | USB, Serial, optional Bluetooth |
| Features | Wireless |
| Item Width | 90.7mm |
| Product Line | Zebra QL220 |
| Printer Model | Zebra QL220 |
| Print Technology | Direct Thermal |
| Maximum Print Width | 2.2 inches (56 mm) |
| Print Speed | Up to 4 inches per second |
| Resolution | 203 dpi |
| Battery | Rechargeable Lithium-ion |
| Weight | Approx. 14.4 oz (408 g) |
| Dimensions | 4.6 x 4.3 x 2.1 inches |
| Media Types | Direct thermal labels and tags |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Discontinued | Yes |

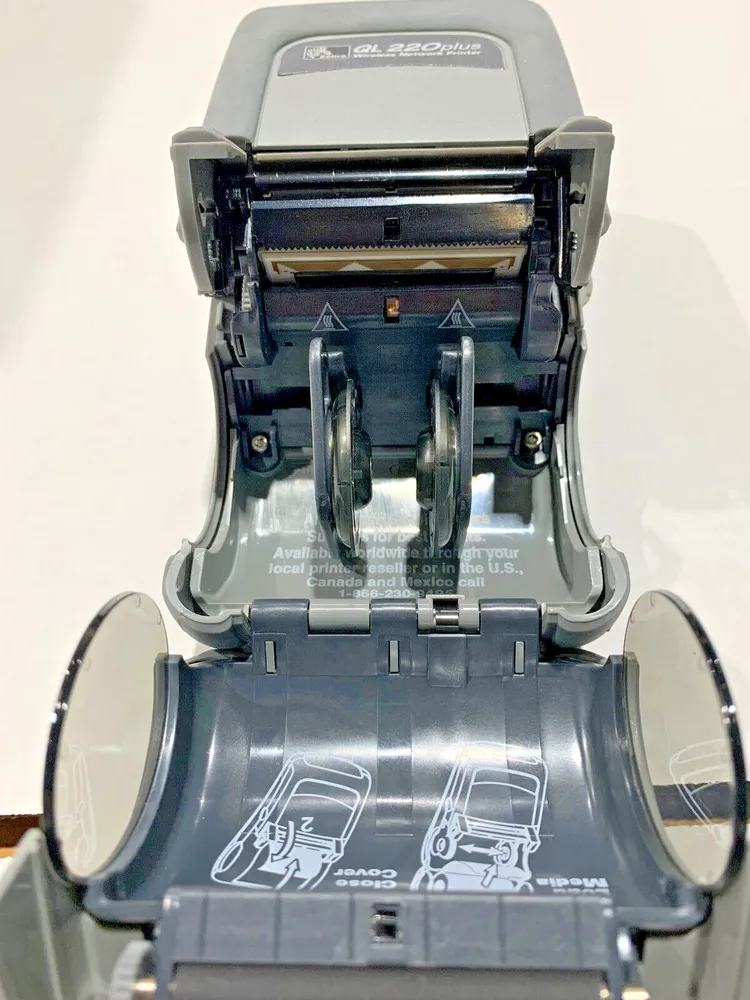

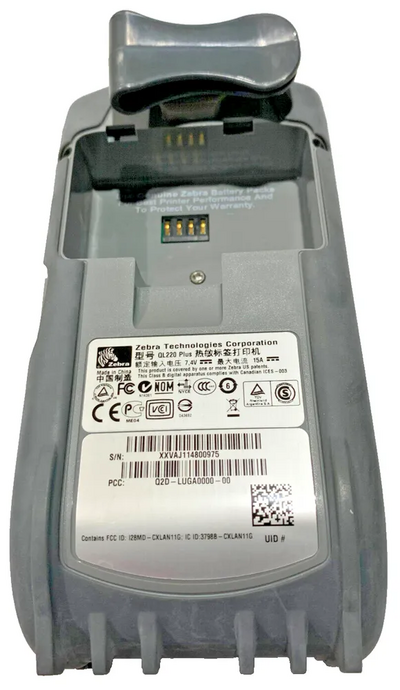

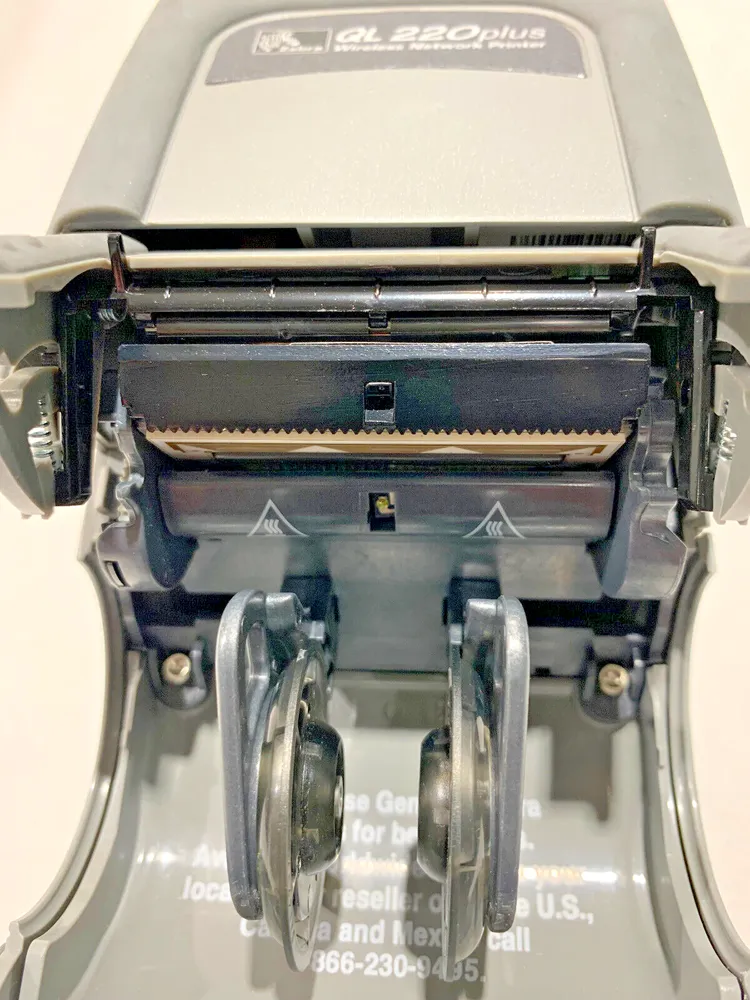

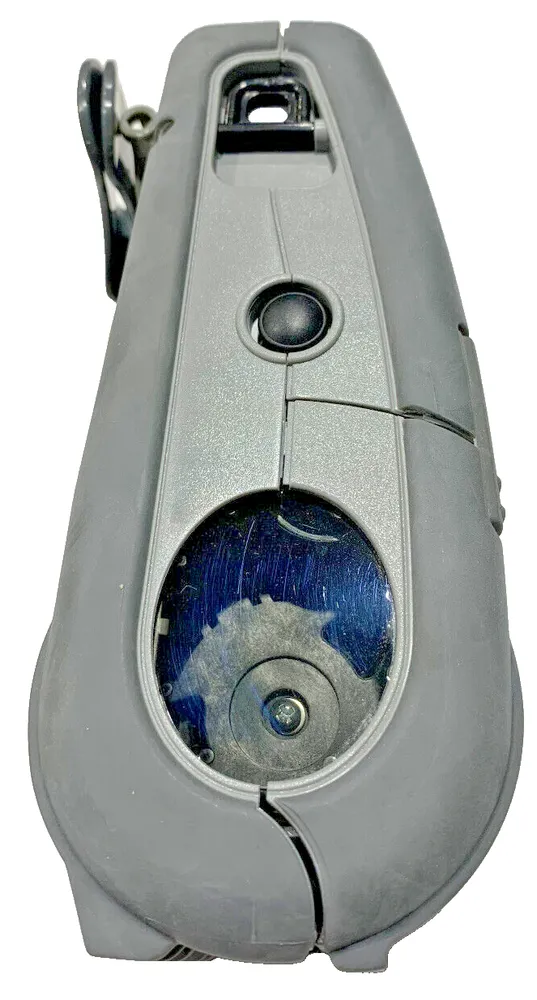

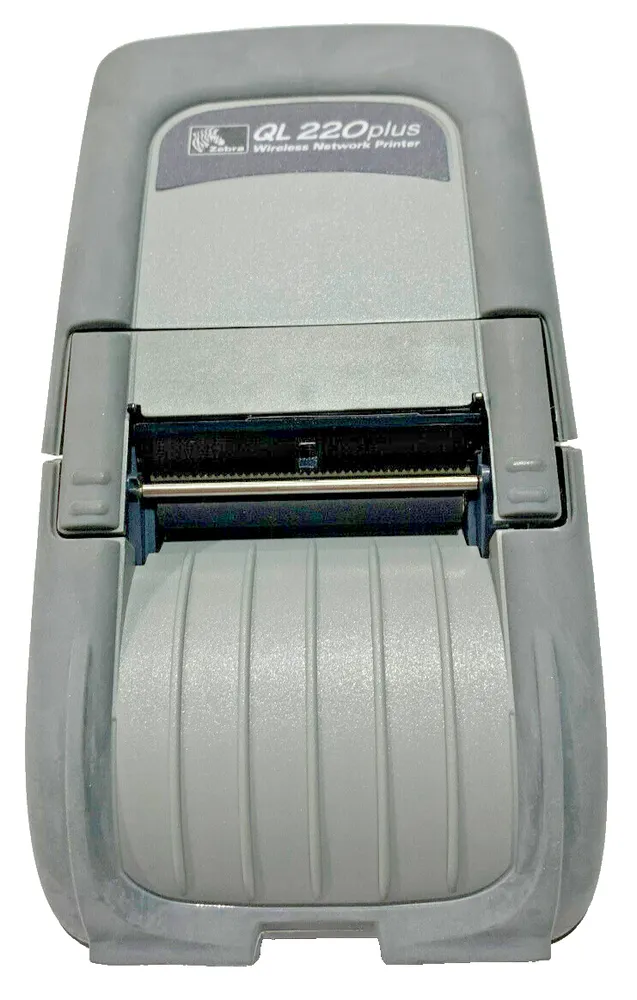

Images
Key Advantages
The Zebra QL220 offers high portability due to its lightweight and compact design.
Direct thermal printing results in low maintenance with no requirement for ribbons or ink cartridges.
It provides fast print speeds, improving efficiency in mobile operations.
Battery-powered functionality allows for mobile use without dependency on power outlets.
Its compatibility with various label sizes and media types adds flexibility.
The device is designed for durability, able to withstand regular field usage and minor impacts.
Limitations
The printer uses direct thermal technology which may limit print durability under exposure to heat or sunlight.
Its print width and speed are lower compared to some newer mobile printers in the market.
Connectivity options may be restricted to USB and serial interfaces in some units, lacking modern wireless standards.
Screen or user interface features are limited, potentially requiring external devices or software for configuration.
Battery life may be insufficient for extended heavy usage without frequent recharging.
Replacement parts and accessories might be harder to source as the device ages.
FAQ
What printing technology does the Zebra QL220 use?
The Zebra QL220 uses direct thermal printing technology, which does not require ink or toner cartridges.
Is the Zebra QL220 suitable for outdoor use?
The printer is portable and rugged but prints may fade under heat or sunlight as it uses direct thermal technology.
What types of connectivity does the QL220 support?
It typically supports USB and serial connections; Bluetooth may be available on certain models but is not standard.
Can the Zebra QL220 print different label sizes?
Yes, it supports printing on various widths up to 2.2 inches (56 mm), accommodating common label sizes.
Is the Zebra QL220 still in production?
No, the Zebra QL220 has been discontinued but may still be available through secondary markets.
What is the typical battery life for this model?
Battery life varies by usage but generally supports several hours of continuous printing before needing recharge.
Where can I find parts and accessories for the QL220?
Parts and accessories can be sourced via Zebra authorized resellers or specialized third-party vendors, though availability may be limited.
