Zebra QL 220 Plus (Q2C-LUKC0000-00)
Brand | Zebra 2005 |
Model | Q2C-LUKC0000-00 |
Released Year | 2005 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra QL 220 Plus is a compact and lightweight portable thermal printer designed for on-the-go labeling needs. It utilizes direct thermal printing technology, eliminating the need for ink or toner cartridges. Featuring a maximum print resolution of 203 dpi, it delivers clear and sharp labels suitable for barcodes and text. The device supports labels up to 2.3 inches in width, providing flexibility for various label sizes. Connectivity options include serial and USB interfaces, allowing easy integration with computers and mobile devices. Powered by an internal rechargeable battery, the QL 220 Plus ensures mobility and continuous operation in field or office settings.
Specifications
Type | Mobile Printer, Label Printer |
Technology | Thermal |
Output Type | Black & White |
Connectivity | Serial (RS-232), USB 1.1 |
MPN | Q2C-LUKC0000-00 |
Model | QL 220 Plus (Q2C-LUKC0000-00) |
Weight | Approximately 0.8 lbs (0.36 kg) |
Depth | 3in |
Height | 7in |
Width | 4in |
Platform | PC Products |
Extend Printer Technology | Direct Thermal / Thermal Transfer |
Installed RAM | 8MB |
Data Link Protocol | IEEE 802.11b |
Form Factor | Portable, Point of Sale |
Networking Type | Wireless Network Adapter (Optional), Print Server |
Media Type | Receipt Paper, Labels, Die-Cut |
Max Resolution (Bw) | 203DPI |
Black Print Speed | 3in/Sec |
Printing method | Direct Thermal |
Print resolution | 203 dpi (8 dots/mm) |
Maximum print width | 2.3 inches (58 mm) |
Maximum print speed | 2 inches per second |
Dimensions (W x D x H) | 3.7 x 6.9 x 2.8 inches (94 x 176 x 71 mm) |
Battery | Rechargeable Lithium-Ion battery |
Media types supported | Labels, Tags, Receipts |
Memory | 4 MB Flash, 2 MB SRAM |
Operating temperature range | 14°F to 122°F (-10°C to 50°C) |
Power supply | 110-240V AC Adapter |

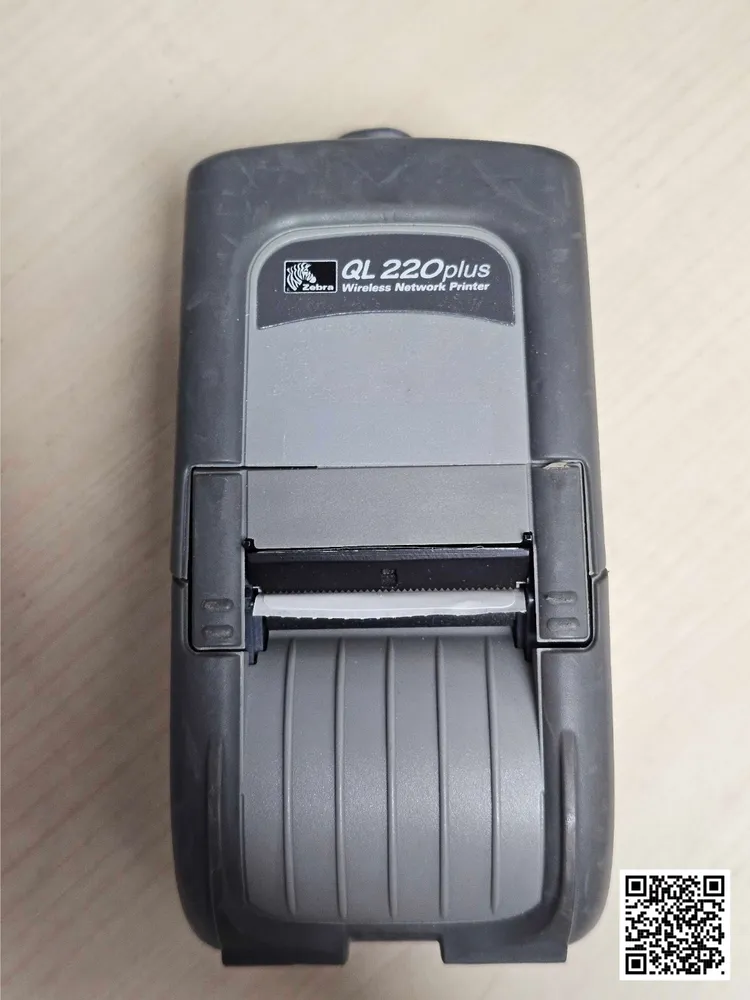

Images
Key Advantages
The printer's compact and lightweight design facilitates easy portability for users in logistics, retail, and field service. Its direct thermal printing technology reduces maintenance by eliminating ribbons and ink. The QL 220 Plus supports high-quality 203 dpi resolution print output for clear barcode readability. Versatile connectivity options, including serial and USB, enhance compatibility with various devices. An internal rechargeable battery allows extended mobile use without dependency on external power sources. Additionally, the printer offers fast print speeds which improve operational efficiency in busy environments.
Limitations
The QL 220 Plus is limited to direct thermal printing, which may cause labels to fade over time when exposed to heat or sunlight. It supports only monochrome printing, restricting use to black-and-white labels. The maximum print width of 2.3 inches may not accommodate larger labeling needs. It lacks wireless connectivity options such as Bluetooth or Wi-Fi, limiting modern device integration. The battery life, while adequate for mobile use, could be insufficient for very high volume printing without recharging. Furthermore, the printer does not support color labeling or duplex printing, restricting certain advanced labeling applications.
FAQ
What printing technology does the Zebra QL 220 Plus use?
The Zebra QL 220 Plus uses direct thermal printing technology, which prints images by selectively heating thermal paper as it passes over the print head.
What is the maximum print resolution of the QL 220 Plus?
The maximum print resolution of the Zebra QL 220 Plus is 203 dots per inch (dpi).
Does the QL 220 Plus support wireless connectivity?
No, the QL 220 Plus does not have wireless capabilities such as Bluetooth or Wi-Fi; it supports serial and USB connections only.
What label widths can the QL 220 Plus accommodate?
It accommodates label widths up to 2.3 inches (approximately 58 mm).
Is the QL 220 Plus still supported by Zebra?
No, the Zebra QL 220 Plus is a discontinued model and no longer officially supported.
What is the typical use case for the Zebra QL 220 Plus?
It is typically used for portable onsite label printing in retail, logistics, and field service environments.
What type of battery does the QL 220 Plus use?
The printer uses an internal rechargeable battery designed for mobile, cordless operation.
