Zebra LP2824 Plus image

Zebra LP2824 Plus

Quick information
Brand Zebra 2011
Model 282P-201510-000, AC Adapter, LAN Network
Released Year 2011
Type Printers
Series Lp
Status Discontinued
Quick view
Full specs Images FAQ

Overview

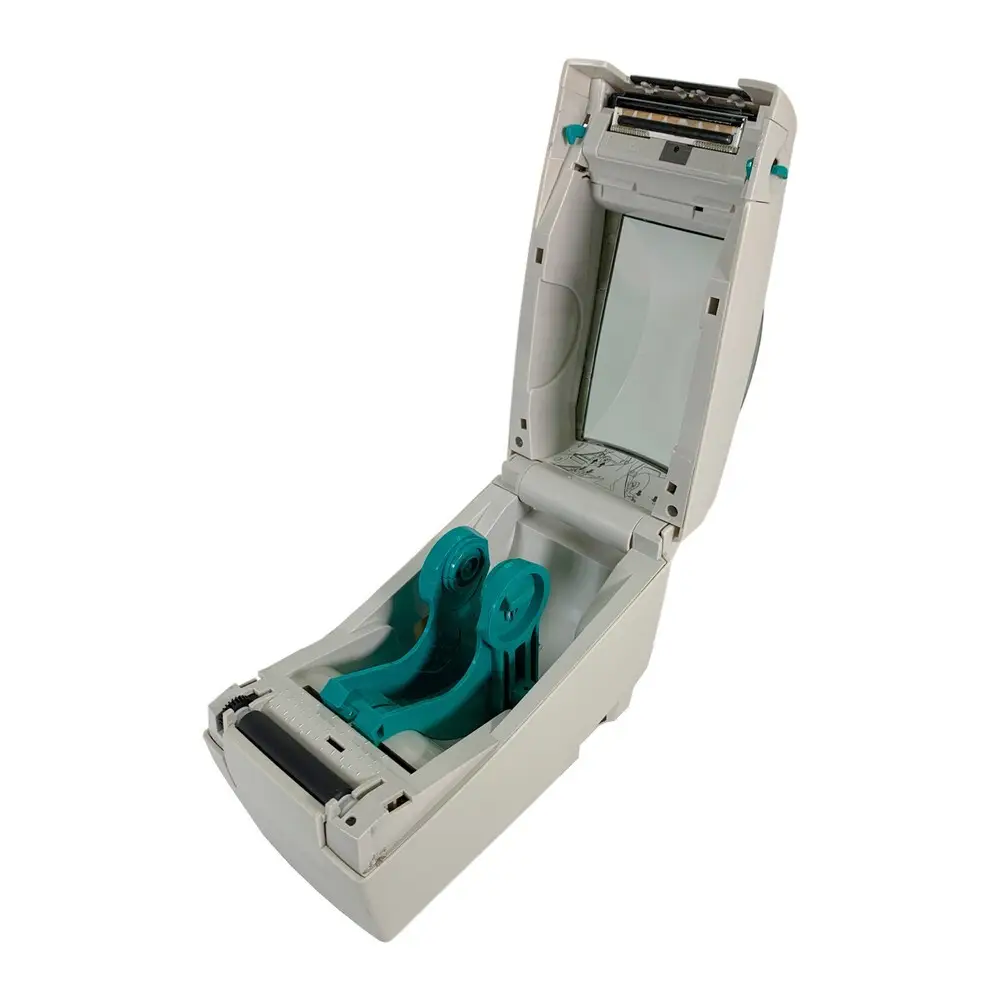

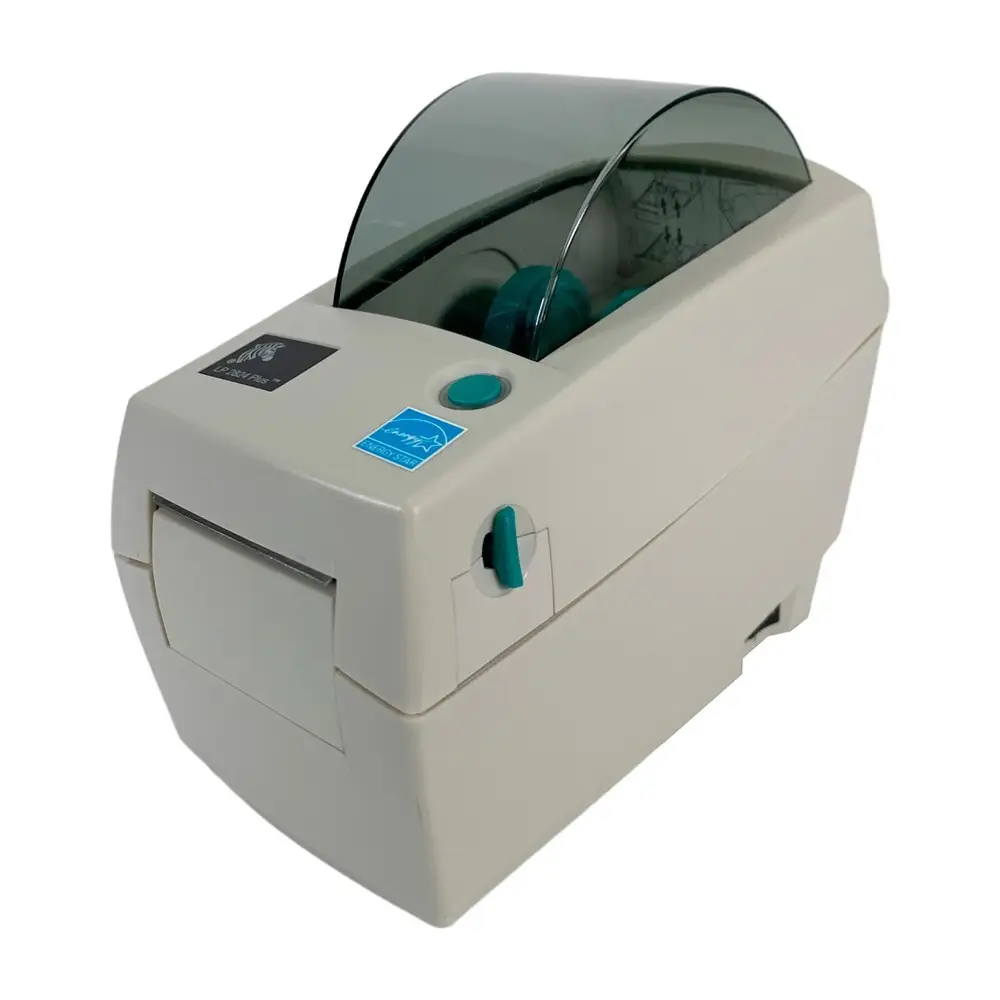

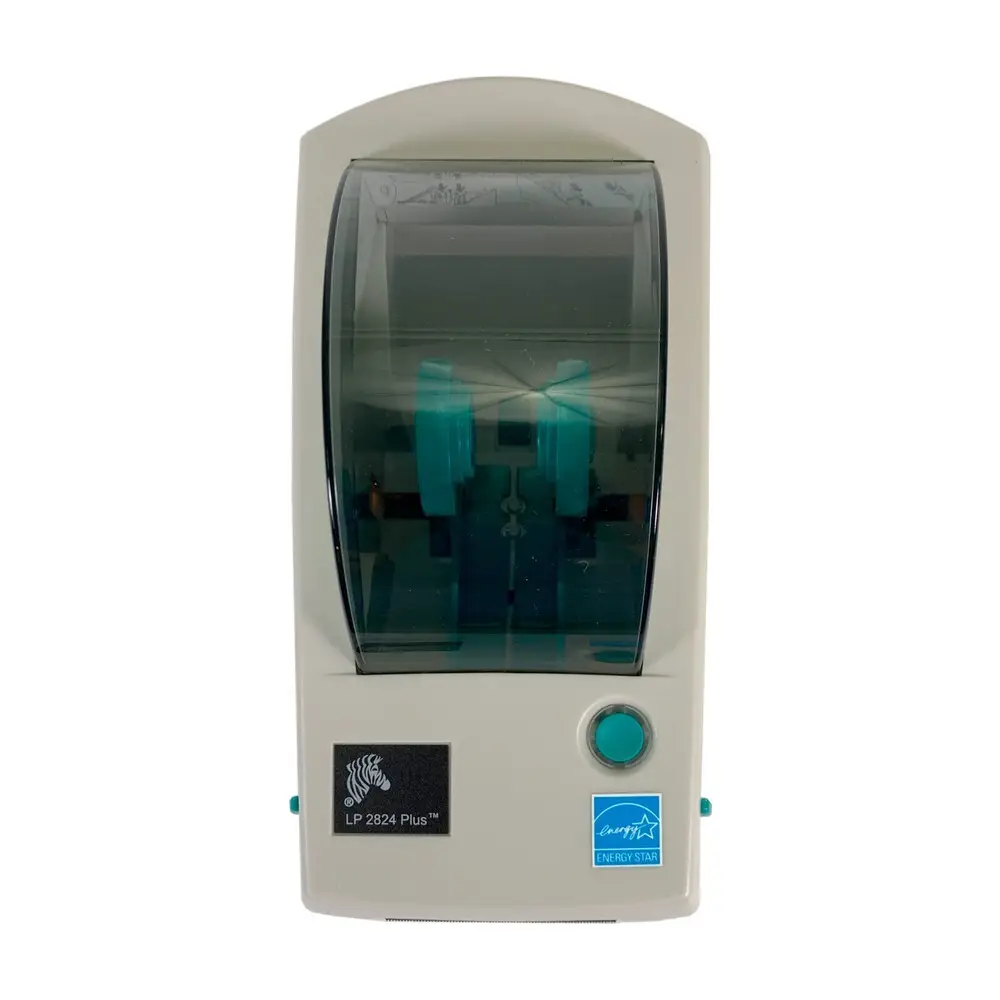

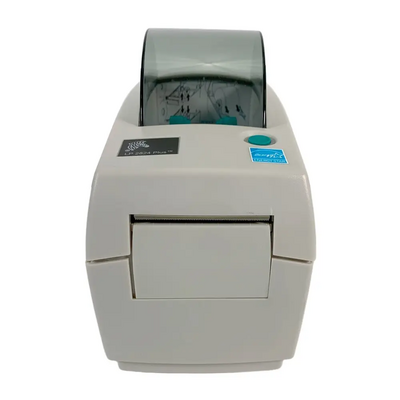

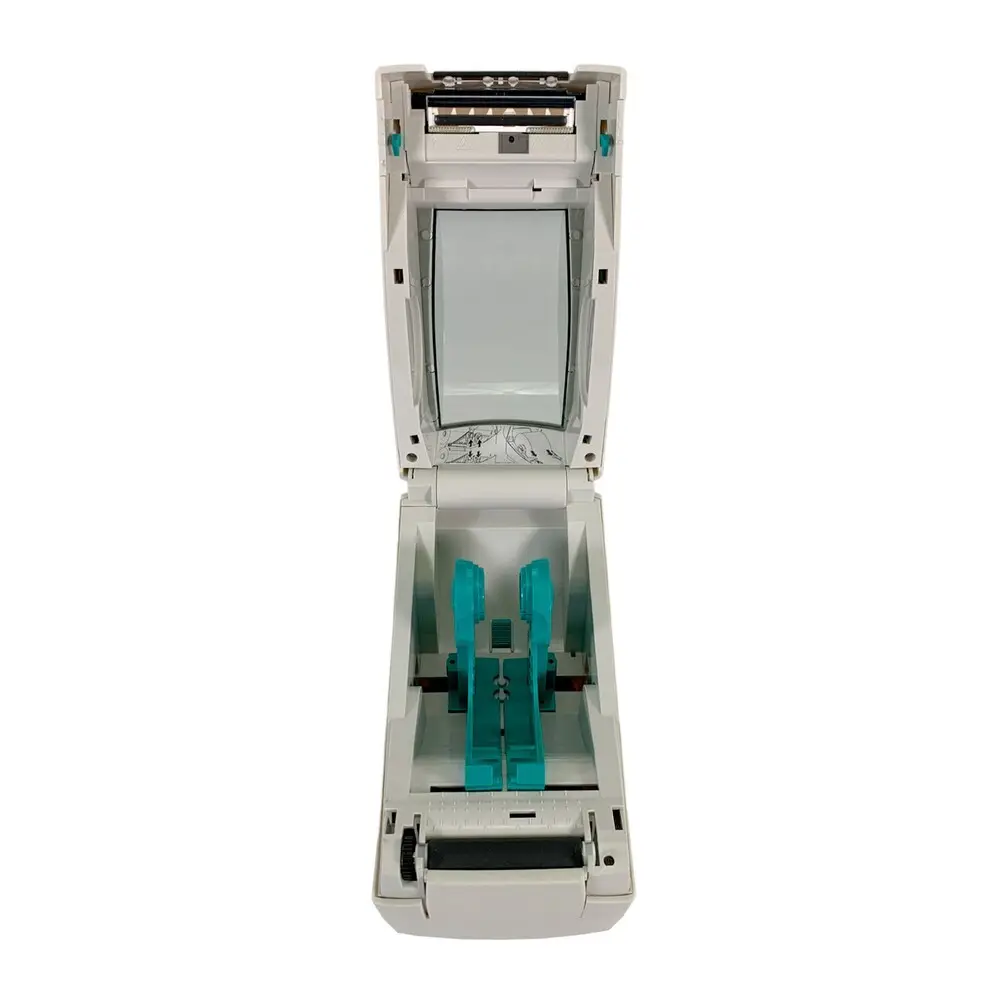

The Zebra LP2824 Plus is a compact, low-profile thermal label printer designed primarily for office and retail environments. It uses direct thermal printing technology which eliminates the need for ink or toner. The device supports media widths from 1.00" to 2.36" and prints at a resolution of 203 dpi, providing clear and readable labels. It features a print speed of up to 4 inches per second, enabling fast production of labels, receipts, and tags. Connectivity options include serial, parallel, USB, and optional LAN network interfaces for flexible integration. The included AC Adapter ensures stable power supply for consistent print quality and device reliability.

Specifications

Print Technology Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 2.36 inches (60 mm)
Maximum Print Speed 4 inches per second (102 mm/sec)
Media Type Direct thermal labels, tags, receipt paper
Media Width 1.00 to 2.36 inches (25.4 to 60 mm)
Connectivity Ethernet (RJ-45), USB 2.0
Power Supply External AC Adapter
Memory 8 MB
Dimensions 7.25" W x 7.5" D x 5" H (184 mm x 191 mm x 127 mm)
Weight 3.6 lbs (1.6 kg)
Operating Temperature 40°F to 105°F (5°C to 40°C)
Duty Cycle Up to 100,000 labels per month (typical)
Discontinued Yes
Input Type Monochrome
Output Type Black & White
MPN 282P-201510-000, AC Adapter, LAN Network
Supported Paper Size Maximum Label Width: 2.36"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model LP2824 Plus
Features Networkable, Portable
Black Print Speed 4 ppm
Product Line Zebra LP

Key Advantages

The Zebra LP2824 Plus offers compact design suitable for 공간 constrained environments. It operates silently with minimal maintenance required, reducing operating costs. The direct thermal technology means no consumable ribbon or toner which saves expenses. Its connectivity versatility allows integration with various systems via serial, USB, and optional LAN interfaces. The printer's fast print speed and consistent quality improve office efficiency. Additionally, Zebra's reliable build quality and extensive support network enhance overall user experience and device longevity.

Limitations

As a direct thermal printer, the LP2824 Plus prints labels that may fade over time when exposed to heat or sunlight, limiting archival use. The printing resolution is fixed at 203 dpi, which cannot meet needs requiring higher detail or graphic quality. The maximum print width of 2.36" restricts it to narrower labels only, unsuitable for large-format applications. Its processing capabilities and memory are basic, potentially limiting complex label designs and graphics. The model lacks advanced connectivity such as wireless options by default, requiring external adapters for network use. Also, it is not ideally suited for high-volume industrial environments due to moderate speed and duty cycle.
