Zebra Lp2824 plus image

Zebra Lp2824 plus

Quick information
Brand Zebra 2002
Model 282P-201110-000
Released Year 2002
Type Printers
Series Lp
Status Discontinued
Quick view

Overview

The Zebra LP2824 Plus is a compact thermal label printer specifically designed for small to medium office environments. It utilizes direct thermal printing technology, eliminating the need for ink or toner cartridges. The device supports a maximum print resolution of 203 dpi, ensuring clear and legible barcodes and text. It features a print width up to 2.2 inches, suitable for a variety of label and tag applications. With its USB and serial connectivity options, the printer easily integrates into existing systems. The printer's firmware supports EPL and ZPL programming languages, allowing versatile label format creation and customization.

Specifications

Non-Domestic Product No
Input Type Monochrome
Output Type Black & White
Memory 2 MB Flash, 1 MB SDRAM
Custom Bundle No
MPN 282P-201110-000
Modified Item No
Supported Paper Size 2 inch
California Prop 65 Warning non
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model lp2824 plus

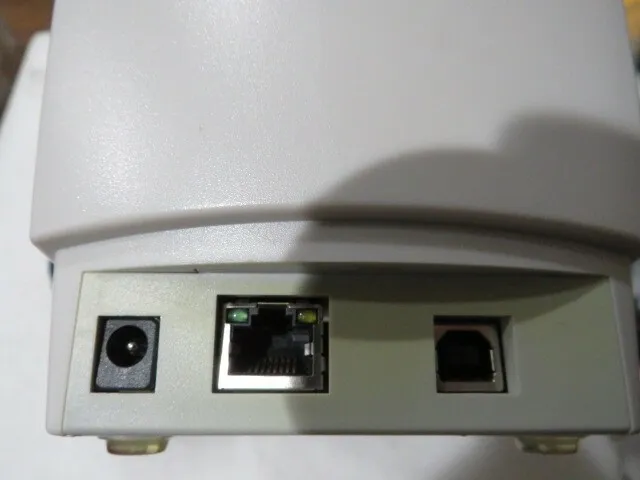

Connectivity USB 2.0, RS-232 Serial
Features desktop
Black Print Speed 4 ppm
Product Line Zebra LP
UPC Does not apply
Printer Type Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 2.2 inches (56 mm)
Print Speed Up to 4 inches per second
Programming Languages EPL, ZPL
Media Types Labels, tags, receipts (direct thermal)
Maximum Label Length 39 inches (991 mm)
Dimensions 7.5 x 5.1 x 6.7 inches (190 x 130 x 170 mm)
Weight 3.8 lbs (1.7 kg)
Power Supply External AC adapter
Operating Systems Windows, Mac, Linux compatible
Discontinued Yes

Key Advantages

The LP2824 Plus offers high printing speed for quick label production which is critical in busy office settings. Its compact design saves valuable workspace while maintaining durability. The plug-and-play USB connection simplifies installation and reduces setup time. The printer supports multiple media types and sizes, enhancing application flexibility. User-friendly features such as easy media loading and intuitive LED indicators improve operational efficiency. Additionally, the device's compatibility with established Zebra programming languages provides a seamless upgrade path and broad software support.

Limitations

The LP2824 Plus is restricted to direct thermal printing and cannot print using thermal transfer ribbons, limiting its media options. It has a relatively low maximum print resolution compared to newer models, which might affect fine detail reproduction. The print width is limited to 2.2 inches, restricting label size versatility. Connectivity options are limited to USB and serial ports without network capabilities built-in. The printer lacks advanced display interfaces, relying on basic LEDs for status indication. Finally, it has moderate processing power and memory, which may limit complex label design handling.
