Zebra LP2824 Plus
Brand | Zebra 2005 |
Model | LP2824 Plus |
Released Year | 2005 |
Type | Printers |
Series | Lp |
Status | Discontinued |
Quick view
Overview
The Zebra LP2824 Plus is a compact thermal transfer and direct thermal desktop printer designed for low-volume label printing. It supports print resolutions of 203 dpi, which deliver clear and crisp text, barcodes, and graphics. Connectivity options include serial, parallel, and USB interfaces, ensuring compatibility with various host devices. The printer uses durable printheads and supports media widths up to 72 mm, ideal for labels and tags. It features a monochrome LCD and LED indicators for user-friendly operation and troubleshooting. The LP2824 Plus runs on EPL and ZPL programming languages, offering flexible label design and integration.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 8 MB Flash, 8 MB SDRAM |
Supported Paper Size | Maximum Label Width 2 3/8” |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | LP2824 Plus |

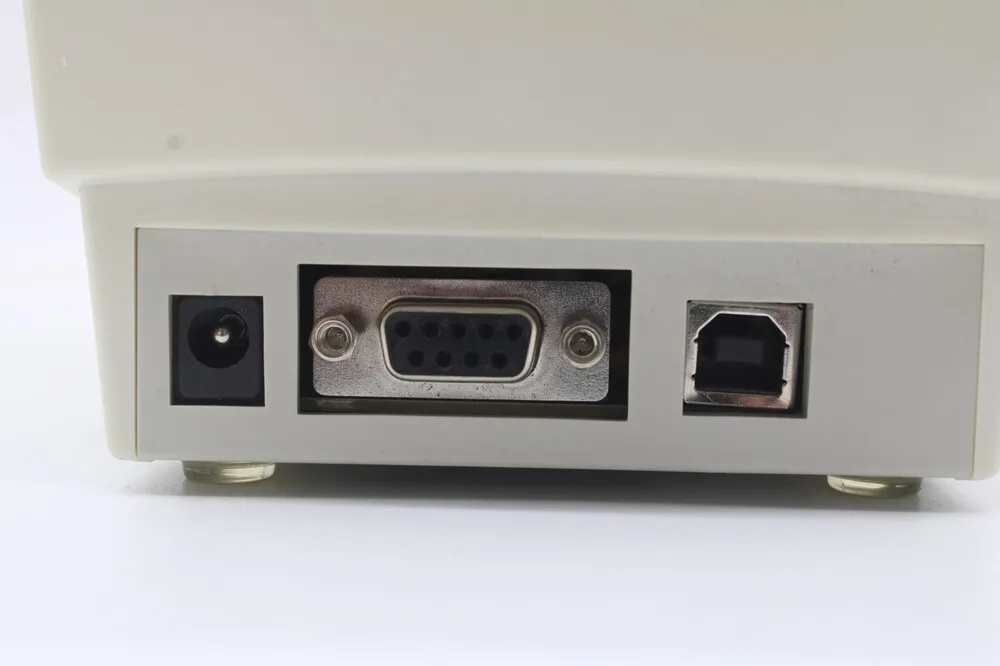

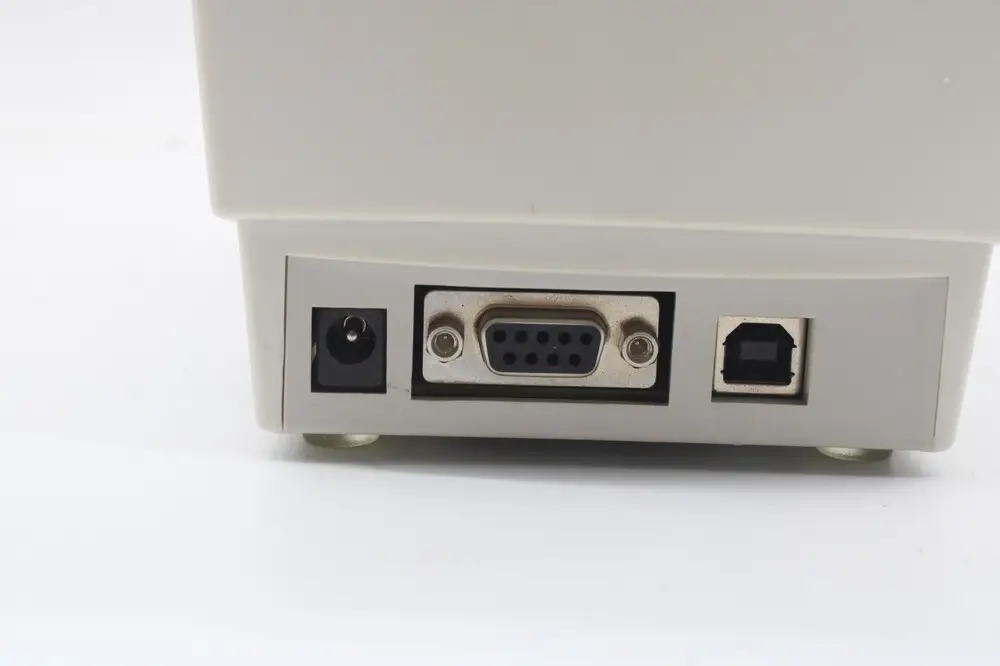

Connectivity | Serial RS-232, Parallel, USB 1.1 |
Features | Portable |
Black Print Speed | 4 ips |
Product Line | Zebra LP |
Print Method | Direct Thermal & Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Max Print Width | 4.09 inches (104 mm) |
Max Print Length | 39 inches (991 mm) with thermal transfer |
Media Type | Labels, tags, continuous, fan-fold, die-cut |
Media Width | 0.75 in to 2.36 in (19 mm to 60 mm) |
Media Thickness | 0.0025 in to 0.01 in (0.06 mm to 0.25 mm) |
Ribbon Type | Wax, wax/resin, resin |
Ribbon Length | 74 m (244 ft) |
Ribbon Width | 1.2 in to 2.4 in (31 mm to 61 mm) |
Programming Languages | ZPL, EPL |
Dimensions | 7 in W x 7.5 in H x 10 in D (178 mm W x 191 mm H x 254 mm D) |
Weight | 4.6 lbs (2.1 kg) |
Power Supply | External 100-240 VAC, 50-60 Hz |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |

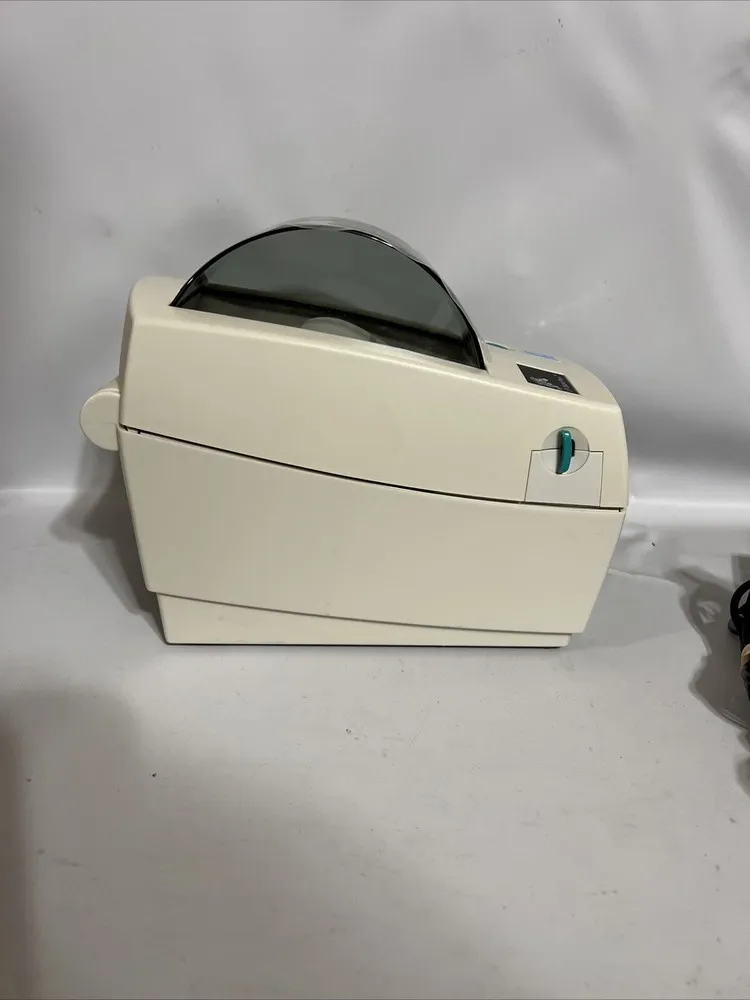

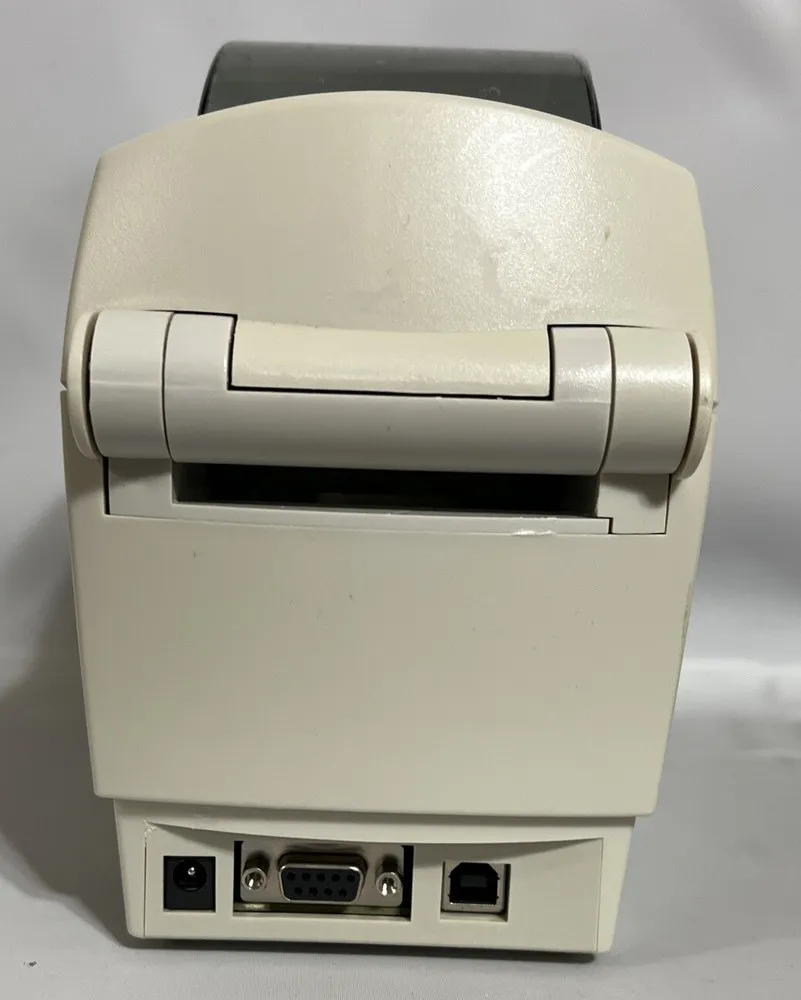

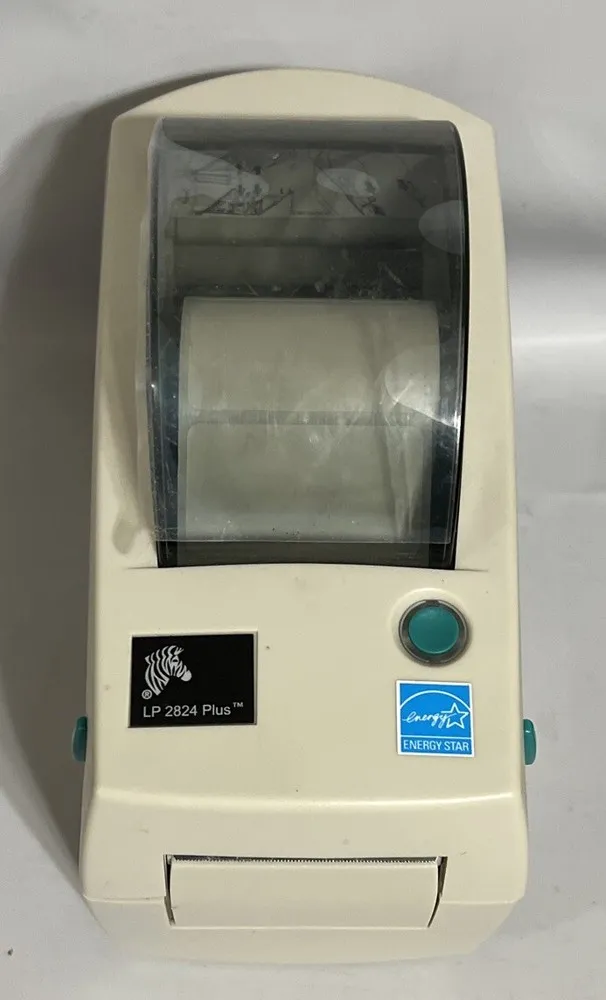

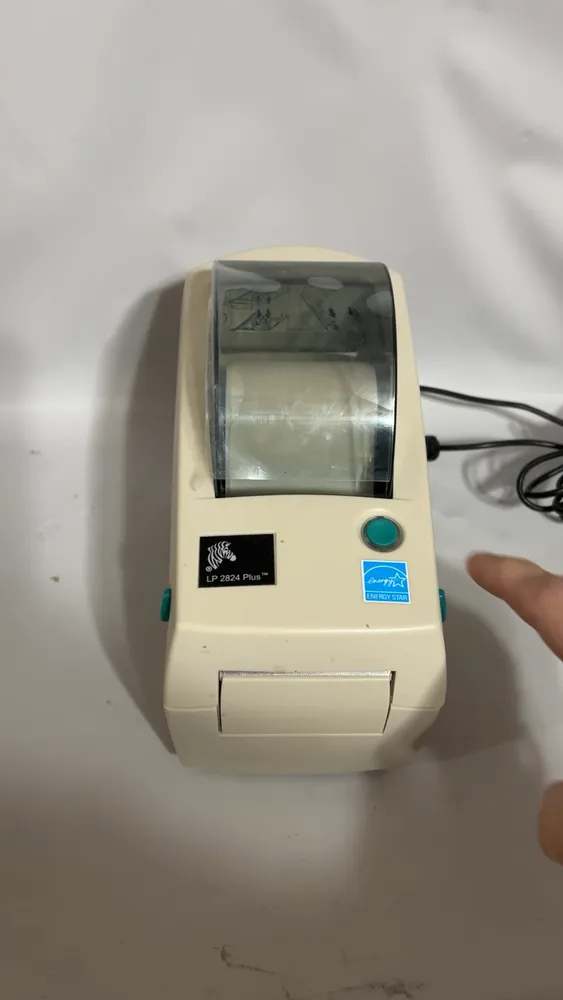

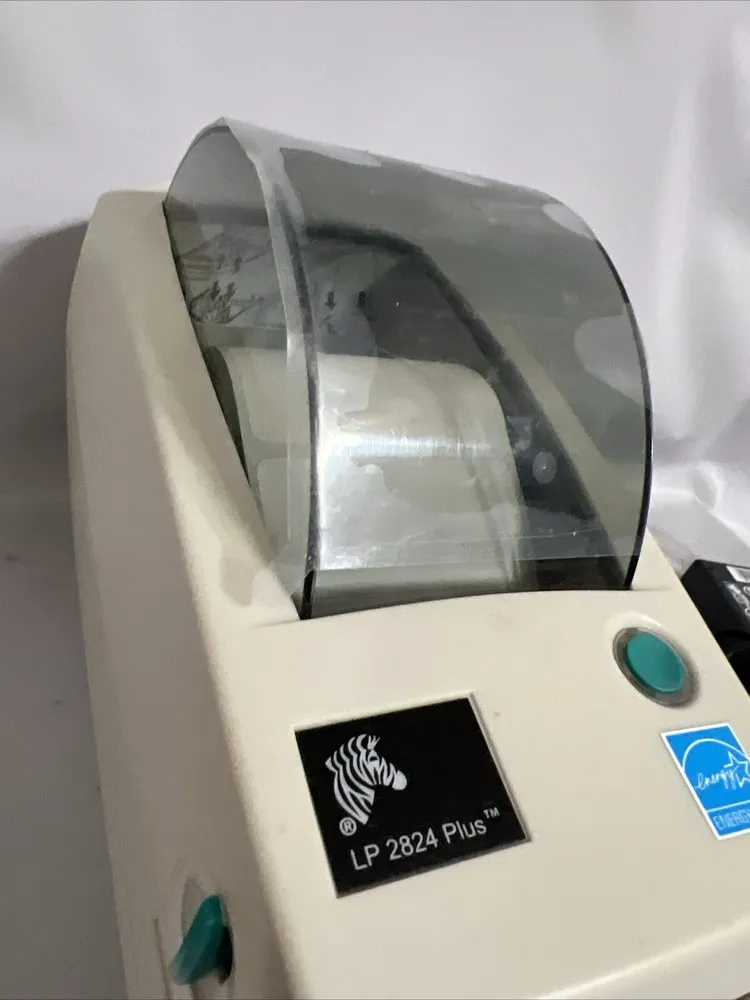

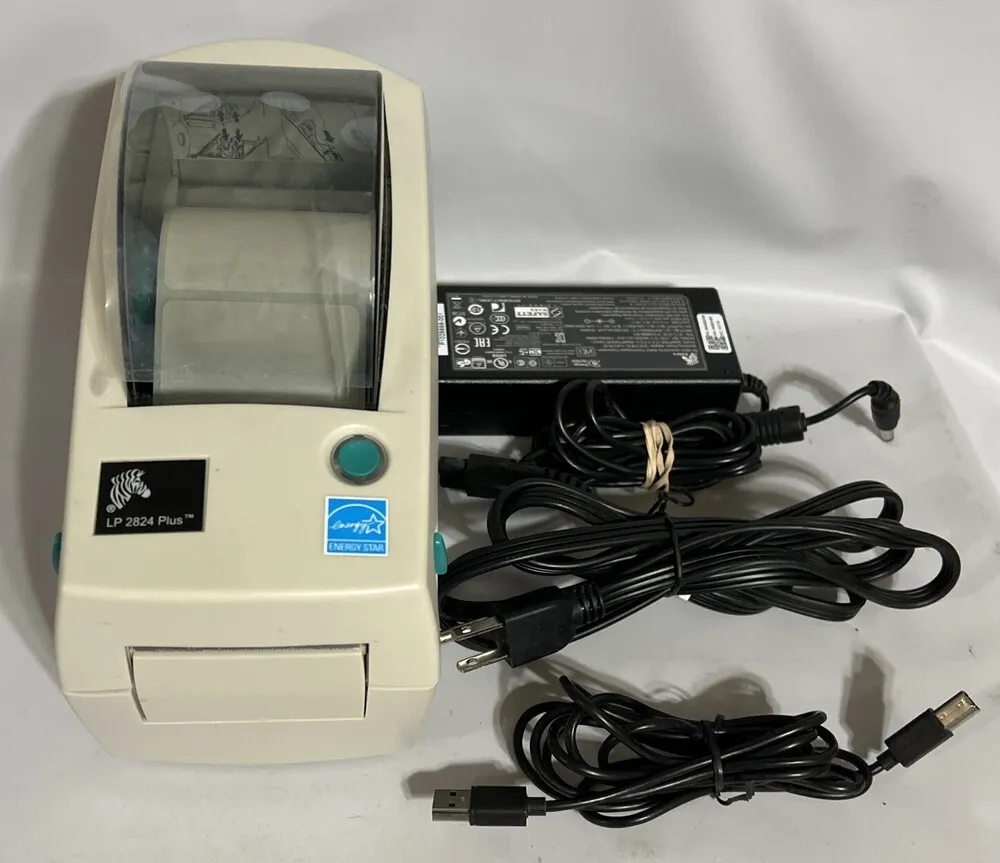

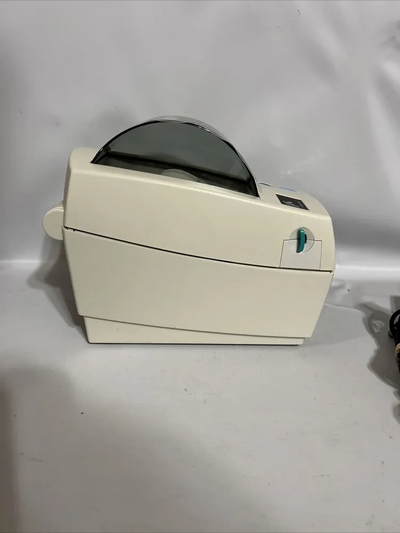

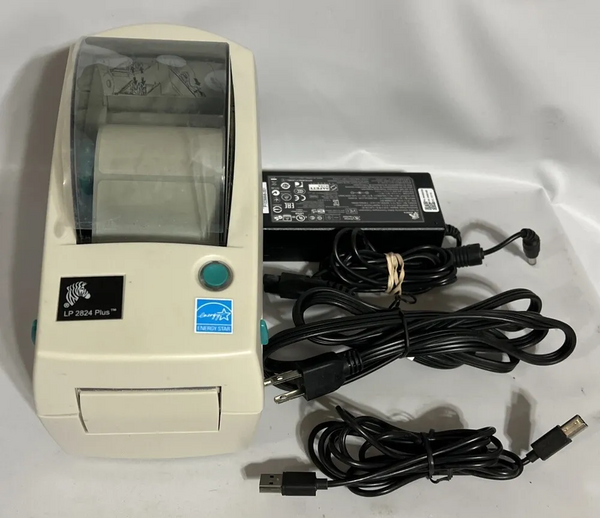

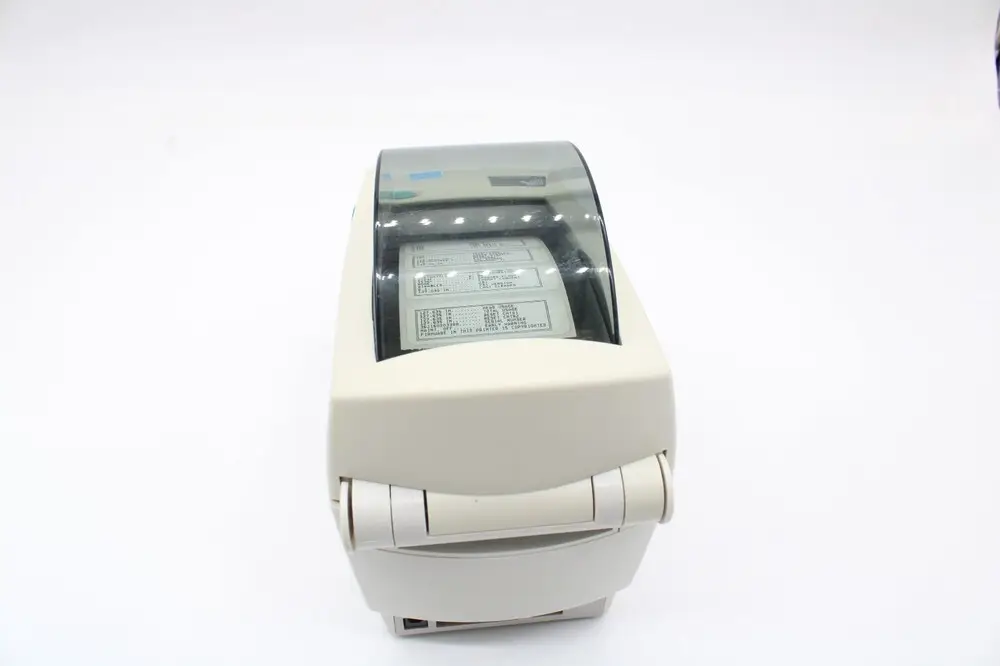

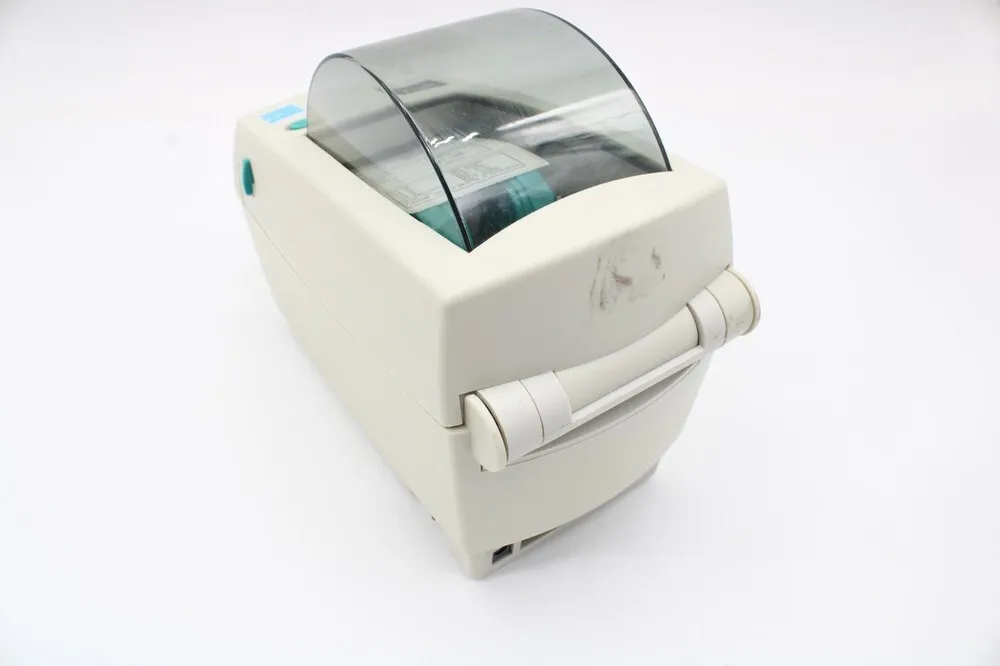

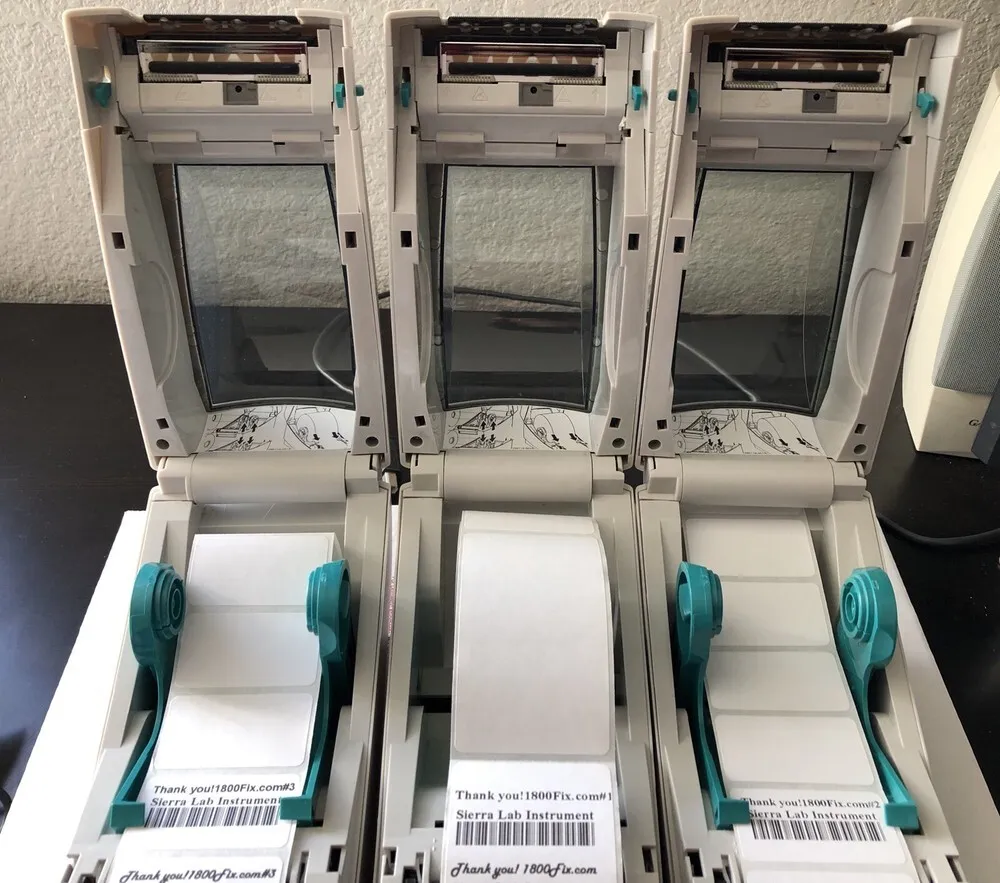

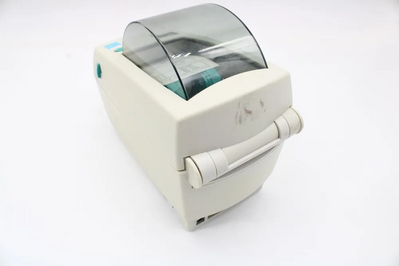

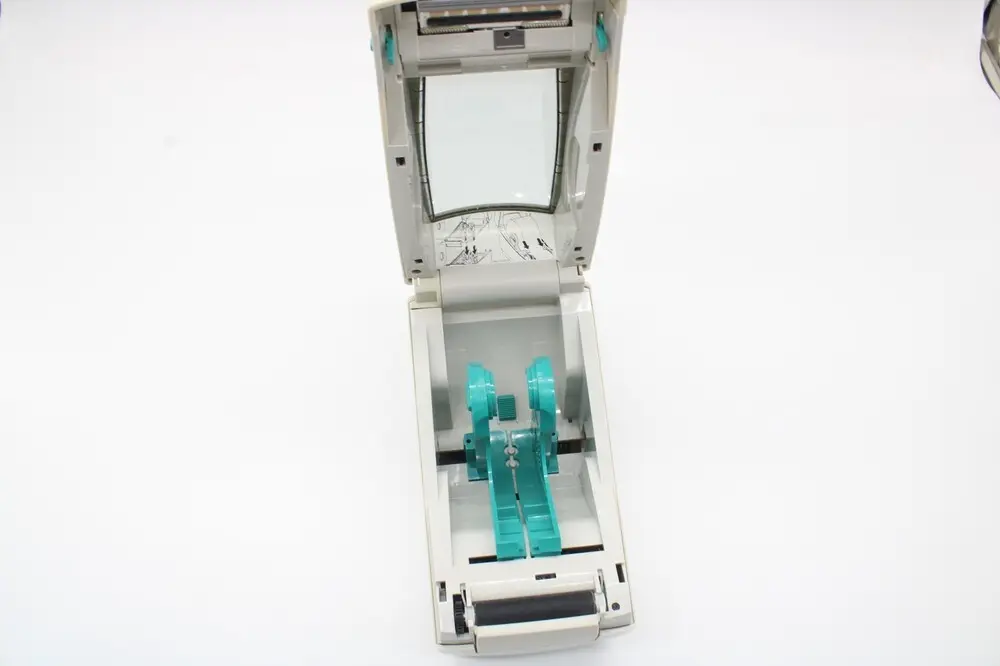

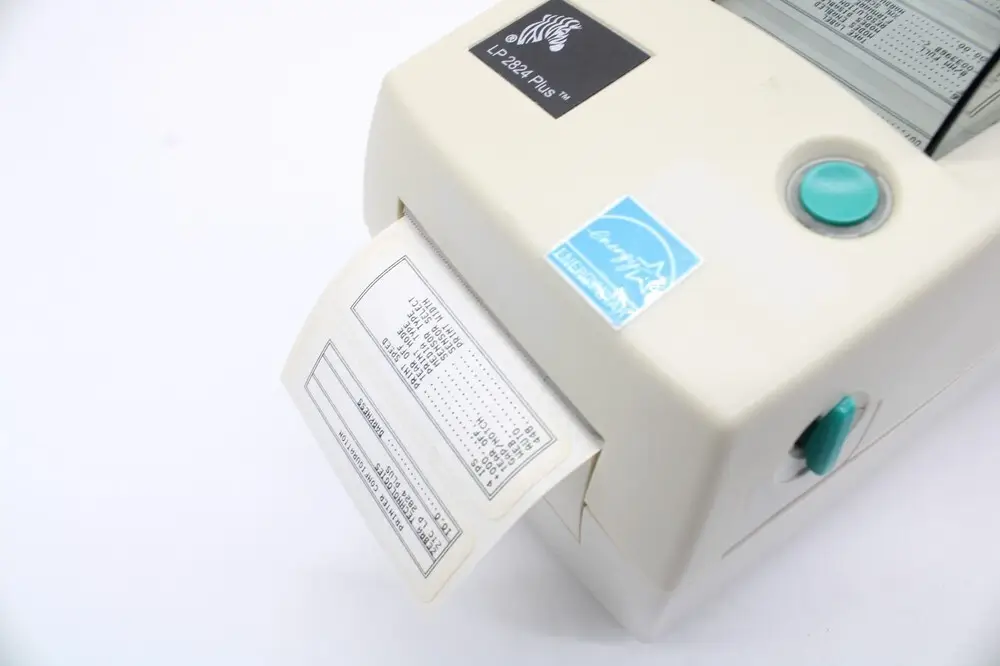

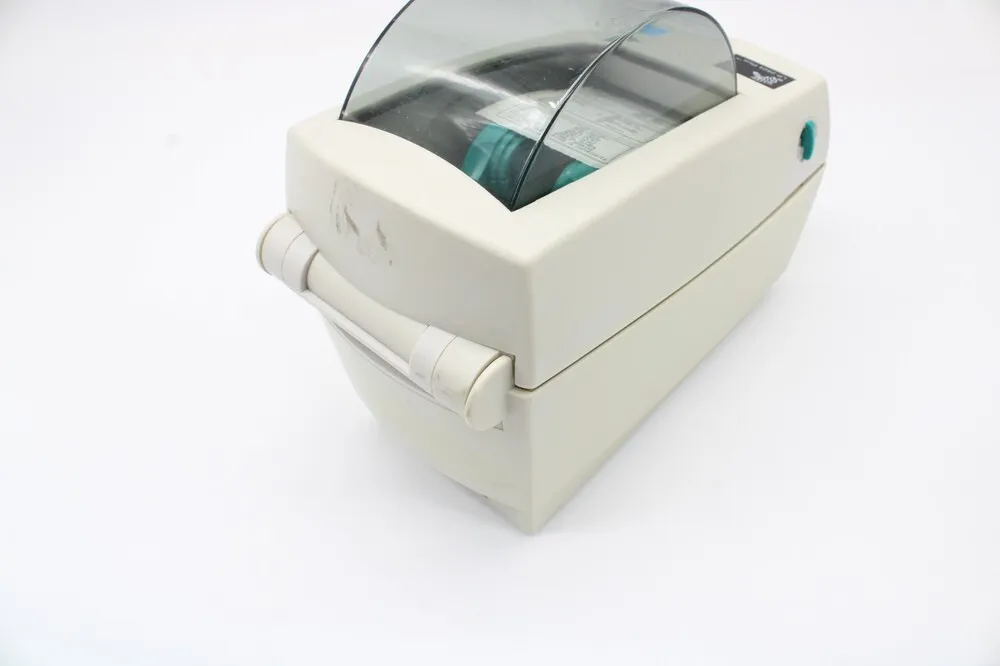

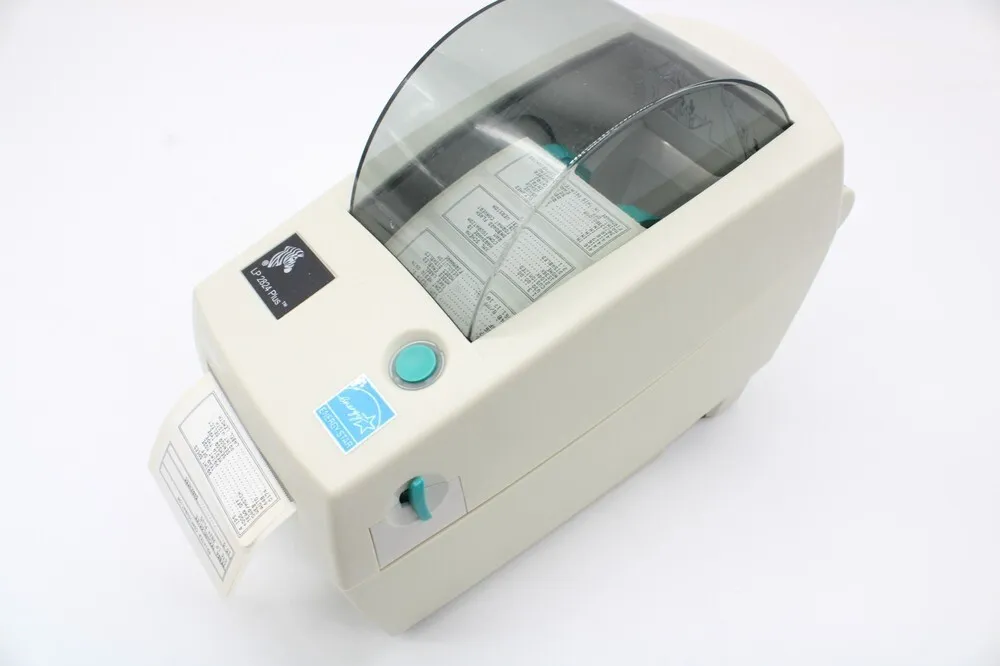

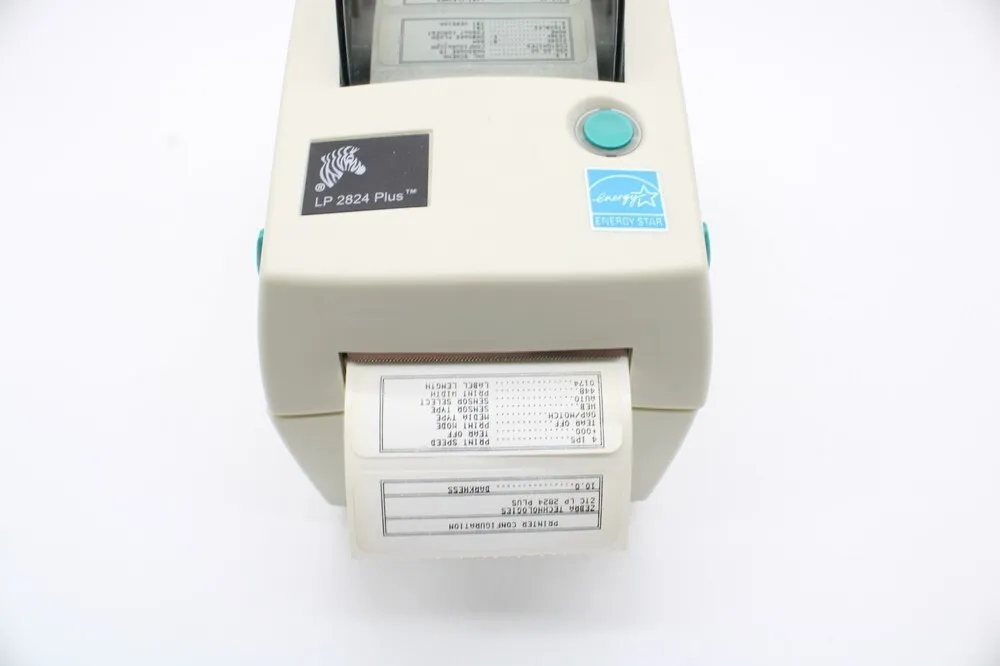

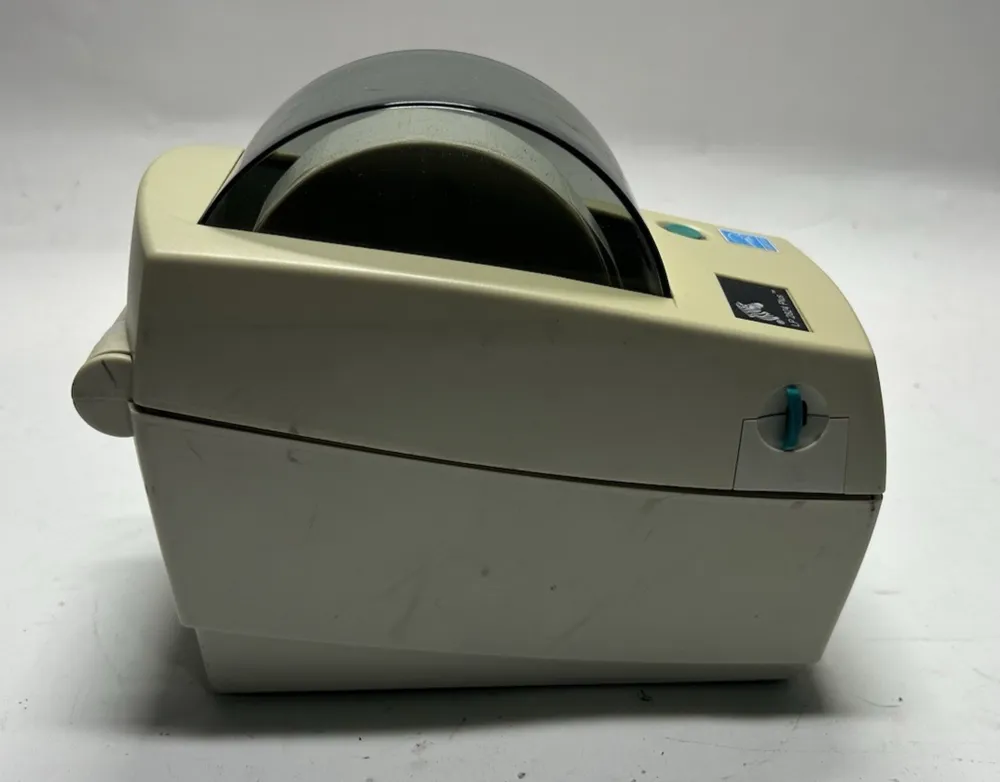

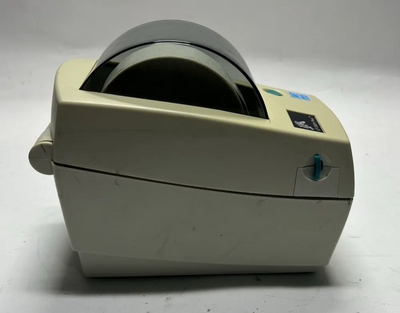

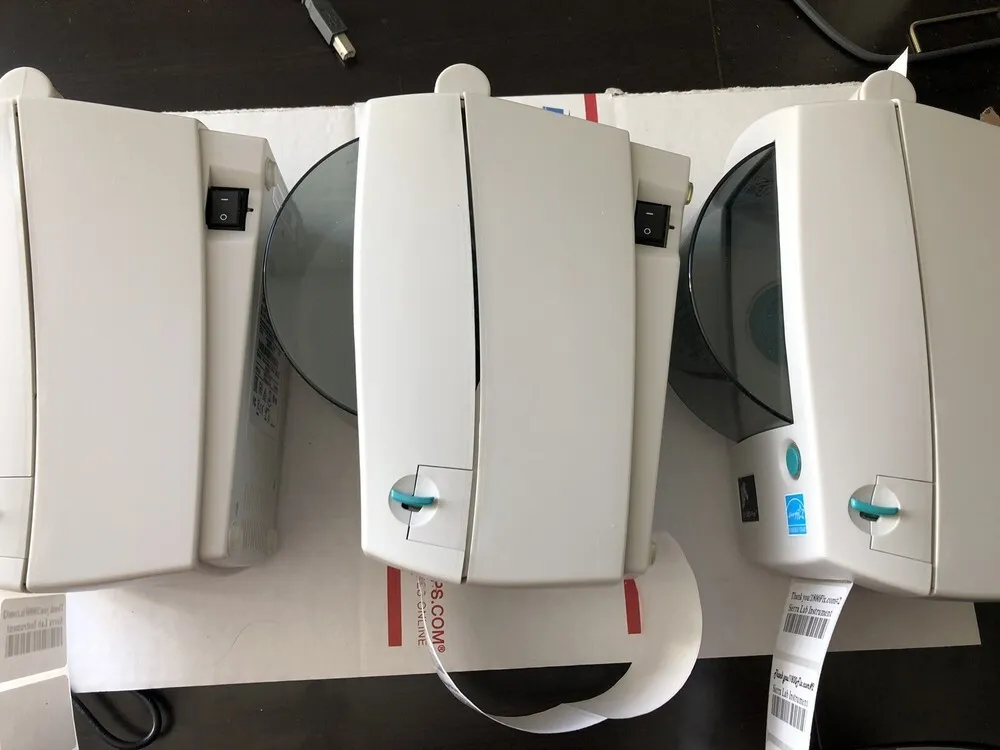

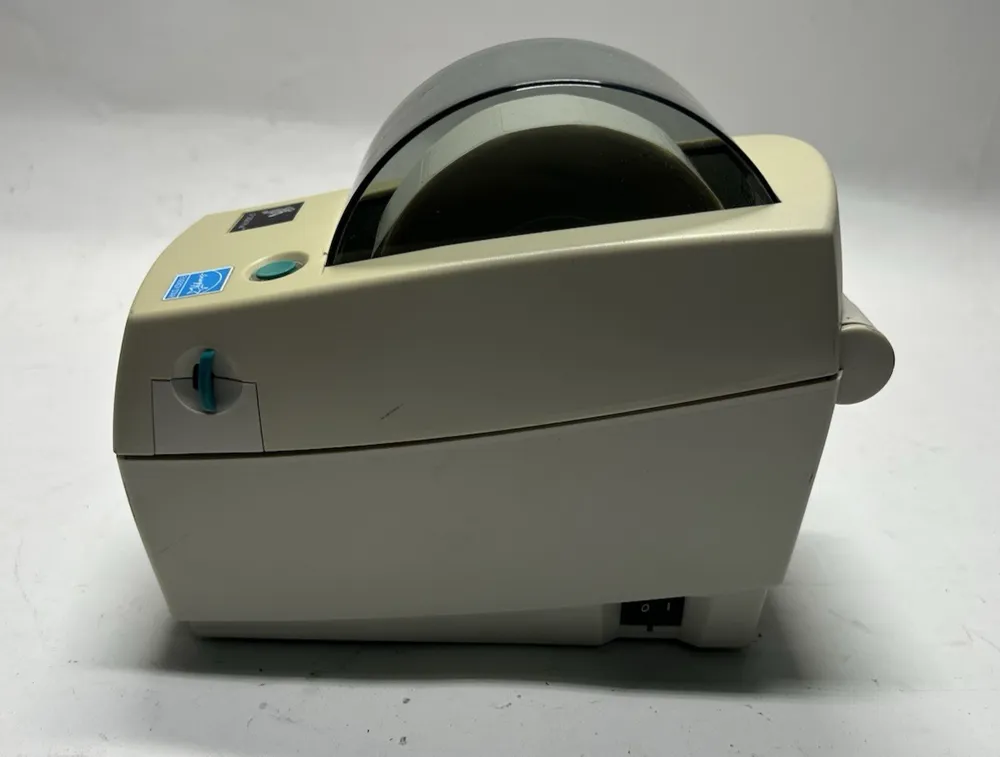

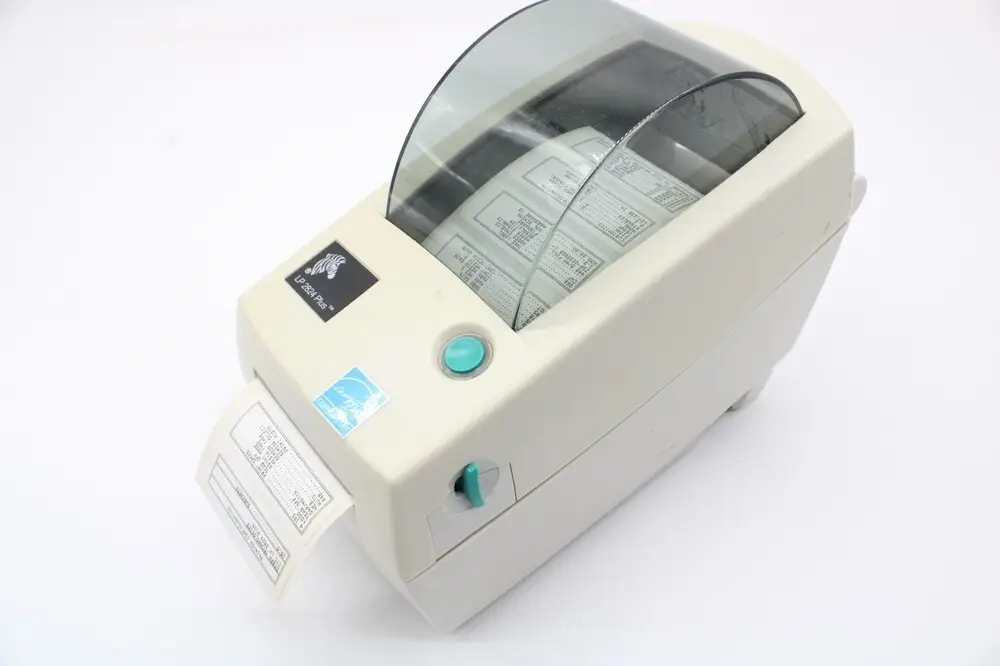

Images
Key Advantages
The LP2824 Plus offers compact design suitable for limited workspace environments. It provides reliable, high-quality label printing with 203 dpi resolution enhancing barcode accuracy. Multiple connectivity options (serial, parallel, USB) enable easy integration with existing systems. The printer's support of both thermal transfer and direct thermal media increases versatility. It has a robust print mechanism ensuring consistent performance over extended usage. The inclusion of two programming languages (EPL and ZPL) broadens its compatibility and ease of deployment.
Limitations
The LP2824 Plus is limited by its maximum print width of 72 mm, inadequate for wide-format label needs. Its print speed (up to 4 inches per second) may be insufficient for high-volume printing environments. The 203 dpi resolution, while standard, is lower than some newer printers offering finer detail. The device has limited onboard memory compared to modern printers, restricting complex label designs. It lacks advanced networking capabilities, such as Ethernet or Wi-Fi connectivity. Additionally, replacement parts for this model have become harder to source due to its discontinued status.
FAQ
What types of labels can Zebra LP2824 Plus print?
The LP2824 Plus supports printing on various label types including direct thermal and thermal transfer labels, tags, and wristbands suitable for barcodes, text, and graphics.
Does the LP2824 Plus support USB connectivity?
Yes, the LP2824 Plus includes USB connectivity along with serial and parallel ports for flexible connection options.
What programming languages does the LP2824 Plus support?
It supports both Zebra Programming Language (ZPL) and Eltron Programming Language (EPL), facilitating compatibility with different label software.
Is the Zebra LP2824 Plus suitable for high volume printing?
No, the LP2824 Plus is designed for low to medium volume printing applications due to its slower print speed and limited memory.
Can I replace the printhead myself on the LP2824 Plus?
Yes, the printhead is user-replaceable, but care should be taken to use compatible parts to avoid damage.
What is the maximum print resolution of the LP2824 Plus?
The maximum print resolution is 203 dpi (dots per inch), suitable for standard barcode and label quality.
Is the Zebra LP2824 Plus still in production?
No, the LP2824 Plus model has been discontinued and replaced by newer models with enhanced features.
