Zebra LP2348 Plus
Brand | Zebra 2003 |
Model | 120770-005 |
Released Year | 2003 |
Type | Printers |
Series | Eltron |
Status | Discontinued |
Quick view
Overview
The Zebra LP 2348 Plus, part of the Eltron series, is a thermal transfer and direct thermal barcode printer designed primarily for office and light industrial environments.
It supports a maximum print speed of up to 5 inches per second, efficiently handling moderate volume label printing tasks.
The printer offers a print resolution of 203 dpi (dots per inch), suitable for producing clear barcodes and text.
It accommodates media widths ranging from 1 inch to 4.25 inches, allowing versatile label sizes for various applications.
The printer utilizes a compact and durable design with a user-friendly clamshell mechanism for quick media loading.
Connectivity options typically include parallel and serial interfaces, compatible with existing legacy systems.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 2 MB DRAM, 256 KB Flash |
MPN | 120770-005 |
Supported Paper Size | Maximum Print Width: 4.09" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | LP2348 Plus |
Connectivity | Parallel (IEEE 1284), Serial (RS-232), USB |
Features | Rewinder, Peeler |
Black Print Speed | 6 ips |
Product Line | Zebra Eltron |
UPC | Does not apply |
Printer Type | Thermal transfer / Direct thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Speed | 5 inches per second (127 mm/s) |
Print Width | Up to 4.16 inches (106 mm) |
Media Width | 1 inch to 4.25 inches (25.4 mm to 108 mm) |
Media Types Supported | Labels, tags, continuous paper, receipts |
Interfaces | Serial RS-232, Parallel IEEE 1284 |
Dimensions (W x D x H) | 8.3 x 11.9 x 7.9 inches (211 x 302 x 201 mm) |
Weight | Approx. 7 lbs (3.2 kg) |
Power Supply | External power supply, 110-240V AC |
Operating Systems Support | Legacy drivers for Windows and DOS |
Garbage Collection (Ribbon Saving) | Manual ribbon save mode available |

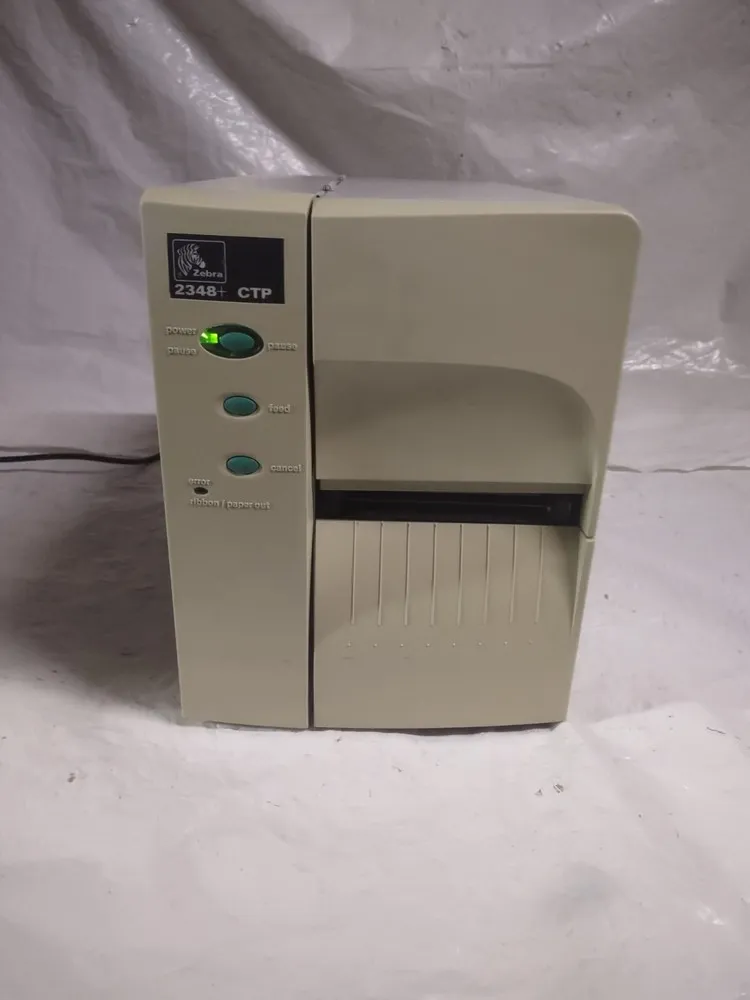

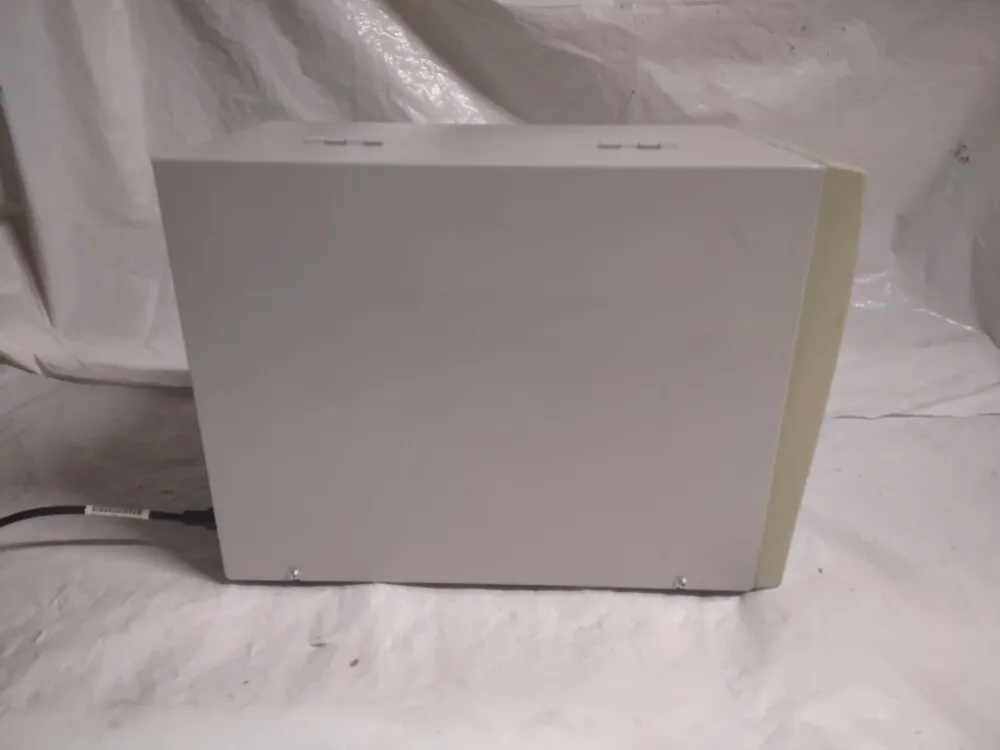

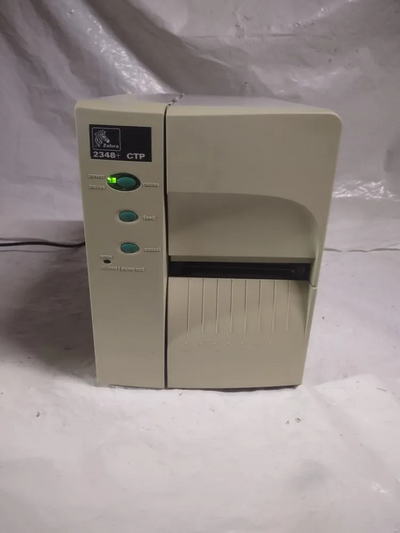

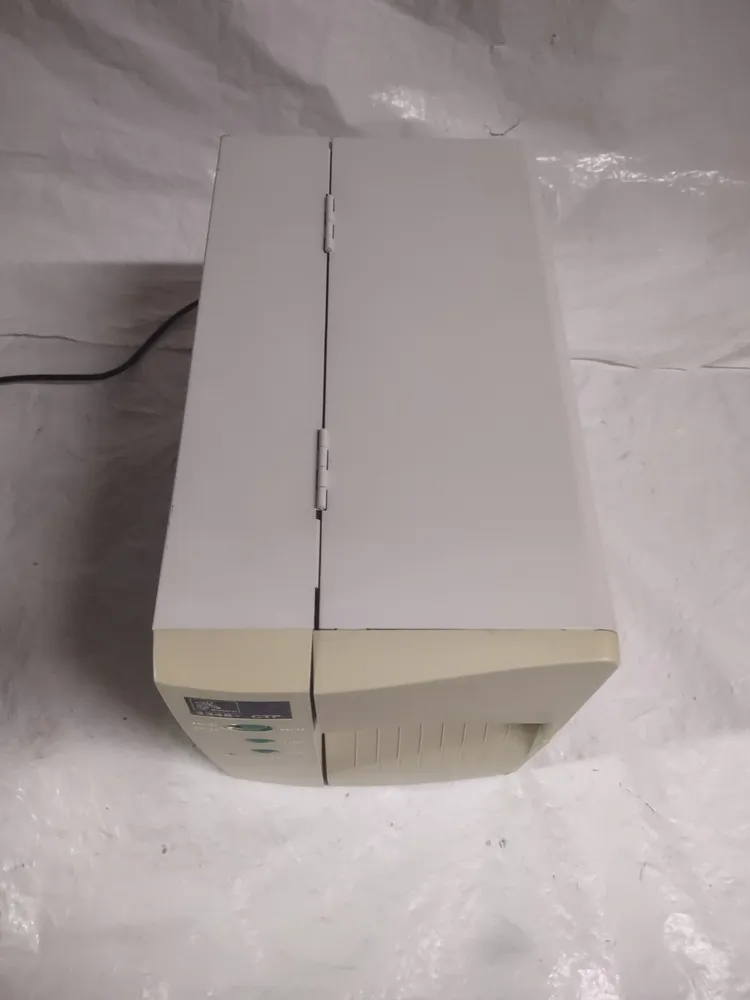

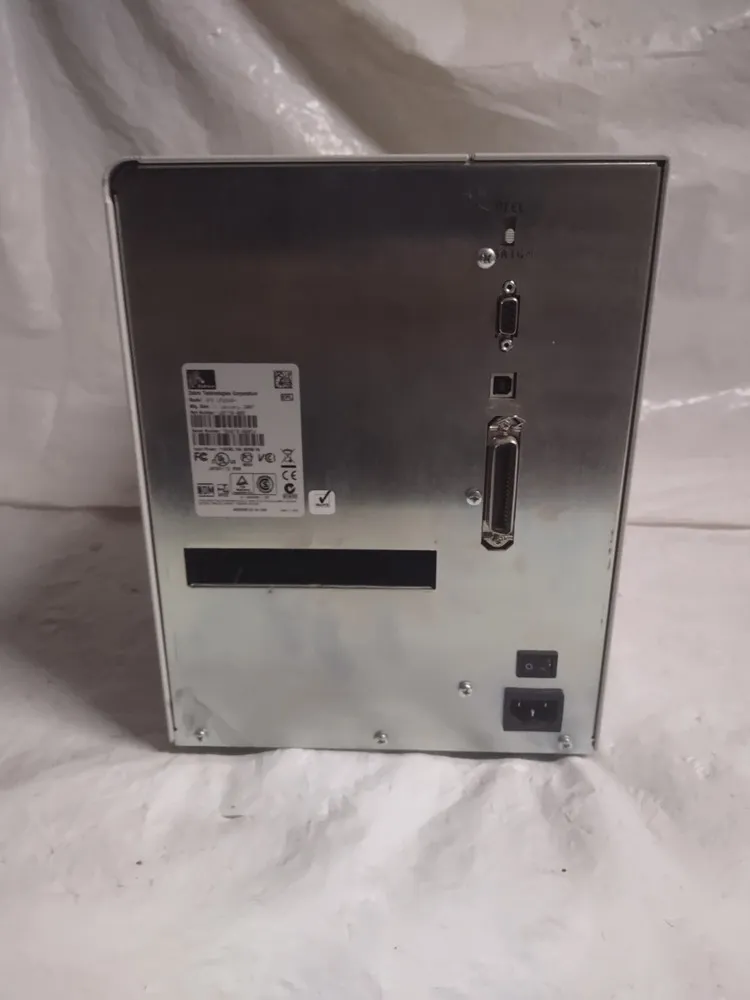

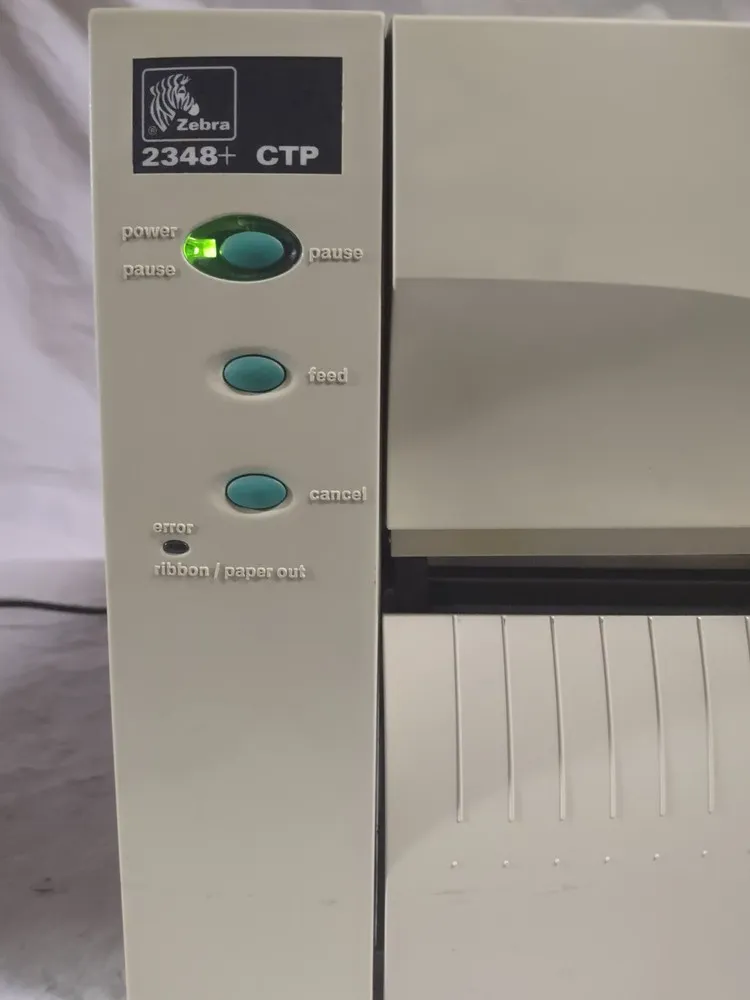

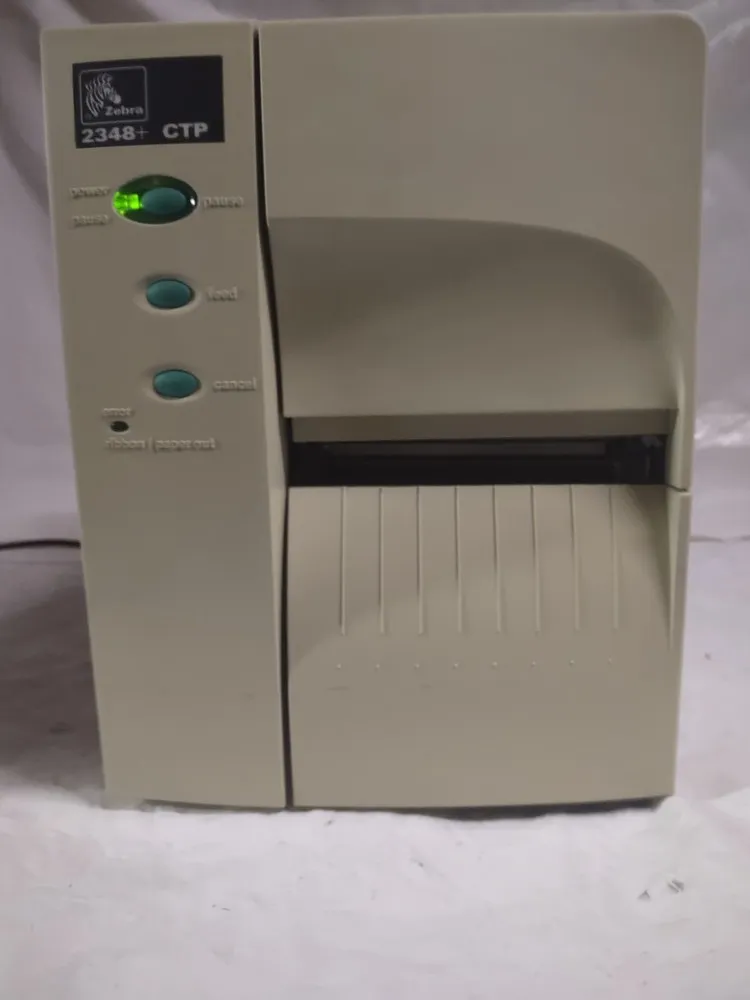

Images
Key Advantages
The Zebra LP 2348 Plus is known for its robust build quality, ensuring reliable operation in demanding environments.
Its compact footprint saves valuable office space while maintaining a wide range of supported label sizes.
The user-friendly design minimizes downtime with easy media changes and simple maintenance.
Print speed up to 5 ips offers timely label production for moderate workloads.
Compatibility with a variety of printers languages and interfaces ensures integration flexibility.
The printer’s proven thermal transfer and direct thermal technology provides long-lasting, high-quality prints without the need for consumable ribbons when using direct thermal media.
Limitations
The LP 2348 Plus is limited to a maximum resolution of 203 dpi, which may not suffice for extremely fine graphics or small text labels.
It lacks modern connectivity options such as USB or network interfaces, potentially requiring additional adapters.
The maximum print speed of 5 ips may be inadequate for very high-volume industrial printing demands.
The printer primarily supports monochrome printing and does not cater to color label requirements.
It may be less energy-efficient compared to contemporary printers with advanced power-saving features.
Limited compatibility with newer operating systems might require legacy driver support or virtualization solutions.
FAQ
What type of printing technology does the Zebra LP 2348 Plus use?
The Zebra LP 2348 Plus uses thermal transfer and direct thermal printing technology.
What is the maximum print speed of the LP 2348 Plus?
It can print at speeds up to 5 inches per second.
What print resolution does the LP 2348 Plus offer?
The printer offers a standard resolution of 203 dpi.
Is the LP 2348 Plus still supported by Zebra?
No, the printer has been discontinued and is no longer officially supported.
What interfaces are available on the Zebra LP 2348 Plus?
Typically, it includes serial and parallel interfaces for connectivity.
Can I use the LP 2348 Plus for color printing?
No, it only supports monochrome printing using thermal media.
What label widths are compatible with this printer?
It supports label widths ranging from 1 inch up to 4.25 inches.
