Zebra Lp 2844
Brand | Zebra 2005 |
Model | 2844203000031 |
Released Year | 2005 |
Type | Printers |
Status | Discontinued |
Quick view
Overview

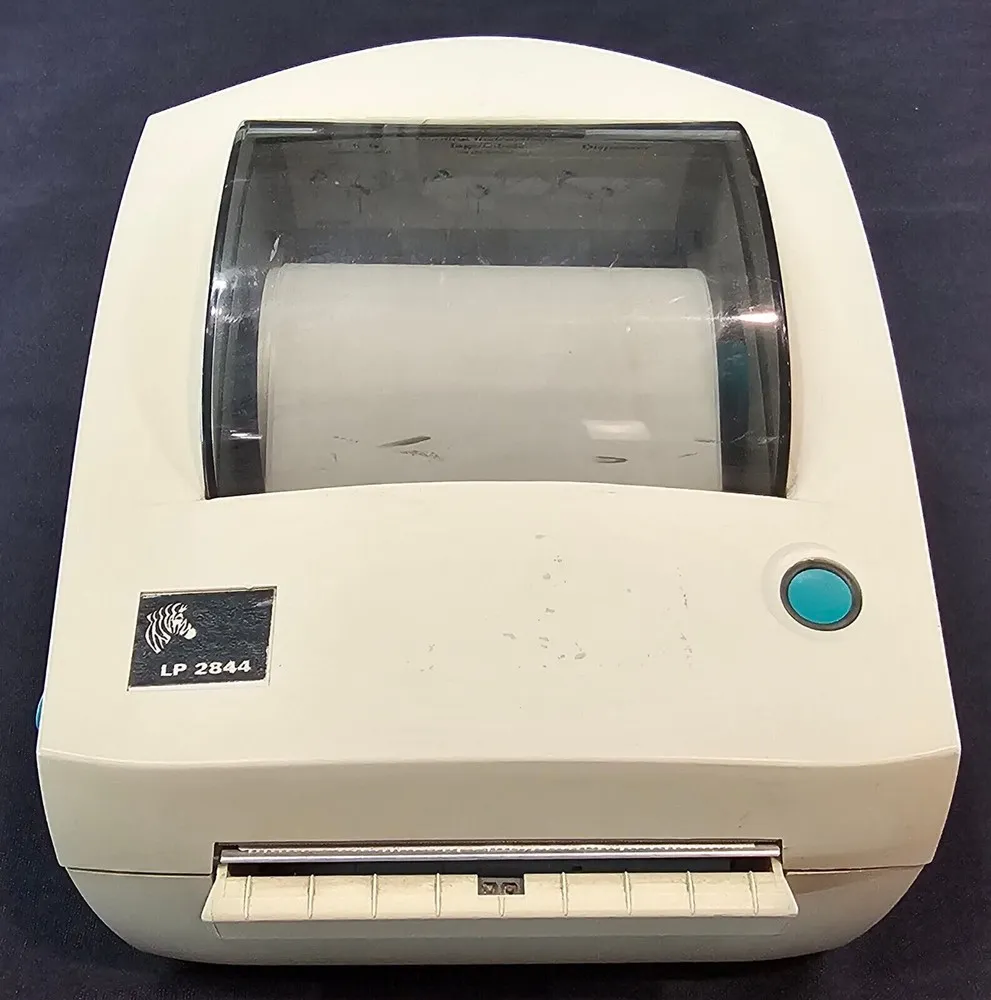

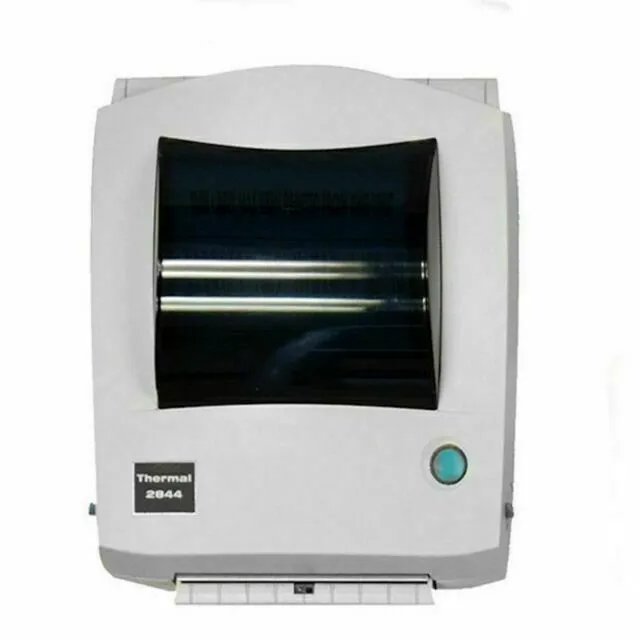

The Zebra LP 2844 is a direct thermal printer designed primarily for low to medium volume label printing applications. It features a compact, desktop form factor which makes it suitable for office environments with limited space. The printer supports print resolutions up to 203 dpi, delivering clear and precise barcode and text printing. Connectivity options include serial and USB interfaces, facilitating compatibility with a variety of computer systems. It utilizes a 203 dpi printhead, capable of printing at speeds up to 4 inches per second, balancing performance and quality. The device supports media widths from 0.75 to 4.25 inches, maximizing flexibility for diverse labeling tasks.
The internal mechanism supports continuous, die-cut, and black mark media types, enabling versatility for different labeling needs. The printer’s control panel features simple buttons and indicator lights for ease of use and status monitoring. The device requires thermal-sensitive media and does not utilize ink or toner cartridges. Operating with a relatively low energy requirement, it fits well within office settings seeking efficiency and reduced operational costs.
Specifications
MPN | 2844203000031 |
UPC | 0807027543264 |
Model | Zebra LP 2844 |
Technology | Thermal |
Connectivity | Serial RS-232, USB 1.1 |
Output Type | Black & White |
Input Type | Monochrome |
Type | Label Printer |
Maximum Resolution | 203 dpi |
Product Line | Zebra |
Print Method | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 4 inches per second (102 mm/s) |
Media Type | Direct thermal labels, tags, continuous, die-cut, black mark |
Media Width | 0.75 inches to 4.25 inches (19 mm to 108 mm) |
Media Thickness | 0.003 inches to 0.007 inches (0.08 mm to 0.18 mm) |
Memory | 8 MB DRAM, 4 MB Flash |
Print Width Maximum | 4.09 inches (104 mm) |
Dimensions (W x D x H) | 7.7 x 6.5 x 6.0 inches (195 x 165 x 152 mm) |
Weight | 3.9 lbs (1.77 kg) |
Power Supply | External 24V power supply, 2.5A |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Supported Languages | ZPL, ZPL II |
Display | None (LED status indicators) |
Accessories | Optional peel and present module, external rewinders |
Images
Key Advantages
The Zebra LP 2844 offers a compact and lightweight design that optimizes workspace utilization. It boasts ease of installation and user-friendly controls, making it accessible for non-technical staff. The direct thermal printing technology eliminates the need for ink or toner, reducing consumable costs and maintenance efforts. Its fast print speed of up to 4 inches per second enhances productivity for small to medium labeling needs. A wide variety of supported media types and sizes increases application flexibility. Additionally, its reliable performance and Zebra's strong industry reputation ensure durability and dependable operation.
Limitations
The LP 2844’s print resolution of 203 dpi limits the sharpness for very small fonts or complex graphics compared to higher resolution models. It does not support thermal transfer ribbon printing, which restricts media lifespan and outdoor label durability. The connectivity options are somewhat dated, lacking Ethernet or wireless interfaces commonly expected today. Print speed and media handling are designed for lower volume rather than heavy-duty industrial environments. The absence of LCD display restricts detailed printer status feedback. Also, the model's compatibility might be limited with newer operating systems without updated drivers.
FAQ
What type of printing technology does the Zebra LP 2844 use?
The Zebra LP 2844 uses direct thermal printing technology which prints by applying heat to thermal-sensitive media without the need for ink or toner.
What are the supported media sizes for the LP 2844?
It supports media widths ranging from 0.75 inches up to 4.25 inches, suitable for a variety of label sizes.
Can the Zebra LP 2844 connect via USB and serial ports?
Yes, the printer includes both USB and serial connectivity options for interfacing with computers and other devices.
Is the Zebra LP 2844 still in production?
No, the LP 2844 model has been discontinued but remains popular for legacy applications.
What is the maximum print speed of the LP 2844?
The printer can print at speeds up to 4 inches per second, enabling efficient label production.
Does the LP 2844 require ink cartridges?
No, the direct thermal printing process does not require ink, toner, or ribbons, using heat-sensitive paper instead.
Is the LP 2844 compatible with modern operating systems?
While originally designed for older operating systems, updated drivers may be needed for compatibility with the latest platforms.
