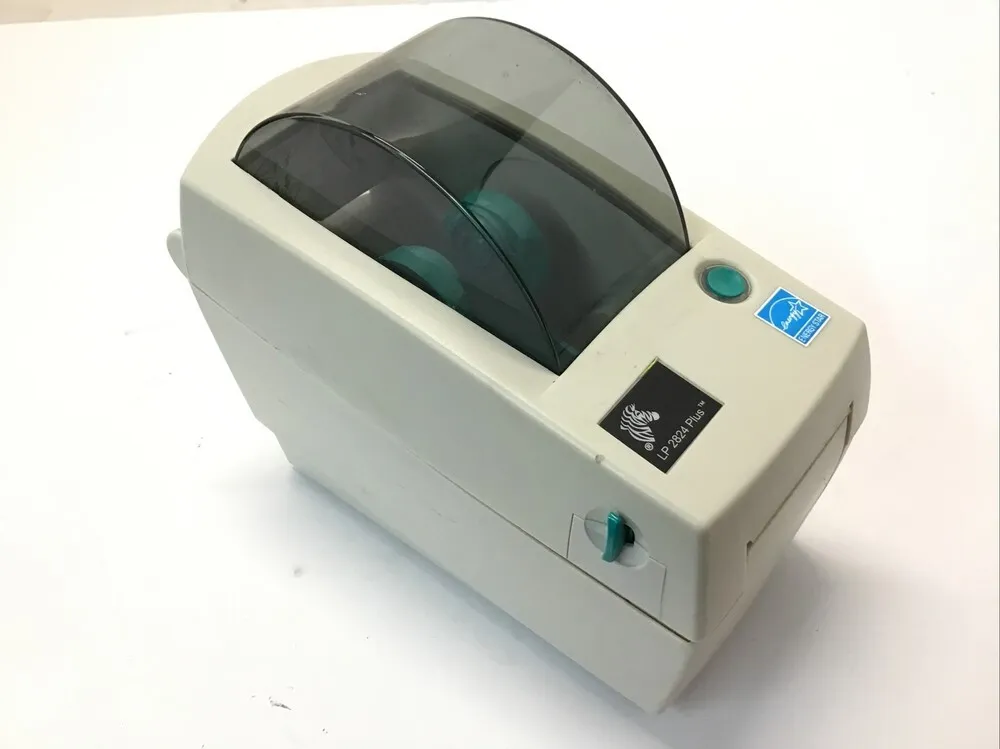

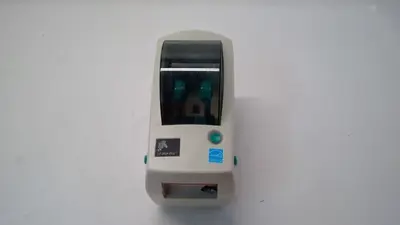

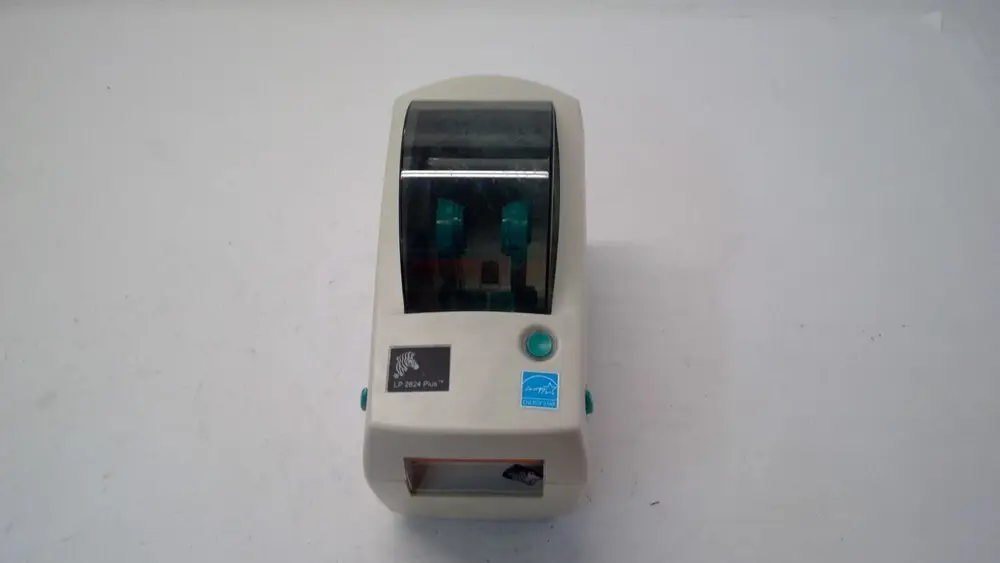

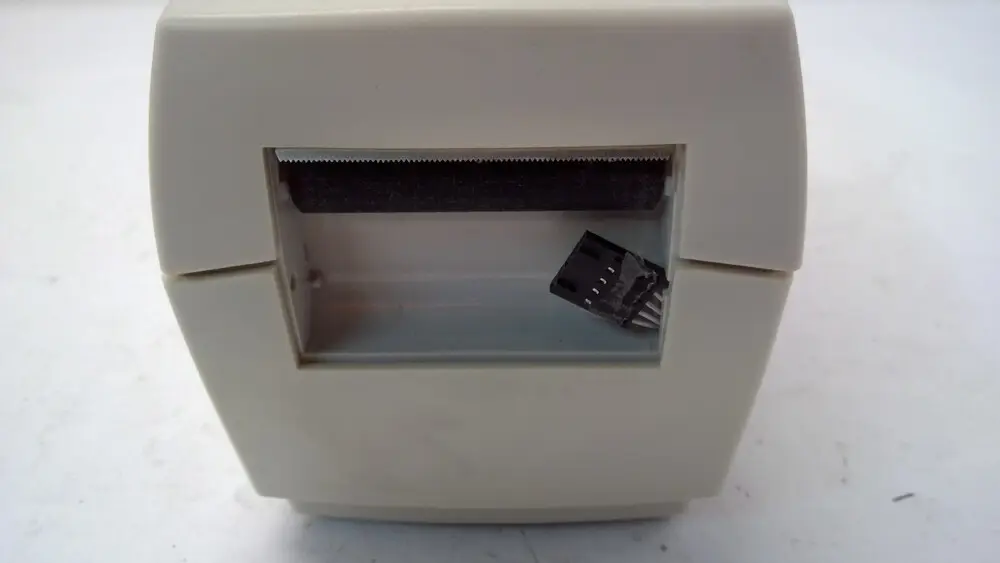

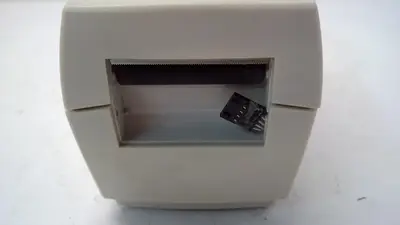

Zebra LP 2824 Plus image

Zebra LP 2824 Plus

Quick information
Brand Zebra 2007
Model LP 2824 Plus, LP2824 Plus, LP2824Plus, 282P-201110-000
Released Year 2007
Type Printers
Series Lp
Printing Technology Direct Thermal
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Zebra LP 2824 Plus is a compact, thermal label printer designed for office and light industrial use. It features direct thermal printing technology with a print resolution of 203 dpi, providing crisp barcode and text outputs. The printer supports a print width of up to 2.2 inches, suitable for shipping labels, tags, and wristbands. Connectivity options include serial RS-232 and USB interfaces to ensure flexible installation. Its internal memory supports font, graphics, and label storage, enhancing printing efficiency. The device accommodates various media types, including continuous, die-cut, and black mark labels, for versatile applications.

Specifications

Input Type na
Output Type Black & White
Memory 4 MB Flash, 8 MB DRAM
MPN LP 2824 Plus, LP2824 Plus, LP2824Plus, 282P-201110-000
Supported Paper Size na
Type Label Printer
Technology Thermal
Maximum Resolution na
Model LP 2824 Plus

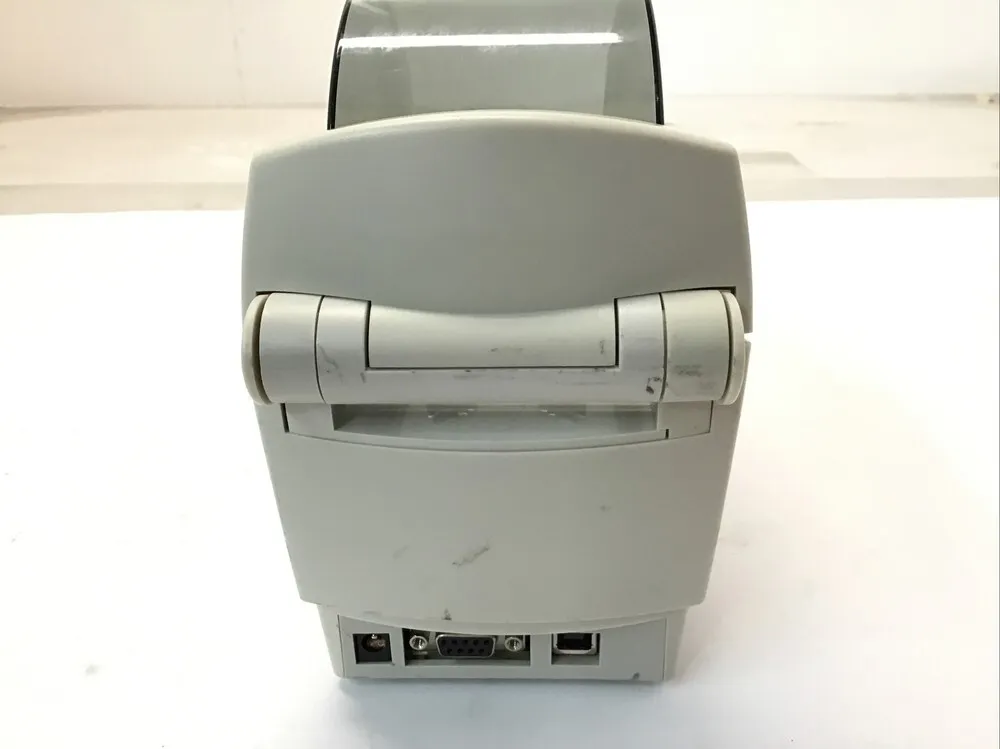

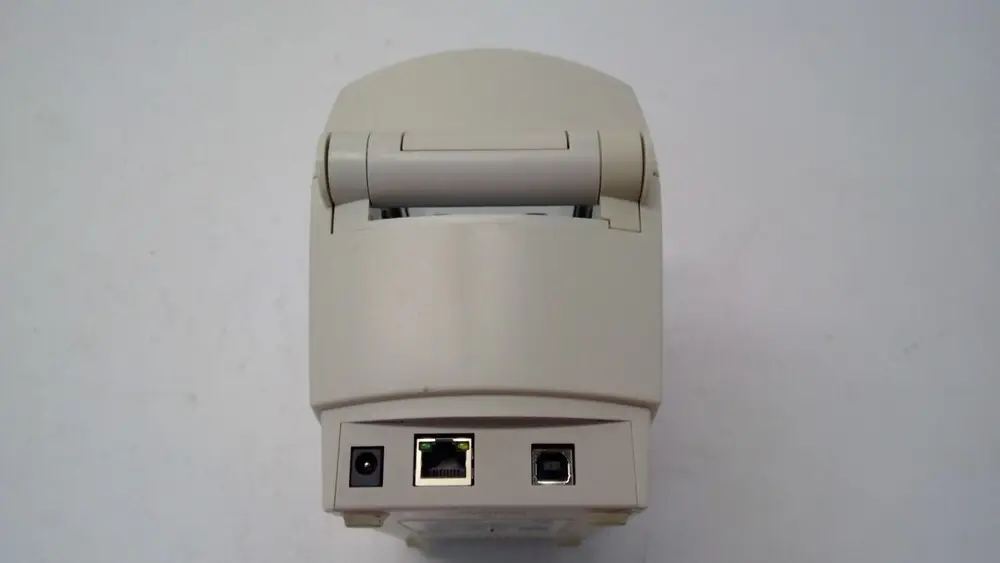

Connectivity USB 1.1, Serial RS-232
Features Networkable
Black Print Speed na
Product Line Zebra LP
UPC na
Printing Technology Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 2.2 inches (56 mm)
Maximum Print Length 39 inches (990 mm)
Print Speed Up to 4 inches per second (102 mm/sec)

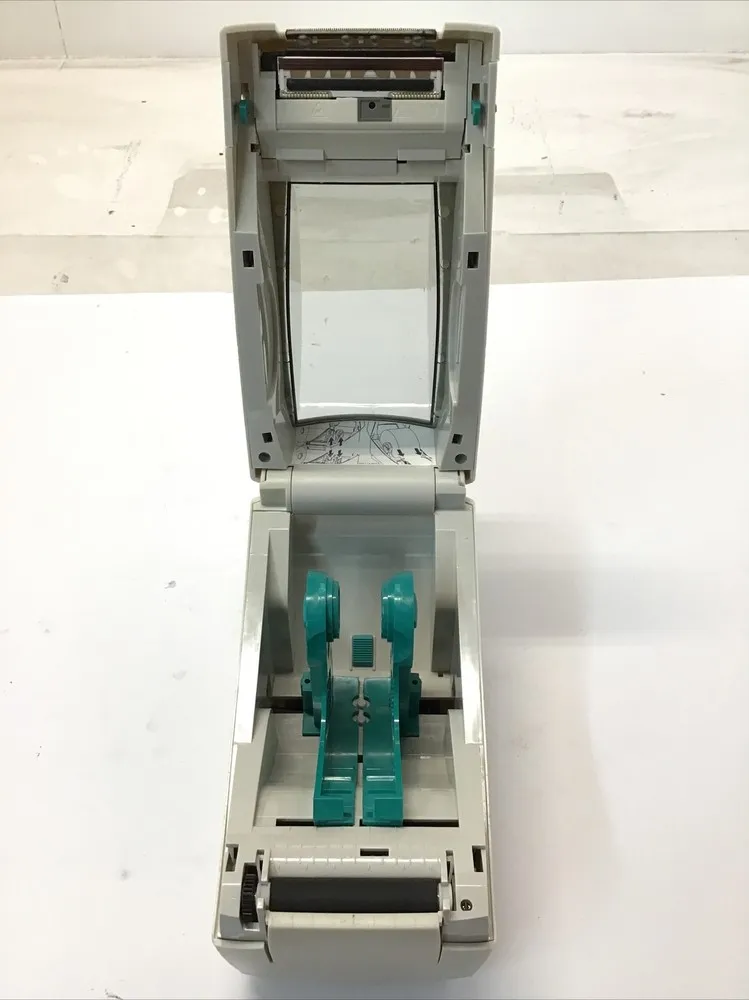

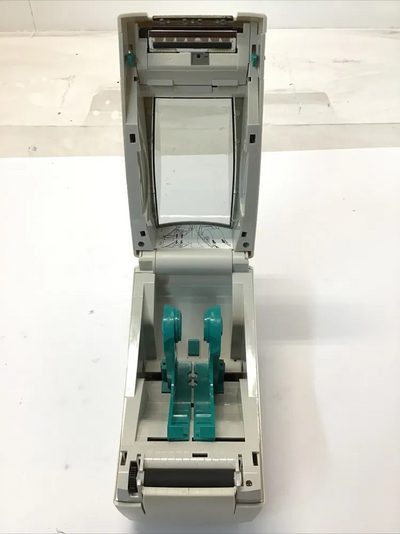

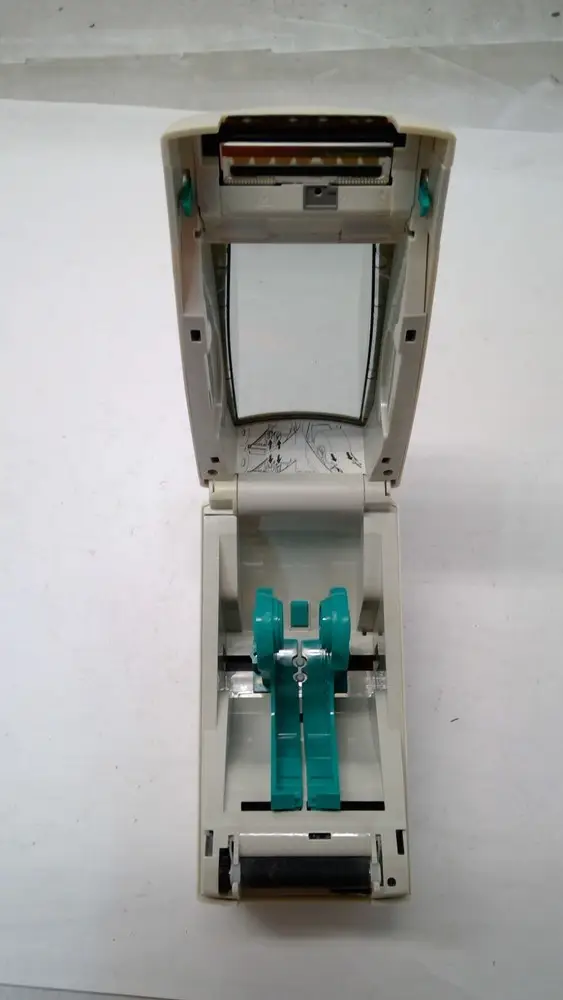

Media Types Continuous, Die-cut, Black Mark, Fanfold, Tags
Media Width 0.75 inches to 2.36 inches (19 mm to 60 mm)
Media Length 0.25 inches to 39 inches (6.35 mm to 990 mm)
Media Thickness 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm)
Max Media Roll Diameter 5 inches (127 mm)
Sensors Gap, Black Mark, Continuous
Operating Systems Windows, Mac OS
Dimensions 7.5 in x 6.5 in x 6.0 in (190 mm x 165 mm x 153 mm)
Weight 3.5 lbs (1.6 kg)
Power External Power Supply, 100-240V, 50-60 Hz

Key Advantages

The LP 2824 Plus is highly valued for its compact footprint, making it ideal for small workspaces. It boasts fast print speeds up to 4 inches per second, improving productivity. The printer supports multiple label formats and is compatible with popular operating systems including Windows and Mac OS. Its robust build reduces maintenance needs and downtime in busy environments. Easy media loading and clear LCD indicators simplify operation for users. Additionally, broad connectivity options provide flexibility for diverse setup requirements.

Limitations

The LP 2824 Plus is limited by its maximum print width of 2.2 inches, which restricts larger label creation. It uses direct thermal technology exclusively, which means printed labels are susceptible to fading with exposure to heat or light. The device lacks network connectivity options such as Ethernet or Wi-Fi, requiring physical connection to a host device. Memory capacity is modest, limiting the size of stored formats and graphics. The printer may not adequately meet high-volume printing demands compared to industrial models. Firmware updates require manual intervention and are not automated.
