Zebra LP 2824 PLUS
Brand | Zebra 2003 |
Model | LP 2824 PLUS |
Released Year | 2003 |
Type | Printers |
Series | Lp |
Status | Discontinued |
Quick view
Overview
The Zebra LP 2824 Plus is a compact thermal label printer designed primarily for office and light industrial printing tasks. It supports direct thermal printing technology, eliminating the need for ink or toner cartridges. With a print resolution of 203 dpi (8 dots/mm), it offers crisp and legible barcode and text printing suitable for shipping labels, receipts, and identification tags. The printer connects via USB and serial interfaces, providing flexible connectivity options. Its compact design enables convenient placement in constrained office environments. The device features a straightforward control panel simplifying user operation and maintenance tasks.
Specifications
Type | Label Printer |
Product Line | Zebra LP |
Technology | Thermal |
Output Type | Black & White |
Connectivity | USB 1.1, Serial RS-232, Parallel |
Input Type | Monochrome |
Features | Portable |
Model | LP 2824 PLUS |
Supported Paper Size | A8 (52 x 74 mm), A9 (37 x 52 mm) |
Maximum Resolution | 203 x 203 DPI |
Black Print Speed | 4 ppm |
Memory | 8 MB SDRAM, 4 MB Flash |
Scanning Resolution | 200x200 DPI |
Print Method | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 2.26 inches (57 mm) |
Maximum Print Speed | 4 inches per second (102 mm/s) |
Media Type | Labels, receipts, tags |
Media Roll Diameter | Up to 5 inches (127 mm) |
Dimensions (WxHxD) | 7.0 x 6.5 x 7.5 inches (178 x 165 x 191 mm) |
Weight | 4.2 lbs (1.9 kg) |
Power Supply | External 24V power supply |
Operating Systems Supported | Windows, Linux |
Control Panel | Three-button control with LED status indicators |
Fonts and Graphics | Built-in scalable and bitmap fonts, supports graphics and barcode symbologies |

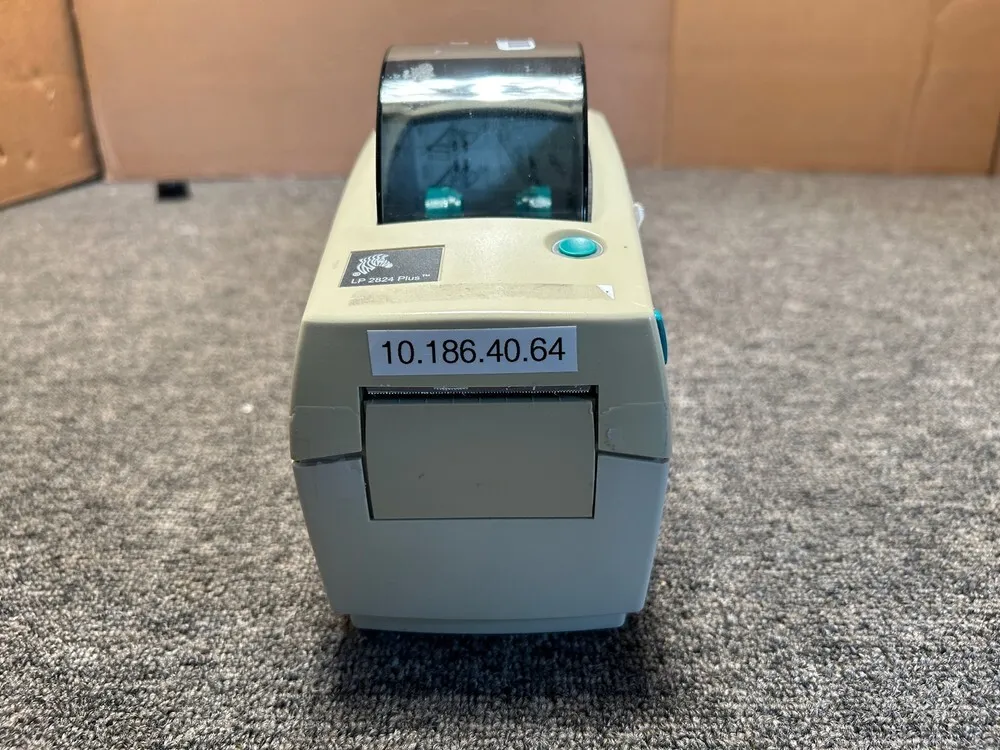

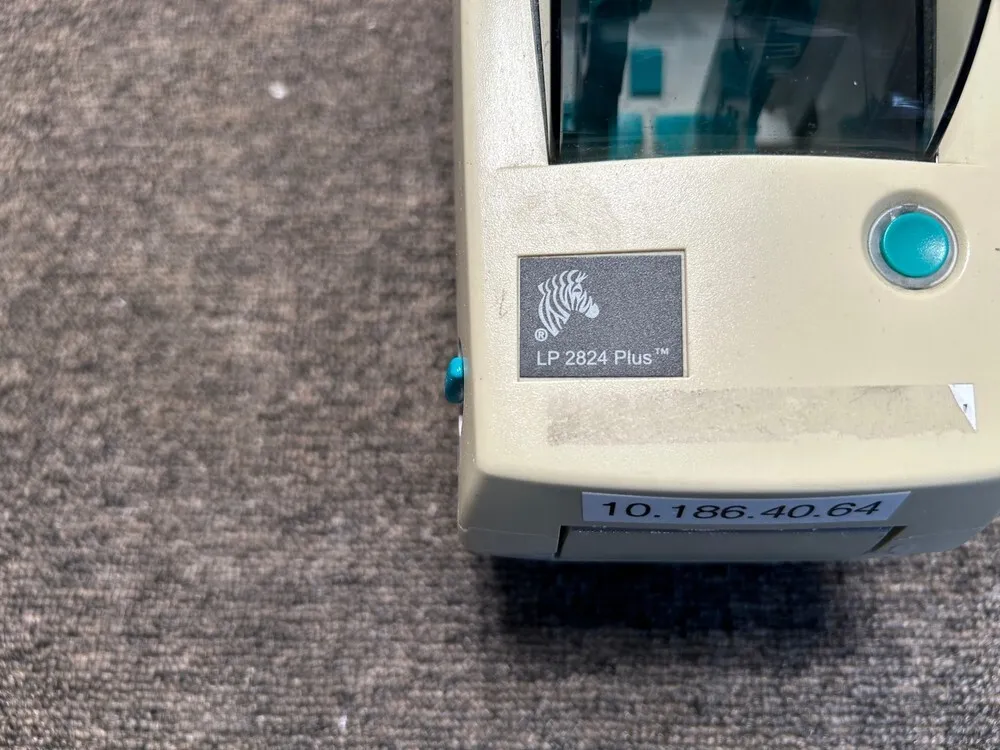

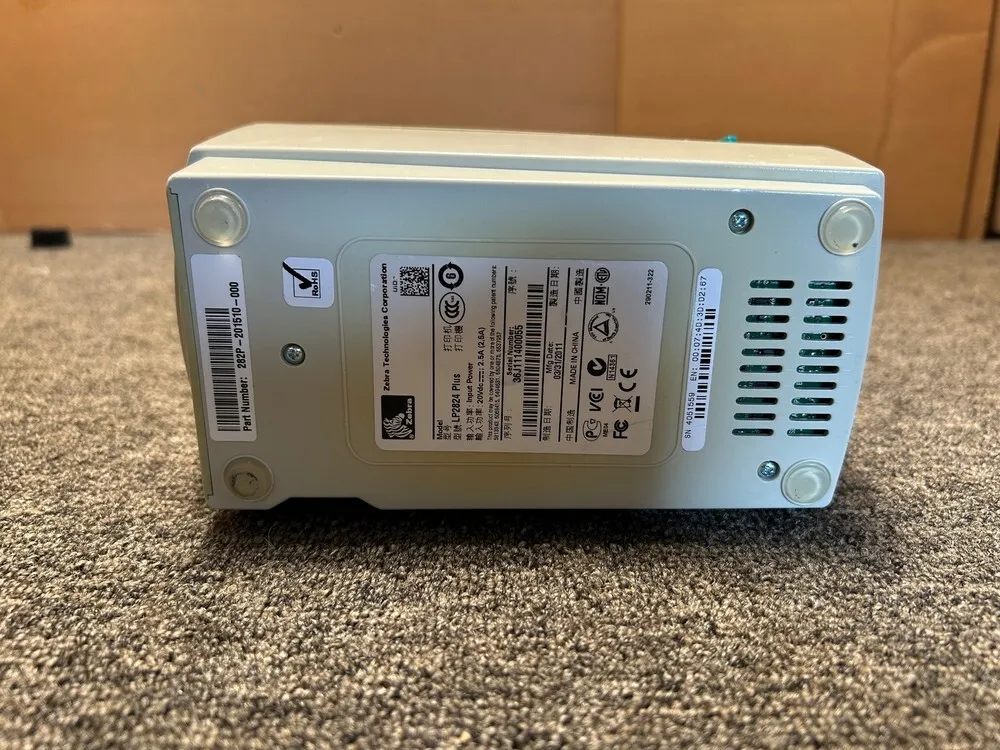

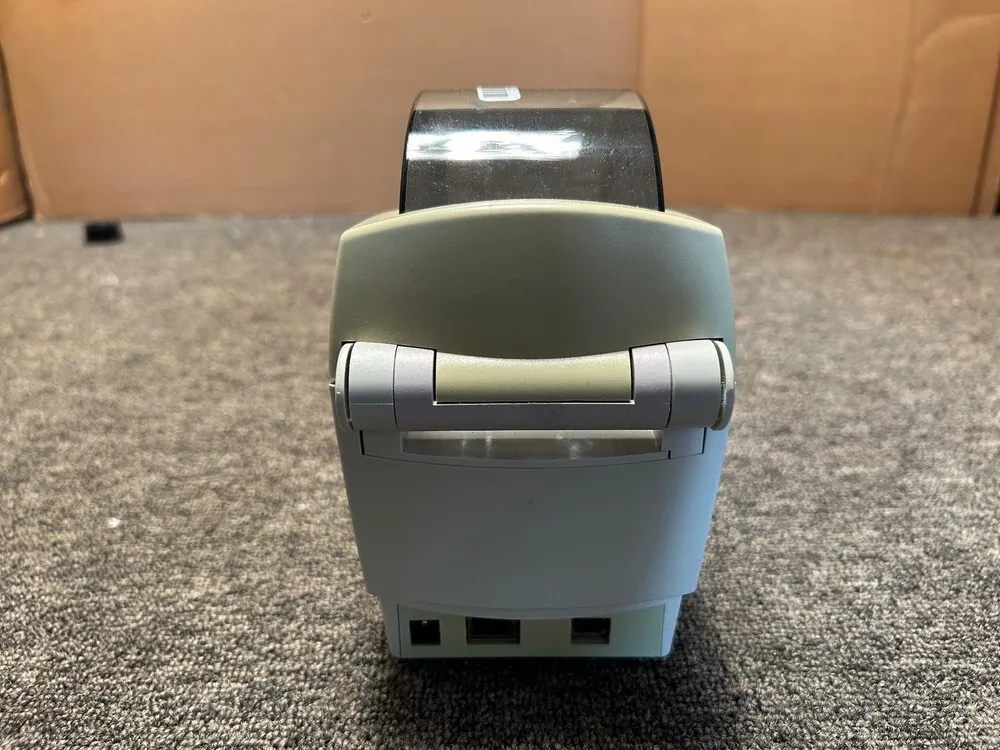

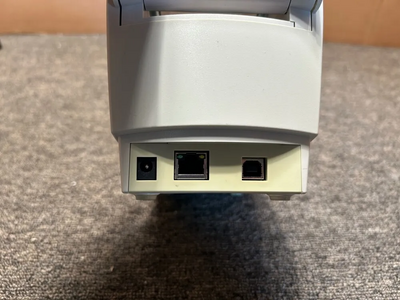

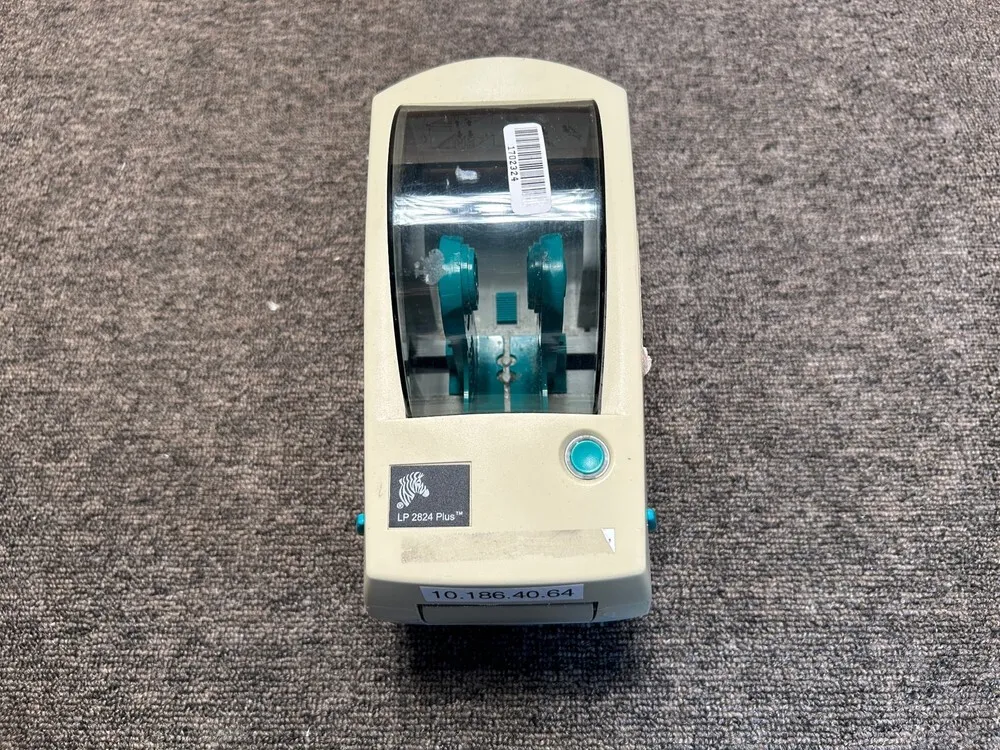

Images
Key Advantages
The Zebra LP 2824 Plus boasts fast printing speeds, reaching up to 4 inches per second, which enhances productivity in busy environments. Its direct thermal printing reduces running costs by eliminating consumable inks. The device is compatible with various label sizes, increasing versatility for multiple application needs. Its compact footprint saves valuable desk space, essential for office setups. The printer supports multiple connectivity options, including USB, serial, and parallel ports, enabling easy integration with existing systems. Additionally, Zebra's reliable build quality ensures durability and long-term operational stability.
Limitations
The LP 2824 Plus relies solely on direct thermal printing, which limits label longevity under certain environmental conditions, such as exposure to heat or sunlight. Its 203 dpi resolution may not be suitable for applications requiring extremely fine print detail. The maximum label width is limited to 2.26 inches, constraining the size of printable labels. Some interface options may require additional adapters or cables for compatibility with modern computer systems. The printer does not support color printing, restricting usage to monochrome labels only. Firmware updates and advanced features may be limited compared to newer model series.
FAQ
What type of printing technology does the Zebra LP 2824 Plus use?
The Zebra LP 2824 Plus uses direct thermal printing technology, which prints images by heating specially treated thermal paper.
What are the connectivity options for the Zebra LP 2824 Plus?
This model supports USB, serial (RS-232), and parallel interfaces for flexible connectivity with various computer systems.
What is the maximum print resolution of the LP 2824 Plus?
The printer offers a resolution of 203 dots per inch (dpi), providing clear and sharp text and barcode printing.
Is the Zebra LP 2824 Plus suitable for color label printing?
No, the LP 2824 Plus only supports monochrome (black and white) printing as it uses direct thermal technology.
What is the maximum print width supported by this printer?
The maximum print width for the LP 2824 Plus is 2.26 inches (about 57 millimeters).
Can the LP 2824 Plus handle different label sizes?
Yes, it supports various label widths and lengths within its maximum printer width and roll diameter limits.
Is the Zebra LP 2824 Plus still being manufactured?
No, the LP 2824 Plus has been discontinued and replaced by newer Zebra printer models in the LP series.
