Zebra LP 2824 (2824-21100-0001)
| Brand | Zebra 2005 |
| Model | LP2824-21100-0001, 2824-21100-0001 |
| Released Year | 2005 |
| Type | Printers |
| Status | Discontinued |
Quick view
Overview

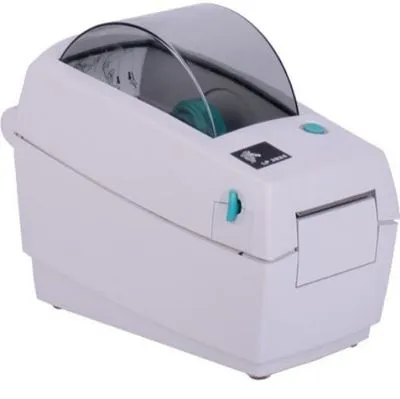

The Zebra LP 2824 is a compact thermal label printer designed primarily for low-to-medium volume printing applications. It utilizes direct thermal technology allowing it to print without ink or toner, relying on heat-sensitive media. The printer supports a print resolution of 203 dpi, suitable for barcode labels, receipts, and tags. Its print width is approximately 2.2 inches (56 mm), making it ideal for narrow label formats. It is equipped with a serial RS-232 and parallel interface, while some models also supported USB connectivity for enhanced compatibility. The device includes a simple LCD or LED indicator interface for basic status monitoring and configuration.
Specifications
| MPN | LP2824-21100-0001, 2824-21100-0001 |
| UPC | 0807027541208 |
| Model | LP 2824 (2824-21100-0001) |
| Technology | Thermal |
| Connectivity | RS-232 Serial, Parallel, USB (some models) |
| Output Type | Black & White |
| Type | Label Printer |
| Weight | 3.4 lbs (1.54 kg) |
| Depth | 8in |
| Height | 7in |
| Width | 4in |
| Max. Memory | 1MB |
| Platform | PC Products |
| Extend Printer Technology | Direct Thermal / Thermal Transfer |
| Installed RAM | 0MB |
| Computer Operating System | Microsoft Windows XP Home, Microsoft Windows NT, Microsoft Windows 98, Microsoft Windows Millennium Edition, Microsoft Windows 95 |
| Form Factor | Portable, Desktop |
| Media Type | Continuous Forms, Die-Cut |
| Printers Special Features | Autocutter |
| Max Resolution (Bw) | 203DPI |
| Max Media Size | Roll (12.7cm) |
| Black Print Speed | 3.5in/Sec |
| Media Capacity | 1 Roll(s) |
| Printer Type | Direct Thermal |
| Print Resolution | 203 dpi |
| Maximum Print Width | 2.2 inches (56 mm) |
| Print Speed | Up to 4 inches per second |
| Memory | 8 MB SDRAM, 4 MB Flash |
| Media Types Supported | Direct thermal labels, tags, receipts |
| Media Width | 1.57 inches to 2.36 inches (40 mm to 60 mm) |
| Media Thickness | 0.003 inches to 0.0075 inches (0.076 mm to 0.19 mm) |
| Label Roll Capacity | Up to 5 inch (127 mm) diameter |
| Power Supply | External 24V power adapter |
| Dimensions (WxDxH) | 7.4 x 6.3 x 5.8 inches (188 x 160 x 147 mm) |
| Operating Systems Supported | Windows, Linux, Mac (via drivers) |
| Status Indicators | LED indicators for status and errors |
| Accessories | Cutter (optional), external rewinder (optional) |
Images
Key Advantages
Compact form factor: The small footprint fits well in tight office and retail spaces.
Ease of use: Simple loading mechanism and straightforward controls minimize user training.
Reliable thermal printing: Eliminates the need for ink or toner, reducing maintenance.
Versatile media compatibility: Supports a variety of direct thermal labels and tags.
Sturdy construction: Built for durability in medium duty printing environments.
Cost-effective operation: Lower running costs compared to some competing technologies.
Limitations
Limited print speed: Slower compared to newer thermal printers, limiting high-volume usage.
Connectivity constraints: Lacks modern interfaces like Ethernet or Bluetooth on base models.
No color printing: Only supports monochrome thermal printing.
Low resolution: 203 dpi may not be sufficient for very small or dense barcode symbologies.
Limited memory capacity: Constrains label formatting and graphics complexity.
Discontinued model: Spare parts and support may be difficult to obtain currently.
FAQ
What type of printing technology does the Zebra LP 2824 use?
The Zebra LP 2824 uses direct thermal printing technology, which does not require ink or toner and relies on heat-sensitive media.
What is the maximum print resolution of the LP 2824 printer?
The maximum print resolution for the zebra LP 2824 printer is 203 dpi (dots per inch).
Which connectivity options are available for the Zebra LP 2824?
The LP 2824 printer typically includes serial RS-232 and parallel ports; some models also support USB connectivity.
Is the Zebra LP 2824 still in production?
No, the Zebra LP 2824 printer has been discontinued and is no longer in production.
What media sizes are compatible with the LP 2824?
The LP 2824 supports label widths up to approximately 2.2 inches (56 mm) and can handle various direct thermal media such as tags, labels, and receipts.
Can the Zebra LP 2824 print in color?
No, the Zebra LP 2824 only supports monochrome (black and white) printing using direct thermal technology.
Where can I find replacement parts or accessories for the LP 2824 printer?
Replacement parts and accessories can be found through authorized Zebra resellers, third-party suppliers specializing in older printers, or online marketplaces, although availability may be limited due to discontinuation.
