Zebra HC100 (HC100-3001-0100)
Brand | Zebra 2016 |
Model | HC100-3001-0100 |
Released Year | 2016 |
Type | Printers |
Status | Active |
Quick view
Overview
The Zebra HC100 is a direct thermal printer designed primarily for healthcare environments, providing reliable and high-quality label printing. It features a compact design with a print resolution of 203 dpi, suitable for printing wristbands, labels, and tags used in clinical settings. The printer supports a print width of up to 4.09 inches and offers a printing speed up to 5 inches per second. Connectivity options include USB and optional Ethernet interfaces, allowing for seamless integration into various workflows. The HC100 utilizes Zebra's link-OS for easy setup, management, and integration, enhancing device uptime and operational efficiency. Additionally, the printer supports various media types and sizes, ensuring versatility for different labeling needs.
Specifications
MPN | HC100-3001-0100 |
UPC | 0777785906833 |
Model | HC100 (HC100-3001-0100) |
Technology | Thermal |
Connectivity | USB 2.0 standard, Optional Ethernet |
Output Type | Black & White |
Type | Label Printer |
Duplex Printout | Standard Printer |
Extend Printer Technology | Direct Thermal |
Form Factor | Desktop |
Networking Type | Wireless Network Adapter |
Max Resolution (Bw) | 300DPI |
Black Print Speed | 2in/Sec |
Print Method | Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Maximum Print Speed | 5 inches per second (127 mm/sec) |
Media Types | Wristbands, labels, tags |
Media Width | 0.75 inches to 4.25 inches (19 mm to 108 mm) |
Media Thickness | Up to 0.01 inches (0.254 mm) |
Operating System Support | Windows, Linux, Mac OS |
Dimensions (WxDxH) | 7.82 x 6.57 x 5.3 inches (199 x 167 x 135 mm) |
Weight | 3.1 lbs (1.4 kg) |
Power Supply | External 100-240VAC, 50-60Hz |
Compatibility | Zebra Link-OS, Zebra programming languages (ZPL, EPL) |
Operating Temperature | 40°F to 105°F (4.5°C to 40.5°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Humidity | 10-90% non-condensing |

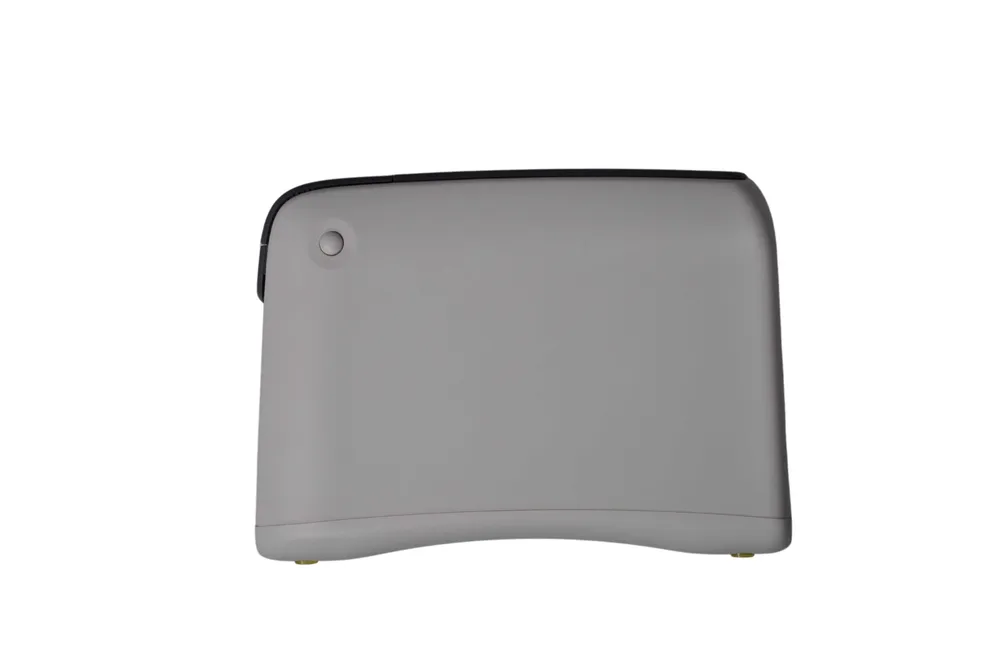

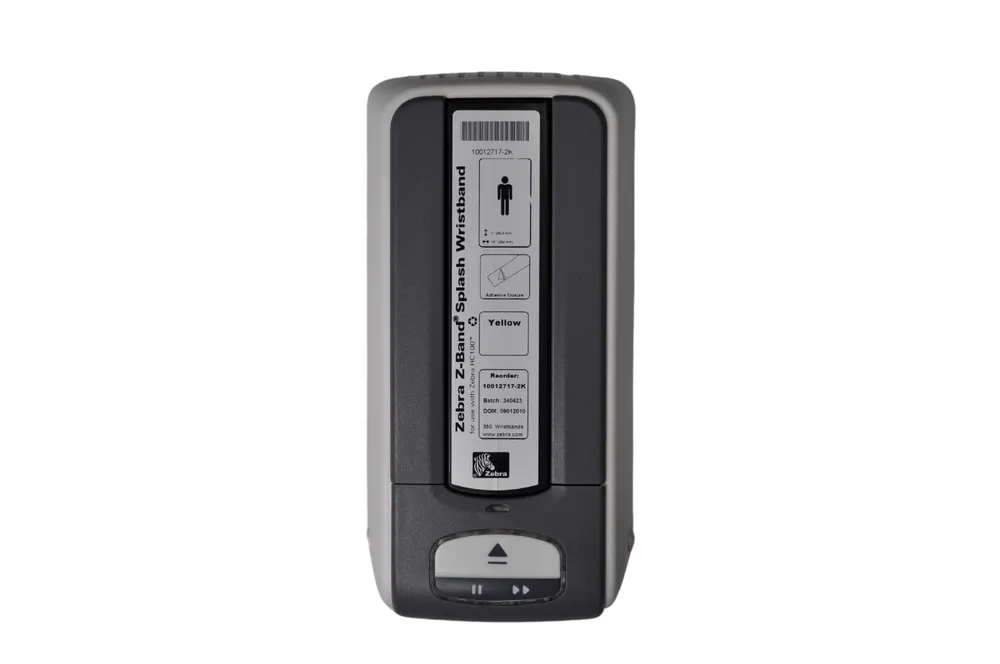

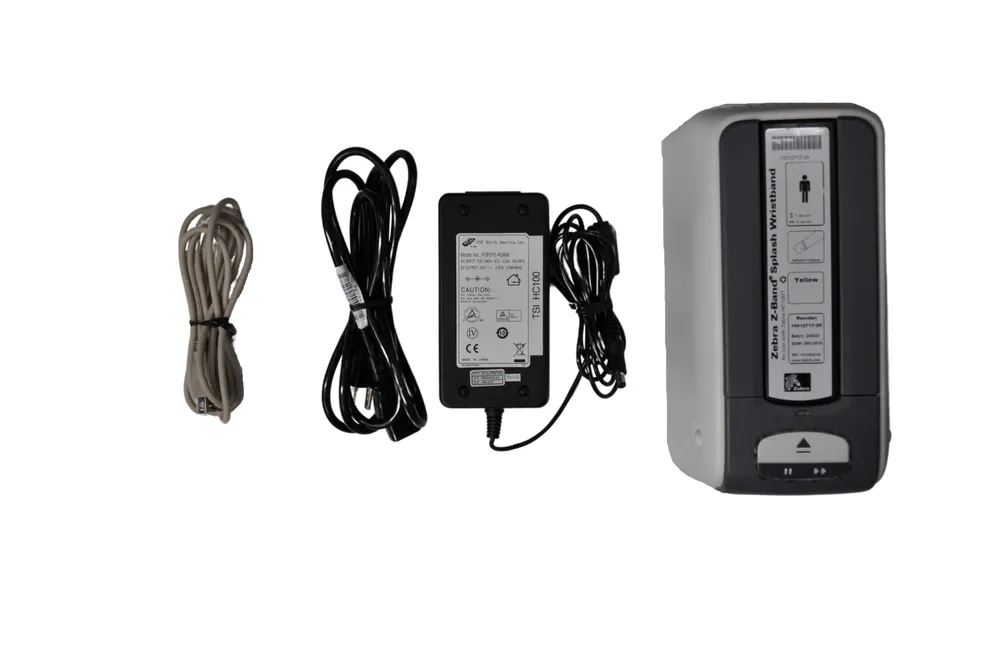

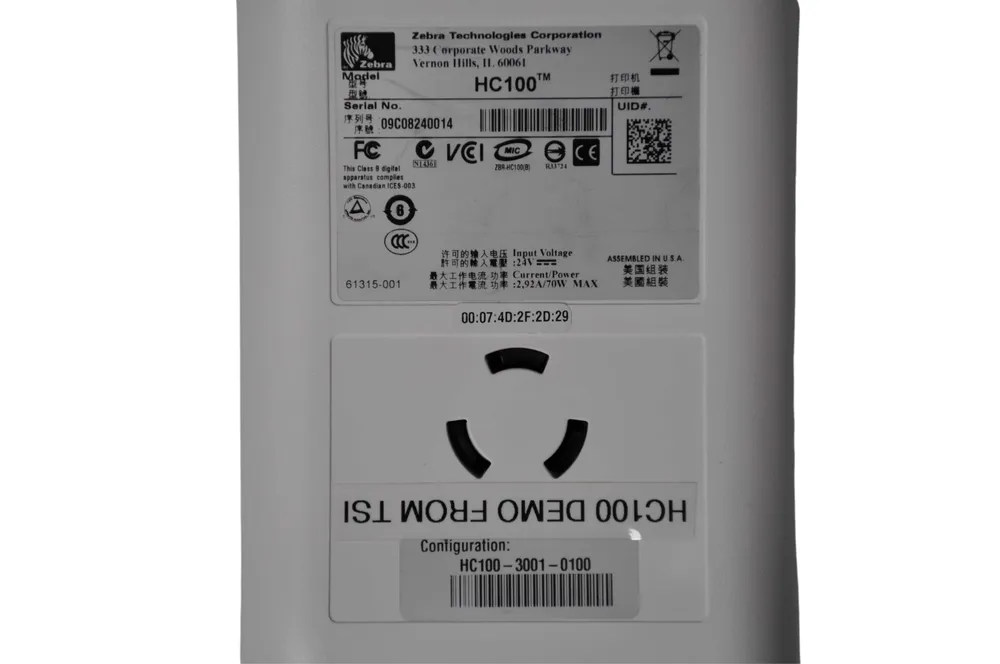

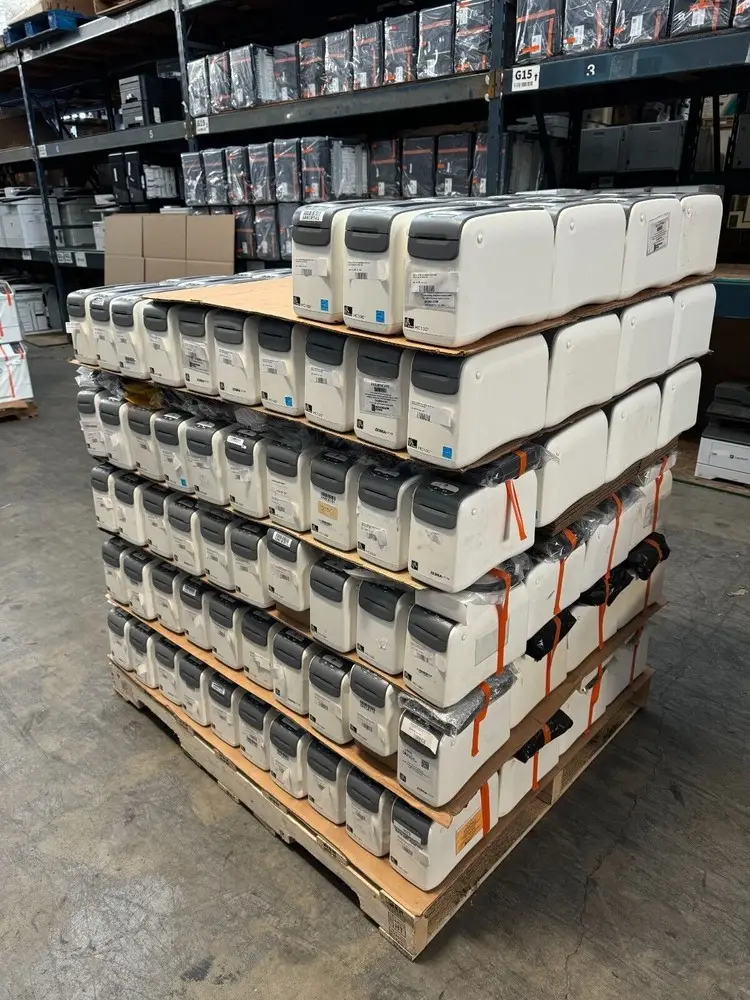

Images
Key Advantages
The HC100 offers a compact and ergonomic design ideal for tight spaces in healthcare environments. It provides reliable direct thermal printing which eliminates the need for ink or toner cartridges, reducing maintenance. The printer's compatibility with Zebra's link-OS platform simplifies device management and remote diagnostics. It supports flexible network connectivity options including USB and optional Ethernet, enhancing integration capabilities. The device is specifically engineered for healthcare compliance needs such as wristband printing, ensuring patient safety. Low power consumption and durable construction further contribute to its cost-effectiveness and longevity.
Limitations
The HC100 is limited to direct thermal printing, which means labels printed may fade over time when exposed to heat or light. It supports a maximum resolution of only 203 dpi, which may not be suitable for extremely high-detail graphic requirements. The print speed of up to 5 ips is moderate but might be slower compared to some industrial printers. The device has limited built-in connectivity options with Ethernet being optional, potentially requiring additional accessories for network use. It has a relatively small media capacity, which could necessitate more frequent media changes in high-volume printing environments. The printer is specialized for healthcare use and might lack features needed for other industrial or commercial labeling applications.
FAQ
What type of printing technology does the Zebra HC100 use?
The Zebra HC100 uses direct thermal printing technology, which prints images by selectively heating coated thermal paper.
Can the HC100 printer connect to a network?
Yes, the HC100 supports USB connectivity by default and has an optional Ethernet interface for network connectivity.
What is the maximum print resolution of the HC100?
The maximum print resolution of the HC100 is 203 dpi (dots per inch).
Is the HC100 suitable for printing wristbands?
Yes, the HC100 is designed mainly for healthcare applications including printing wristbands and patient identification labels.
Does the HC100 require ink or toner cartridges?
No, since it uses direct thermal printing technology, the HC100 does not require ink or toner cartridges.
What is the maximum print speed of the HC100?
The maximum print speed of the HC100 is up to 5 inches per second.
Is the Zebra HC100 still in production?
As of now, the Zebra HC100 has not been officially discontinued and remains available.
