Zebra Gx430t
| Brand | Zebra 2007 |
| Model | GX43102410000, GX43-102520-000 GX43-102512-000, GX43-102410-000 |
| Released Year | 2007 |
| Type | Printers |
| Series | G |
| Status | Discontinued |
Quick view
Overview

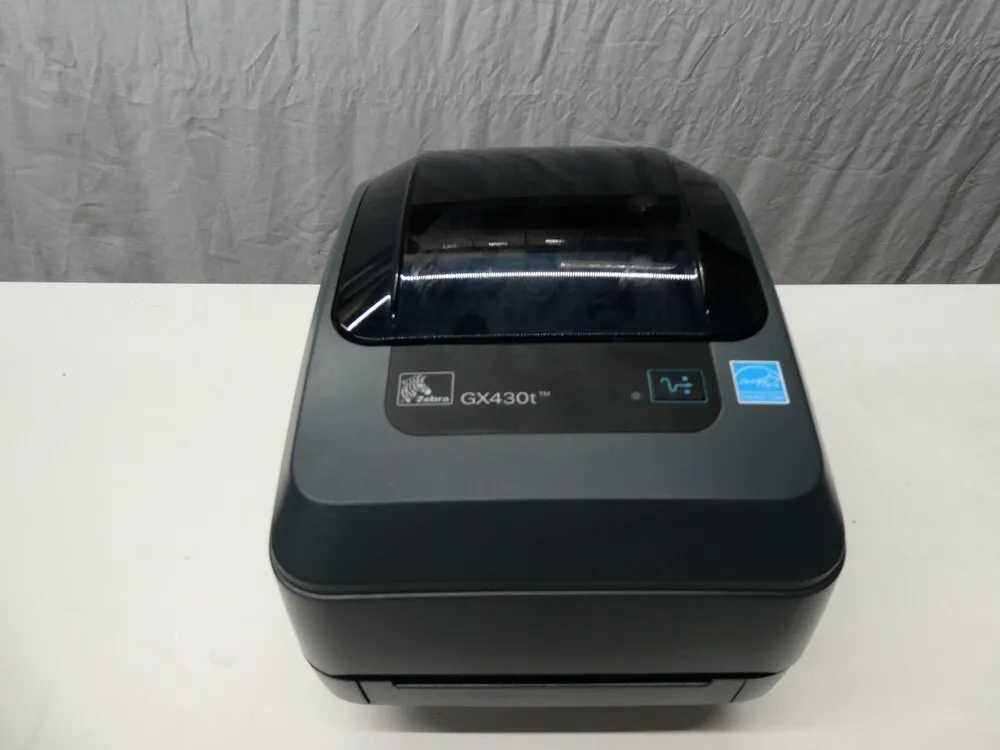

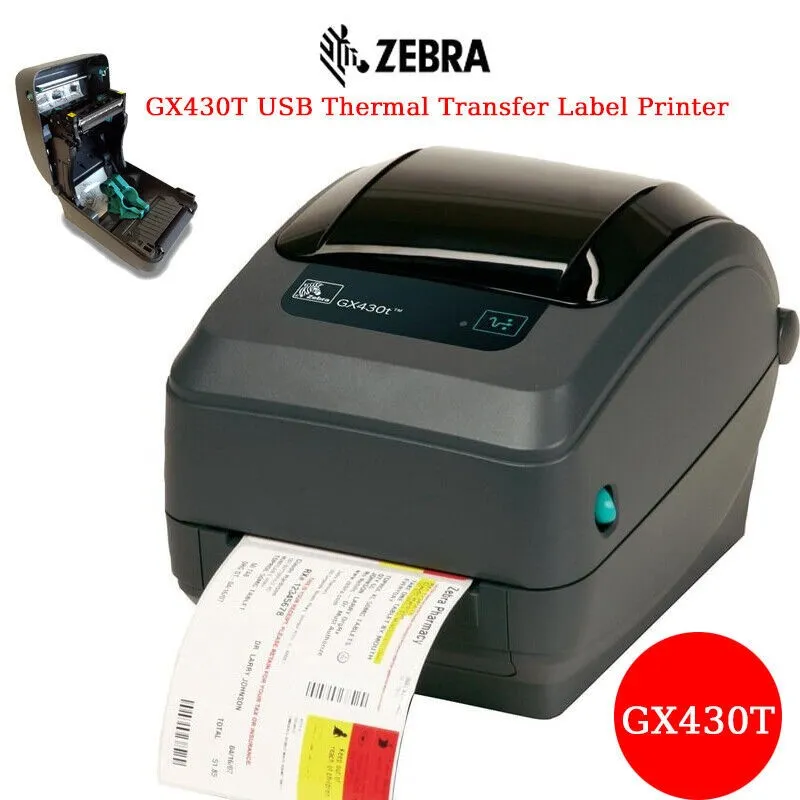

The Zebra GX430t is a thermal transfer desktop printer designed for high-resolution label printing in office and industrial environments. It features a print speed of up to 4 inches per second and supports a maximum print resolution of 300 dpi, suitable for detailed barcode and text printing. The printer uses a direct thermal or thermal transfer method, allowing flexibility based on application requirements. Connectivity options include USB, serial, and parallel ports, facilitating integration with various computer systems. The device supports media widths up to 4.25 inches and has a compact footprint ideal for desktop use. The printer’s firmware facilitates easy configuration and supports multiple barcode symbologies and fonts for diverse labeling needs.
Specifications
| Supported Scanning Sizes | A0 (841 x 1189 mm) |
| Input Type | Monochrome |
| Grayscale Depth | 8 Bit |
| Color Depth | 12 Bit |
| Memory | 8 MB SDRAM, 4 MB Flash |
| Output Type | Black & White |
| MPN | GX43102410000, GX43-102520-000 GX43-102512-000, GX43-102410-000 |
| Supported Paper Size | A6 (105 x 148 mm) |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Item Height | 10 inch |
| Image Sensor | CCD |
| Model | Zebra GX430t |
| Connectivity | Cable, Wireless, Bluetooth, Serial (RS-232), Parallel (IEEE 1284), USB 1.0/1.1, Ethernet (RJ-45), USB 2.0, 10/100Base-TX |
| Scanning Resolution | 300x300 DPI |
| Features | Portable, Networkable |
| Black Print Speed | 6 ppm |
| Product Line | Zebra G |
| UPC | 0610098904007 |
| Print method | Thermal Transfer / Direct Thermal |
| Print resolution | 300 dpi (12 dots/mm) |
| Print speed | Up to 4 inches per second (102 mm/s) |
| Maximum print width | 4.1 inches (104 mm) |
| Maximum print length | 39 inches (991 mm) |
| Media width | 0.75 to 4.25 inches (19 to 108 mm) |
| Media thickness | 0.0023 to 0.01 inches (0.058 to 0.254 mm) |
| Interface | USB 2.0, Serial RS-232, Parallel (Centronics) |
| Dimensions (W x D x H) | 7.7 x 9.5 x 7.4 inches (196 x 241 x 188 mm) |
| Weight | 6.6 lbs (3.0 kg) |
| Power supply | External, 100-240 V AC, 50-60 Hz |
| Operating temperature | 40°F to 105°F (4.4°C to 41°C) |
| Humidity | 20-85% non-condensing |
| Compatible media types | Labels, tags, continuous paper, wristbands |
| Supported barcode types | UPC, Code 39, Code 128, EAN-13, others |
| Firmware | Zebra programming language (ZPL) and EPL support |
Images
Key Advantages
The Zebra GX430t offers high-resolution printing at 300 dpi, ensuring sharp and clear prints. Its thermal transfer capability allows printing on a wide variety of media types, including synthetic and coated papers for durability. The printer's versatility in connectivity enhances its compatibility with existing office setups. It has a robust build for reliable operation in medium-volume printing environments. The compact size saves workspace without sacrificing performance. Easy media loading and user-friendly controls simplify operation and reduce downtime.
Limitations
While the GX430t is effective for medium volume printing, it is not designed for high-volume industrial needs. Its print speed is moderate compared to newer models, which may affect productivity in fast-paced settings. The printer requires thermal transfer ribbons for longer-lasting prints, which adds to operational costs. Limited wireless connectivity options necessitate physical cable connections. The firmware, though versatile, may lack advanced network or cloud-based features found in newer printers. Replacement parts and support may be limited as the model ages.
FAQ
What printing methods does the Zebra GX430t support?
The GX430t supports both direct thermal and thermal transfer printing methods, allowing versatility for different media types.
What is the maximum print resolution of the GX430t?
It offers a high print resolution of 300 dots per inch (dpi) for sharp and detailed printing.
Which connectivity options are available on the Zebra GX430t?
The printer includes USB, serial, and parallel ports for connection to various computers and devices.
Can the GX430t handle different label widths?
Yes, it supports media widths up to 4.25 inches, accommodating a range of label sizes.
Is the Zebra GX430t still in production?
No, the Zebra GX430t has been discontinued, though it remains popular in legacy printing applications.
Does the printer support advanced barcode symbologies?
Yes, its firmware supports multiple barcode types and font options suitable for various labeling needs.
What kind of maintenance does the GX430t require?
Routine cleaning of print heads and rollers is recommended to maintain print quality and prolong printer life.
