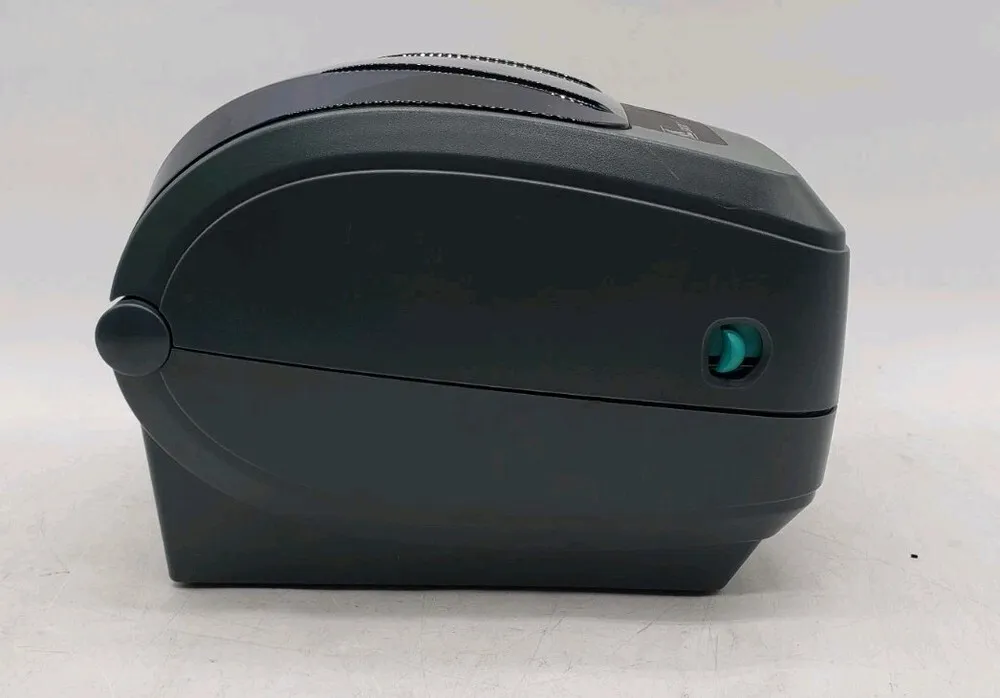

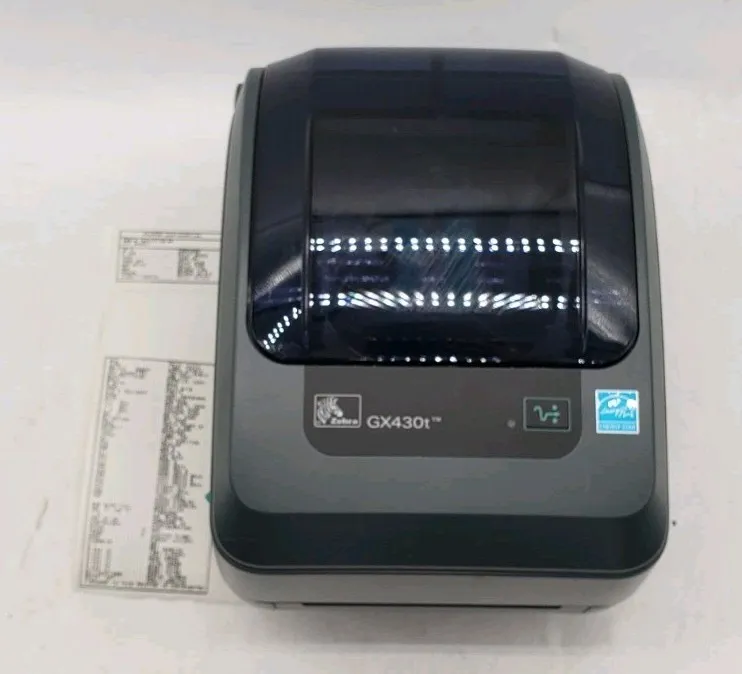

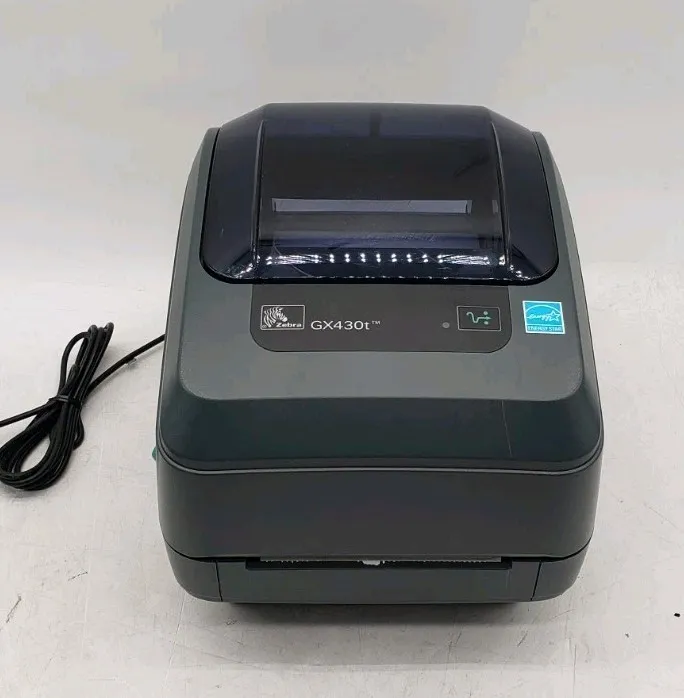

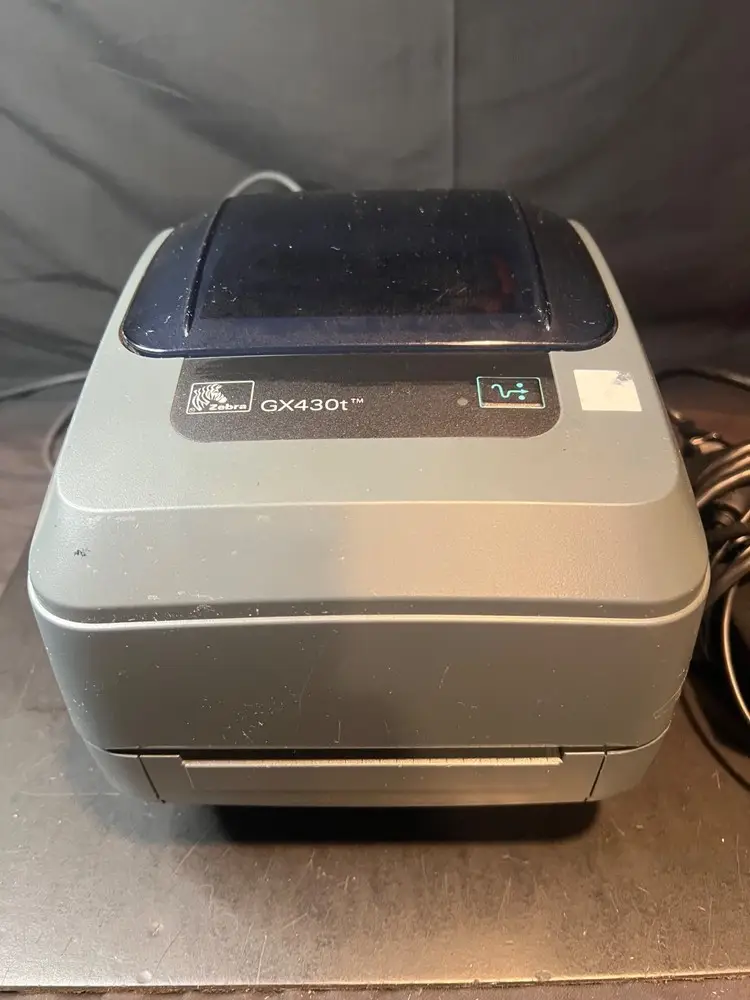

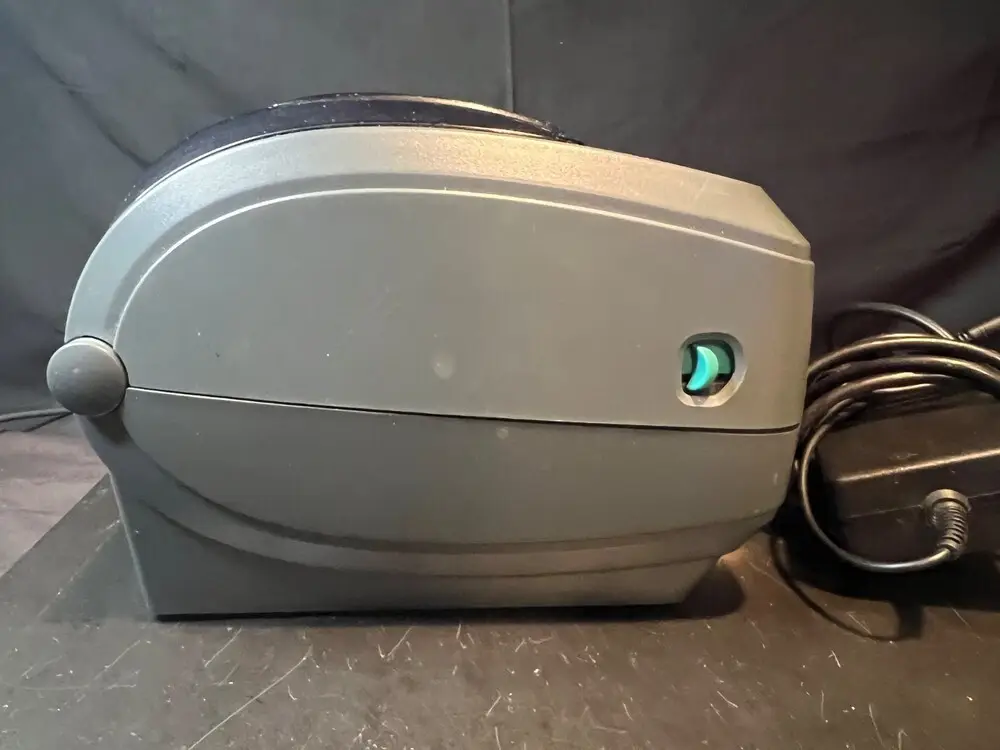

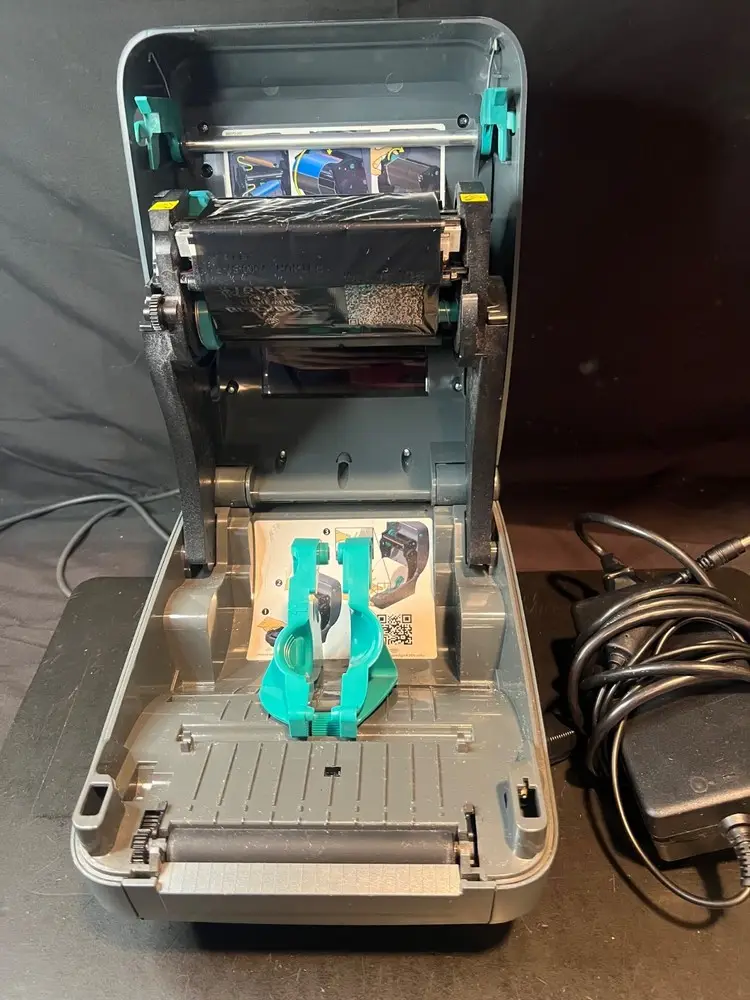

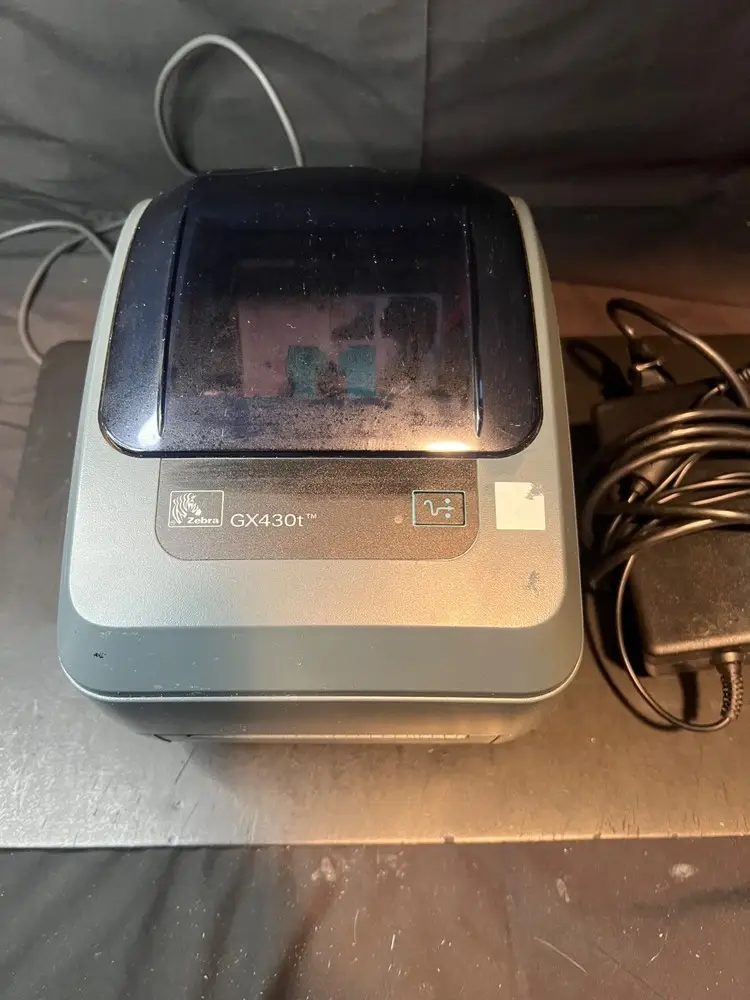

Zebra GX430t image

Zebra GX430t

Quick information
Brand Zebra 2005
Model GX43-102410-00
Released Year 2005
Type Printers
Series G
Status Discontinued
Quick view

Overview

The Zebra GX430t is a compact thermal transfer printer designed for high-resolution printing applications. It uses a direct thermal or thermal transfer printing method with a print resolution of 300 dpi, enabling crisp and clear barcode and label printing. The printer supports label widths up to 4.09 inches and has a print speed of up to 4 inches per second. Connectivity options include USB, serial, and parallel ports ensuring versatile integration into office environments. The device supports various media types including continuous, die-cut, and black mark labels, allowing flexibility for different labeling needs. Its compact design and energy-efficient operation make it suitable for small workspaces while delivering industrial-grade durability.

Specifications

Input Type Monochrome
Color Depth 12 Bit
Output Type Black & White
Memory 8 MB Flash, 8 MB SDRAM
MPN GX43-102410-00
Supported Paper Size 4 inch
California Prop 65 Warning non
Type Label Printer
Technology Thermal
Maximum Resolution 300 x 300 DPI
Manufacturer Warranty None
Model GX430t

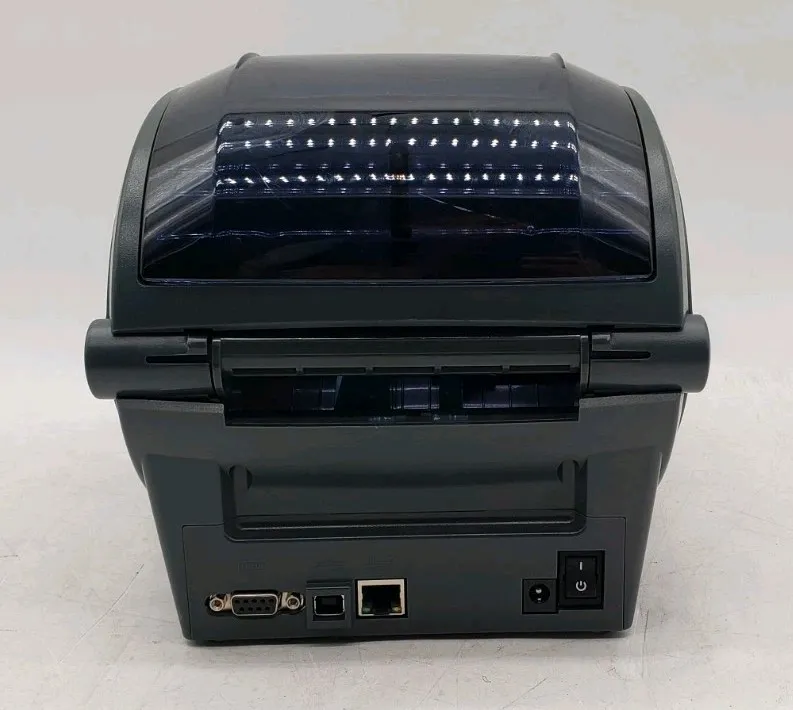

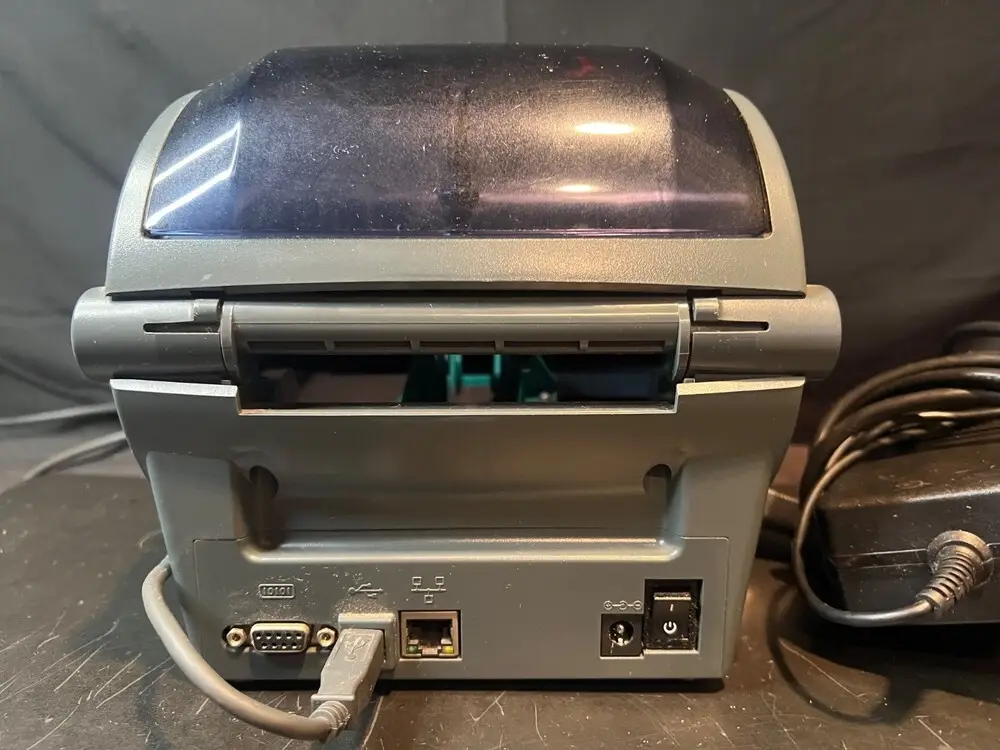

Connectivity USB, Serial, Parallel
Features Networkable
Scanning Resolution 300x300 DPI
Black Print Speed 6 ppm
Country/Region of Manufacture China
Product Line Zebra G
UPC Does not apply
Print Technology Thermal Transfer / Direct Thermal
Print Resolution 300 dpi (12 dots/mm)
Max Print Speed 4 inches per second (102 mm/s)
Max Print Width 4.09 inches (104 mm)
Media Types Continuous, Die-cut, Black Mark, Tags
Media Sensors Reflective and Transmissive
Media Width 0.79 to 4.65 inches (20 to 118 mm)
Dimensions 7.1 in W x 7.6 in H x 11.0 in D (180 mm x 193 mm x 279 mm)
Weight 7.7 lbs (3.5 kg)
Operating Temperature 40°F to 105°F (5°C to 40°C)
Power Supply Auto-ranging power supply (100-240V AC)
Discontinued Yes

Key Advantages

The GX430t offers superior print resolution compared to many printers in its class, producing high-quality printed labels and barcodes. It supports thermal transfer ribbons for durable, long-lasting prints. The printer's installation is straightforward due to plug-and-play connectivity and easy media loading. It accommodates a variety of label media, increasing its utility across different applications. Its compact footprint saves valuable desk space without compromising performance. Additionally, the printer's robust construction ensures reliable operation in demanding office or industrial environments.

Limitations

Despite its advantages, the GX430t has a relatively slower print speed compared to newer models, which might affect high-volume printing tasks. The printer's connectivity options are somewhat limited by modern standards, lacking wireless or network Ethernet interfaces. It also has limited memory capacity, which can impact complex label formats and large batch printing. The model's discontinued status inhibits direct technical support from the manufacturer. Replacement parts and consumables may be harder to find as the model is aging. Additionally, it lacks advanced smart features found in contemporary printers such as touchscreen interfaces or cloud connectivity.
