Zebra GX43-102420-000
| Brand | Zebra 2013 |
| Model | ZBR2790362, GX43-102420-000 |
| Released Year | 2013 |
| Type | Printers |
| Series | Gx430t |
| Printing Technology | Thermal Transfer and Direct Thermal |
| Status | Discontinued |
Quick view
Overview

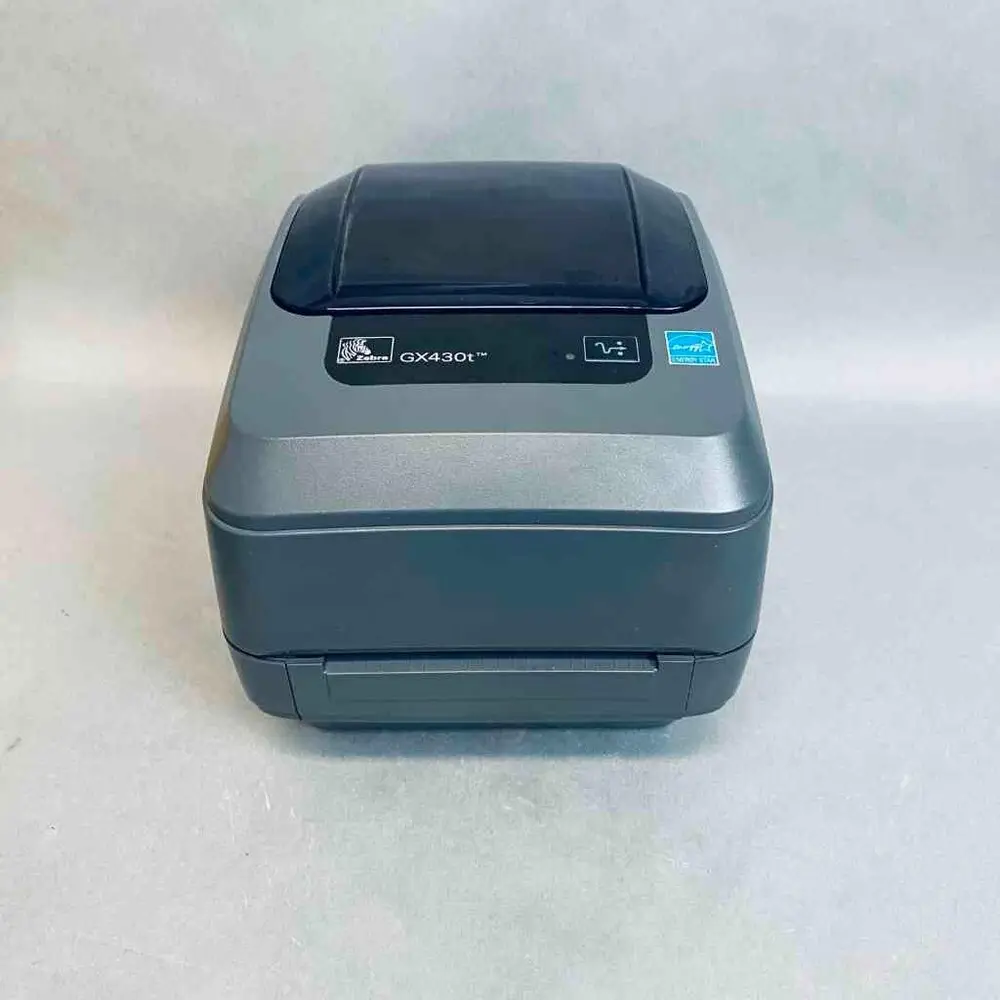

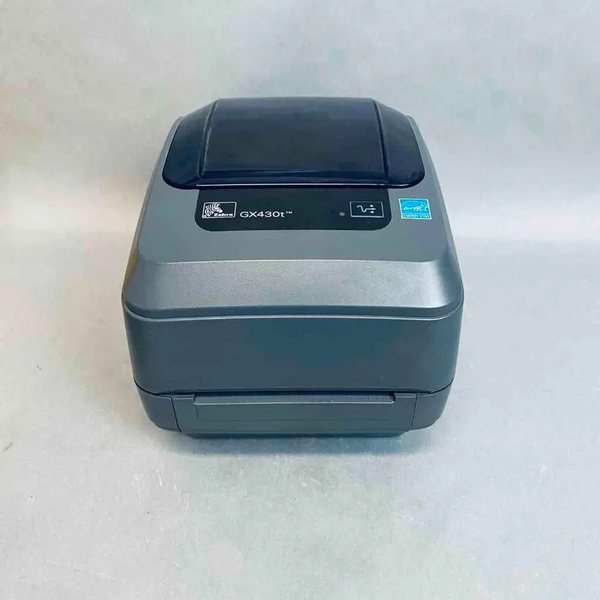

The Zebra GX430t printer is a high-resolution thermal transfer and direct thermal printer designed for medium volume printing applications. It supports print speeds up to 4 inches per second and resolution of 300 dpi, enabling precise barcode and label printing. The printer offers multiple connectivity options including USB, serial, and parallel interfaces, facilitating flexible integration into various office environments. It supports a wide range of media types and sizes, from 0.5 to 4.25 inches (12.7 to 108 mm) width, enhancing versatility for different labeling needs. The compact design is optimized for limited spaces while maintaining easy access for media loading and maintenance. It also supports popular printer languages such as EPL and ZPL, ensuring compatibility with most label design software.
Specifications
| Printing Technology | Thermal Transfer and Direct Thermal |
| Print Resolution | 300 dpi (12 dots/mm) |
| Maximum Print Speed | 4 inches per second (102 mm/s) |
| Print Width | Maximum 4.16 inches (106 mm) |
| Media Width | 0.5 inches to 4.25 inches (12.7 mm to 108 mm) |
| Memory | 8 MB |
| Connectivity | Ethernet (RJ-45), Serial (RS-232), USB 2.0 |
| Supported Printer Languages | ZPL, EPL |
| Dimensions (WxDxH) | 7.4 x 9.8 x 7.2 inches (187 x 249 x 183 mm) |
| Weight | 4.8 lbs (2.2 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | External 100-240 VAC, 50-60 Hz |
| Media Sensors | Transmissive and reflective sensors for media detection |
| Display | No LCD; status LEDs on the front panel |
| Ribbon Type | Wax, wax/resin, resin ribbons compatible |
| Ribbon Length (Max) | Approximately 74 meters |
| Supported Scanning Sizes | A0 (841 x 1189 mm) |
| Grayscale Depth | 8 Bit |
| Color Depth | 8 Bit |
| Output Type | Black & White |
| MPN | ZBR2790362, GX43-102420-000 |
| Item Length | Does Not Apply |
| Technology | Thermal |
| Manufacturer Warranty | Does Not Apply |
| Item Height | Does Not Apply |
| Features | Networkable |
| Item Width | Does Not Apply |
| Input Type | Monochrome |
| Supported Paper Size | A7 (74 x 105 mm), A8 (52 x 74 mm), A9 (37 x 52 mm), A10 (26 x 37 mm) |
| Type | Label Printer |
| Maximum Resolution | 300 x 300 DPI |
| Image Sensor | CCD |
| Model | GX43-102420-000 |
| Scanning Resolution | 300x300 DPI |
| Black Print Speed | 12 ips |
| Country/Region of Manufacture | United States |
| Product Line | Zebra GX430T |
| UPC | Does Not Apply |
Images
Key Advantages
The GX430t provides outstanding print quality with 300 dpi resolution, ideal for barcode and detailed label printing. Its versatile media handling supports a wide variety of labels and ribbons, increasing application flexibility. The printer’s multiple connectivity options simplify integration into diverse office setups. Easy media loading and maintenance features reduce downtime for operators. Compact and rugged design makes it suitable for small to medium-sized printing environments. Compatibility with popular printer command languages enhances user convenience.
Limitations
The GX430t printer print speed, while sufficient for medium volume needs, may be slower compared to enterprise-level devices. It does not support wireless connectivity options which limits remote printer management. Operating system support is limited to Windows, presenting challenges for some users. The printer's ribbon capacity and media roll size are smaller than some industrial models, requiring more frequent media replacement. It is not designed for high-volume industrial printing applications. Firmware updates and customer support for legacy models may be limited due to product age.
FAQ
What types of media can the Zebra GX430t print on?
The Zebra GX430t supports thermal transfer and direct thermal media including paper, synthetic labels, and tags ranging from 0.5 to 4.25 inches in width.
Does the GX430t support wireless connectivity?
No, the GX430t does not have built-in wireless connectivity options; it supports USB, serial, and parallel interfaces.
What is the maximum print resolution of the GX430t printer?
The printer offers a maximum print resolution of 300 dots per inch (dpi), suitable for high-quality barcode and text printing.
Can I use Zebra’s ZPL and EPL languages with the GX430t?
Yes, the GX430t supports both Zebra Programming Language (ZPL) and Eltron Programming Language (EPL) for broad software compatibility.
Is the Zebra GX430t still available for purchase?
No, the GX430t has been discontinued but you may find refurbished or used units from third-party sellers.
What are typical use cases for the GX430t printer?
It is commonly used for office labeling, shipping labels, asset tagging, and medium-volume barcode printing applications.
How do I replace the ribbon and label rolls in the GX430t?
The printer has a clamshell design that allows easy access; simply open the top cover and insert the ribbon and media rolls as per the indicated guides.
