Zebra GX420T (GX42-102410-000)
| Brand | Zebra 2010 |
| Model | GX420T (GX42-102410-000) |
| Released Year | 2010 |
| Type | Printers |
| Series | G |
| Status | Discontinued |
Quick view
Overview
The Zebra GX420T is a thermal transfer and direct thermal label printer notable for its high-quality print output and versatile media handling.
It supports a maximum print resolution of 203 dpi, ensuring clear barcode and text printing suitable for a variety of office and industrial applications.
The printer features print speeds up to 6 inches per second, balancing efficiency and print detail.
Connectivity options include serial, USB, and optional Ethernet, facilitating flexible integration into existing networks and systems.
The device is designed with an intuitive operator interface and supports various label widths up to 4.16 inches, accommodating diverse labeling needs.
Its compact footprint suits office environments while robust enough for light industrial use, making it a versatile choice for barcode label printing.
Specifications
| Printer Type | Thermal transfer and direct thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 6 inches (152 mm) per second |
| Maximum Print Width | 4.16 inches (106 mm) |
| Media Type | Receipt Paper, Continuous Forms, Die-Cut |
| Media Width | 1.00 to 4.5 inches (25.4 to 114 mm) |
| Media Thickness | 0.003 inches to 0.010 inches (0.08 to 0.25 mm) |
| Ribbon Type | Wax, wax/resin, resin thermal transfer ribbons |

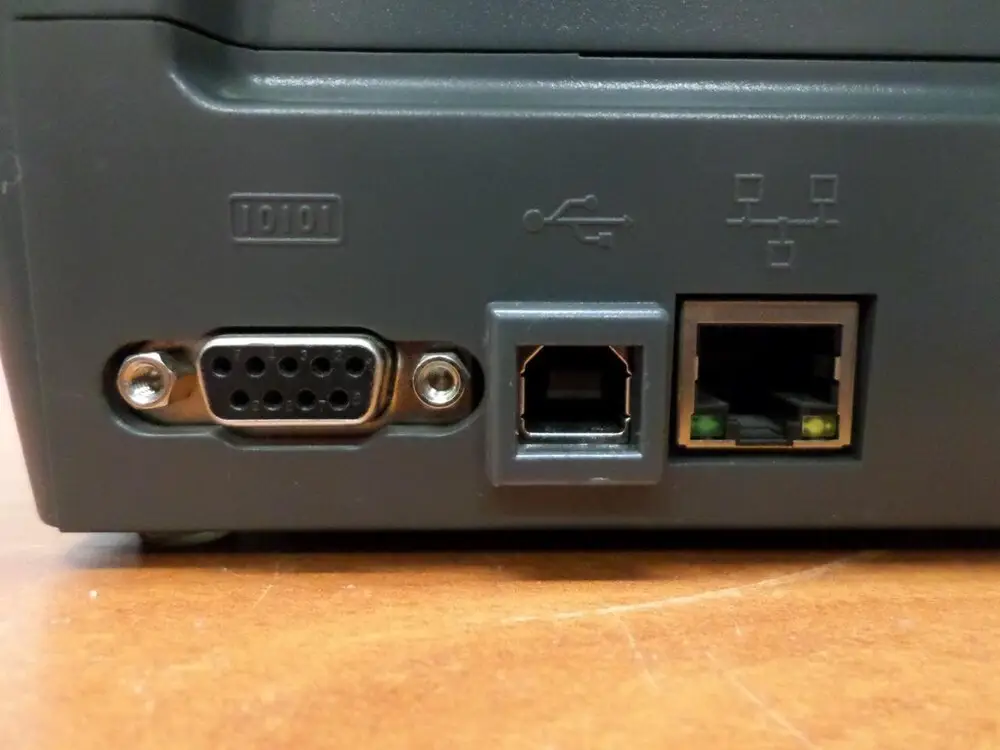

| Connectivity | Serial (RS-232), USB 1.0/1.1 |
| Memory | 4 MB |
| Dimensions (W x H x D) | 6.9 x 8.0 x 10.6 inches (175 x 203 x 269 mm) |
| Weight | 4.6lb. |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | Internal, 100-240 VAC, 50-60 Hz |
| Supported Barcodes | Code 39, Code 128, EAN-13, UPC-A, QR Code, Data Matrix, PDF417 |
| UPC | 0807027561657 |
| Type | Label Printer |
| Technology | Thermal |
| Output Type | Black & White |
| Model | GX420T (GX42-102410-000) |
| MPN | GX42-102410-000 |
| Features | Networkable |
| Black Print Speed | 6in/Sec |
| Product Line | Zebra G |
| GTIN | 0807027561657 |
| Depth | 10in |
| Height | 7.5in |
| Width | 7.6in |
| Max. Memory | 8MB |
| Platform | PC Products |
| Duplex Printout | Standard Printer |
| Extend Printer Technology | Direct Thermal / Thermal Transfer |
| Data Link Protocol | Ethernet |
| Direct Printing Capabilities | Print Photos Without a PC |
| Form Factor | Desktop |
| Networking Type | Ethernet |
| Max Resolution (Bw) | 203DPI |
| Country/Region of Manufacture | China |

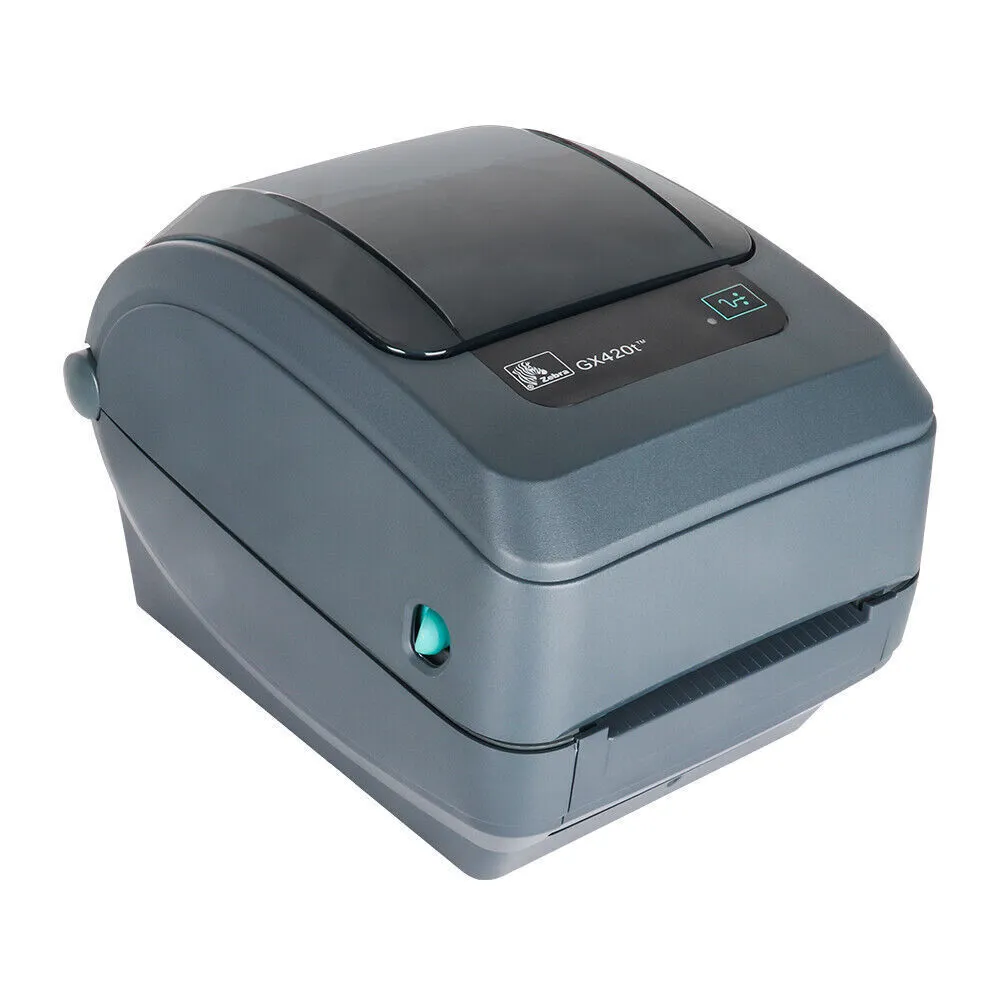

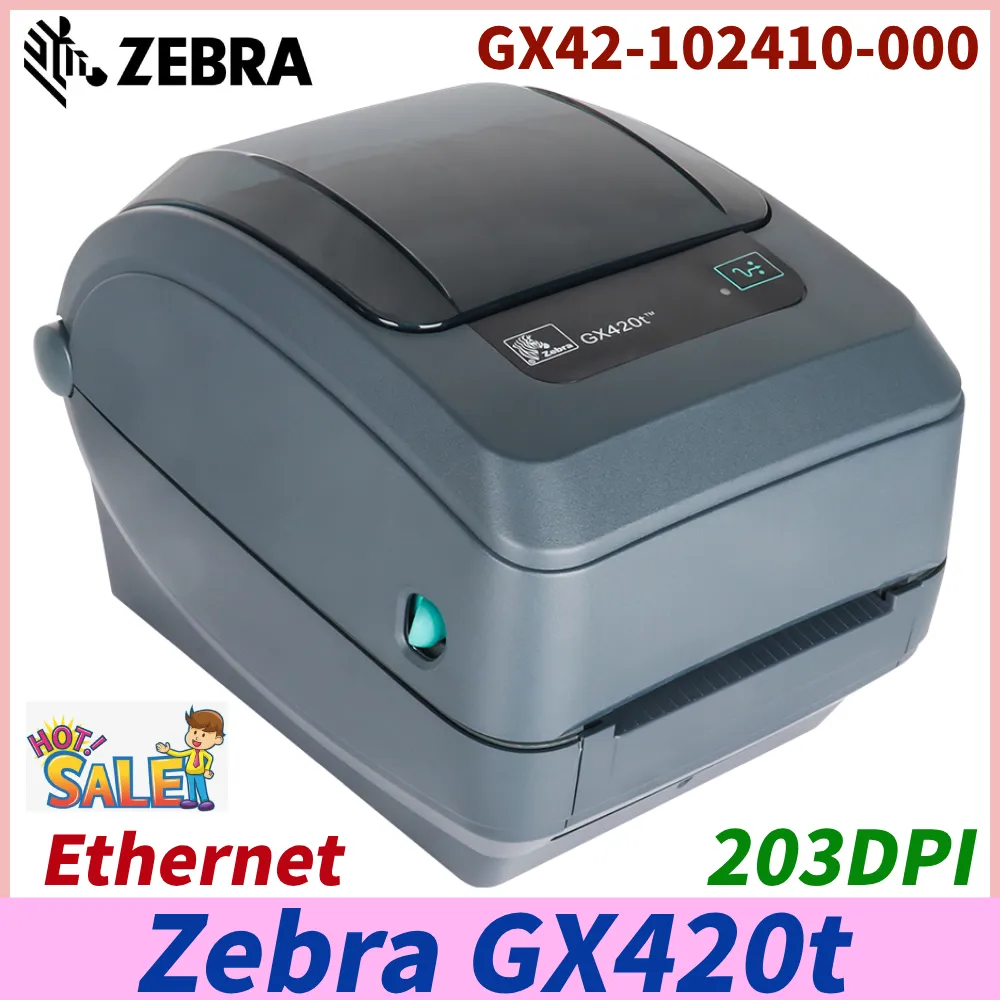

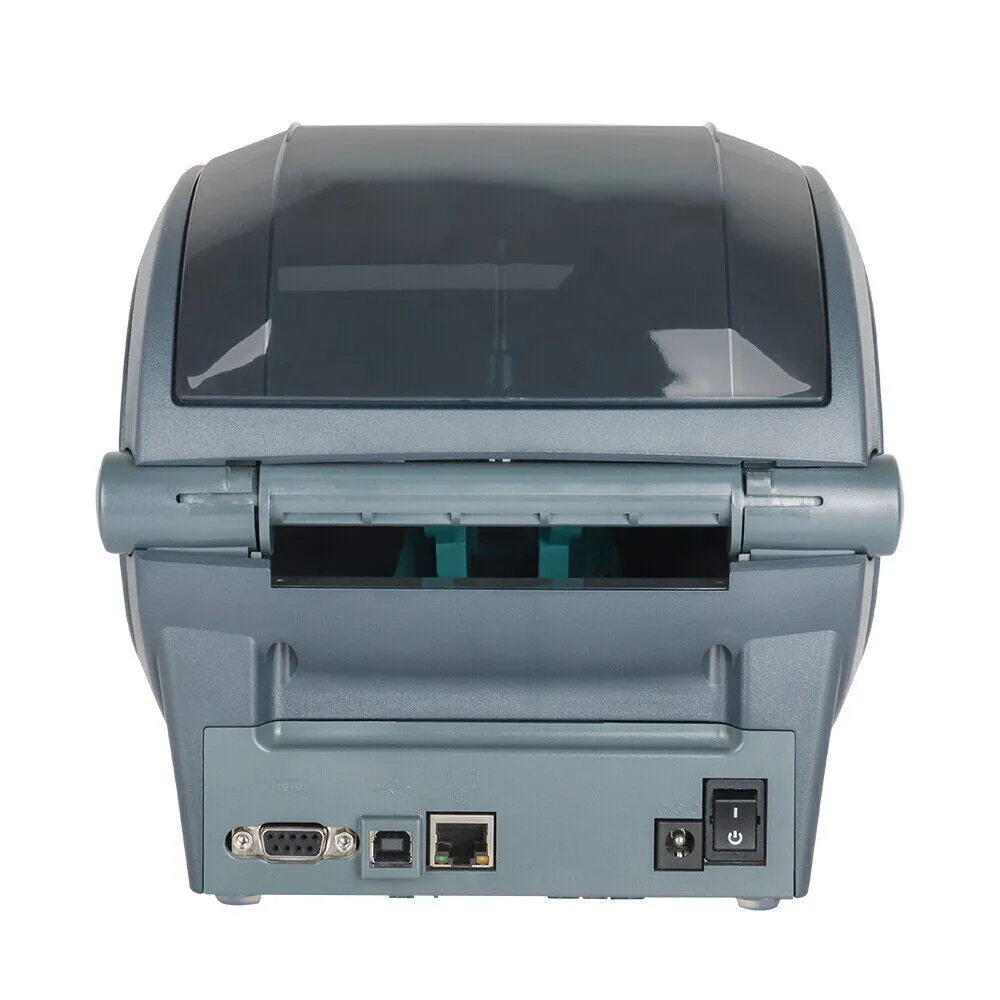

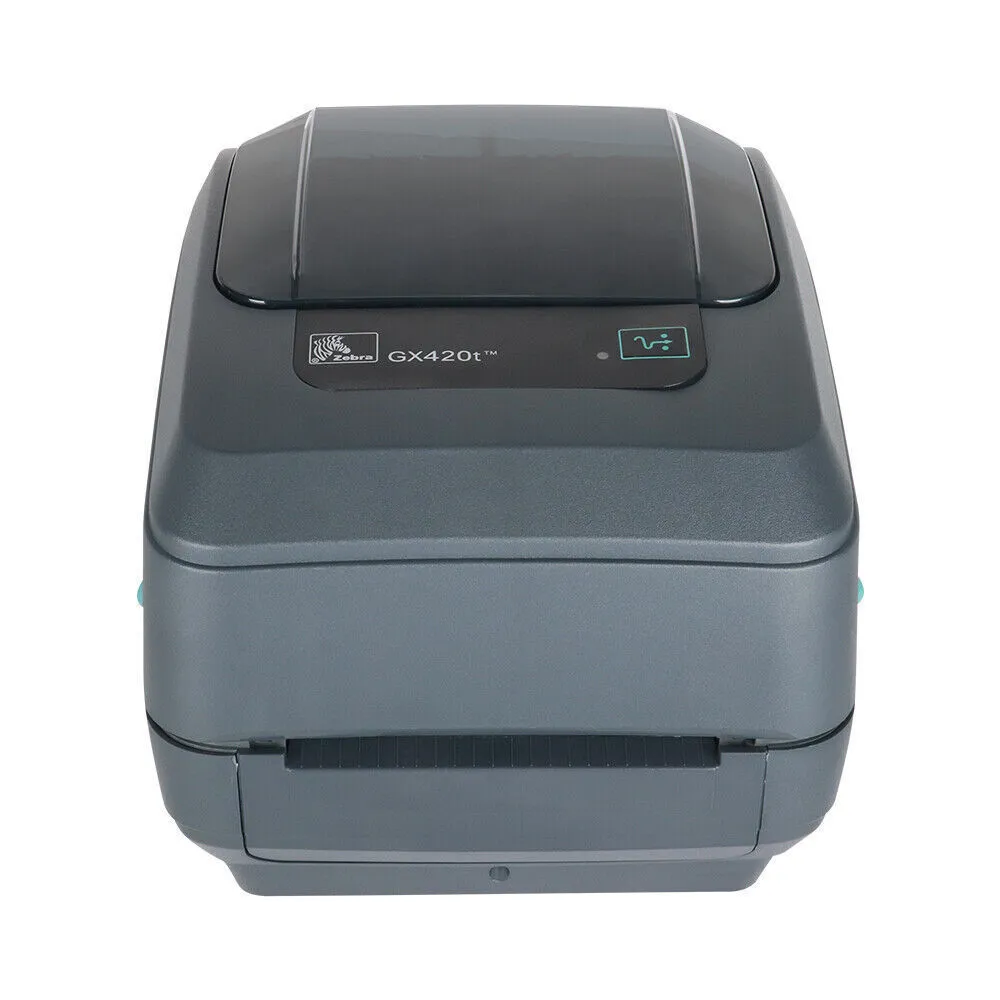

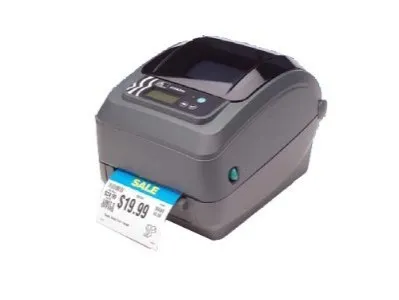

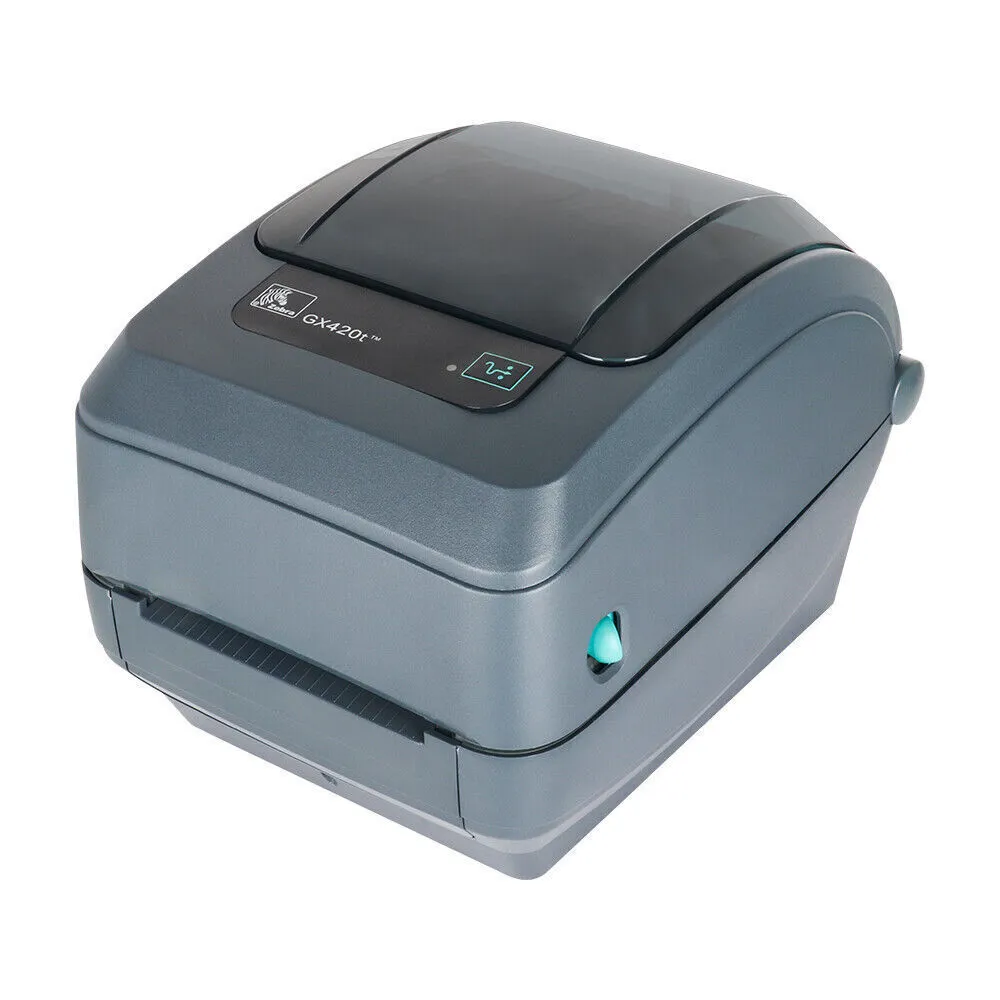

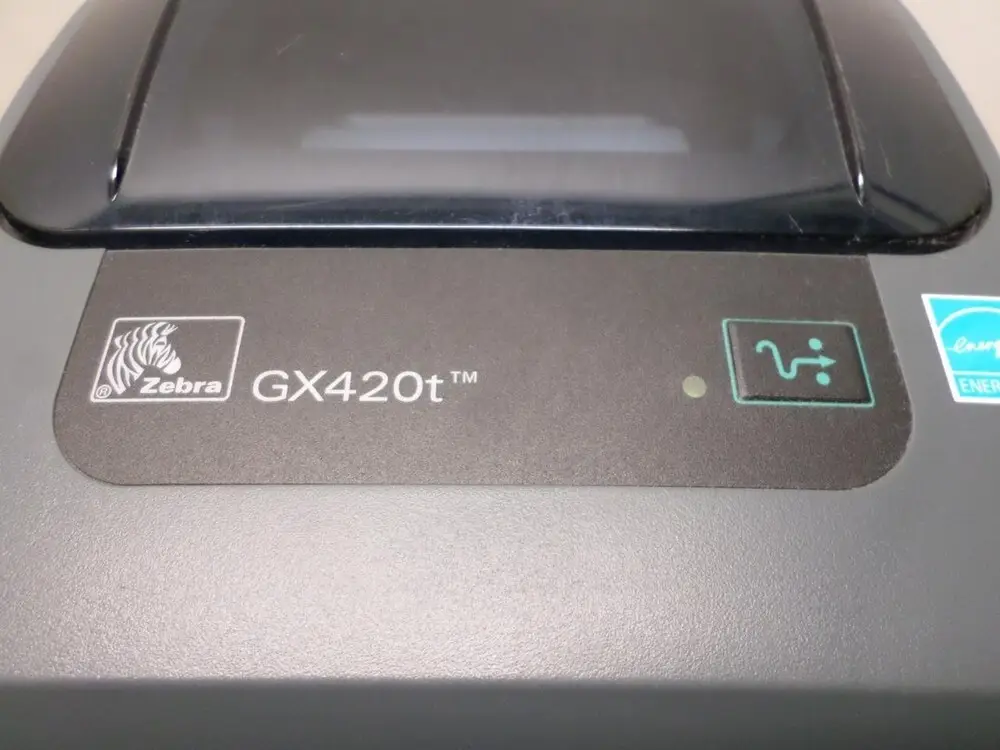

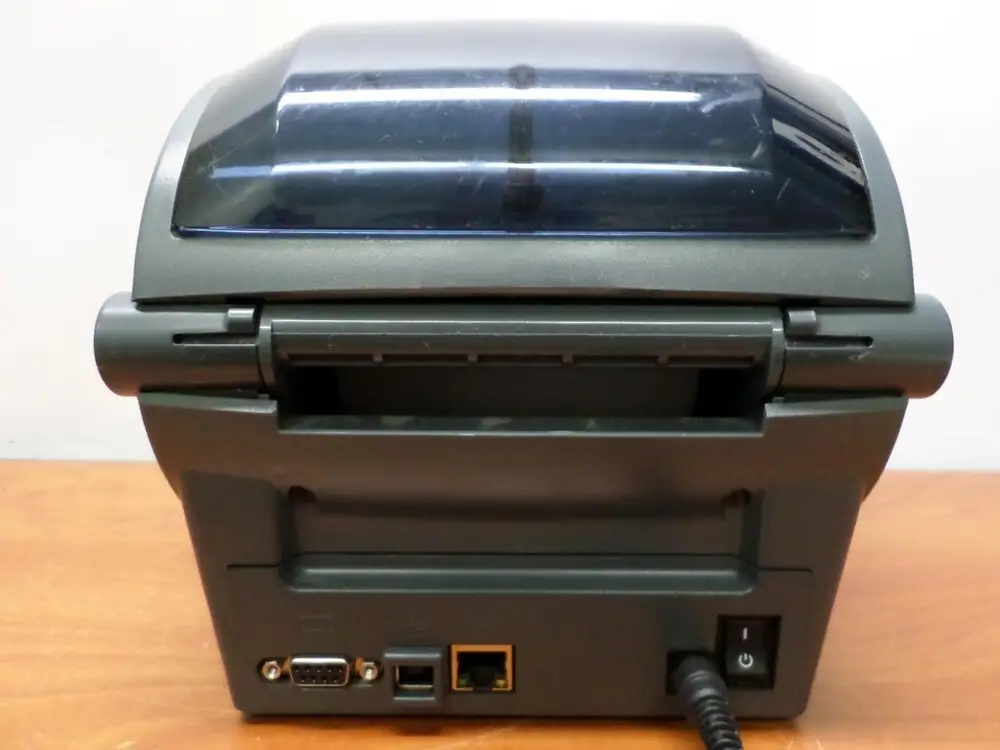

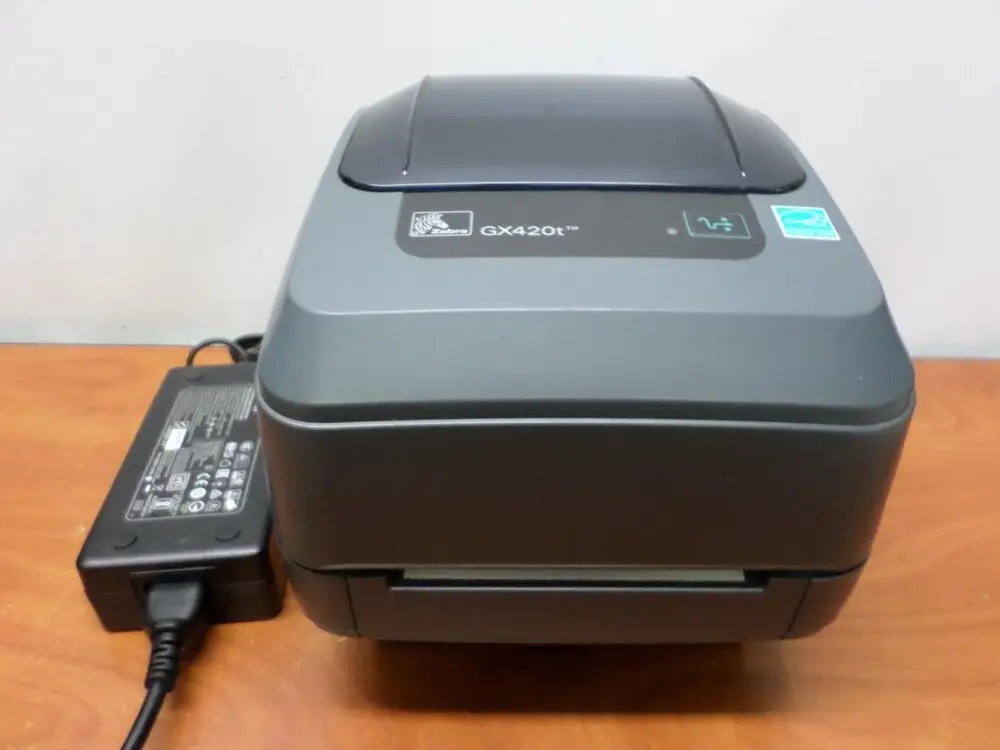

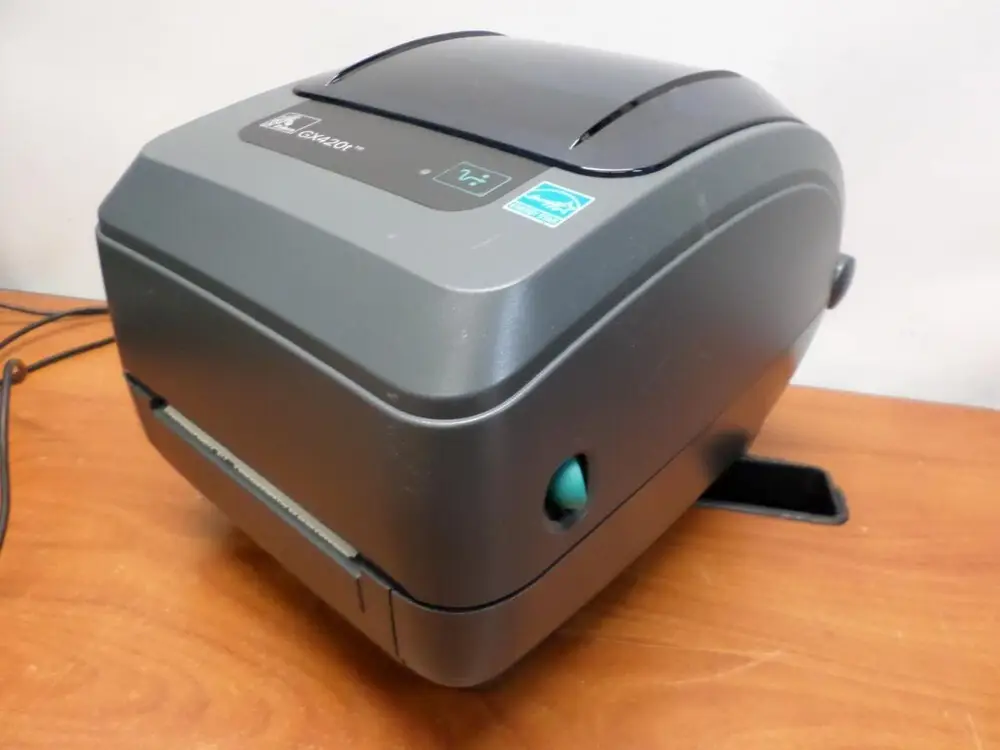

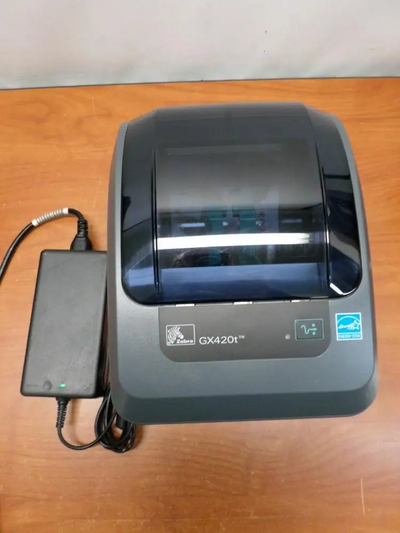

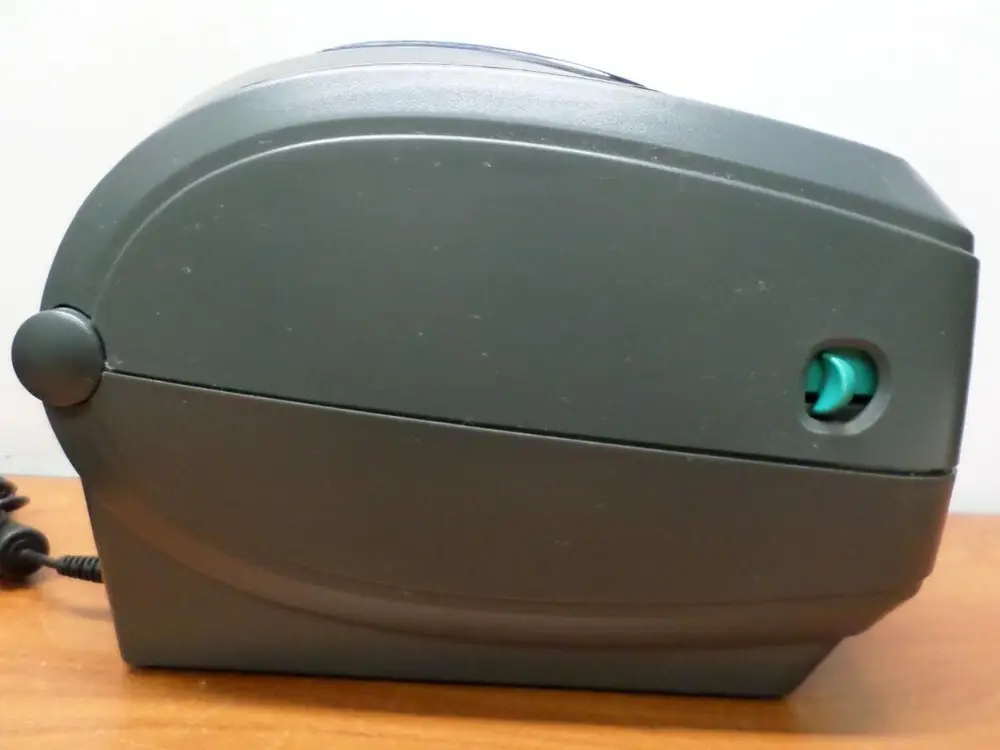

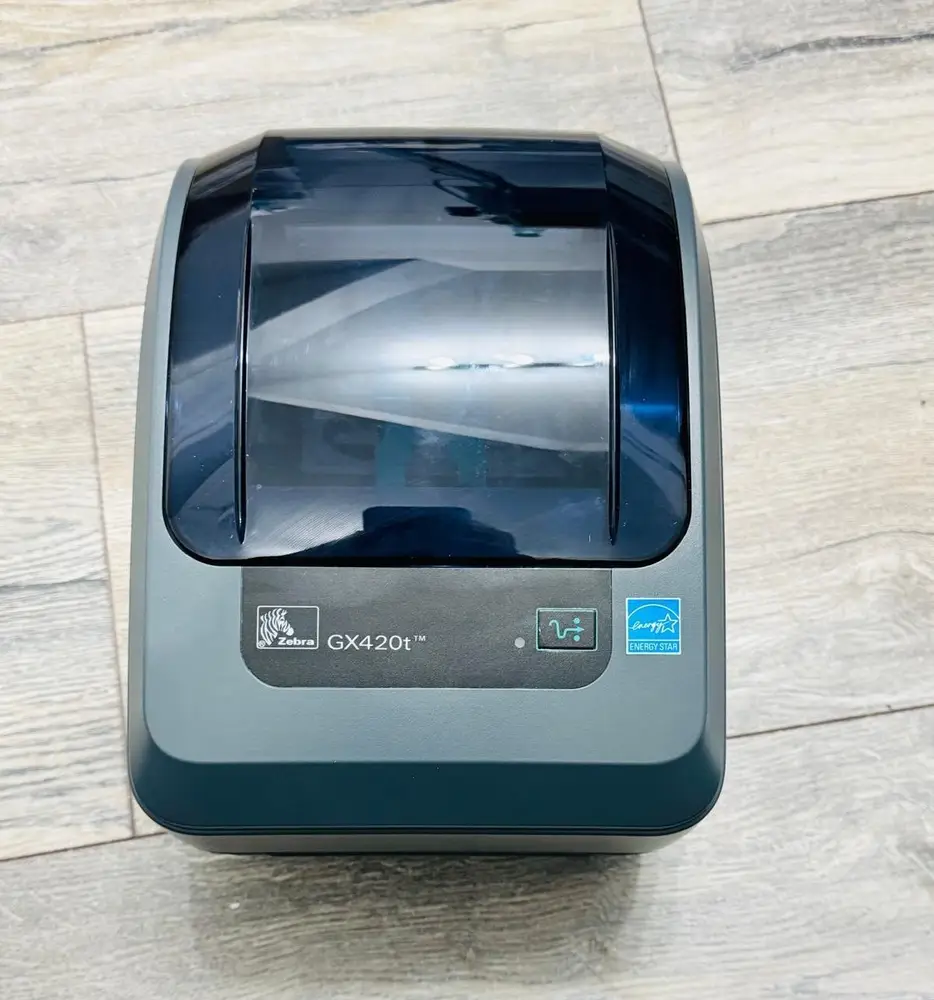

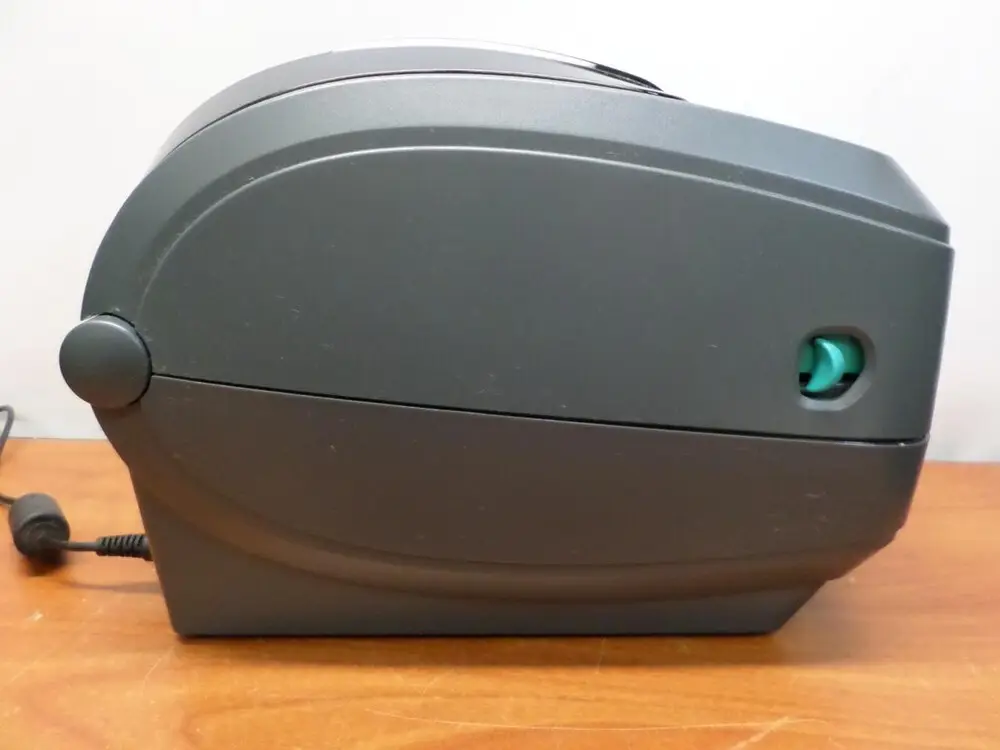

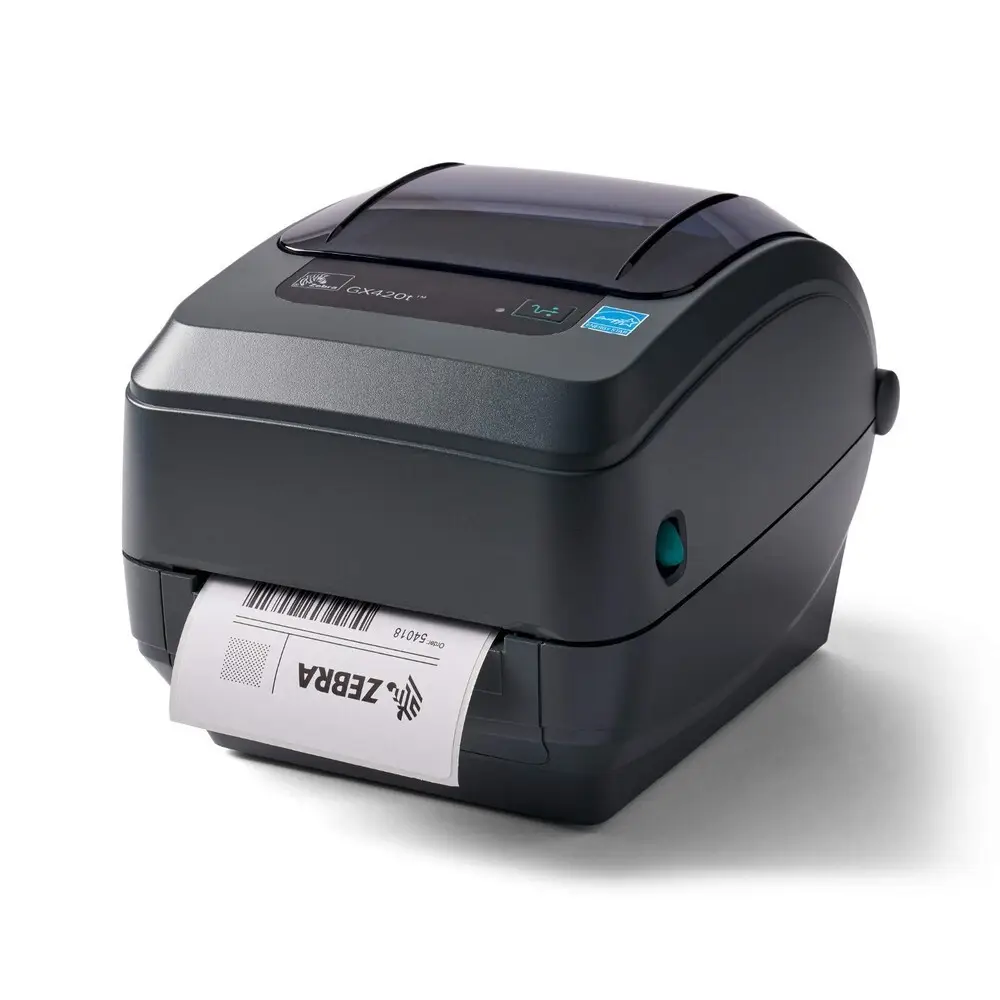

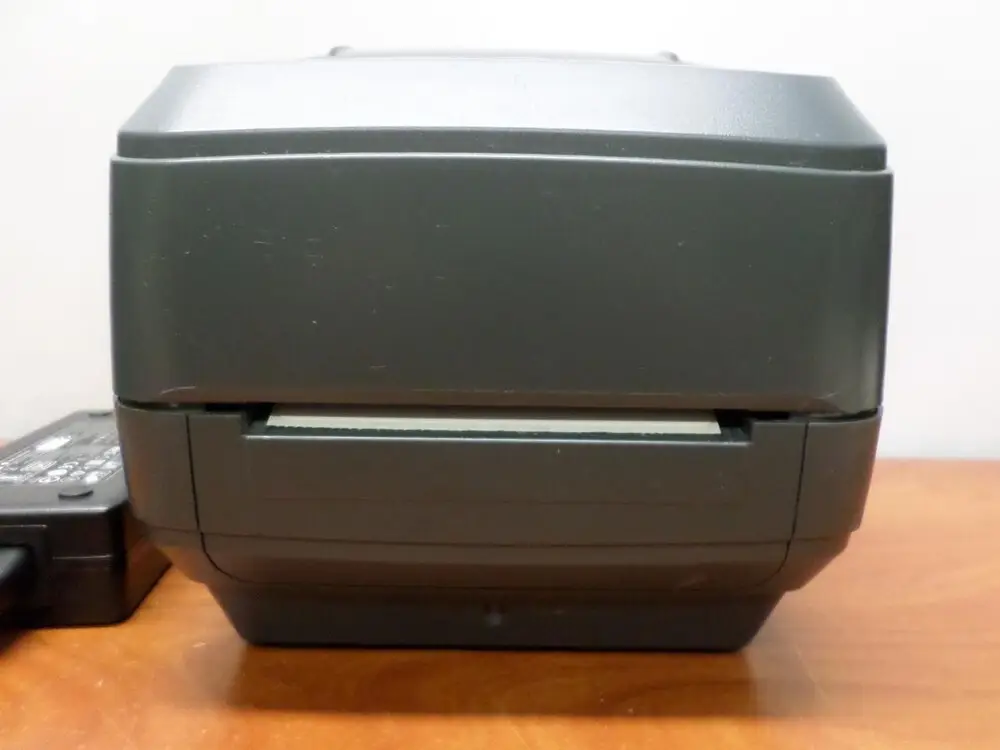

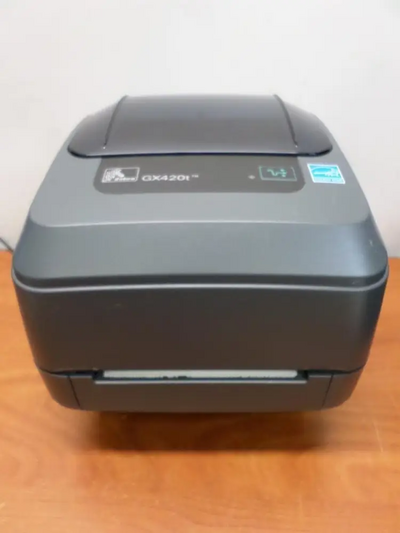

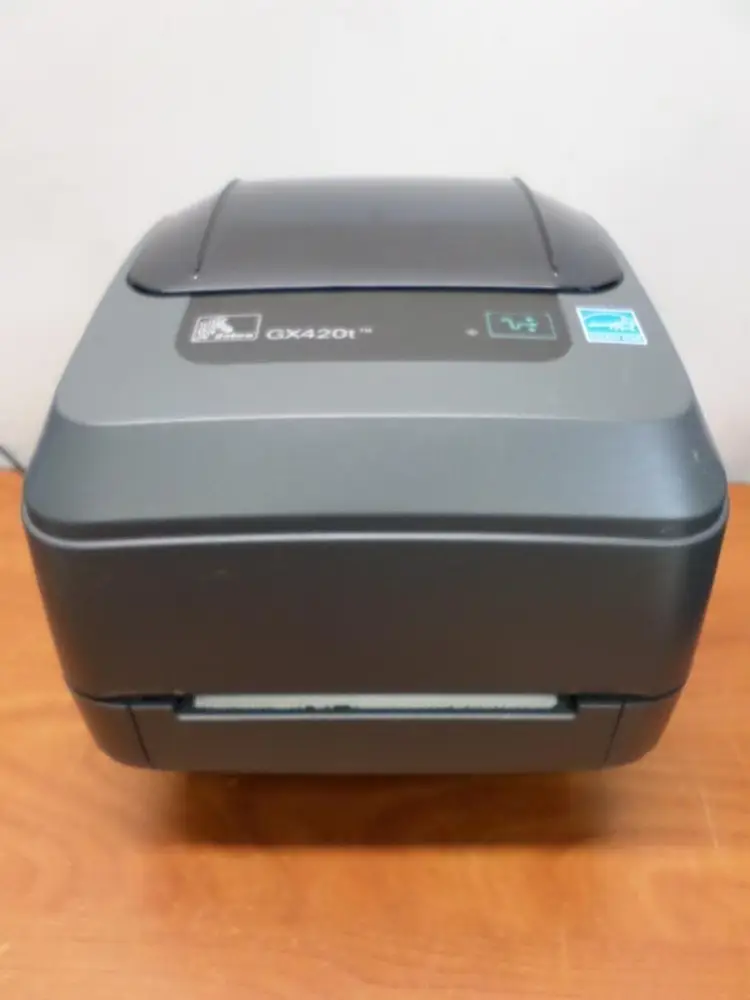

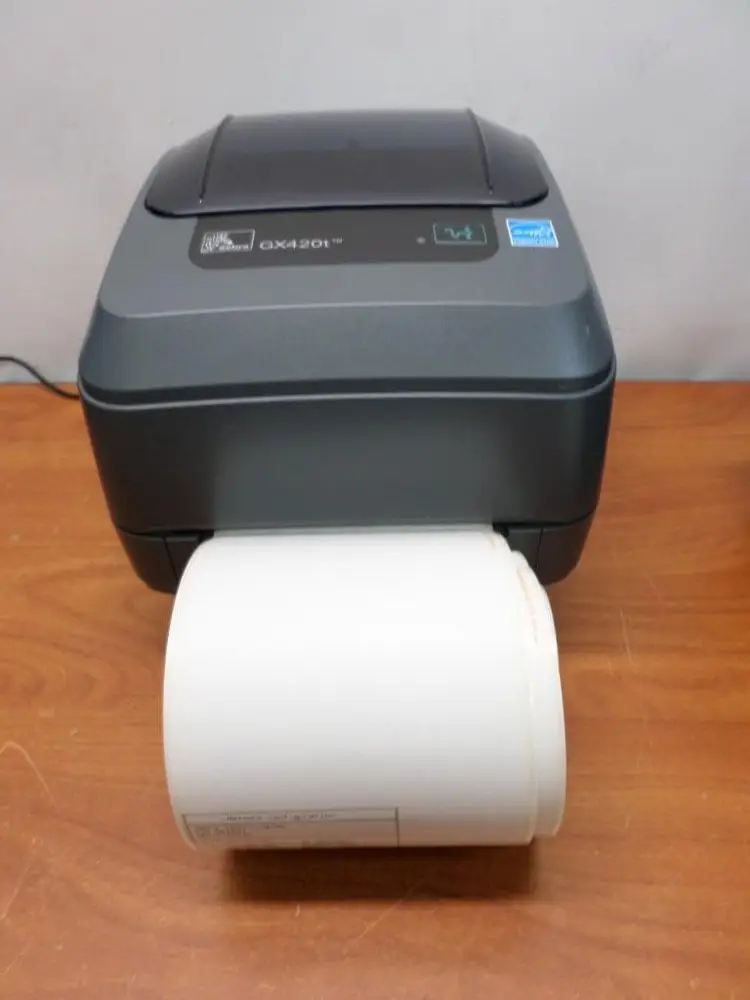

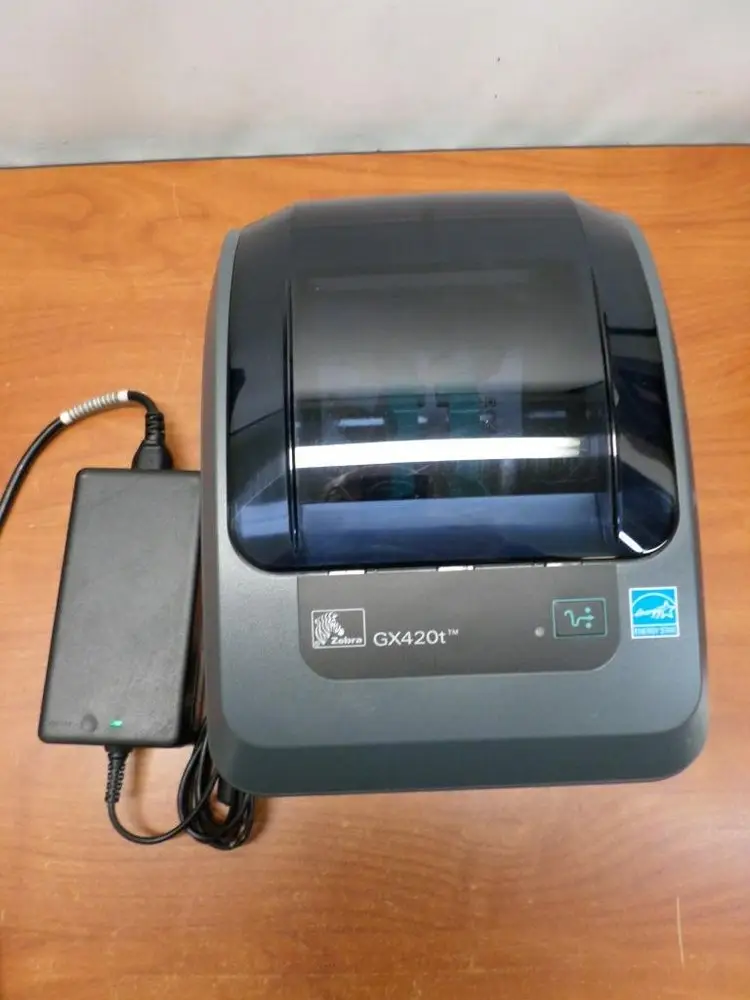

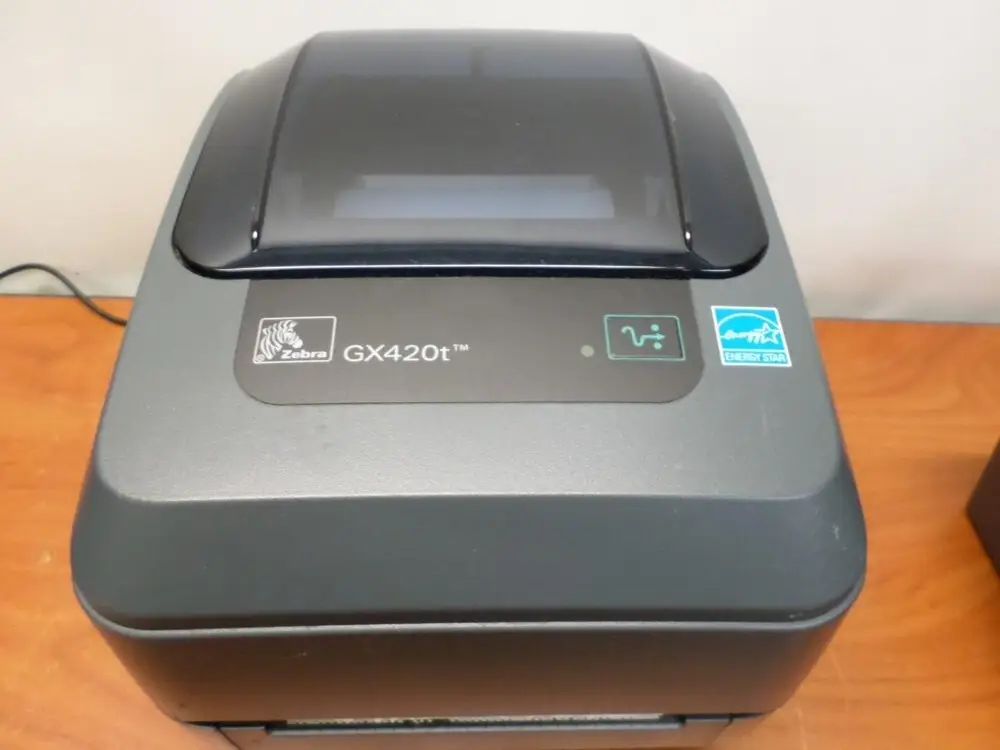

Images
Key Advantages
The Zebra GX420T offers exceptional print clarity at 203 dpi, ensuring sharp and readable barcodes and text.
Its dual printing technology supports both thermal transfer and direct thermal methods, enhancing media versatility.
With multiple connectivity options including USB, serial, and optional Ethernet, it easily integrates with various systems.
The printer supports fast printing speeds up to 6 ips, optimizing operation efficiency.
Its compact design conserves workspace without sacrificing functionality, making it ideal for office and light industrial settings.
The device allows effortless media handling and quick ribbon replacement, reducing downtime.
Limitations
The maximum print resolution of 203 dpi may not meet the requirements of applications needing extremely high detail labels.
Print speed, while adequate for many uses, is slower compared to some newer industrial printers.
Limited built-in connectivity options require purchasing additional adapters for network integration.
Does not support printing wider labels beyond 4.16 inches, restricting certain large-label applications.
Its feature set is focused on mid-range performance, lacking some advanced features found in higher-end models.
Firmware updates and software support may be limited as the model has aged and newer versions are available.
FAQ
What types of labels can the Zebra GX420T print?
The GX420T supports both direct thermal and thermal transfer labels, allowing it to print on a wide variety of materials including paper, synthetic, and coated labels.
Does the Zebra GX420T support network connectivity?
Standard connectivity includes serial and USB ports; optional Ethernet interface is available to enable network connectivity.
What is the maximum print width of the GX420T?
The printer supports a maximum print width of 4.16 inches (106 mm).
Can I use third-party ribbons with the GX420T?
Yes, the GX420T is compatible with many third-party thermal transfer ribbons that meet specified width and length requirements.
Is the Zebra GX420T suitable for high-volume industrial printing?
While capable and reliable for medium volume printing needs, the GX420T is best suited for office and light industrial applications rather than high-volume industrial printing.
What operating systems does the GX420T support?
It supports Windows operating systems including Windows 7, 8, and 10 with the appropriate Zebra printer drivers.
Are there any software tools available for managing the GX420T printer?
Yes, Zebra provides software tools such as Zebra Setup Utilities and Zebra Designer for label design and printer configuration.
