Zebra GX420D-202210-000
Brand | Zebra 2019 |
Model | GX42-211910-0540 |
Released Year | 2019 |
Type | Printers |
Status | Active |
Quick view
Overview

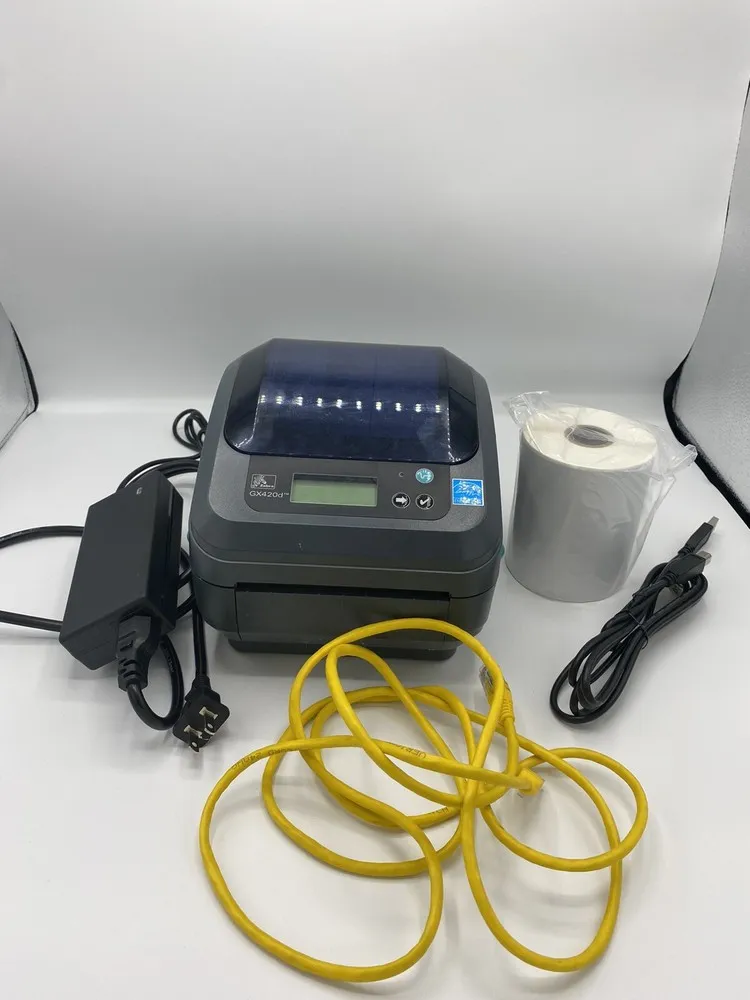

The Zebra GX420D-202210-000 is a direct thermal desktop printer primarily designed for office and small business environments. It offers print resolution of 203 dpi, suitable for clear barcode and label printing. The device supports a print width of up to 4.09 inches and a print speed up to 5 inches per second. It includes connectivity options such as USB 2.0 and optional serial or Ethernet interfaces to ensure versatile integration into various setups. Operating with an ARM-based processor and supporting EPL and ZPL printer languages enhances compatibility with multiple software applications. The device also features a straightforward media handling mechanism that accommodates labels and tags with widths between 0.75 and 4.52 inches.
Specifications
Non-Domestic Product | No |
Input Type | Monochrome |
Output Type | Black & White |
Memory | 512 MB Flash; 256 MB SDRAM |
Custom Bundle | No |
UPC | Does Not Apply |
MPN | GX42-211910-0540 |
Modified Item | No |
Supported Paper Size | A0 (841 x 1189 mm), A6 (105 x 148 mm), A8 (52 x 74 mm) |
Type | Label Printer |
Print Speed (PPM) | 5.0 IPS |
Printer Type | Direct Thermal Desktop Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | GX420D-202210-000 |

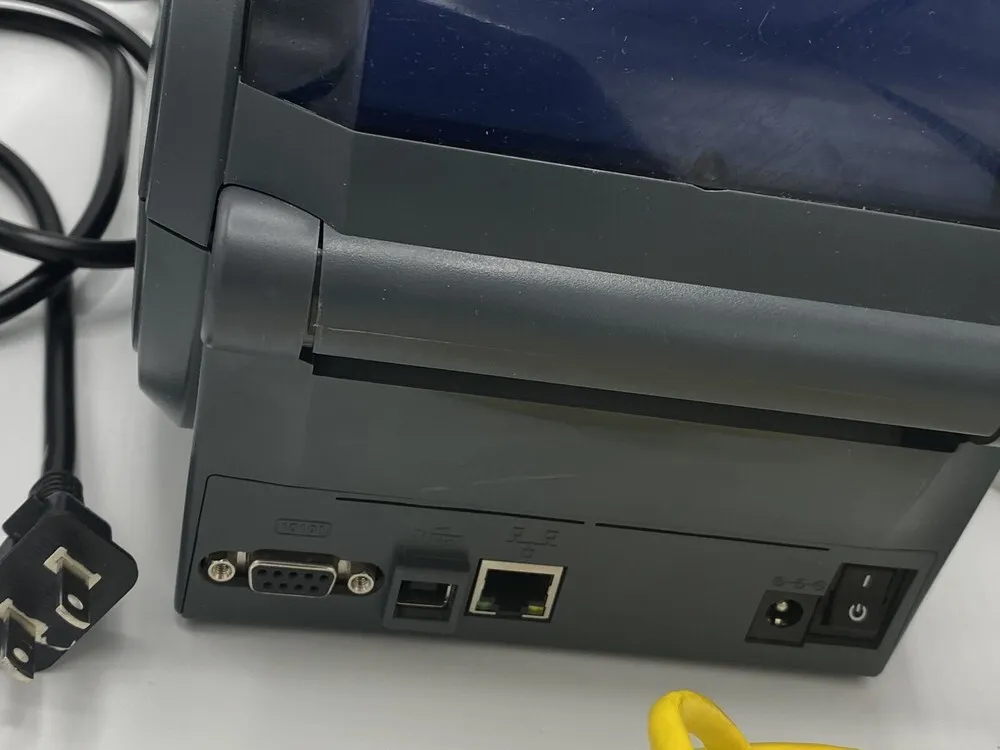

Connectivity | USB 2.0 standard; optional Serial and Ethernet |
Features | Networkable |
Black Print Speed | 5 inch/sec |
Interface | USB, Ethernet |
Product Line | Zebra |
Print Resolution | 203 dpi (8 dots/mm) |
Max Print Width | 4.09 inches (104 mm) |
Max Print Speed | 5 inches per second (127 mm/s) |
Media Types Supported | Labels, tags, receipts |
Media Width | 0.75 to 4.52 inches (19 to 114.8 mm) |
Processor | ARM 32-bit RISC |
Supported Printer Languages | EPL, ZPL |
Dimensions (WxHxD) | 7.2 x 6 x 8 inches (182 x 152 x 203 mm) |
Weight | 3.9 lbs (1.77 kg) |
Power Supply | External 100-240V universal power adapter |
Operating Temperature | 40°F to 105°F (4.4°C to 40.6°C) |
Label Roll Max Diameter | 5 inches (127 mm) |
Images
Key Advantages
The Zebra GX420D delivers reliable thermal printing with minimal maintenance requirements. Its compact design makes it well-suited for limited office space environments. Offering both USB and optional serial or Ethernet connectivity allows flexible integration with various systems. The device's compatibility with EPL and ZPL printer languages simplifies deployment and software integration. Fast warm-up times and consistent print quality enhance operational efficiency. Additionally, the printer's ability to handle a range of label sizes supports diverse office labeling needs.
Limitations
The GX420D is a direct thermal printer, which relies on heat-sensitive media, limiting the lifespan of printed materials compared to thermal transfer printers. It does not include built-in wireless connectivity, potentially restricting mobility or network placement options. The maximum print resolution of 203 dpi may not be sufficient for very fine graphic prints or high-detail labels. Some advanced connectivity features, like Bluetooth or NFC, are not supported on this model. The printer's ribbon holder is not included, as it does not support thermal transfer printing. Additionally, its paper capacity is limited relative to industrial printers, making frequent media changes necessary in high-volume use cases.
FAQ
What types of media does the Zebra GX420D support?
The printer supports direct thermal labels, receipts, and tags with widths between 0.75 and 4.52 inches.
Does the Zebra GX420D include wireless connectivity?
No, the standard model includes USB 2.0 connectivity; Ethernet and serial options are available as add-ons, but wireless is not supported.
What is the maximum print speed of the GX420D?
The maximum print speed is up to 5 inches per second.
Can the GX420D print in high resolutions for detailed graphics?
The printer has a maximum resolution of 203 dpi, which is adequate for barcodes and text but may not be ideal for very detailed graphics.
Is the Zebra GX420D suitable for high-volume industrial printing?
The GX420D is designed for office environments and small to medium volume printing, not for continuous high-volume industrial use.
Does the printer support thermal transfer ribbon?
No, the GX420D is a direct thermal printer and does not use thermal transfer ribbon.
Which printer languages are compatible with the GX420D?
The printer supports EPL and ZPL programming languages for label formatting.
