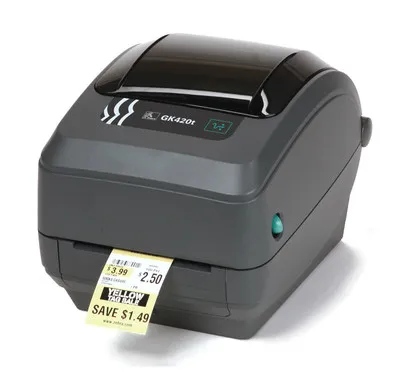

Zebra GK420T (GX42-100410-000)
Brand | Zebra 2007 |
Model | GX42-100410-000 |
Released Year | 2007 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra GK420T (model number GX42-100410-000) is a compact thermal transfer desktop printer designed for reliable label printing in office and industrial applications. It uses direct thermal and thermal transfer printing technologies allowing for durable, high-quality prints on a variety of materials. The printer supports 203 dpi print resolution and print speeds up to 5 inches per second, providing an efficient balance between speed and detail. It connects via USB and optionally serial or parallel ports, supporting comprehensive interface compatibility. The GK420T includes an easy-to-use LCD display and intuitive controls for quick setup and operation. Its durable construction and compact footprint make it suitable for tight workspaces while maintaining high reliability in continuous printing environments.
Specifications
MPN | GX42-100410-000 |
Model | GK420T (GX42-100410-000) |
Technology | Thermal |
Connectivity | Serial (RS-232), Parallel (IEEE 1284), USB 1.0/1.1 |
Output Type | Black & White |
Type | Label Printer |
Extend Printer Technology | Thermal Transfer |
Form Factor | Desktop |
Max Resolution (Bw) | 203DPI |
Black Print Speed | 5in/Sec |
Printer Type | Thermal transfer and direct thermal desktop printer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 5 inches per second (127 mm/sec) |
Maximum Print Width | 4.16 inches (106 mm) |
Memory | 8 MB SDRAM, 4 MB Flash |
Media Types | Continuous, die-cut, tags, wristbands |
Media Width | 0.79 inches to 4.25 inches (20 mm to 108 mm) |
Media Thickness | 0.003 inches to 0.009 inches (0.08 mm to 0.23 mm) |
Media Sensing | Gap, notch, and black mark |
Interface | USB 2.0 standard; optional serial RS-232 and parallel |
Dimensions | 7.8" W x 7.0" H x 10.8" D (198 mm x 178 mm x 275 mm) |
Weight | Approx. 6 pounds (2.7 kg) |
Power Supply | External universal power supply (100-240V AC) |
Operating Environment | 40°F to 105°F (4.4°C to 40.5°C), 10-90% non-condensing humidity |
Fonts and Graphics | Monotype font engine with Unicode support |
Emulations | Zebra programming language (ZPL), EPL |
LCD Display | One-line LCD for status and configuration |
Compliance | FCC, CE, RoHS compliant |
Images
Key Advantages
The GK420T offers fast print speed delivering up to 5 inches per second, ideal for business-critical applications. It provides sharp 203 dpi resolution for clear, professional labels and barcodes. Flexible media handling supports a wide range of label sizes and types including continuous, die-cut, and tags. The printer supports both direct thermal and thermal transfer printing, enhancing material versatility and print durability. Its compact and lightweight design saves valuable desk space in office or retail environments. Additionally, Zebra's reliable build quality ensures consistent printing performance and minimal downtime.
Limitations
The GK420T has a limited maximum print width of 4.16 inches, which may not accommodate larger labeling needs. Its maximum print speed, while sufficient for many tasks, is slower compared to some industrial printers. The 203 dpi resolution might be inadequate for extremely fine print details or high-density barcode requirements. Media handling capacity is limited to smaller rolls compared to larger industrial printers, requiring more frequent media changes. Some users may find the absence of wireless connectivity limiting, as the standard model relies on USB or optional serial/parallel interfaces. Additionally, it may lack advanced networking or software features found in more modern or high-end models.
FAQ
What types of printing technology does the Zebra GK420T support?
The Zebra GK420T supports both direct thermal and thermal transfer printing technologies.
What is the maximum print resolution of the GK420T?
The printer provides a print resolution of 203 dpi (dots per inch).
Can the GK420T print on different types of media?
Yes, it supports a variety of media types including continuous labels, die-cut labels, tags, and wristbands.
What connectivity options are available on the GK420T?
Standard connectivity includes USB, with optional serial and parallel interfaces available.
Is the Zebra GK420T still in production?
No, the GK420T model has been discontinued.
What is the maximum print speed of the GK420T?
The printer can print at speeds up to 5 inches per second.
Does the GK420T support wireless printing?
No, this model does not natively support wireless connectivity.
