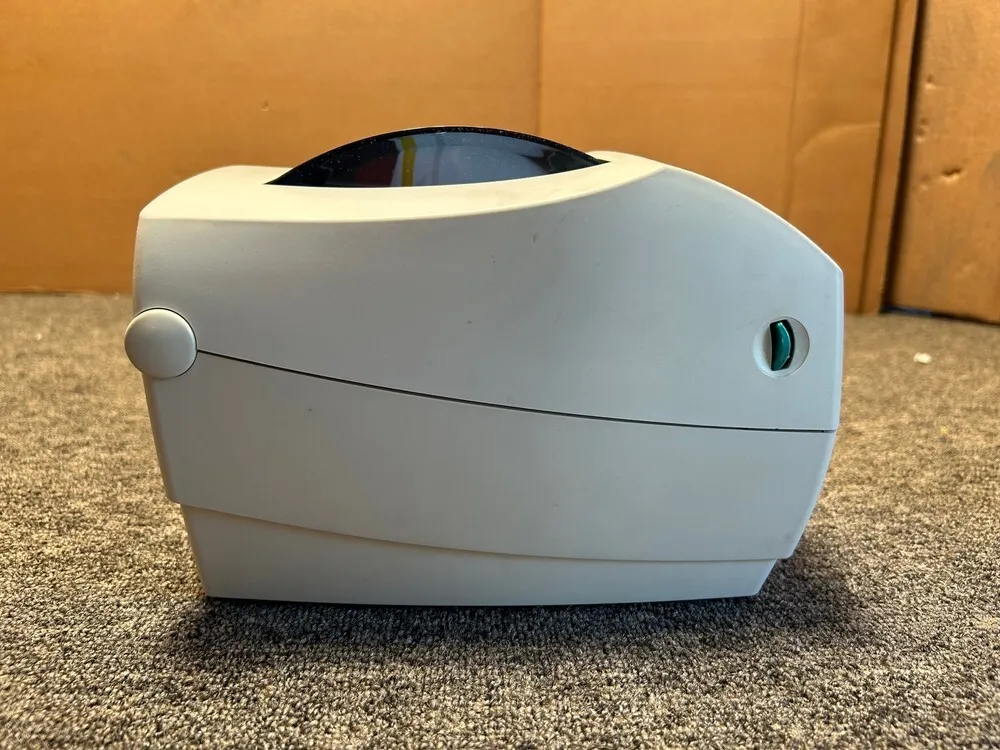

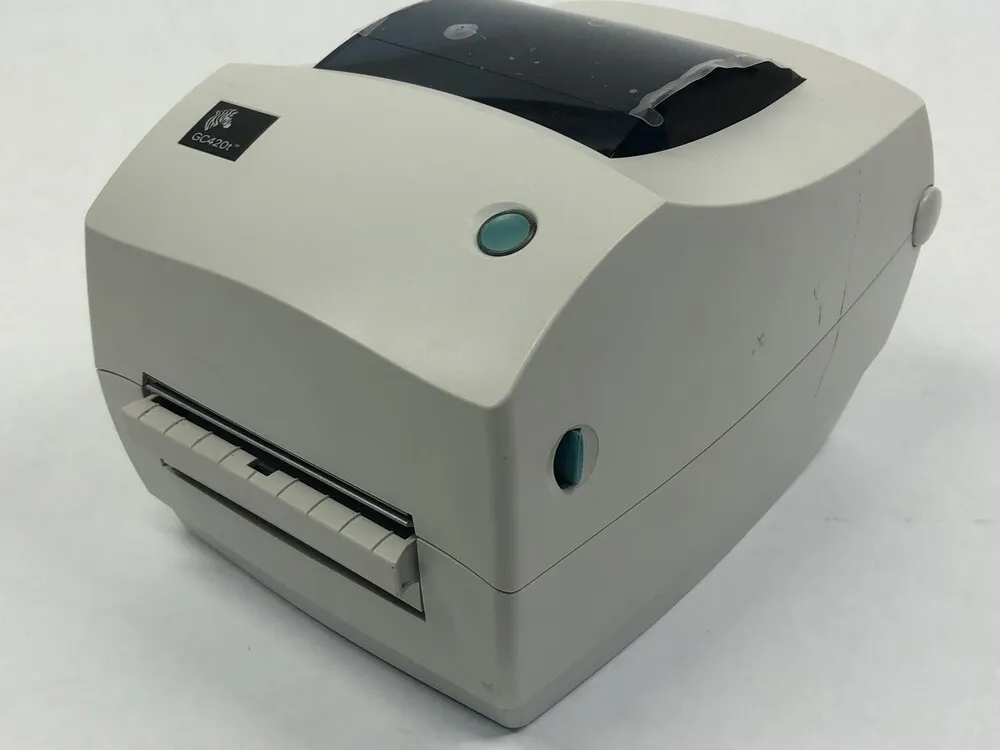

Zebra GC420T image

Zebra GC420T

Quick information
Brand Zebra 2005
Model GC420T
Released Year 2005
Type Printers
Printing Technology Thermal Transfer and Direct Thermal
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra GC420T is a compact thermal transfer printer designed for basic barcode label printing needs. It utilizes thermal transfer technology which involves a ribbon to transfer ink onto labels, providing durable and long-lasting prints. The printer supports a print resolution of 203 dpi, making it suitable for standard barcode and labeling applications. Connectivity options include USB and serial interfaces, ensuring compatibility with various desktop setups. The media handling capabilities include print widths up to 4.16 inches and media types like continuous, die-cut, and black mark labels. Its compact form factor and ease of use make it ideal for small to medium volume printing environments.

Specifications

Input Type Monochrome
Type Label Printer
Technology Thermal
Memory 8 MB SDRAM, 4 MB Flash
Output Type Black & White
Maximum Resolution NA
Model GC420T

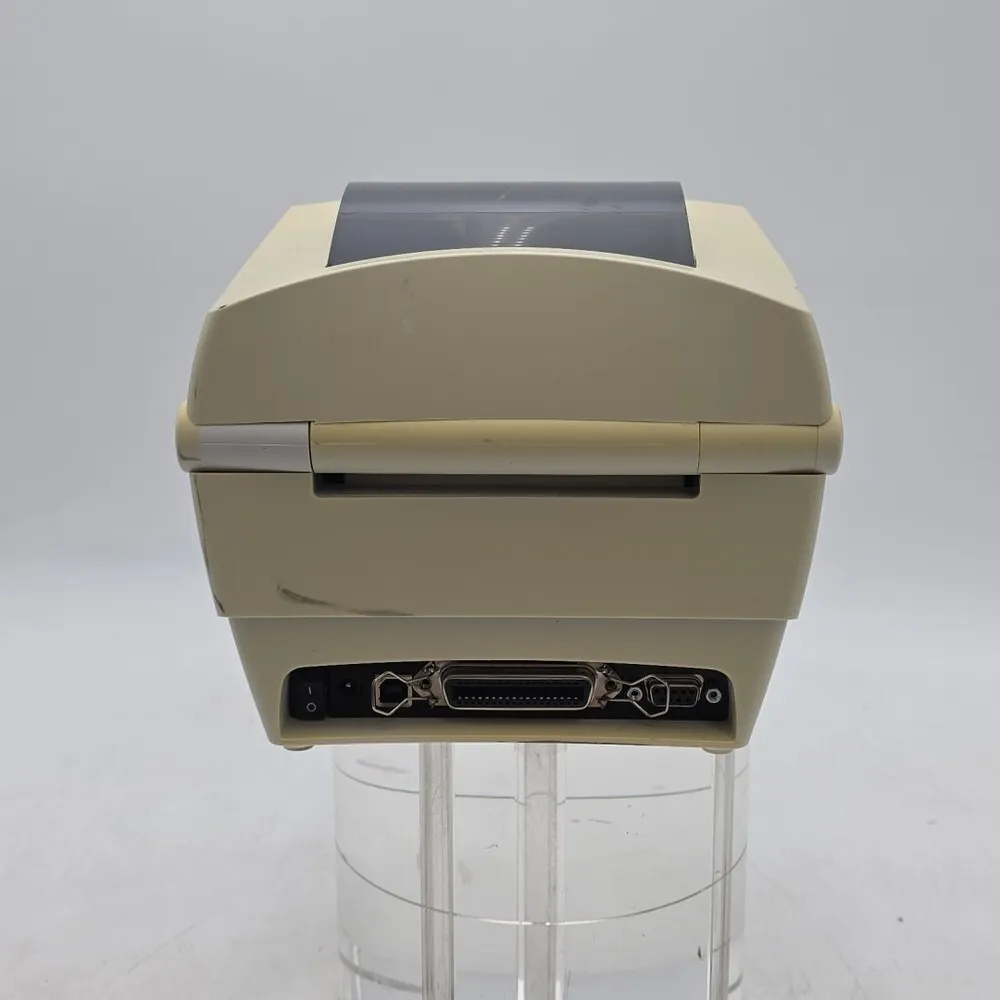

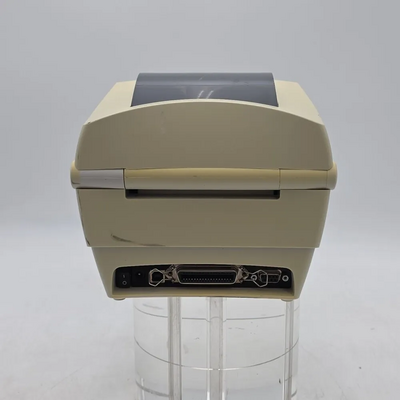

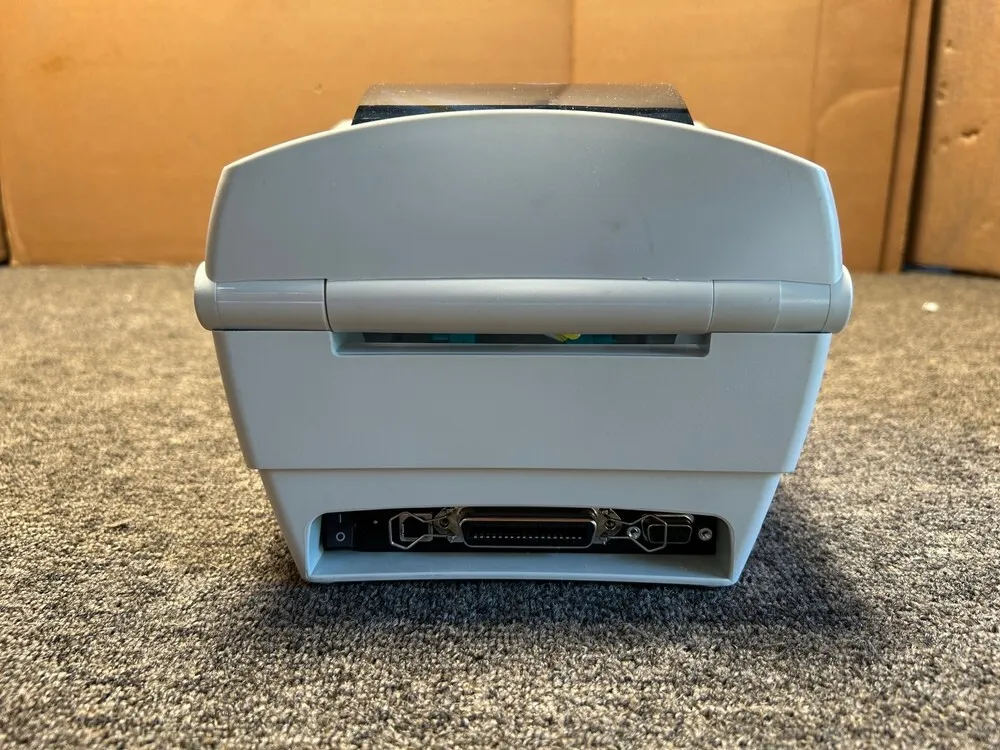

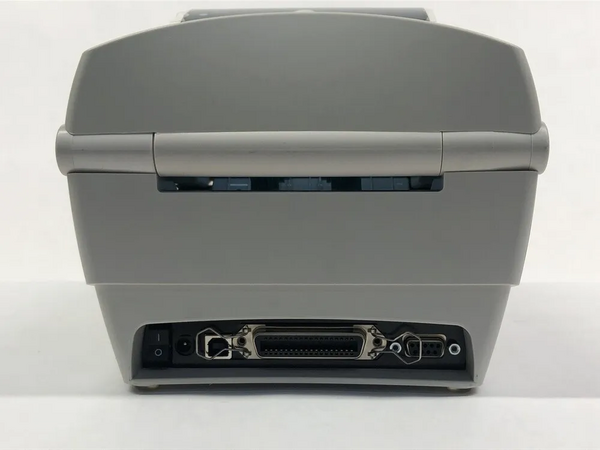

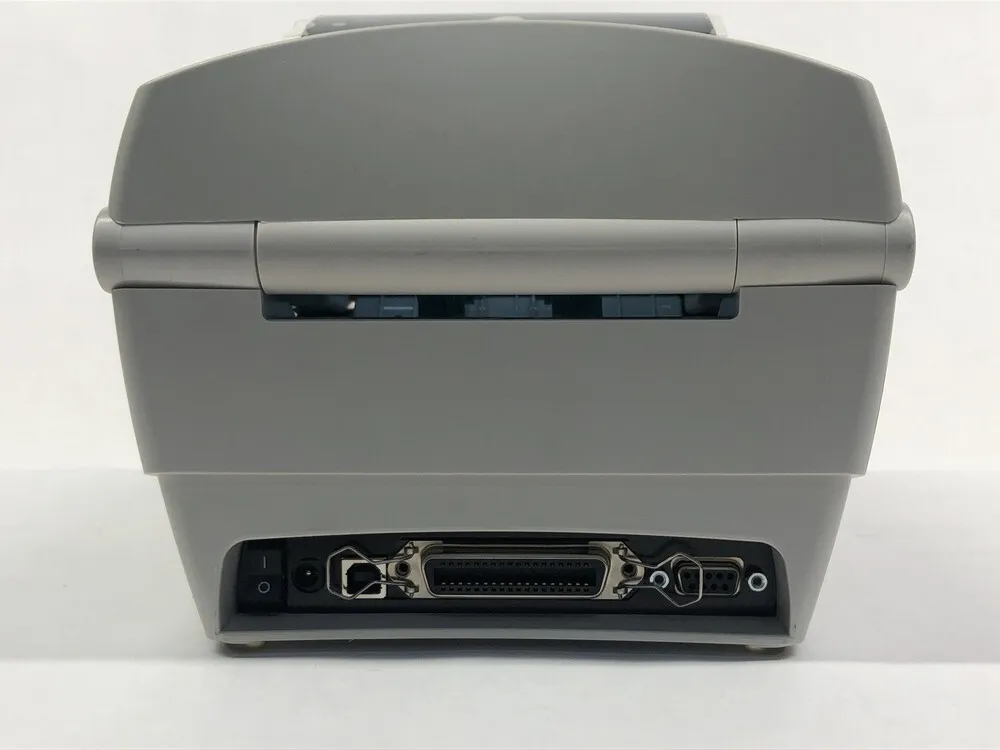

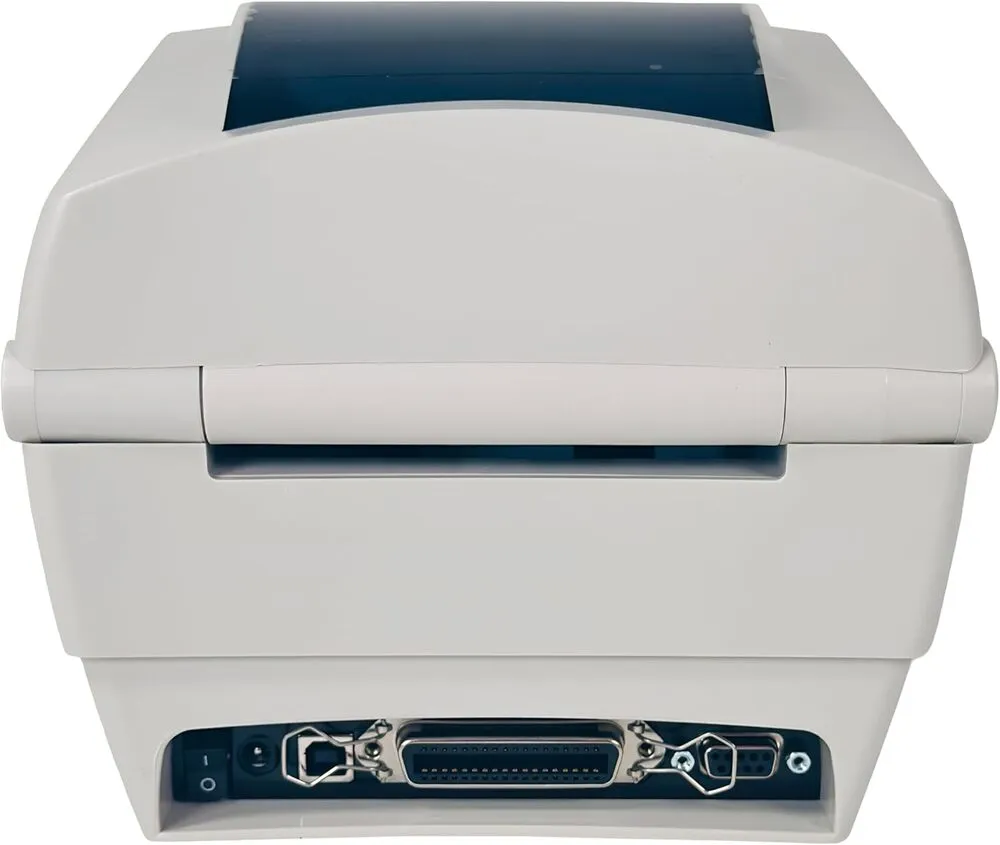

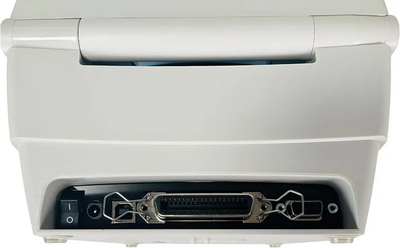

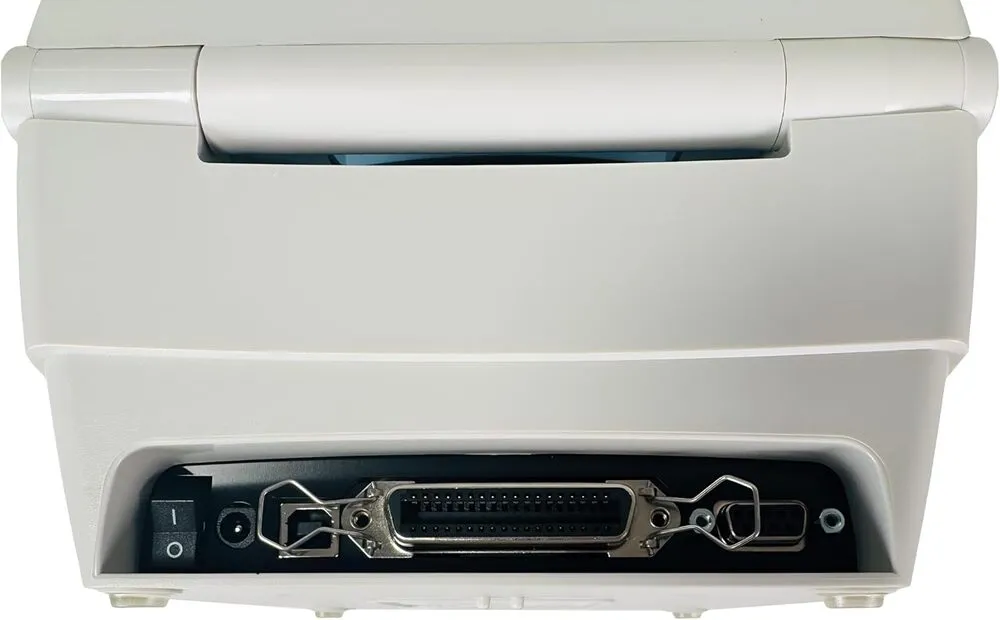

Connectivity Parallel (IEEE 1284), Serial (RS-232)
MPN GC420T
Features Print
Black Print Speed NA
Printing Technology Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 4.16 inches (105.7 mm)
Print Speed Up to 4 inches per second
Interfaces USB 1.1, RS-232 Serial
Media Types Continuous, die-cut, notch, black mark labels, tags
Media Width 1.00 to 4.41 inches (25.4 to 112 mm)
Media Thickness 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm)
Ribbon Type Wax, wax/resin (thermal transfer only)
Ribbon Width 1.57 to 4.33 inches (40 to 110 mm)
Ribbon Length Up to 300 meters
Dimensions (WxHxD) 7.9 x 6.75 x 10 inches (200 x 171 x 254 mm)
Weight 5.38 lbs (2.44 kg)

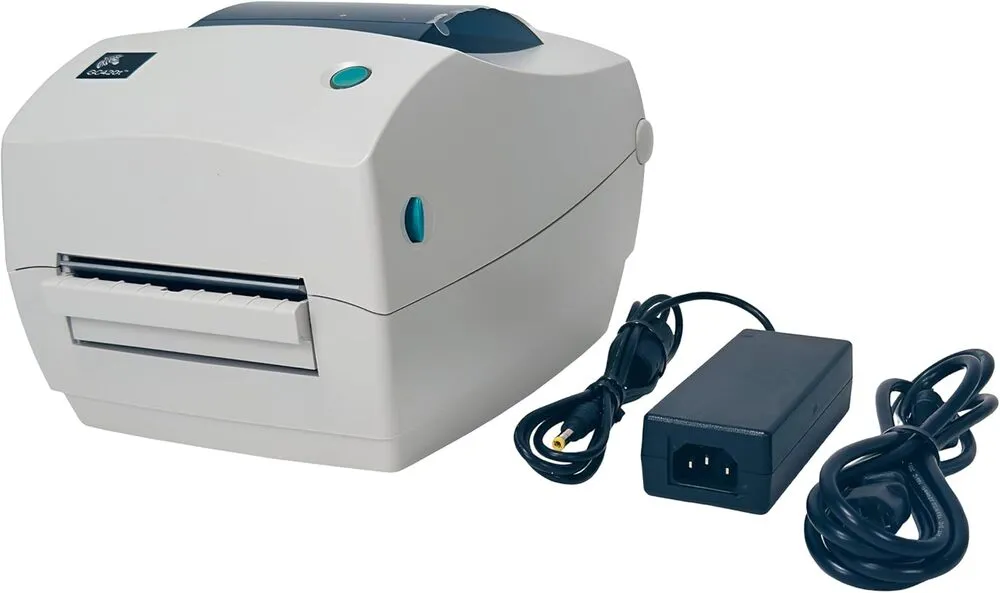

Power Supply External 100-240VAC, 50-60 Hz
Operating Temperature 40°F to 105°F (5°C to 40°C)
Storage Temperature -40°F to 140°F (-40°C to 60°C)
Operating Humidity 10-90% non-condensing
Emulations ZPL, EPL compatible

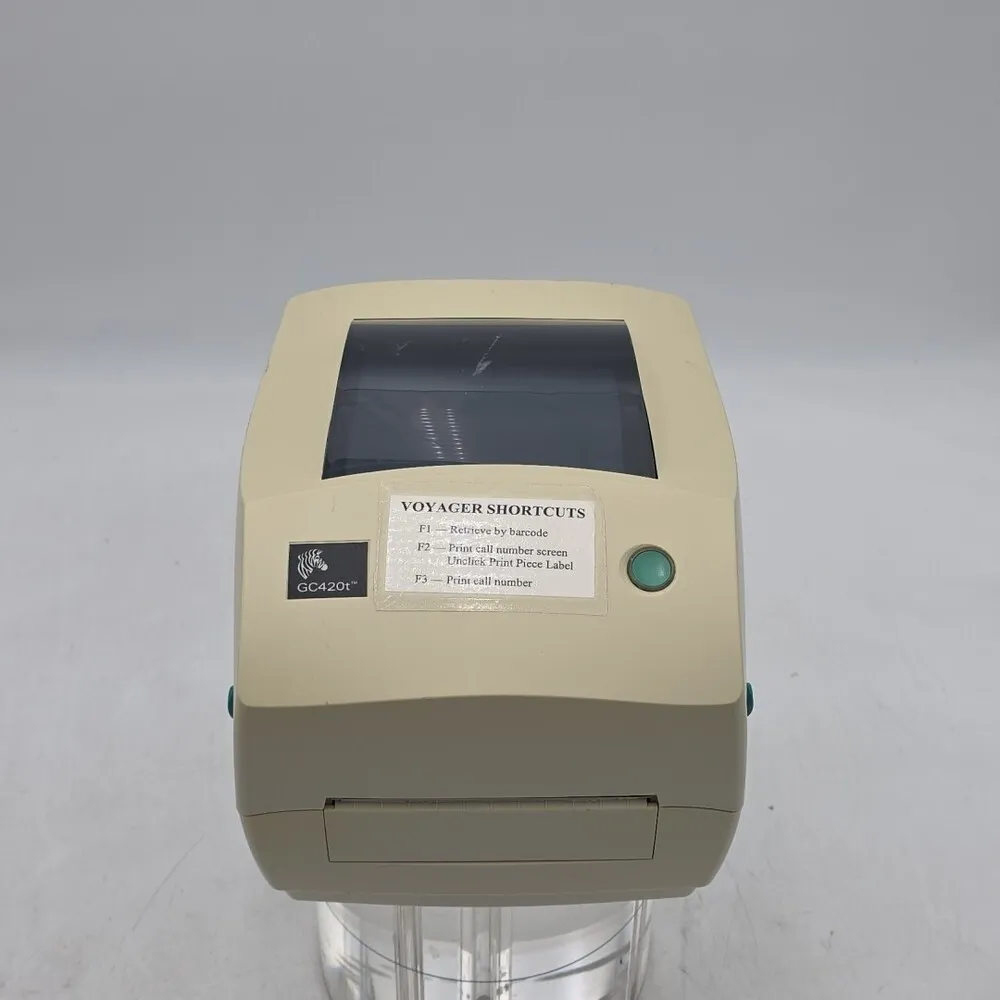

Control Panel 3 LED Indicators, 1 button

Key Advantages

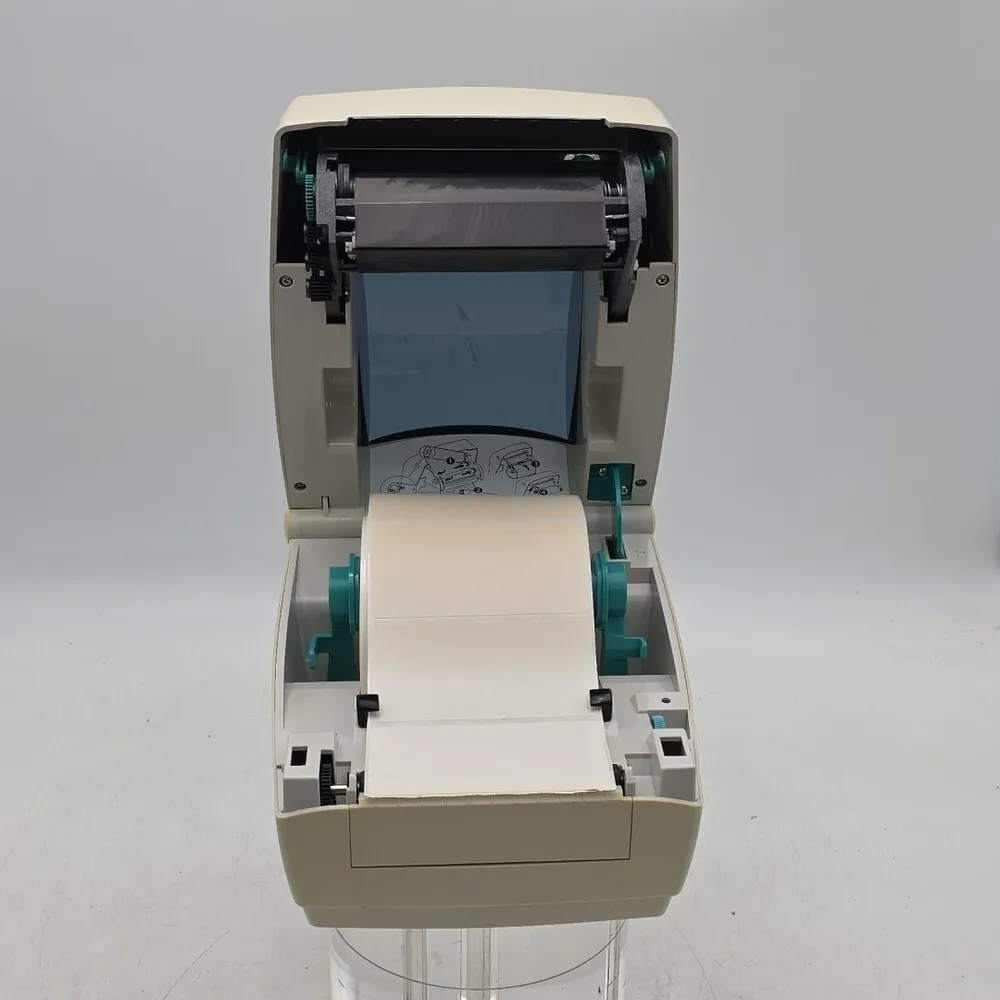

The Zebra GC420T offers reliable thermal transfer printing for durable label output. It supports a variety of media types and widths, enhancing versatility in labeling applications. The printer has a compact design that fits easily on crowded workspaces. Its driver and software support simplifies integration with different operating systems. The print speed is adequate for small to medium batch jobs, allowing efficient workflow. Low maintenance and straightforward ribbon loading make it user-friendly and reduce downtime.

Limitations

The GC420T is limited to a 203 dpi resolution, which may not meet the needs of high-resolution graphic labels. It lacks advanced connectivity options such as wireless or Ethernet interfaces. The print speed might be insufficient for high volume industrial demands. It does not offer an LCD control panel, making configuration slightly less intuitive. Media capacity is limited, requiring frequent reloading for continuous printing tasks. Additionally, it is not ideal for printing color labels as it supports only monochrome thermal transfer printing.

FAQ

The Zebra GC420T uses thermal transfer printing technology, which uses a heated ribbon to produce durable printed labels.

The maximum print width supported by the GC420T is 4.16 inches (approximately 105.7 mm).

The GC420T supports USB and serial connections, which are compatible with most desktop computers but lacks wireless or Ethernet connectivity.

No, the Zebra GC420T has been discontinued and is no longer in production.

It offers a print resolution of 203 dpi, suitable for standard barcode and text printing.

No, the GC420T supports only monochrome thermal transfer printing; it does not print in color.

Replacement parts, ribbons, and accessories are available through authorized Zebra resellers and some third-party suppliers specializing in Zebra printers.
