Zebra GC420-100510-000
Brand | Zebra 2010 |
Model | GC420-100510-000 |
Released Year | 2010 |
Type | Printers |
Series | 420 |
Item Weight | 1 pounds |
Maximum Media Size | 4.25 inches |
Product Dimensions | 10 x 13.7 x 10.6 inches |
Status | Discontinued |
Quick view
Overview
The Zebra GC420-100510-000 is a thermal transfer and direct thermal desktop printer designed primarily for low to mid-volume label printing tasks in office and industrial environments. It supports widely used print widths and provides resolutions typically around 203 dpi to ensure clear barcode and text output. The printer integrates with various connectivity options including USB and serial ports, enhancing compatibility with multiple host devices. It utilizes Zebra’s EPL and ZPL programming languages, making it flexible for diverse application scenarios. The device is compact with a rugged design, engineered for reliable operation and low maintenance. Additionally, it supports a range of media types such as continuous, die-cut, and black mark labels to accommodate different labeling needs.
Specifications
Maximum Media Size | 4.25 inches |
Power Consumption | 70 Watts |
Included Components | Media rolls, Thermal ribbon, User manual |
Print media | Labels |
Scanner Type | Sheetfed |
Max Input Sheet Capacity | 11 |
Max Copy Speed (Black & White) | 4 ppm |
Compatible Devices | PC |
Sheet Size | 4.25 inches |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | 90 days limited warranty |
Dual-sided printing | No |
Wattage | 70 watts |
Max copy resolution black-white | 203 dpi |
Duplex | Simplex |
Hardware Interface | USB |
Ink Color | White |
Resolution | 203 x 203 DPI |
Additional Printer functions | Print Only |
Control Method | Remote |
Series Number | 420 |
Number of USB 2 Ports | 1 |
Total USB Ports | 1 |
UPC | 641817205372 132017850405 780742487085 783555015919 024606557669 090952184859 682017480428 |
Memory Storage Capacity | 8 MB |
Manufacturer | ZEBRA |
Item Weight | 1 pounds |
Product Dimensions | 10 x 13.7 x 10.6 inches |
Item model number | GC420-100510-000 |
Is Discontinued By Manufacturer | No |
Manufacturer Part Number | GC420-100510-000 |
National Stock Number | 7490-01-619-3665 |
Date First Available | October 6, 2010 |
Printer Type | Thermal Transfer / Direct Thermal Desktop Printer |
Print Resolution | 203 dpi (8 dots/mm) |

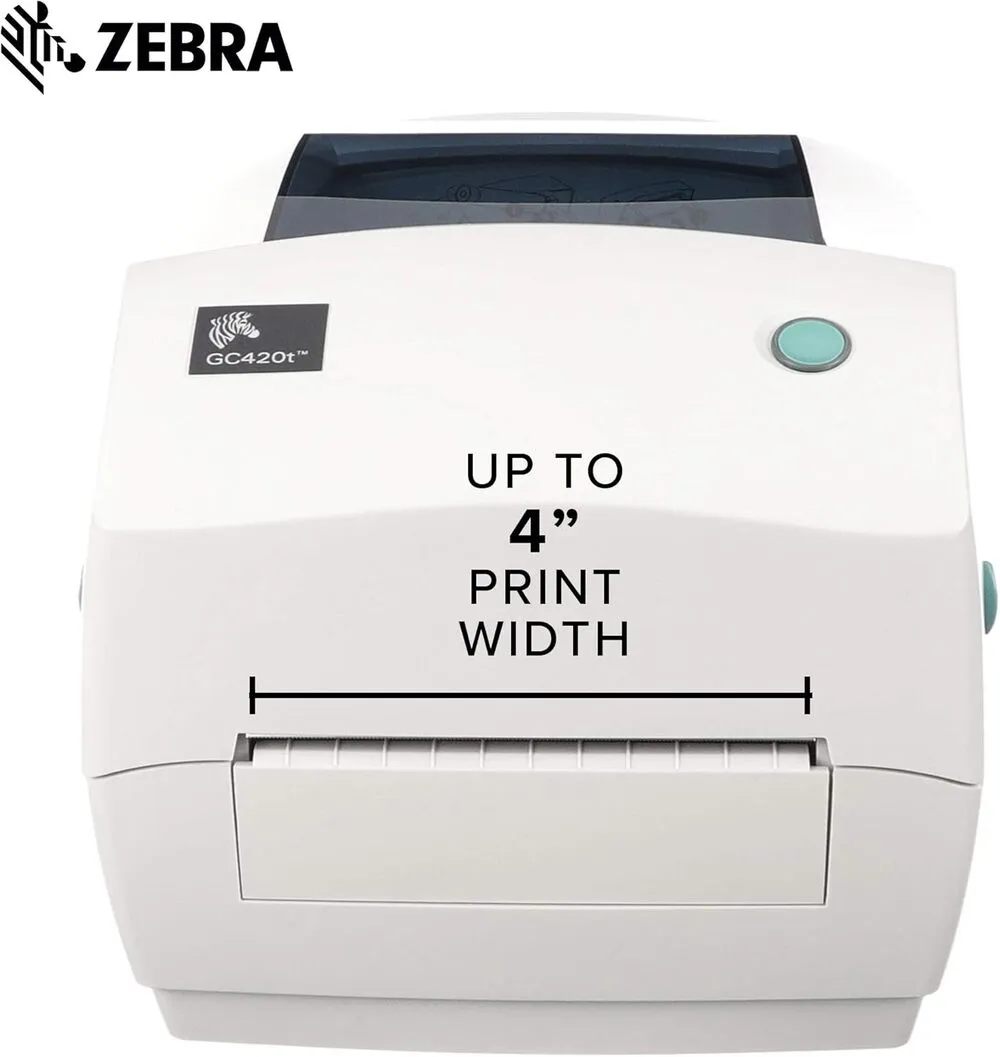

Maximum Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 4 inches per second |

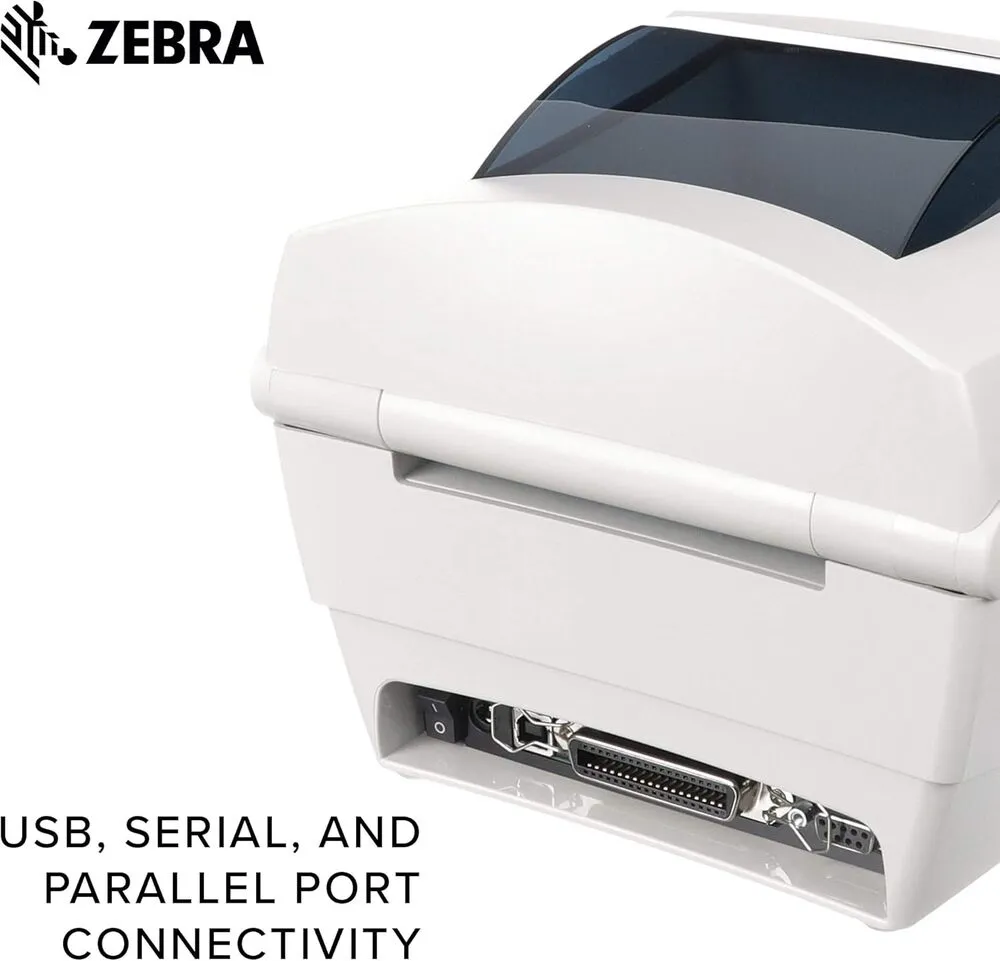

Connectivity | USB 2.0, Serial (RS-232) |
Memory | 8 MB SDRAM, 4 MB Flash |
Supported Media Types | Continuous, die-cut, black mark, fan-fold, tags |
Label Roll Capacity | Up to 5 inches outer diameter |
Programming Language | EPL & ZPL |
Power Supply | External 100-240 VAC, 50-60Hz |

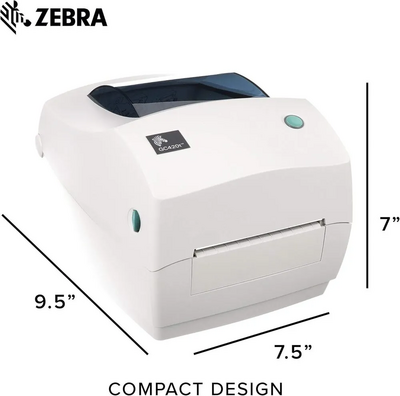

Dimensions (W x D x H) | 7.6 in x 8.0 in x 6.7 in (193 mm x 203 mm x 170 mm) |
Weight | Approx. 3.6 lbs (1.63 kg) |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Discontinued | Yes |
Images
Key Advantages
- Compact and robust design ideal for office spaces with moderate print volumes.
- Supports both thermal transfer and direct thermal printing for versatile label production.
- Easy integration with USB and serial connectivity options.
- Utilizes Zebra’s widely adopted EPL and ZPL printer languages for flexible programming.
- Supports a variety of label media types enhancing application scope.
- Relatively low total cost of ownership with simple maintenance requirements.
Limitations
- Print resolution limited to 203 dpi, less suitable for high-resolution image labels.
- Slower print speeds compared to industrial-grade printers, may not fit high-volume needs.
- Limited built-in memory restricting complex label formatting or large label formats.
- Lacks wireless connectivity options, requiring wired connections only.
- Accessory ecosystem smaller compared to higher-end Zebra printers.
- May require frequent media loading depending on volume, less ideal for continuous print runs.
FAQ
What printing technology does the Zebra GC420-100510-000 use?
The Zebra GC420-100510-000 supports both thermal transfer and direct thermal printing technologies for versatile label printing.
What connectivity options are available for the GC420-100510-000?
This model provides USB and serial port connectivity to interface with computers and other devices.
Is the Zebra GC420-100510-000 still supported by Zebra?
No, the GC420-100510-000 has been discontinued and is no longer actively supported or produced.
What resolution does the printer support?
It supports a print resolution of 203 dots per inch (dpi).
Can the printer handle various label types?
Yes, it supports continuous, die-cut, and black mark labels for different printing requirements.
What programming languages are compatible with this printer?
The printer uses Zebra’s EPL and ZPL programming languages.
What is the maximum print width of the GC420 series?
The maximum print width typically supported is up to 4.09 inches (104 mm).
