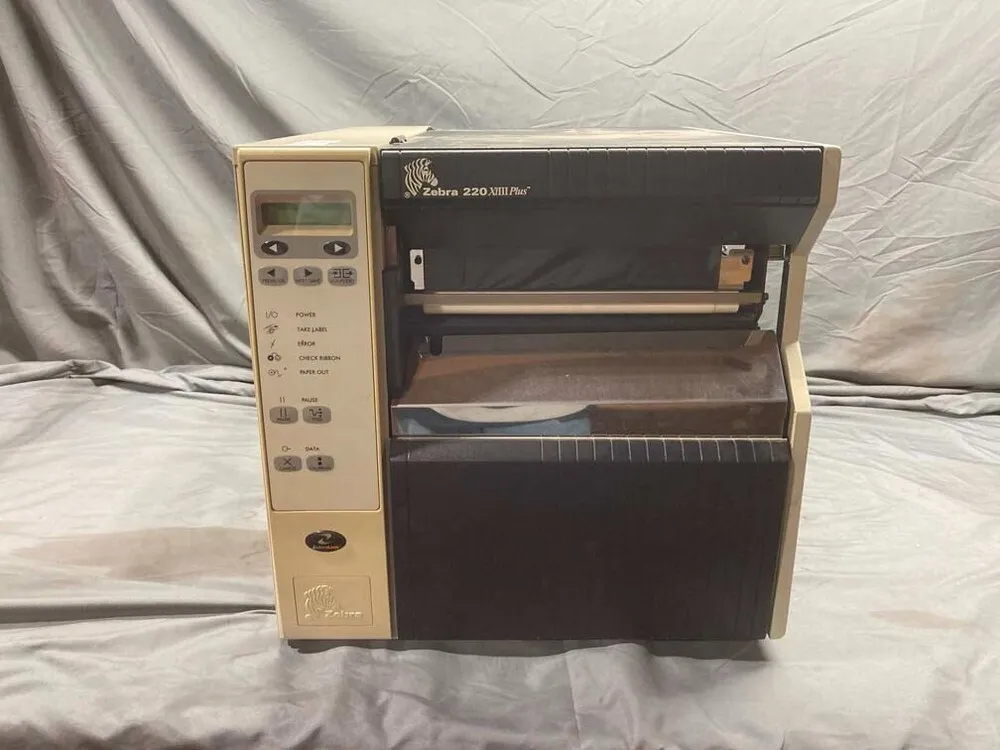

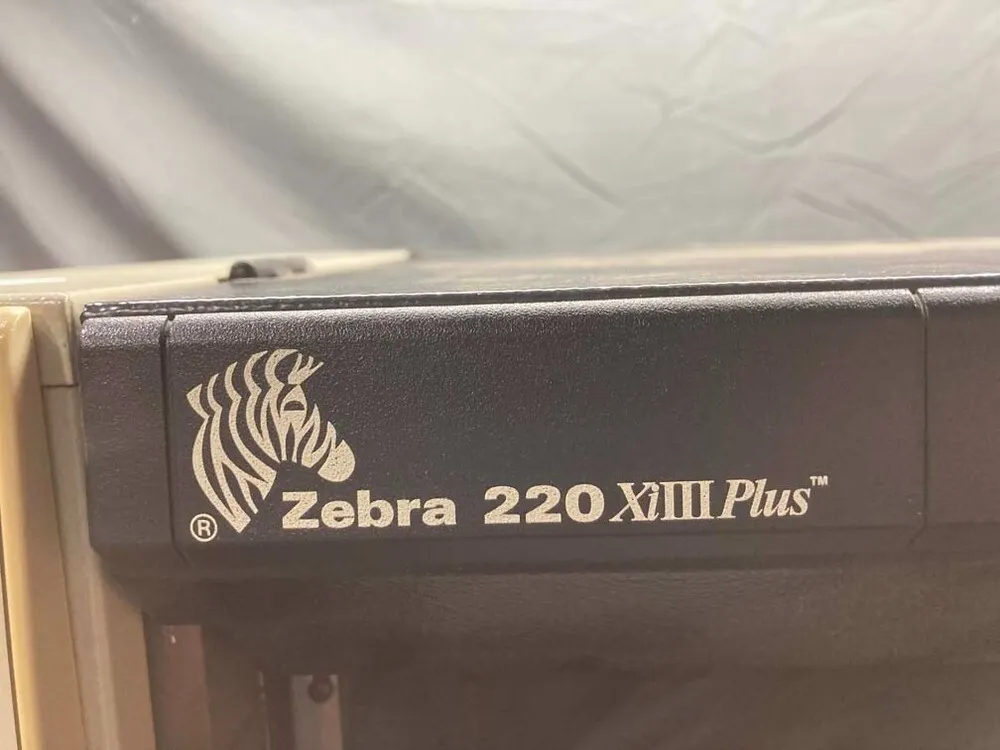

Zebra 220XiIII Plus
Brand | Zebra 2007 |
Model | 223-701-00000, Ethernet Network |
Released Year | 2007 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra 220XiIII Plus is a high-performance industrial label printer engineered for demanding printing environments. It supports direct thermal and thermal transfer printing modes, with a maximum print width up to 4.09 inches and print speed up to 14 inches per second. The printer is equipped with a 32-bit processor and memory configurations that include 8MB SDRAM and 4MB Flash memory for efficient data handling. Connectivity includes an integrated Ethernet network interface supporting 10/100 Mbps for seamless integration into enterprise networks. The printer uses various media types, including continuous, die-cut, black mark, and fanfold labels, accommodating diverse application requirements. Additionally, it features rugged metal construction for durability and reliable operation in industrial settings.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 8MB SDRAM, 4MB Flash |
MPN | 223-701-00000, Ethernet Network |
Supported Paper Size | Max Label Width: 8.8" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Printer Type | Industrial thermal transfer and direct thermal printer |
Technology | Thermal |
Maximum Resolution | 300 x 300 DPI |
Model | 220XiIII Plus |
Connectivity | 10/100 Mbps Ethernet; Serial RS-232; Parallel |
Features | Networkable, Peel, Rewind |
Black Print Speed | 6 ips |
Country/Region of Manufacture | United States |
Product Line | Zebra |
UPC | Does not apply |
Print Width | 4.09 inches (104 mm) |
Print Speed | Up to 14 inches/second (356 mm/s) |
Processor | 32-bit RISC processor |
Media Types Supported | Continuous, die-cut, black mark, fanfold labels |
Media Width | 1 inch to 4.5 inches (25.4 mm to 114 mm) |
Media Thickness | 0.0025 inches to 0.01 inches |
Ribbon Types | Wax, wax/resin, resin ribbons |
Resolution | 203 dpi (8 dots/mm) |
Dimensions | 16.3"W x 14.5"D x 11"H (414 mm x 368 mm x 279 mm) |
Weight | Approximately 33 pounds (15 kg) |
Power Supply | External universal switching power supply |
Operating Temperature | 40°F to 104°F (5°C to 40°C) |
User Interface | LED indicators, front panel buttons |
Images
Key Advantages
The Zebra 220XiIII Plus offers robust industrial design ensuring longevity and durability under heavy usage. Its high print speed of up to 14 inches per second enhances productivity for large-scale label printing tasks. The wide print width of up to 4.09 inches accommodates a variety of label sizes. Ethernet connectivity allows for easy integration in networked office environments, promoting efficient workflow. The excellent media compatibility supports various label types and sizes, providing flexible application options. The printer’s advanced processor and memory configuration enable smooth and high-quality print output even in complex labeling scenarios.
Limitations
The printer’s size and weight might limit its suitability for space-constrained environments. It requires external power supply and may generate moderate noise during operation, which could be a concern in quiet office spaces. The 4MB Flash memory might be limited for storing very large or complex fonts and graphics. Support for newer printing protocols and wireless connectivity options is lacking compared to modern printers. Replacement parts and consumables may be harder to source due to the model’s age. Lastly, setup and driver installation may require legacy support that is less straightforward on current operating systems.
FAQ
What printing technologies does the Zebra 220XiIII Plus support?
The printer supports direct thermal and thermal transfer printing technologies.
What is the maximum print speed of the 220XiIII Plus?
It can print at speeds up to 14 inches per second.
Does this model support network connectivity?
Yes, it includes an Ethernet 10/100 Mbps network interface.
What media types are compatible with the printer?
It supports continuous, die-cut, black mark, and fanfold label media types.
Is the 220XiIII Plus still in production?
No, this model has been discontinued.
What memory capacity does the printer have?
The printer includes 8MB SDRAM and 4MB Flash memory.
What keyboards and user interface does the printer offer?
This model typically uses control panel buttons and LED indicators for operation without an integrated keyboard.
