Zebra 220xi iii plus
Brand | Zebra 2014 |
Model | 220xi iii plus |
Released Year | 2014 |
Type | Printers |
Series | Xi |
Status | Active |
Quick view
Overview
The Zebra 220Xi III Plus is an industrial-grade barcode label printer designed for high-volume printing environments. It features a metal print mechanism and a high-resolution printhead capable of 203 dpi or optional 300 dpi, delivering crisp and durable barcodes and labels.
Equipped with a robust processor and memory configuration, it ensures fast and efficient print job processing even in demanding industrial settings. Connectivity options include serial, USB, and parallel interfaces, with optional Ethernet support for network integration.
This printer supports a wide range of media types and sizes, accommodating various label and tag applications. Its advanced Ribbon Save technology extends ribbon life and reduces operating costs. The firmware supports multiple printer languages including Zebra’s ZPL and EPL, facilitating compatibility with existing systems.
The 220Xi III Plus includes user-friendly features such as an easy-to-read LCD control panel and a modular design for straightforward maintenance and upgrades. Its durable construction ensures reliability in harsh environments typical of manufacturing and warehousing.
Specifications
Type | Label Printer |
Input Type | Monochrome |
Technology | Thermal |
Output Type | Black & White |
Maximum Resolution | 203 x 203 DPI |
Model | Zebra 220Xi III Plus |
Connectivity | Serial, Parallel, USB; optional Ethernet |

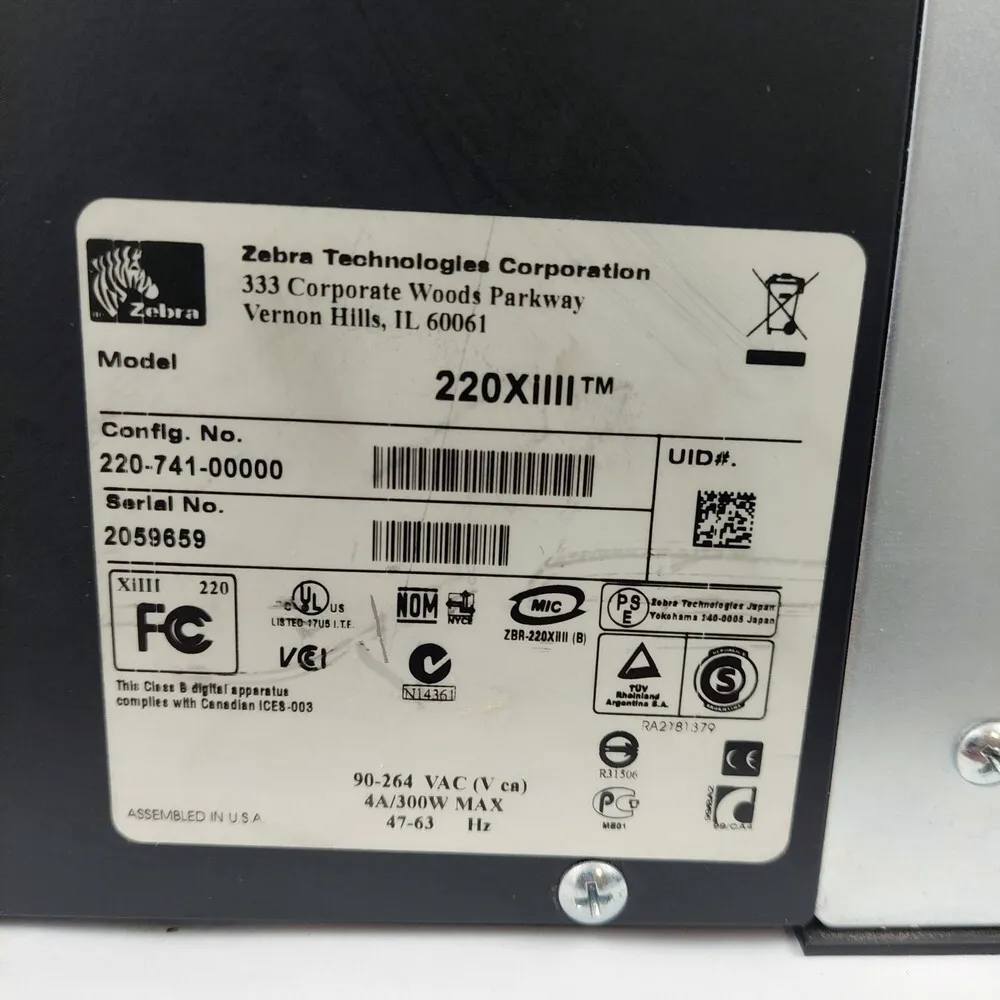

MPN | 220-741-00000 |
Features | Networkable |
Product Line | Zebra Xi |
Print Technology | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) standard; optional 300 dpi (12 dots/mm) |
Max Print Width | 4.09 inches (104 mm) |
Max Print Speed | up to 14 inches per second (356 mm/s) at 203 dpi |
Processor | 32-bit RISC processor |
Memory | 16 MB SDRAM, 8 MB Flash |

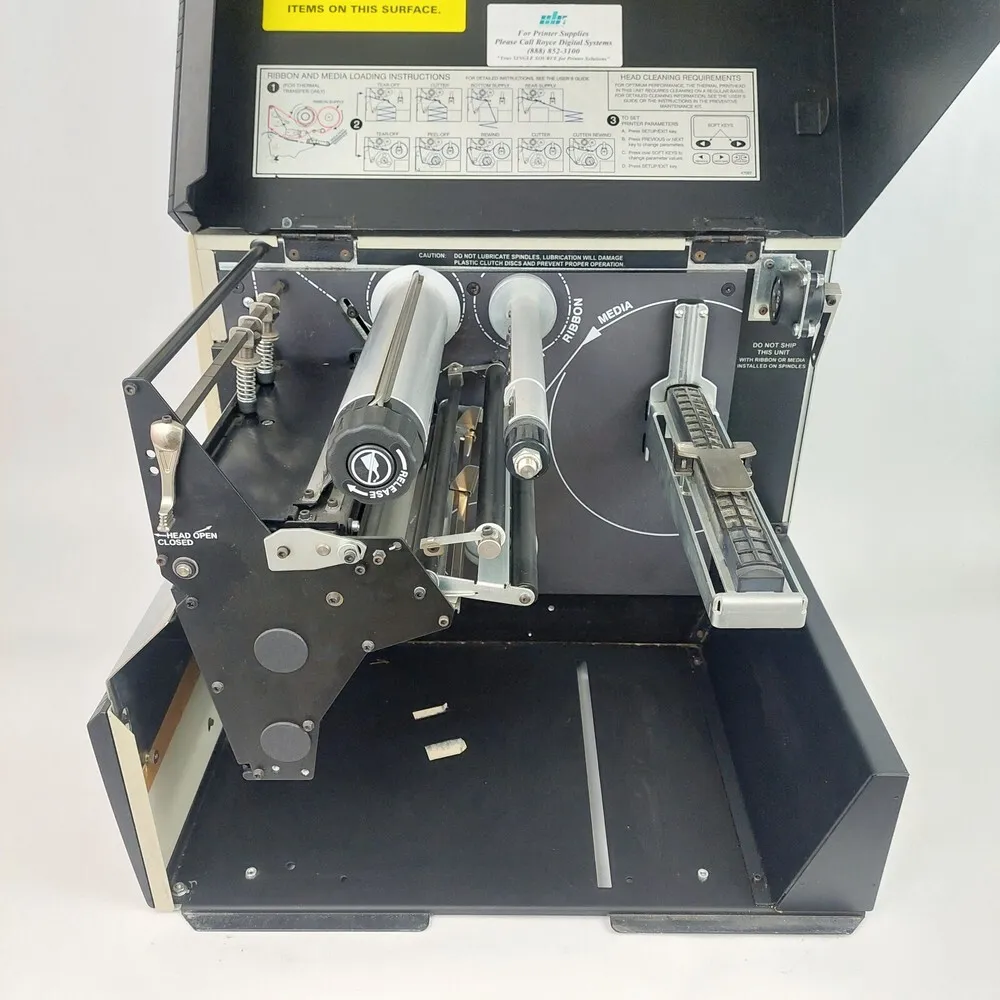

Media Types | Roll-fed or fan-fold labels, tags, continuous media |
Media Width | 0.79 inch to 4.65 inches (20 mm to 118 mm) |
Media Thickness | 0.003 inches to 0.01 inches (0.08 mm to 0.25 mm) |
Label Roll Max Diameter | 8.0 inches (203 mm) |
Ribbon Width | 1.6 inches to 4.33 inches (40 mm to 110 mm) |
Printer Languages | ZPL, ZPL II, EPL |

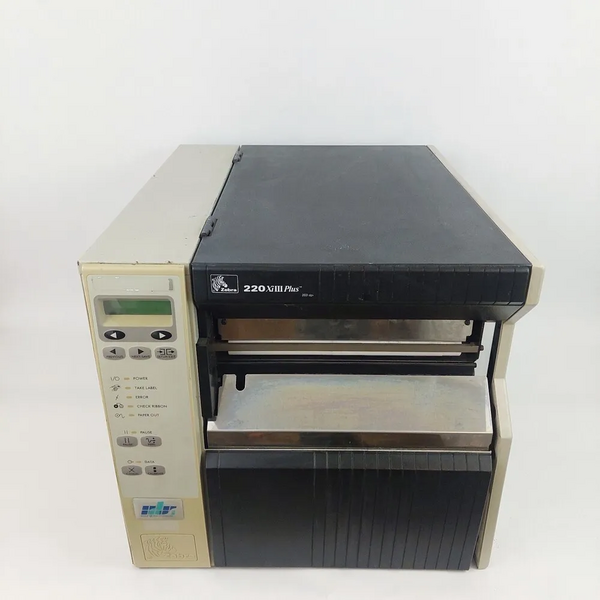

Display | LCD panel with 2 lines x 16 characters |
Dimensions | 14.5 in (L) x 10.1 in (W) x 15.5 in (H) / 368 mm x 257 mm x 393 mm |
Weight | approximately 39 lbs (17.7 kg) |
Power Supply | Internal, 100-240 VAC auto-switching |
Images
Key Advantages
The Zebra 220Xi III Plus offers high-resolution printing with 203 or 300 dpi options, ensuring high-quality label output.
Its industrial metal frame enhances durability and longevity even in challenging warehouse or factory environments.
Flexible connectivity options allow easy integration into existing networks and systems.
The printer supports a broad range of media types and sizes, providing versatility for various labeling needs.
Advanced ribbon saving technology minimizes consumable costs and environmental impact.
Modular design and user-friendly controls facilitate maintenance, reducing downtime and operational complexity.
Limitations
Higher initial cost compared to desktop models may be a barrier for smaller businesses.
The printer is relatively large and heavy, limiting portability and requiring dedicated space.
Lack of native wireless connectivity means network setup may require additional hardware.
Firmware updates and configuration require specific technical knowledge or professional support.
Consumables and maintenance parts can be expensive if not sourced through authorized channels.
The printer’s LCD interface is limited in functionality compared to newer touchscreen models.
FAQ
What type of printing resolution does the Zebra 220Xi III Plus support?
It supports 203 dpi as standard, with an optional 300 dpi printhead for higher resolution requirements.
What connectivity options are available on the 220Xi III Plus?
Standard connectivity includes USB, serial, and parallel ports. Ethernet is available as an optional network interface.
Can the Zebra 220Xi III Plus print on different label materials?
Yes, it supports a wide variety of media types including paper, synthetic labels, and tags in multiple sizes.
Is the 220Xi III Plus suitable for high-volume industrial printing?
Yes, it is designed specifically for high-volume printing in industrial environments with durable construction.
Does this printer support remote management?
With optional Ethernet connectivity and Zebra's Link-OS platform, limited remote management is possible, but basic models lack built-in wireless functions.
What printer languages does the Zebra 220Xi III Plus use?
It primarily uses Zebra Programming Language (ZPL) and supports EPL for legacy compatibility.
Is the Zebra 220Xi III Plus still available for purchase?
The 220Xi III Plus model is currently not discontinued and can still be found through various suppliers and resellers.
