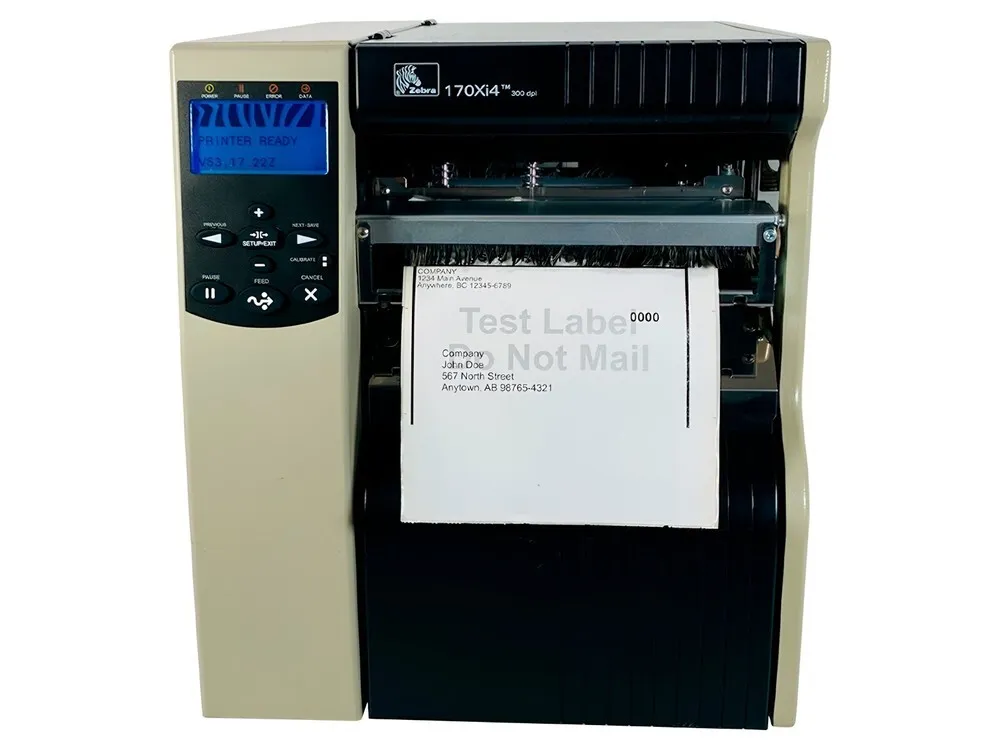

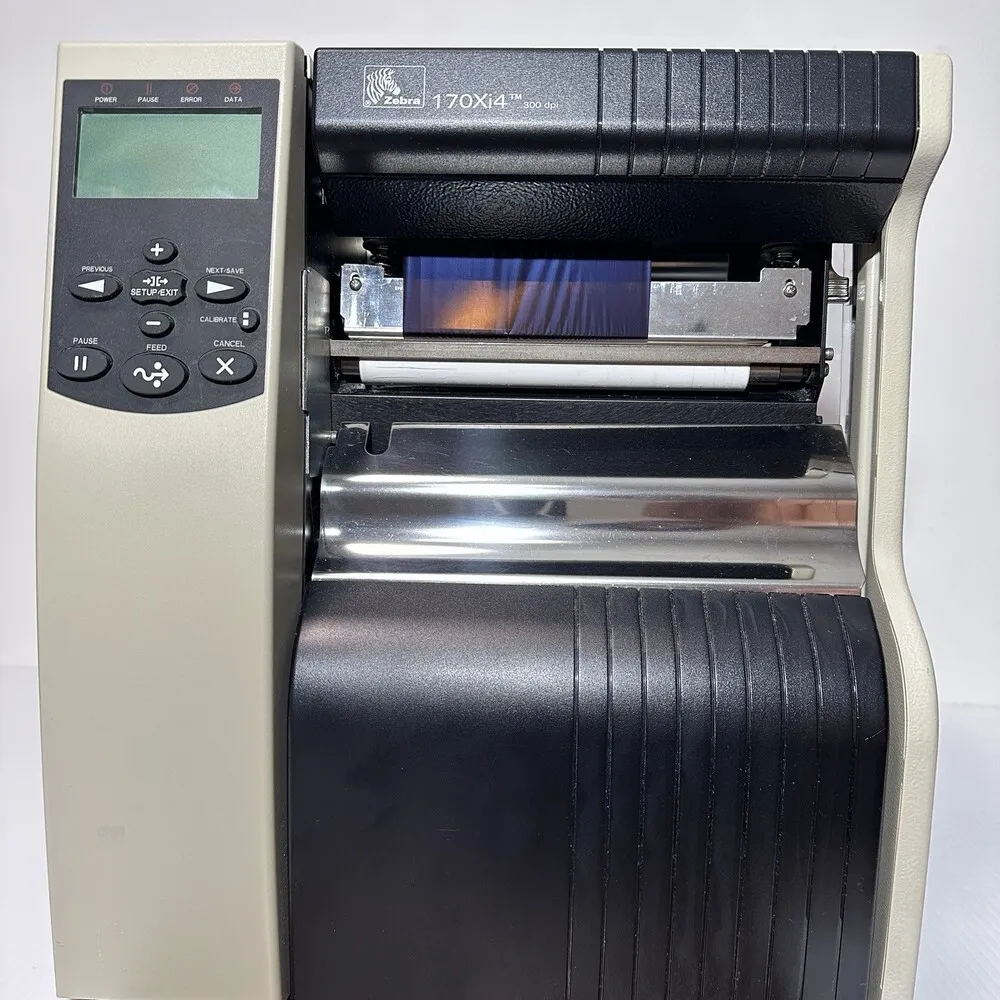

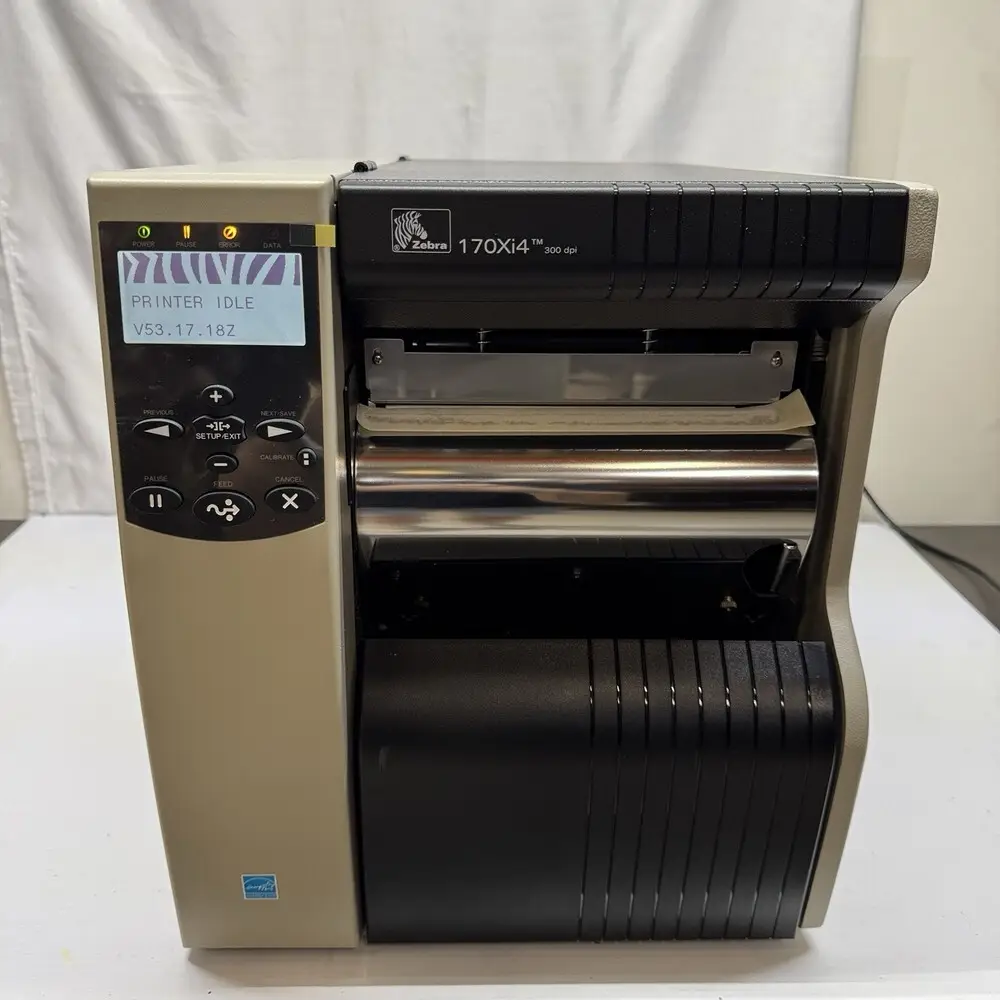

Zebra 170Xi4
Brand | Zebra 2013 |
Model | 170Xi4 |
Released Year | 2013 |
Type | Printers |
Series | Xi |
Status | Discontinued |
Quick view
Overview
The Zebra 170Xi4 is an industrial-grade thermal transfer printer designed for high-volume, high-quality barcode and label printing. Utilizing proven thermal transfer technology, it boasts a durable print engine suitable for demanding industrial and manufacturing environments. Its print resolution options include 203, 300, and 600 dpi, allowing for precise and crisp printing of complex barcodes and graphics. The printer supports print widths up to 4.09 inches (104 mm) and has a print speed up to 14 inches per second, making it efficient for large-scale operations. Connectivity options include parallel, serial, USB, and optional Ethernet interfaces, enhancing integration flexibility. The robust metal construction ensures longevity and reliability in harsh working conditions.
Specifications
UPC | 0783555102251 |
Type | Label Printer |
Technology | Thermal |
Memory | 32 MB SDRAM, 8 MB Flash |
Output Type | Black & White |
Maximum Resolution | 300DPI |
Model | 170Xi4 |
Connectivity | Parallel, Serial RS-232, USB 2.0, optional Ethernet |
MPN | DOES NOT APPLY |
Black Print Speed | 12 ppm |
California Prop 65 Warning | Yes |
Product Line | Zebra Xi |
Ean | 0783555102251 |
Depth | 20.4in |
Height | 15.5"" |
Width | 13.3in |
Custom Bundle | No |
Printer Type | Industrial thermal transfer and direct thermal printer |
Print Resolution | 203 dpi (8 dots/mm), 300 dpi (12 dots/mm), 600 dpi (24 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Maximum Print Speed | Up to 14 inches per second (356 mm/s) at 203 dpi |
Processor | 32-bit RISC processor |
Media Types | Labels, tags, continuous media, receipt paper |
Media Width | 0.79 inches to 4.65 inches (20 mm to 118 mm) |
Media Thickness | 0.0025 inches to 0.01 inches (0.0635 mm to 0.254 mm) |
Media Roll Size | Core diameter 1 inch to 3 inches (25.4 mm to 76 mm) |

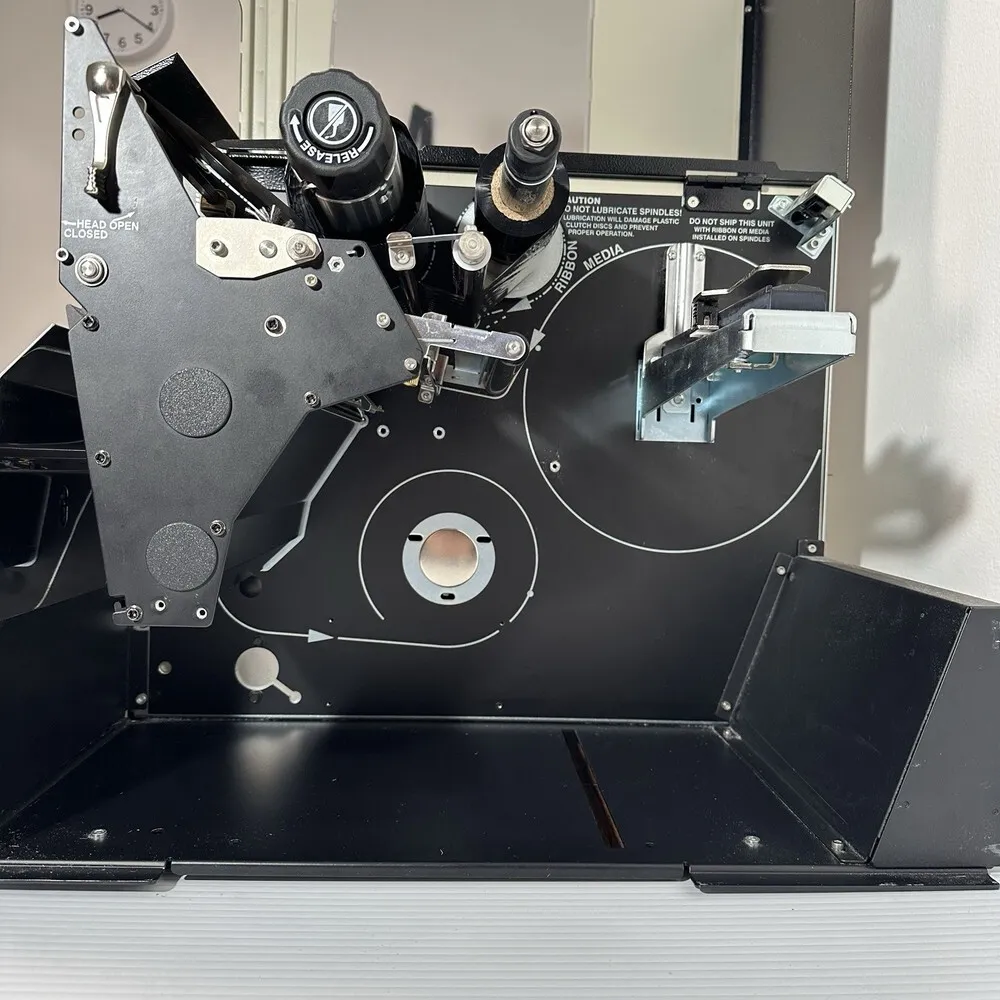

Ribbon Type | Wax, wax/resin, resin ribbons; all with a maximum length of 450 meters |
Display | 16-character LCD display |
Dimensions | 14.5" W x 17.5" D x 13.8" H (368 mm x 445 mm x 350 mm) |
Weight | Approximately 41 lbs (18.6 kg) |
Power Supply | Auto-sensing 90-132 VAC or 180-264 VAC, 47-63 Hz |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Warranty | One year limited warranty |

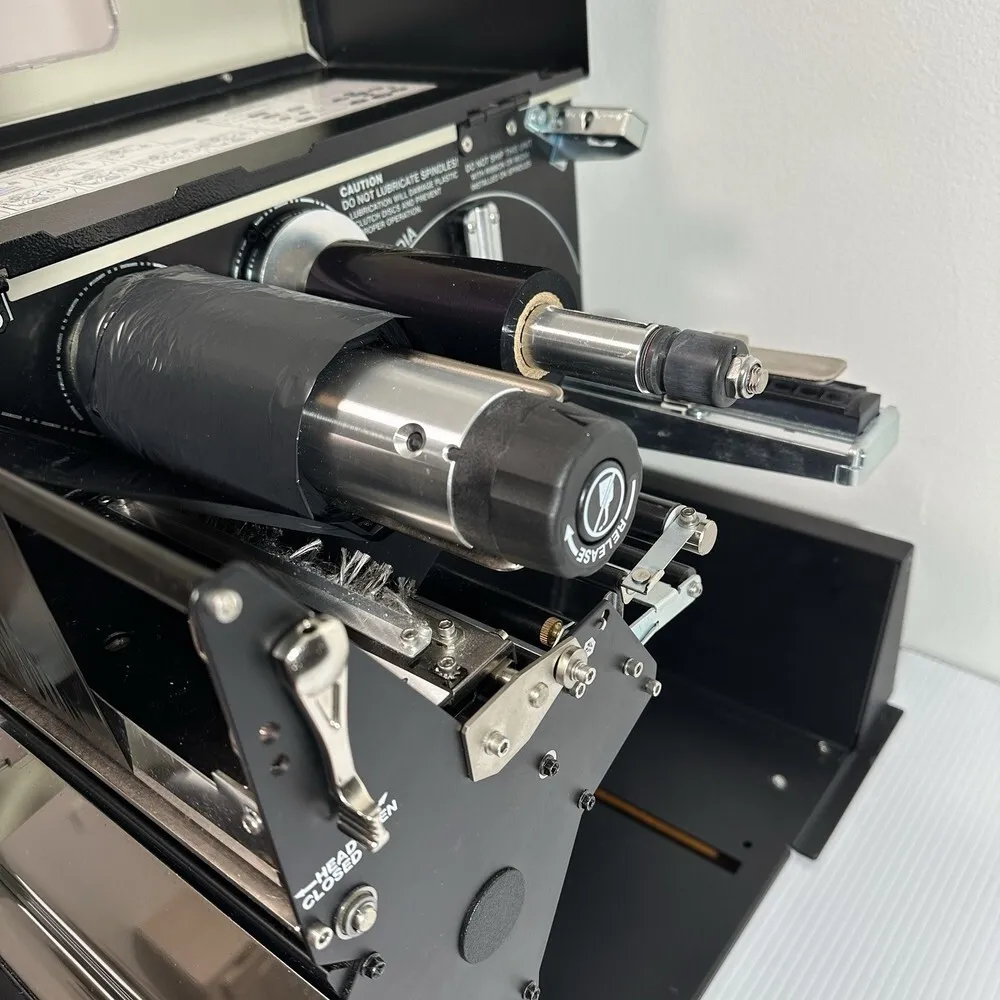

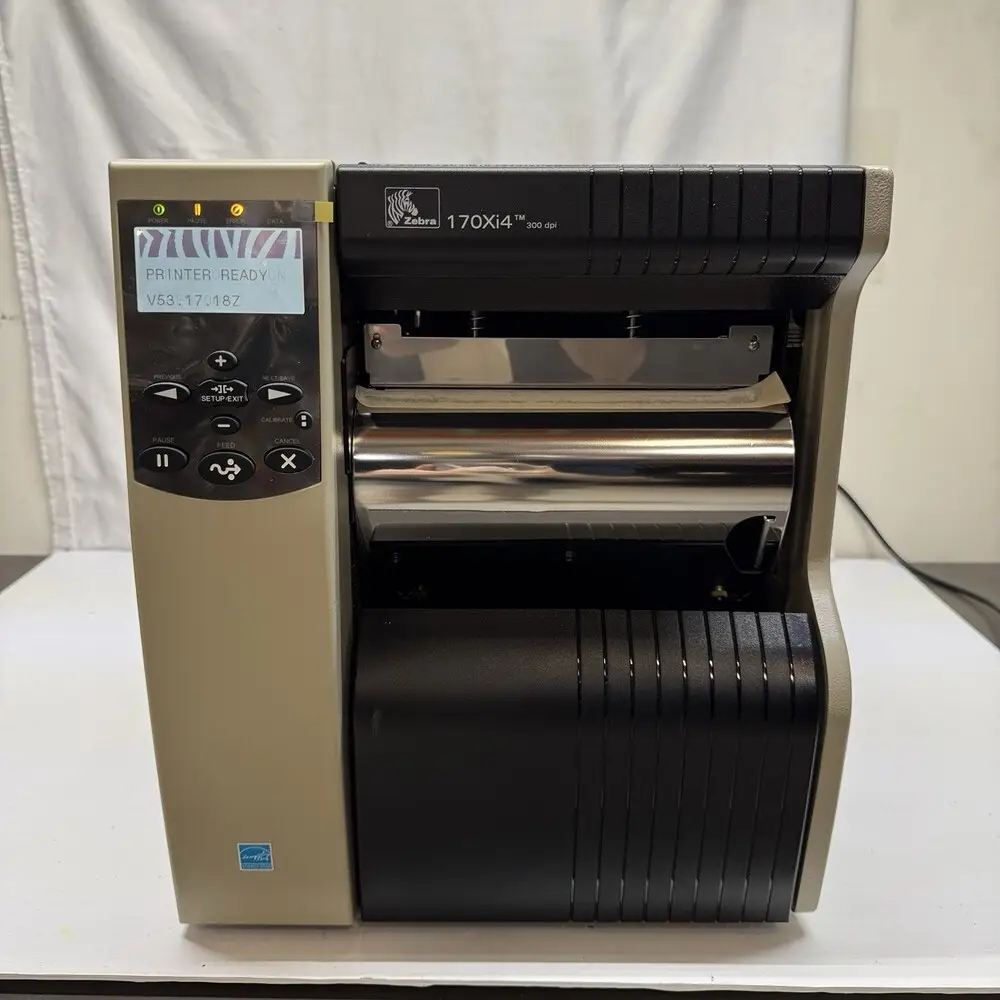

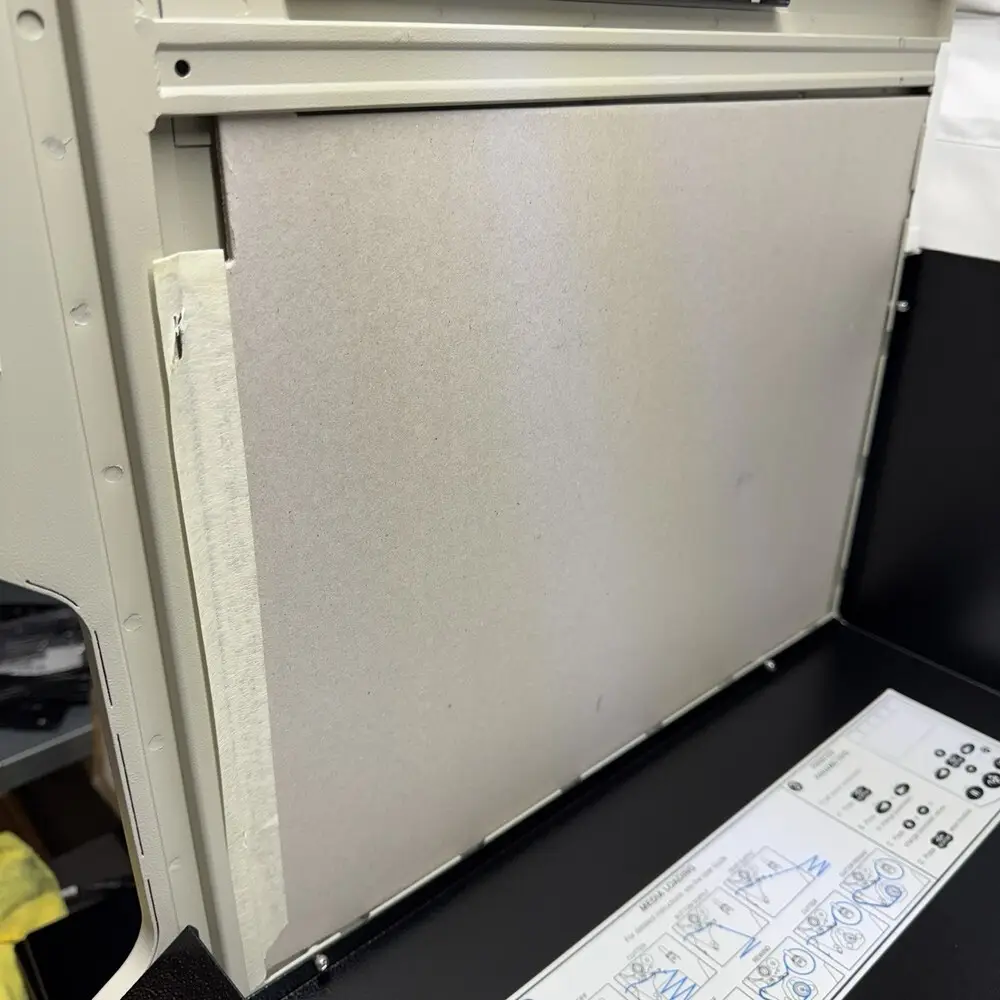

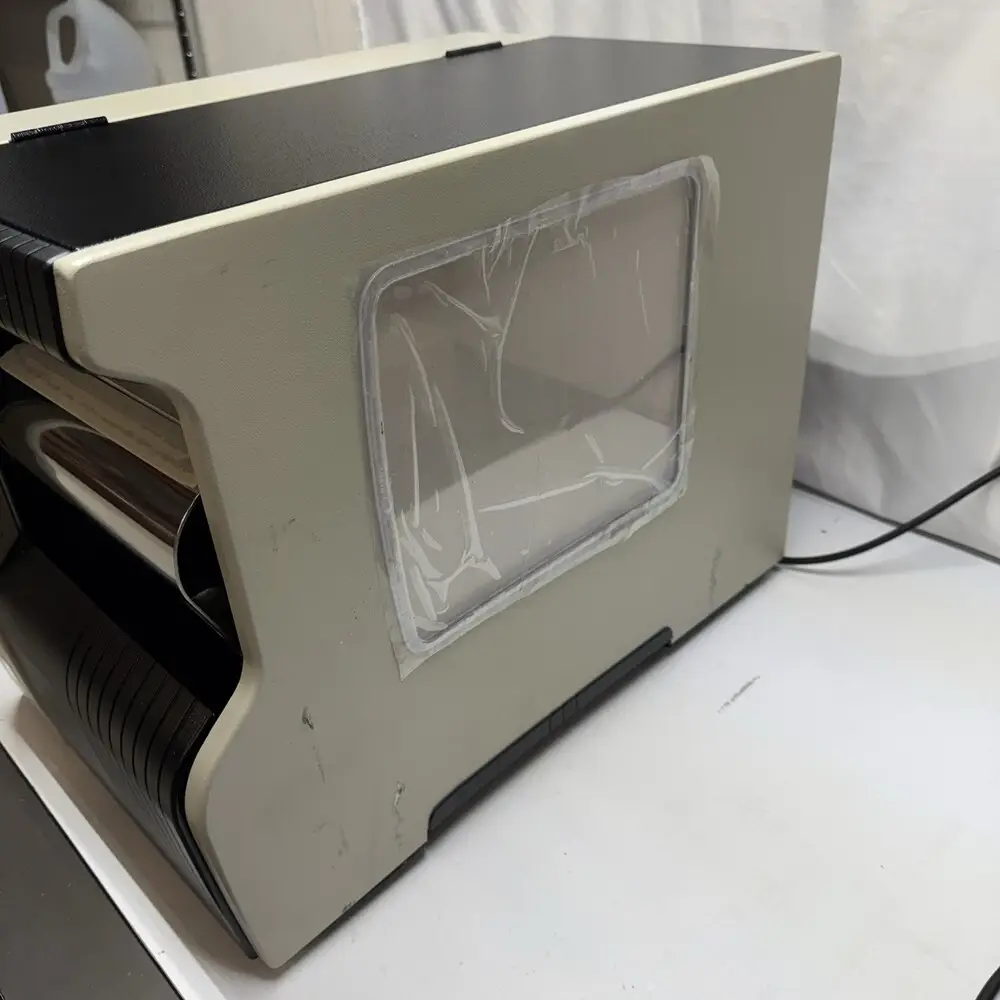

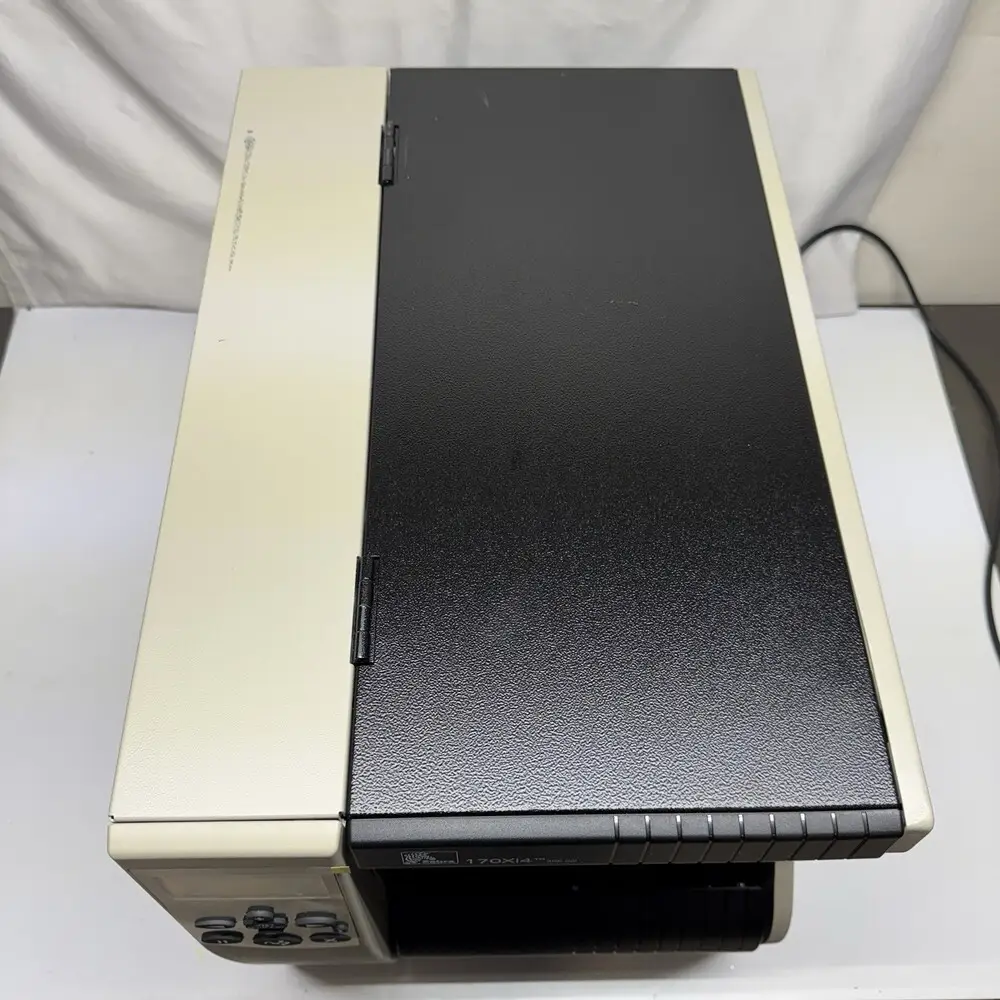

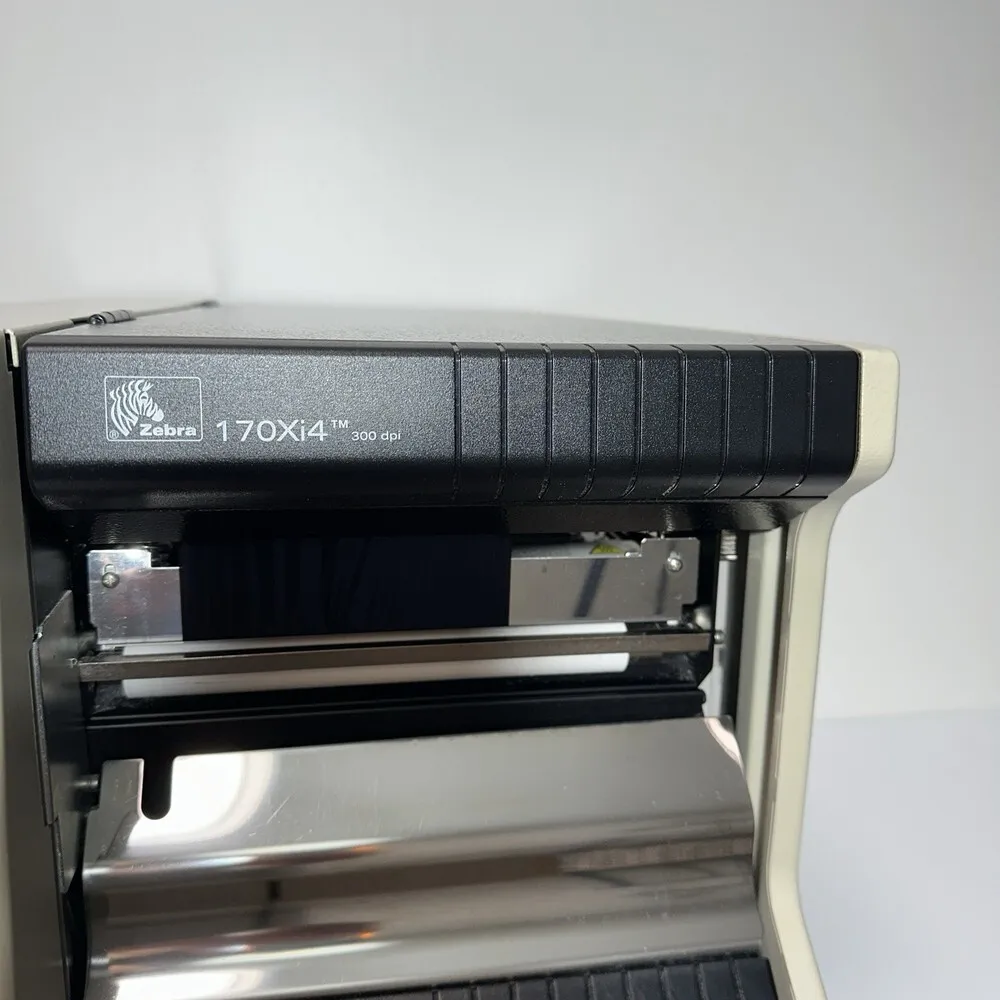

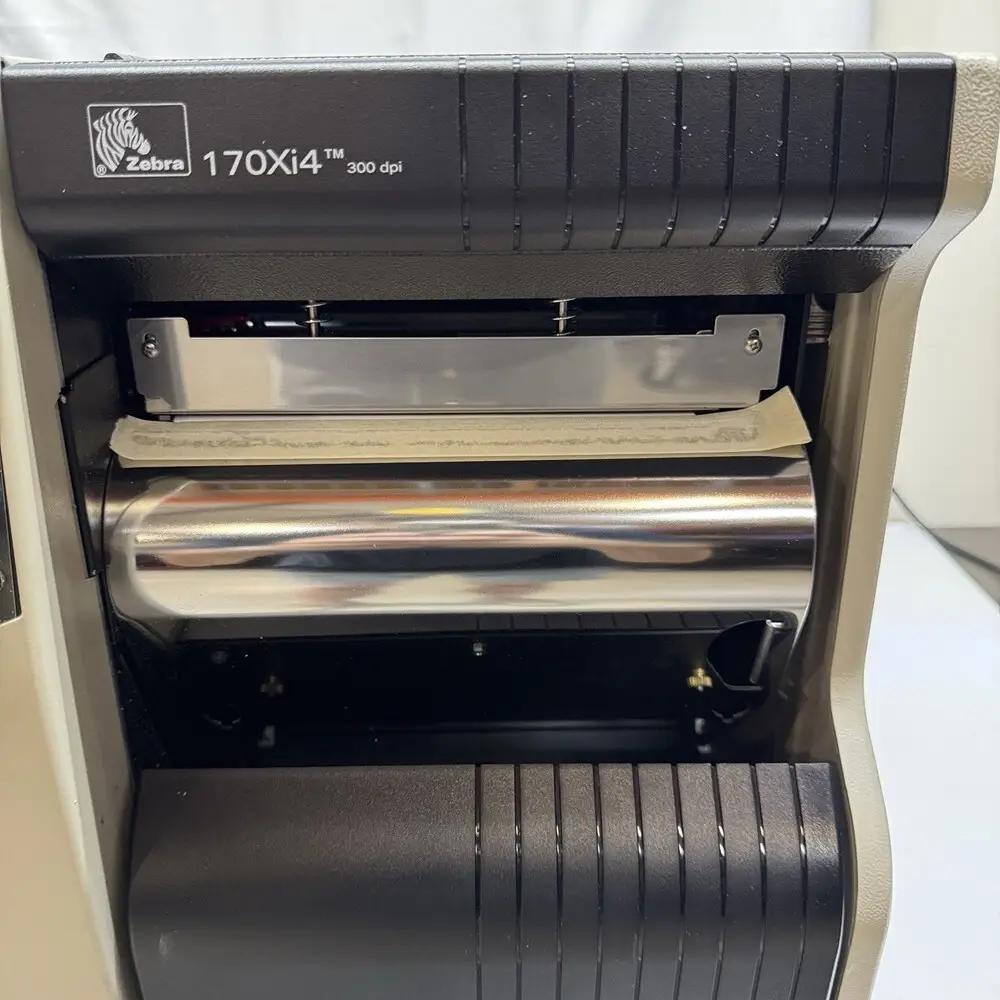

Images
Key Advantages
The 170Xi4 offers outstanding label durability due to its rugged design and high-quality printing. With multiple resolution choices, it caters to diverse application requirements from simple labels to detailed graphics. Its high print speed optimizes operational efficiency in industrial settings. Flexible connectivity enables seamless integration into complex workflows. The printer's easy-to-use media handling and user-friendly interface reduce downtime and maintenance efforts. Additionally, it supports a wide range of media types, increasing versatility for different labeling needs.
Limitations
Despite its robustness, the 170Xi4's industrial size makes it less suited for small office environments with limited space. The upfront cost and maintenance might be higher compared to desktop printers. It requires trained operators for optimal setup and troubleshooting. The printer's firmware updates may need manual intervention, potentially complicating compatibility with newer software. Additionally, the 170Xi4 does not support wireless connectivity natively, limiting modern network setups. Lastly, the availability of spare parts may decrease due to model age, affecting long-term maintenance.
FAQ
What printing technology does the Zebra 170Xi4 use?
The Zebra 170Xi4 uses thermal transfer printing technology with an optional direct thermal mode.
What are the available print resolutions for the 170Xi4?
It offers print resolutions of 203 dpi, 300 dpi, and 600 dpi depending on the configuration.
Can the 170Xi4 connect via Ethernet?
Yes, the printer supports optional Ethernet connectivity for network integration.
Is the Zebra 170Xi4 suitable for high-volume printing?
Yes, it is designed for industrial environments requiring high-volume, continuous printing.
Does the 170Xi4 support wireless printing?
No, it does not natively support wireless connectivity.
Is the Zebra 170Xi4 still available for purchase?
No, the Zebra 170Xi4 series has been discontinued.
What types of media can the 170Xi4 handle?
It supports a wide range of media including labels, tags, and continuous stock with various materials and sizes.
