Zebra 140XiII image

Zebra 140XiII

Quick information
Brand Zebra 2005
Model Z140-401-00004
Released Year 2005
Type Printers
Series Xi Series
Status Discontinued
Quick view
Full specs Images

Overview

The Zebra 140XiII is an industrial thermal transfer printer designed for high-volume labeling tasks in demanding environments. It supports resolutions of 203 dpi and offers print speeds up to 6 inches per second, enabling efficient production. The printer features an interchangeable printhead system facilitating easy maintenance and reducing downtime. It supports a wide range of label materials and sizes, making it versatile for various applications. Connectivity options include serial, parallel, and USB interfaces, providing flexible integration into existing workflows. Robust metal construction ensures durability in industrial settings.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 4 MB DRAM, 1 MB Flash
MPN Z140-401-00004
Supported Paper Size 4.09"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Printer Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model 140XiII

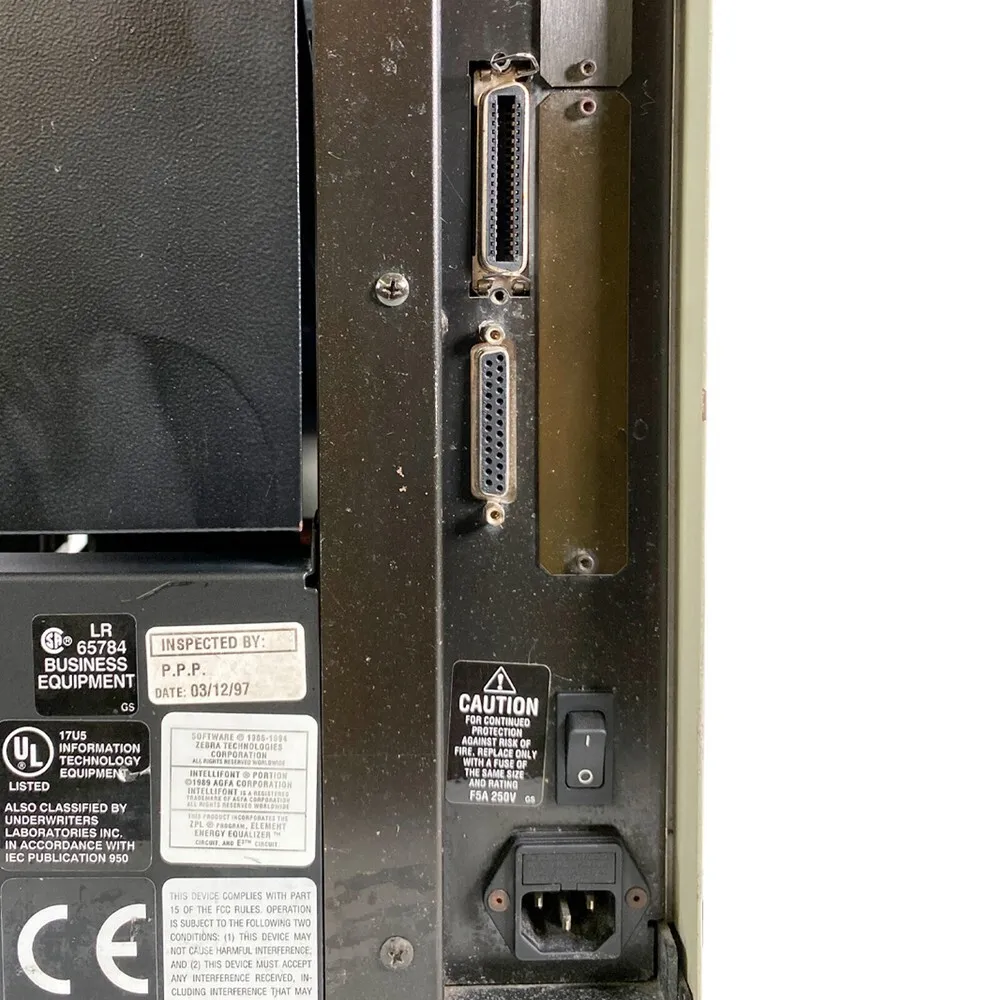

Connectivity Serial RS-232, Parallel, USB
Features Zebra Firmware
Black Print Speed 8 ips
Country/Region of Manufacture United States
Product Line Xi Series
UPC Does not apply
Print Technology Thermal Transfer / Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 4.09 inches (104 mm)
Maximum Print Speed 6 inches per second (152 mm/s)
Media Types Supported Continuous, die-cut, black mark, fan-fold, tags, and receipt paper
Media Width Range 0.79 to 4.65 inches (20 to 118 mm)
Ribbon Type Wax, wax/resin, resin ribbons
Ribbon Width 1.57 to 4.33 inches (40 to 110 mm)
Dimensions (W x H x D) 11.8 x 14.3 x 18.4 inches (300 x 363 x 467 mm)
Weight 40 pounds (18.1 kg)
Construction Heavy-duty metal frame
User Interface LCD display with buttons
Power Requirements 100 – 240 V AC, 50 – 60 Hz
Operating Temperature 41°F to 104°F (5°C to 40°C)
Storage Temperature -40°F to 140°F (-40°C to 60°C)

Key Advantages

The 140XiII offers high-speed, high-quality printing ideal for industrial labeling needs. Its durable design ensures reliable operation in harsh environments. Easy printhead replacement minimizes maintenance efforts and operational interruptions. It supports multiple connectivity options for versatile integration. The printer's ability to handle various label sizes and types makes it adaptable for diverse tasks. Its compatibility with Zebra's advanced firmware enhances printing efficiency and management.

Limitations

The printer lacks native wireless connectivity, limiting modern network integration. Its maximum resolution of 203 dpi may not meet requirements for ultra-high-definition labels. The device is relatively bulky compared to newer compact models. Consumables and parts specific to this model may be harder to source due to its legacy status. Limited advanced user interface options can affect ease of configuration. Energy consumption is higher than modern energy-efficient printer models.

FAQ

The 140XiII supports a variety of media including label stock, tags, and continuous rolls made from paper, polyester, and other synthetic materials compatible with thermal transfer printing.

Yes, the Zebra 140XiII supports both thermal transfer and direct thermal printing modes, allowing flexibility based on application requirements.

Connectivity includes serial (RS-232), parallel, and USB interfaces, enabling integration with different host systems.

Yes, the printer features an easy-to-replace printhead system designed for straightforward maintenance to minimize downtime.

As an older and discontinued model, official support from Zebra is limited; however, some third parties may offer maintenance services.

The maximum print width supported is 4.09 inches (104 mm), suitable for most industrial labeling needs.

When used with appropriate durable media and ribbons, the 140XiII can produce labels resistant to outdoor conditions.
